4040

G-Force II 4040 HC-BD Pressure Washer

25N680

25N680_GForceII_4040_HC-BD_Main 25N680_GForceII_4040_HC-BD_Alt_1 25N680_GForceII_4040_HC-BD_Alt_2 25N680_GForceII_4040_HC-BD_Alt_3 25N680_GForceII_4040_HC-BD_Alt_4
24U625, G-Force II 4040 BDC

4040

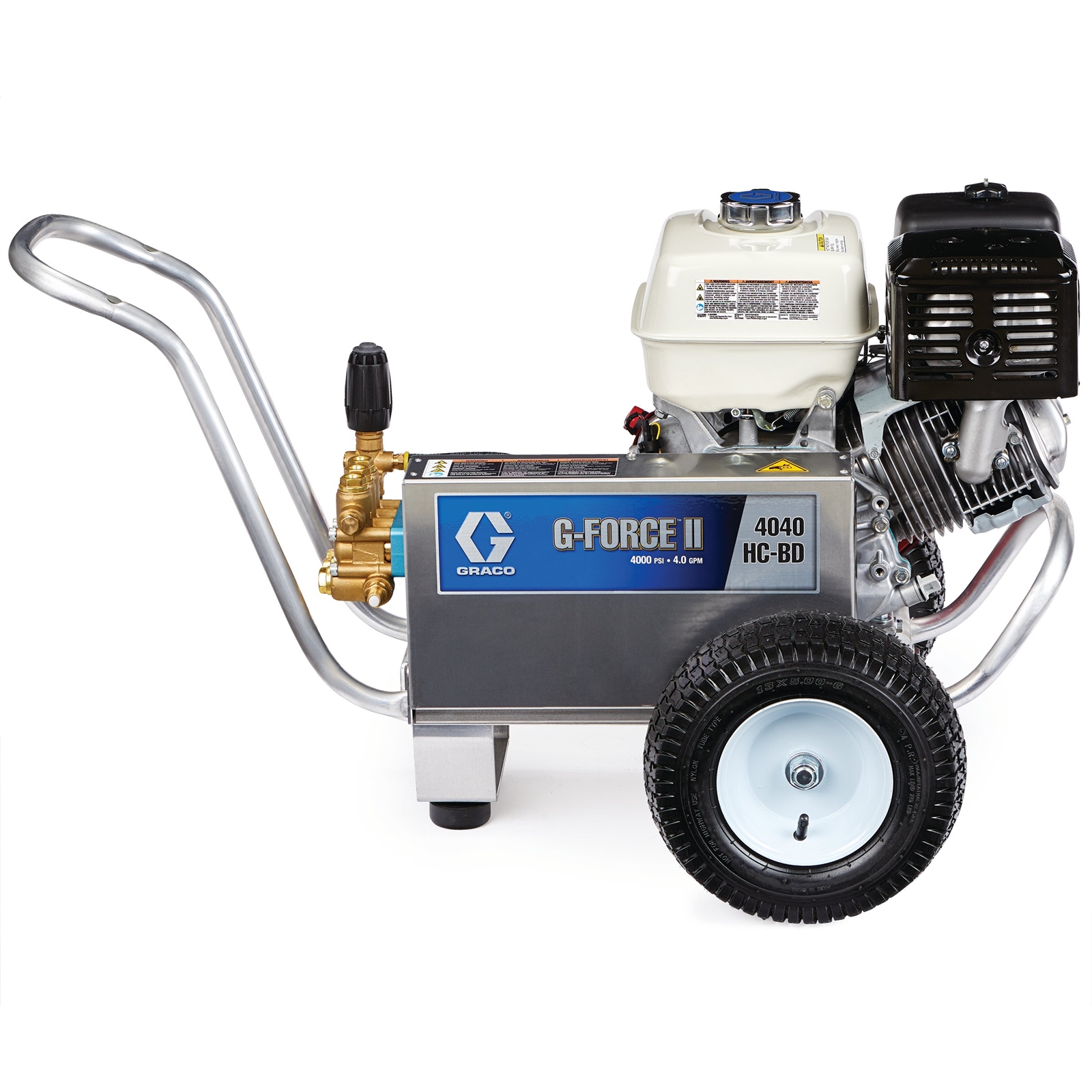

G-Force II 4040 HC-BD Pressure Washer

25N680

Ideal for large commercial or industrial contractors, the G-Force II 4040 HC-BD pressure washer is Graco’s top-of-the-line unit, designed to tackle the toughest cleaning jobs. With a premium CAT water pump and belt-drive performance for tough, all-day cleaning and surface preparation jobs, this pres... More Info

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Ideal for large commercial or industrial contractors, the G-Force II 4040 HC-BD pressure washer is Graco’s top-of-the-line unit, designed to tackle the toughest cleaning jobs. With a premium CAT water pump and belt-drive performance for tough, all-day cleaning and surface preparation jobs, this pressure washer can easily handle the most demanding jobs.
  • Premium CAT Water Pump
    • The most reliable pumps in the industry
    • The most durable, longest-lasting pumps available
    • 2X longer life than other pumps
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Thermal sensor prevents pump from overheating in bypass mode
  • External Pressure Unloader
    • Trouble-free, adjustable pressure
    • Ability to match application requirements
    • Keeps water cooler and prolongs pump life
  • EZ Start Pressure Relief For Easier Starting
    • Allows water bypass pump to eliminate pressure build-up in the system
    • No need to pull the gun trigger while starting the washer
    • Standard Graco feature
  • 100% Heavy-Gauge Aluminum Frames
    • Up to 40% lighter than steel frames
    • Corrosion resistant to water and chemicals
    • Standard on all Graco models
    • Lifetime Warranty
  • Belt Drive
    • Lower RPM (typically 900-1700 rpm) resulting in cooler operating temperature and longer pump life
    • Pump is mounted away from the engine and has a crankcase with more oil capacity
    • Pump vibrates less and suffers less pump fatigue

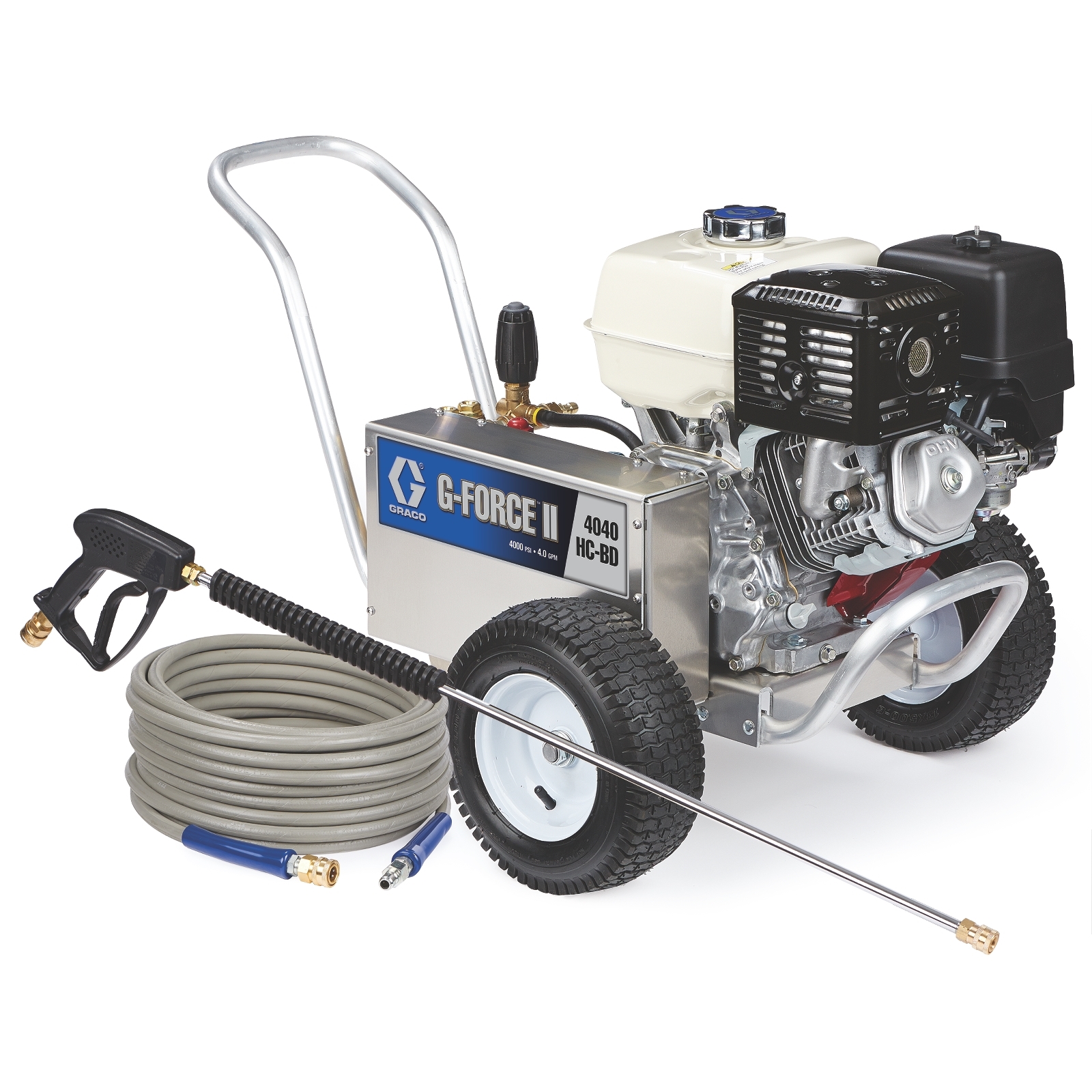

25N680_GForceII_4040_HC-BD_Main

Specifications

Technical Specifications

Convert to Metric
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (qt) 6.9
Hose Inlet Diameter (in) 3/8
Hose Length (ft) 50
Includes 36 in Wand with Quick-Connect, Gun, (4) Quick-Connect Spray Tips, Non-Marking Hose, Mesh Inlet Filter, Chemical Injector Kit
Maximum Flow Rate (GPM) 4
Maximum Fluid Pressure (psi) 4000
Maximum Operating Temperature (°F) 145
Motor Drive Type Belt Drive
Pump Brand CAT
Pump Type Triplex Plunger
Recommended Weekly Usage (Hours) 30+
Type Gas Pressure Washer
Weight (lb) 132
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (L) 6.5
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Length (cm) 1524
Hose Length (m) 15.24
Hose Length (mm) 15240
Includes 36 in Wand with Quick-Connect, Gun, (4) Quick-Connect Spray Tips, Non-Marking Hose, Mesh Inlet Filter, Chemical Injector Kit
Maximum Flow Rate (L/min) 15.14
Maximum Fluid Pressure (bar) 275.8
Maximum Fluid Pressure (kPa) 27580
Maximum Operating Temperature (°C) 63
Motor Drive Type Belt Drive
Pump Brand CAT
Pump Type Triplex Plunger
Recommended Weekly Usage (Hours) 30+
Type Gas Pressure Washer
Weight (kg) 60
