GX 21

GX 21 Electric Airless Sprayer, 230V, ANZ

Part Number: 17H219

Available for purchase in: India, Korea, Mainland China, China Hong Kong SAR, China Taiwan, Southeast Asia

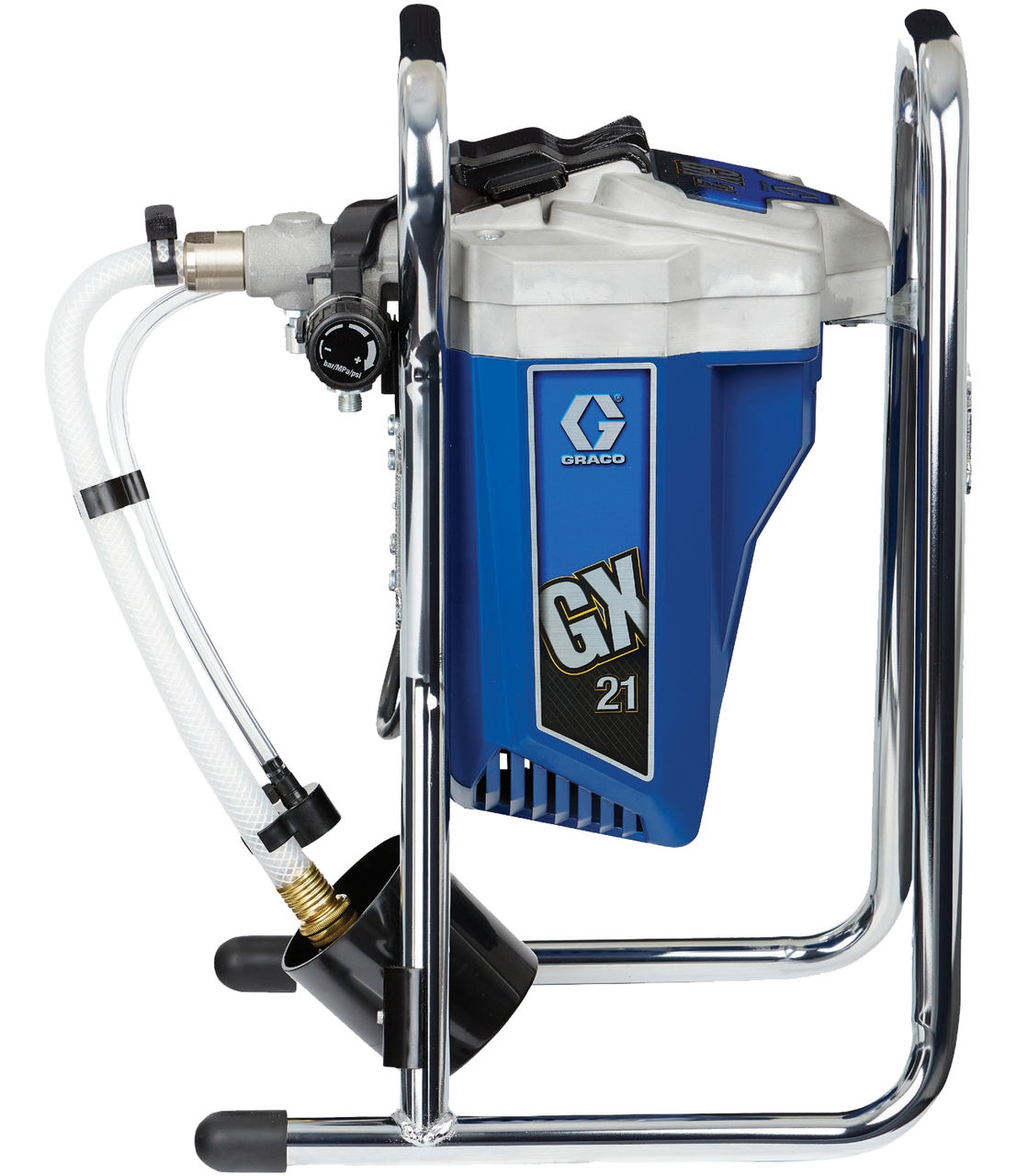

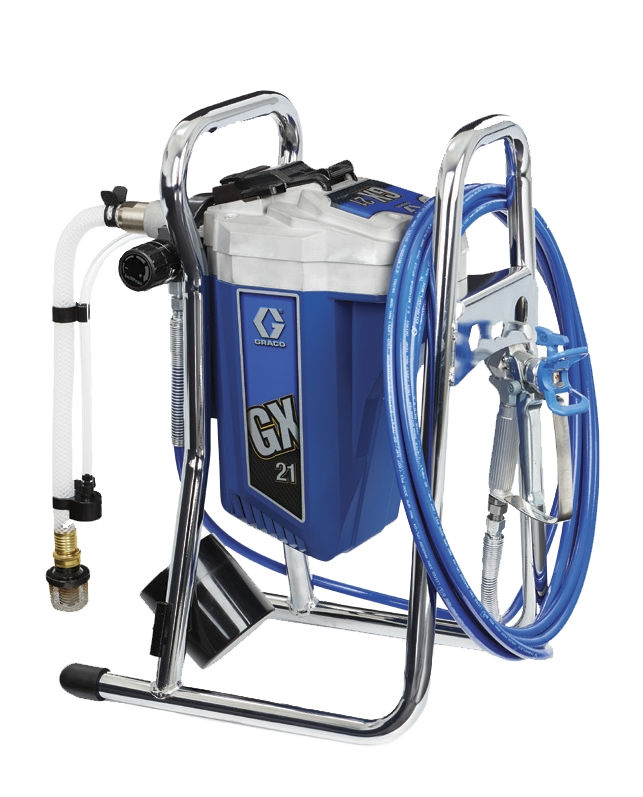

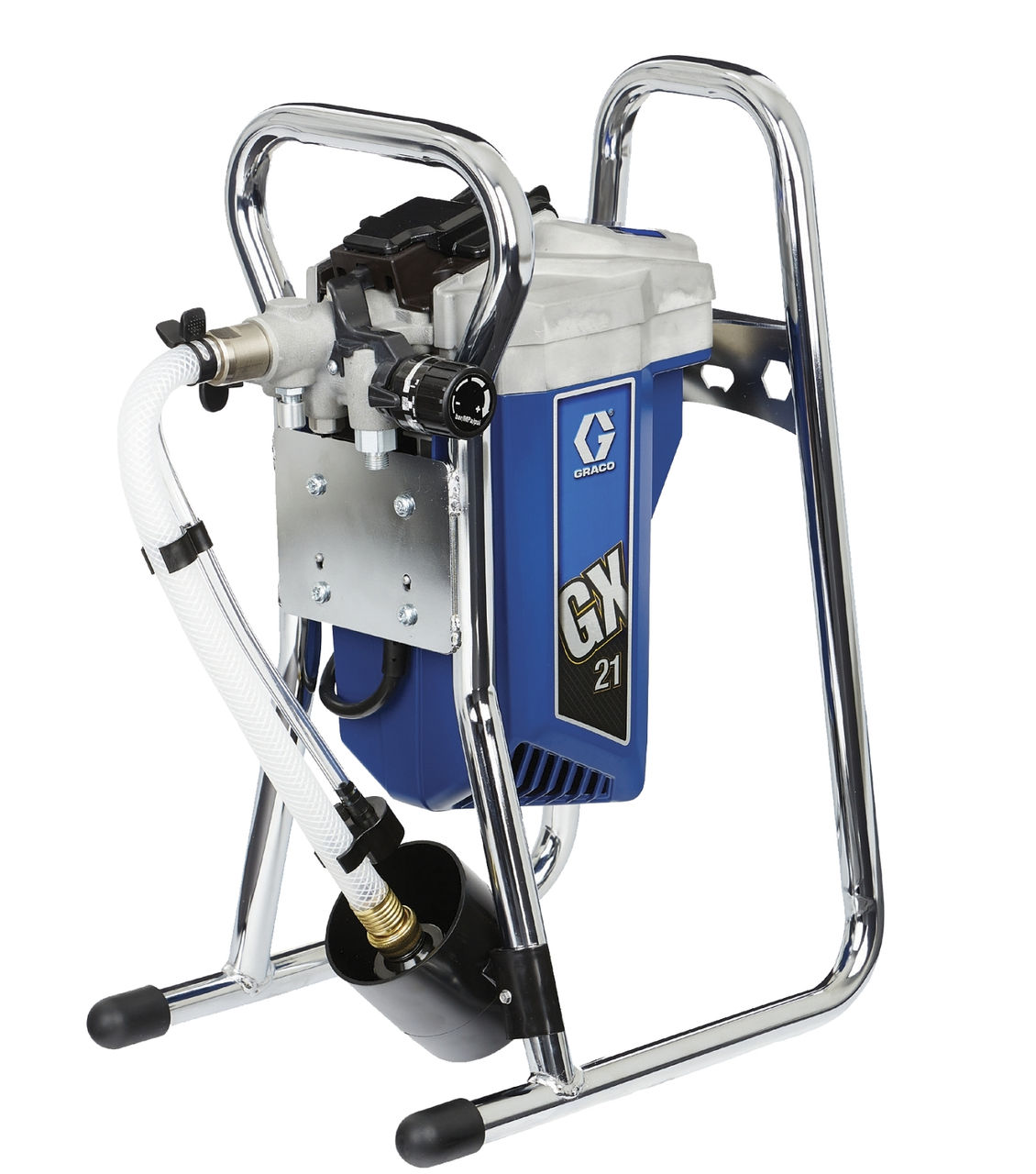

product image

GX 21

GX 21 Electric Airless Sprayer, 230V, ANZ

Part Number: 17H219

Available for purchase in: India, Korea, Mainland China, China Hong Kong SAR, China Taiwan, Southeast Asia
The GX 21 is the fast, portable and affordable solution for small finishing jobs every finishing contractor faces. Graco's proven piston pump and RAC X SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The GX 21 is the fast, portable and affordable solution for small finishing jobs every finishing contractor faces. Graco's proven piston pump and RAC X SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.

For portable airless spraying of architectural paints and coatings

  • Extremely Portable
    • Lighter than any competitive system
    • Easy Carry Handle makes transportation easy
    • Lid prevents splashes and spills while carrying
  • Direct Immersion Design
    • Draws paint directly from paint buckets
    • Flexible, clear suction set is easy to use and clean
    • Spray water or solvent based paints directly from containers from 1 - 30 litres
  • ProX Power-Piston Pump featuring ProXChange
    • Small dead band pressure ensures the finest finish possible
    • Exceptional durability and long life piston pump
    • Exclusive lifetime lubricated wiper pad for maintenance free operation
    • Modular pump components for easy maintenance
    • Fast and easy on-the-job pump replacement – no tools needed
    • Eliminate labour costs and down time expenses
  • Professional SG3 Gun
    • Includes RAC X tip, 15m hose

Specifications & Documents

Technical Specifications

Convert to Imperial
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration DI Stand
Maximum Flow Rate (gpm) 0.47
Maximum Operating Temperature (°F) 115
Maximum Storage Temperature (°F) 160
Maximum Tip Size (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3000
Minimum Operating Temperature (°F) 40
Minimum Storage Temperature (°F) -30
Model GX
Overall Height (in) 18.4
Overall Length (in) 16.7
Overall Width (in) 13.5
Series 21
Sound Power Level (dB(A)) 93
Sound Pressure Level (dB(A)) 93
Type Airless Sprayer
Voltage (V) 230
Weight (lb) 25
Wetted Material Stainless Steel, Brass, Leather, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer, UHMWPE
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration DI Stand
Maximum Flow Rate (l/min) 1.8
Maximum Operating Temperature (°C) 46
Maximum Storage Temperature (°C) 71
Maximum Tip Size (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3000
Minimum Operating Temperature (°C) 4
Minimum Storage Temperature (°C) -35
Model GX
Overall Height (cm) 46.7
Overall Height (mm) 467
Overall Length (cm) 47.5
Overall Length (mm) 475
Overall Width (cm) 34.3
Overall Width (mm) 343
Series 21
Sound Power Level (dB(A)) 93
Sound Pressure Level (dB(A)) 93
Type Airless Sprayer
Voltage (V) 230
Weight (kg) 11.3
Wetted Material Stainless Steel, Brass, Leather, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer, UHMWPE

Repair Parts

Part No. Description
17J174 CORD, POWER
16X214 GUN, SPRAY, SG3, RAC IV 517 (PKG)
17J927 KIT, CONTROL, PRESSURE, 3000 PSI
17L083 KIT, REPAIR, MOTOR, INTL
17J925 KIT, VALVE, PRIME, GX
17J885 KIT,BOARD, CONTROL, 230V
120776 PACKING, O-RING 015 FX75
17D161 TUBE,SUCTION,ASSEMBLY
