TexSpray Mark V

TexSpray Mark V Standard Series Electric Airless Sprayer

17E605

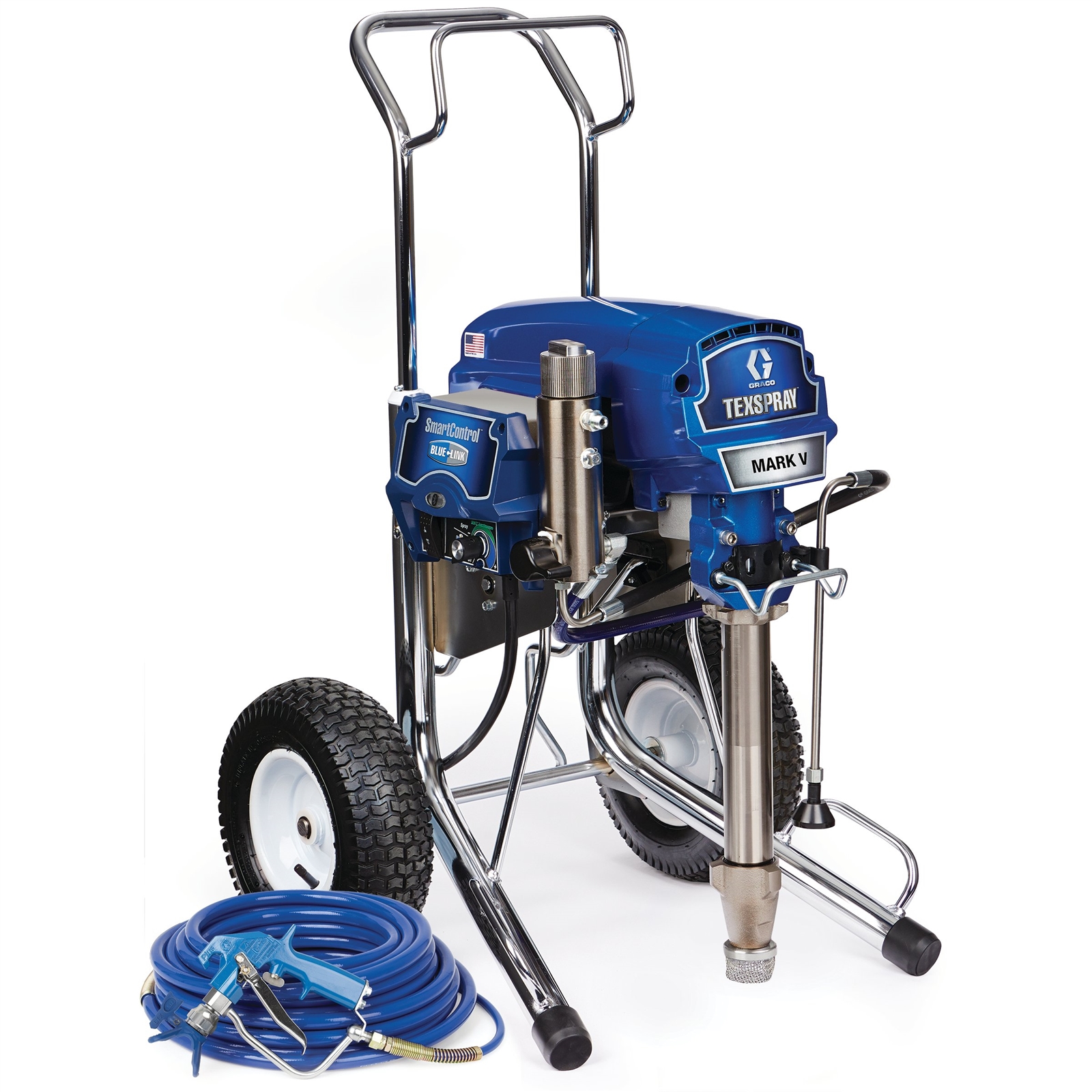

17E605_TexSpray_Mark_V_Standard_190520_Main

TexSpray Mark V

TexSpray Mark V Standard Series Electric Airless Sprayer

17E605

The TexSpray Mark V delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Features

Product Brochure
The TexSpray Mark V delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Everyday Reliability. TexSpray Mark Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X longer than the next leading brand
    • Long life ceramic and stainless steel balls included for maximum versatility
    • Faster cleaning with the QuikAccess intake foot valve
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • Prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • MaxPower DC Motor & Advantage Drive
    • Maintenance-Free Power
    • Field proven brushless design
    • The Longest Lasting Drive
    • Improved jobsite conditions with extremely quiet operation
  • WatchDog Pump Protection System
    • Prevents dry pumping damage
    • Automatically shuts pump down when if the material supply is too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
  • Rugged, Durable Cart Design
    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles
17E605_TexSpray_Mark_V_Standard_190520_Main

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 20
Compatible Replacement Pump 17H829
Convertible Non-Convertible
Engine Size (HP) 2.8
Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Frequency (Hz) 50/60
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (GPM) 1.35
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.039
Maximum Tip Size 1 Gun (in) 0.039
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 38.5
Overall Length (in) 26
Overall Width (in) 24
Power Rating (HP) 2.8
Power Rating (W) 2088.0
Power Rating (kW) 2.09
Power Source Electric
Pressure Control Type SmartControl 4.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 100-200 gallons per week
Series Mark V
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 110
Weight (lb) 130
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Amperage (A) 20
Compatible Replacement Pump 17H829
Convertible Non-Convertible
Engine Size (HP) 2.8
Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Frequency (Hz) 50/60
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (L/min) 5.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (mm) 0.9906
Maximum Tip Size 1 Gun (cm) 0.0991
Maximum Tip Size 1 Gun (mm) 0.9906
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 97.8
Overall Height (mm) 978
Overall Length (cm) 66
Overall Length (mm) 660
Overall Width (cm) 61
Overall Width (mm) 610
Power Rating (HP) 2.8
Power Rating (W) 2088.0
Power Rating (kW) 2.09
Power Source Electric
Pressure Control Type SmartControl 4.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 100-200 gallons per week
Series Mark V
Type Airless Sprayer
Voltage (V) 120
Weight (kg) 59
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
