LineLazer V 250DC

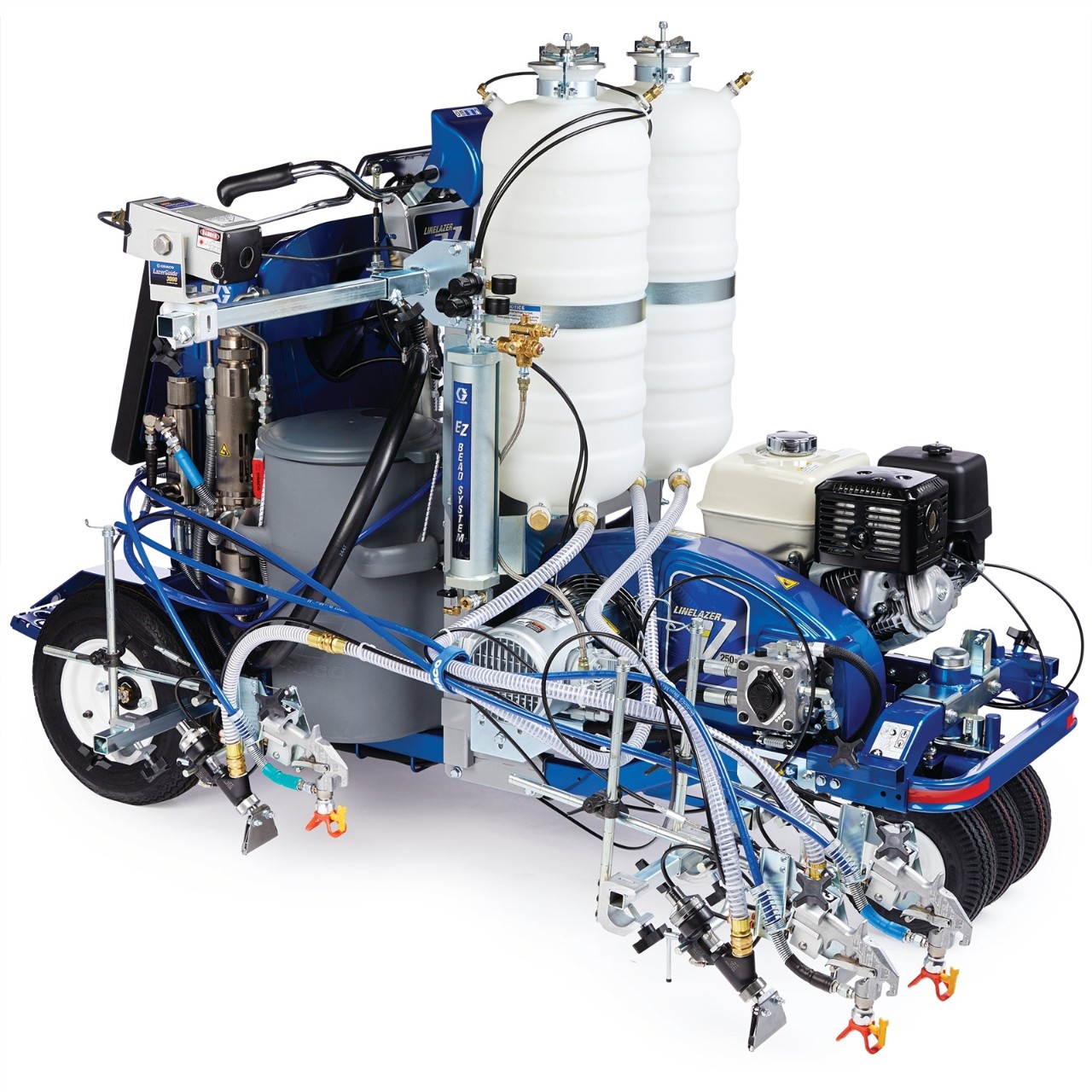

LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 3 Auto Guns, 2 Tanks, LazerGuide 3000

25D344

25D344_LineLazer_V_250DC_HP_Reflective_3Gun_190604_Main

LineLazer V 250DC

LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 3 Auto Guns, 2 Tanks, LazerGuide 3000

25D344

The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurized EZ Bead System
    • Superior Bead Application Performance
    • Ensures proper bead flow and paint penetration
    • Dual bead tanks hold up to 120 lbs each


  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-Stall design
  • Dual Endurance Chromex Pumps
    • Precise Material Flow
    • Consistency with a wide range of striping materials
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • LazerGuide 3000 Long-Line Lazer
    • Easier, laser-straight lines
    • Longer distance accuracy
    • Highly-visible laser guise
    • Faster, simple operation
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • Dual 15-Gallon Paint Hoppers
    • Less refilling
    • Simultaneously spray two colors and refill less often
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • Additional Features
    • EasyMark Gun Adjustment System
    • Front or Rear Gun Mount
    • Self-Centering Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter
25D344_LineLazer_V_250DC_HP_Reflective_3Gun_190604_Main

Specifications

Technical Specifications

Convert to Metric
Bead System Pressurized Bead System
Bead Tank Size (lb) 240
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Features SmartControl
Fuel Tank Capacity (gal) 1.4
Gun Activation Automatic
Hopper Volume Capacity (gal) 30
Includes LazerGuide 3000, Pressurized Bead System (2 Tanks), Flex Plus Gun (3), LineLazer RAC 5 321 Spray Tip (3), LineLazer RAC 5 425 Spray Tip (3), LineLazer RAC 5 627 Spray Tip (3), RAC 5 Tip Guard (3), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz
Maximum Flow Rate (GPM) 2.5
Maximum Tip Size (in) 0.055
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 3
Number of Hoppers 2
Number of Pumps 2
Power Rating (HP) 13
Power Rating (W) 9690
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (lb) 864
Bead System Pressurized Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Features SmartControl
Fuel Tank Capacity (L) 5.3
Gun Activation Automatic
Hopper Volume Capacity (L) 114
Includes LazerGuide 3000, Pressurized Bead System (2 Tanks), Flex Plus Gun (3), LineLazer RAC 5 321 Spray Tip (3), LineLazer RAC 5 425 Spray Tip (3), LineLazer RAC 5 627 Spray Tip (3), RAC 5 Tip Guard (3), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz
Maximum Flow Rate (L/min) 9.46
Maximum Tip Size (cm) 0.1397
Maximum Tip Size (mm) 1.397
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Colors Two Colors
Number of Guns 3
Number of Hoppers 2
Number of Pumps 2
Power Rating (HP) 13
Power Rating (W) 9690
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (kg) 392

What's Included

Part No. Description Qty Unit
16R962 GB KIT, ACCESSORY, BEAD SYS LL250 1 ea
16U439 GB KIT, ACCESSORY, BEAD TANK 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 3 ea
LL5321 LineLazer RAC 5 SwitchTip, 321 3 ea
LL5425 LineLazer RAC 5 SwitchTip, 425 3 ea
LL5627 LineLazer RAC 5 SwitchTip, 627 3 ea
243161 RAC 5 HandTite Tip Guard 3 ea
245226 HOSE, CPLD, 3/8" X 3' 2 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
