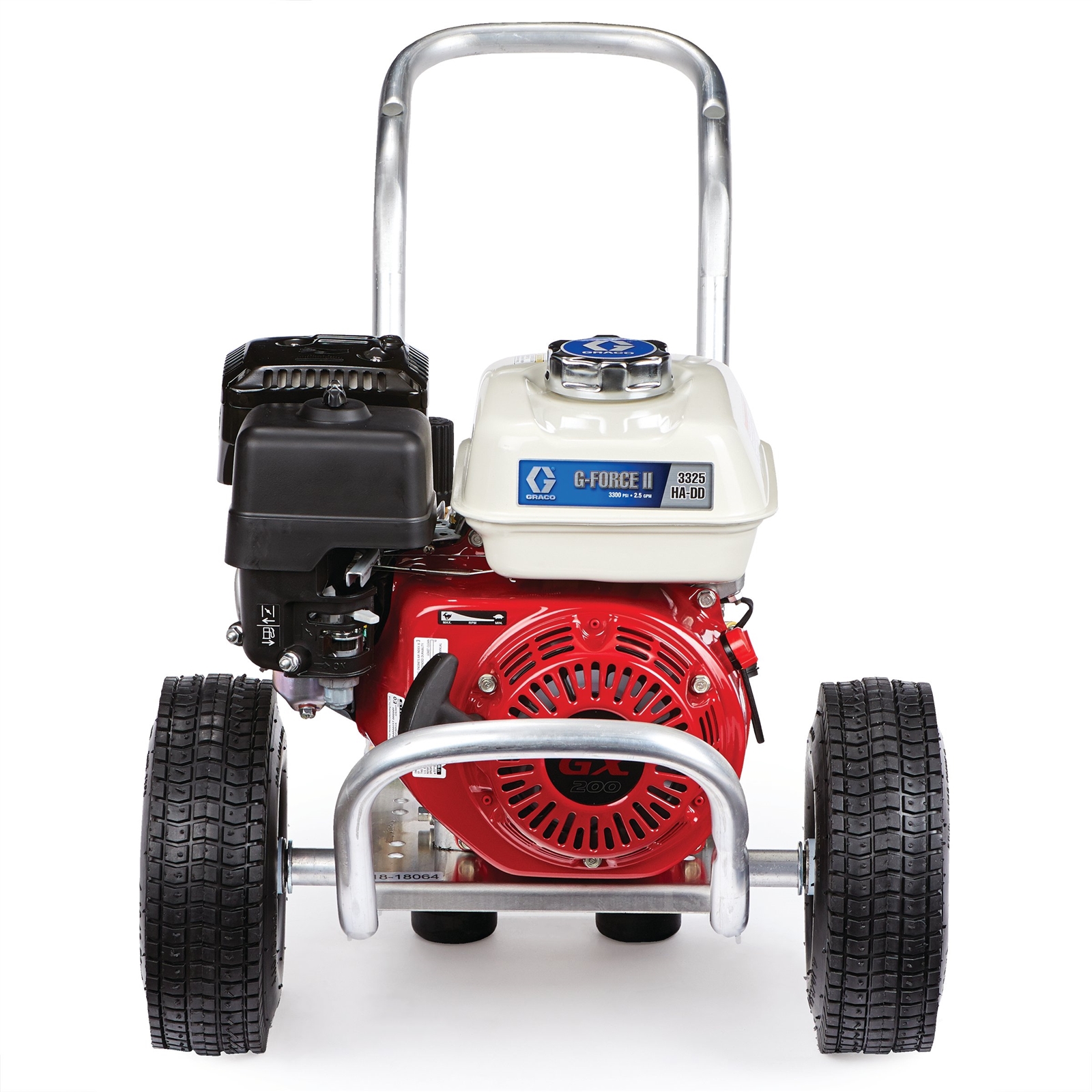

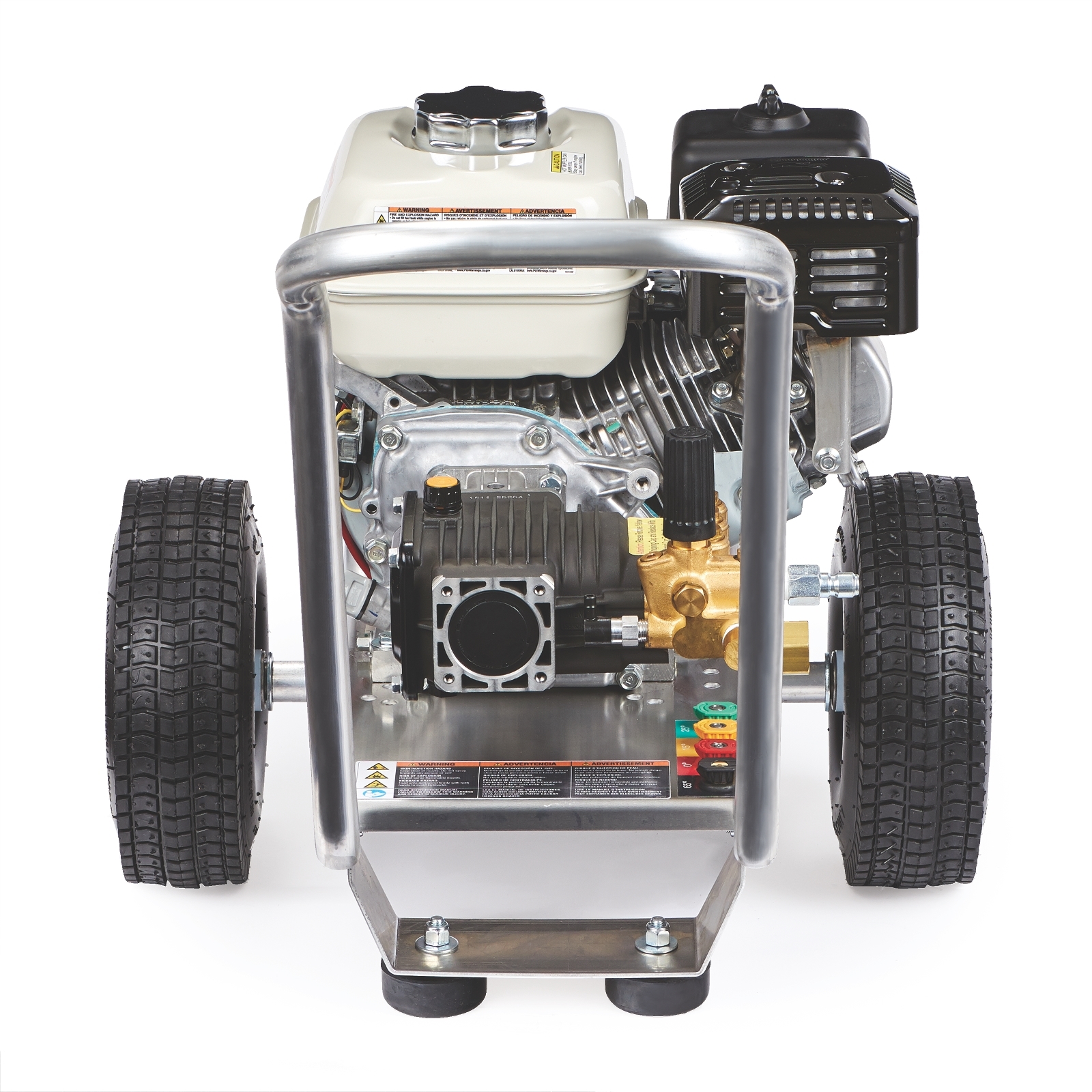

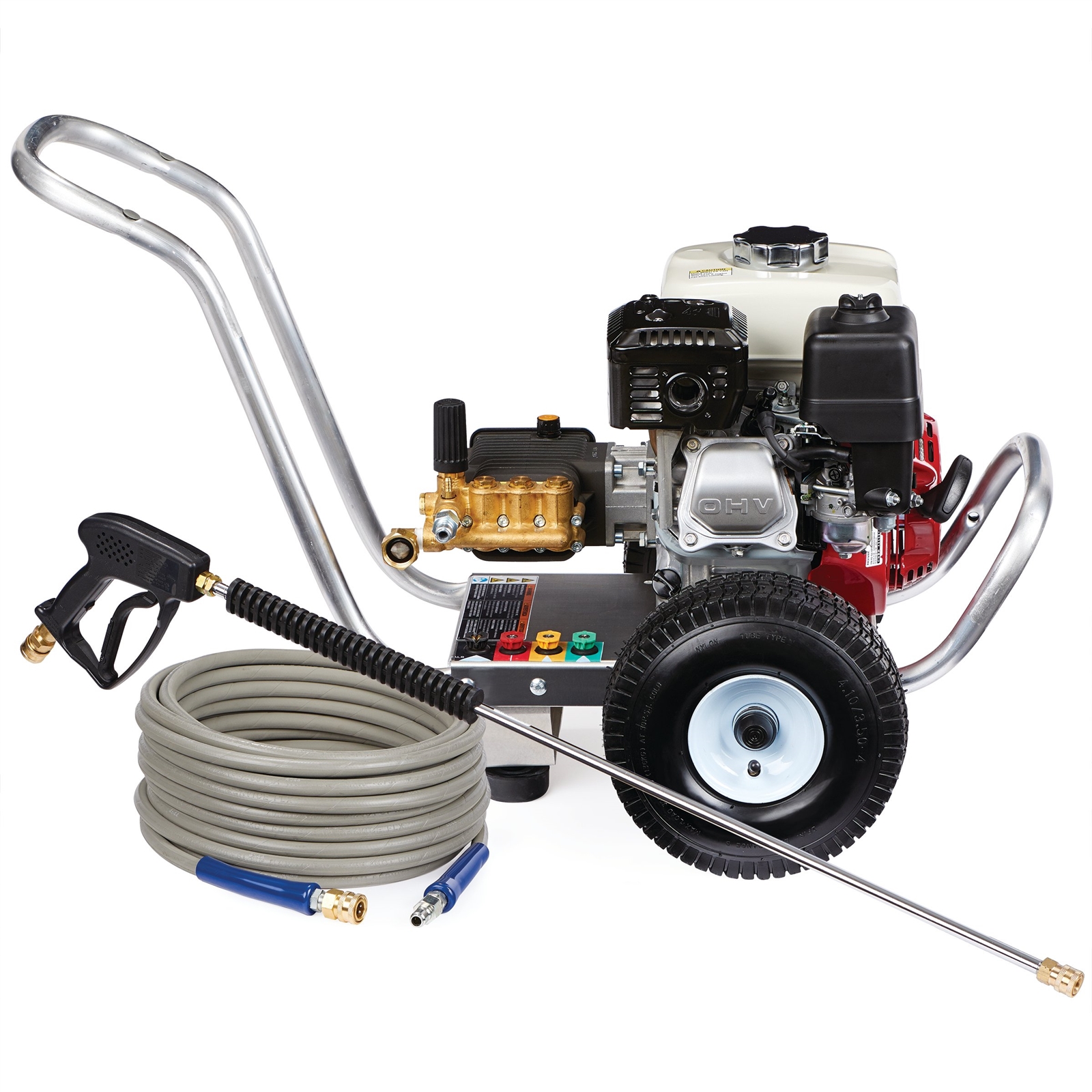

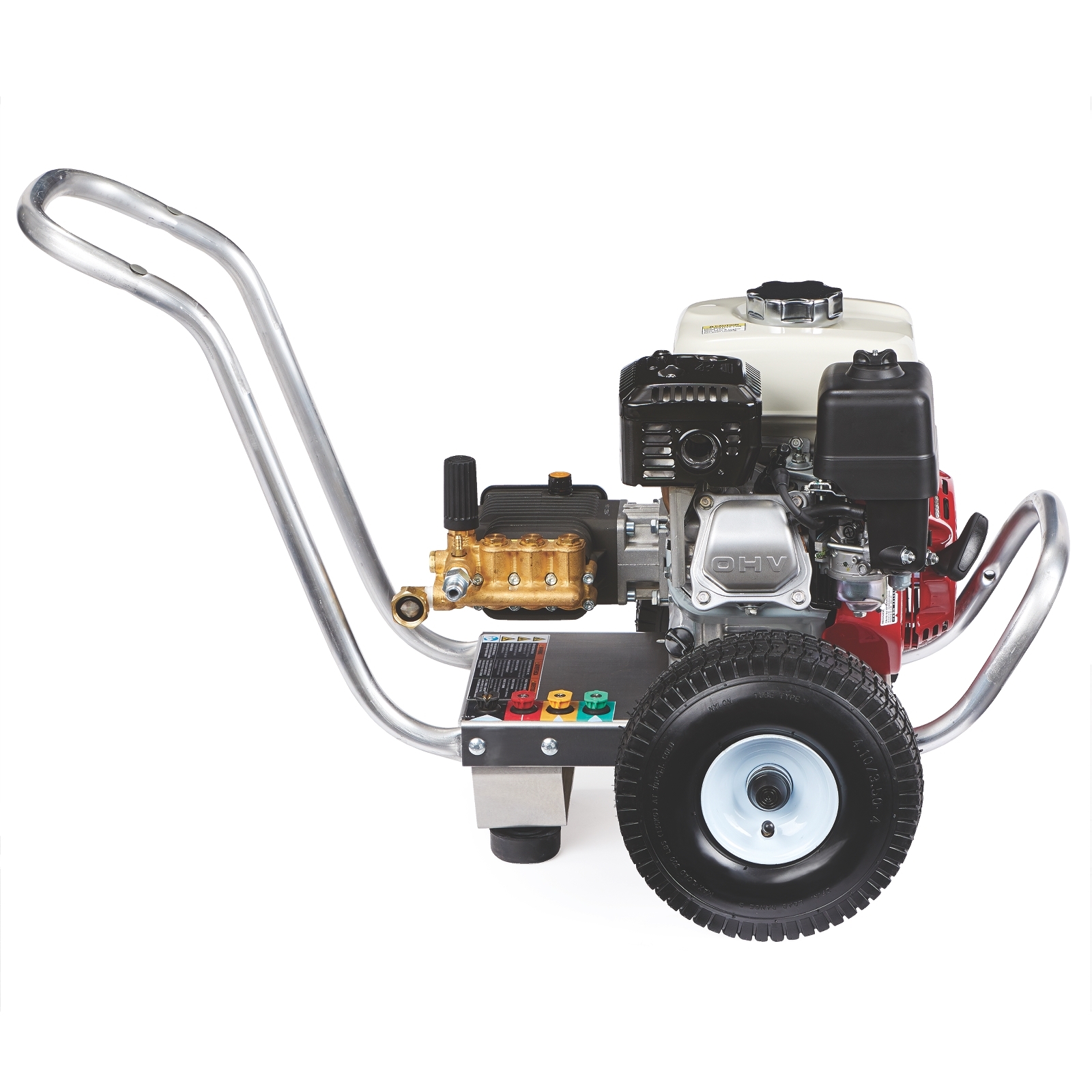

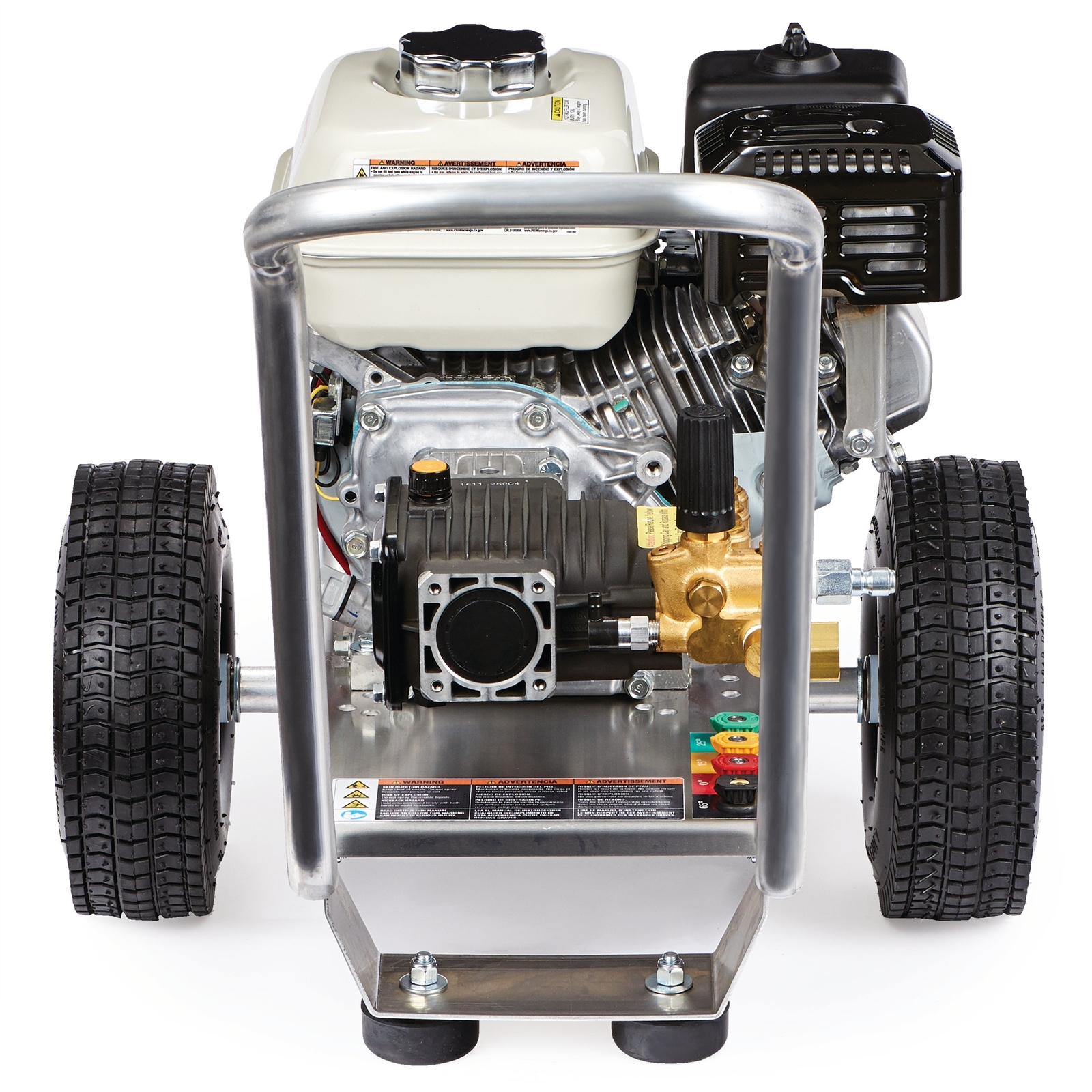

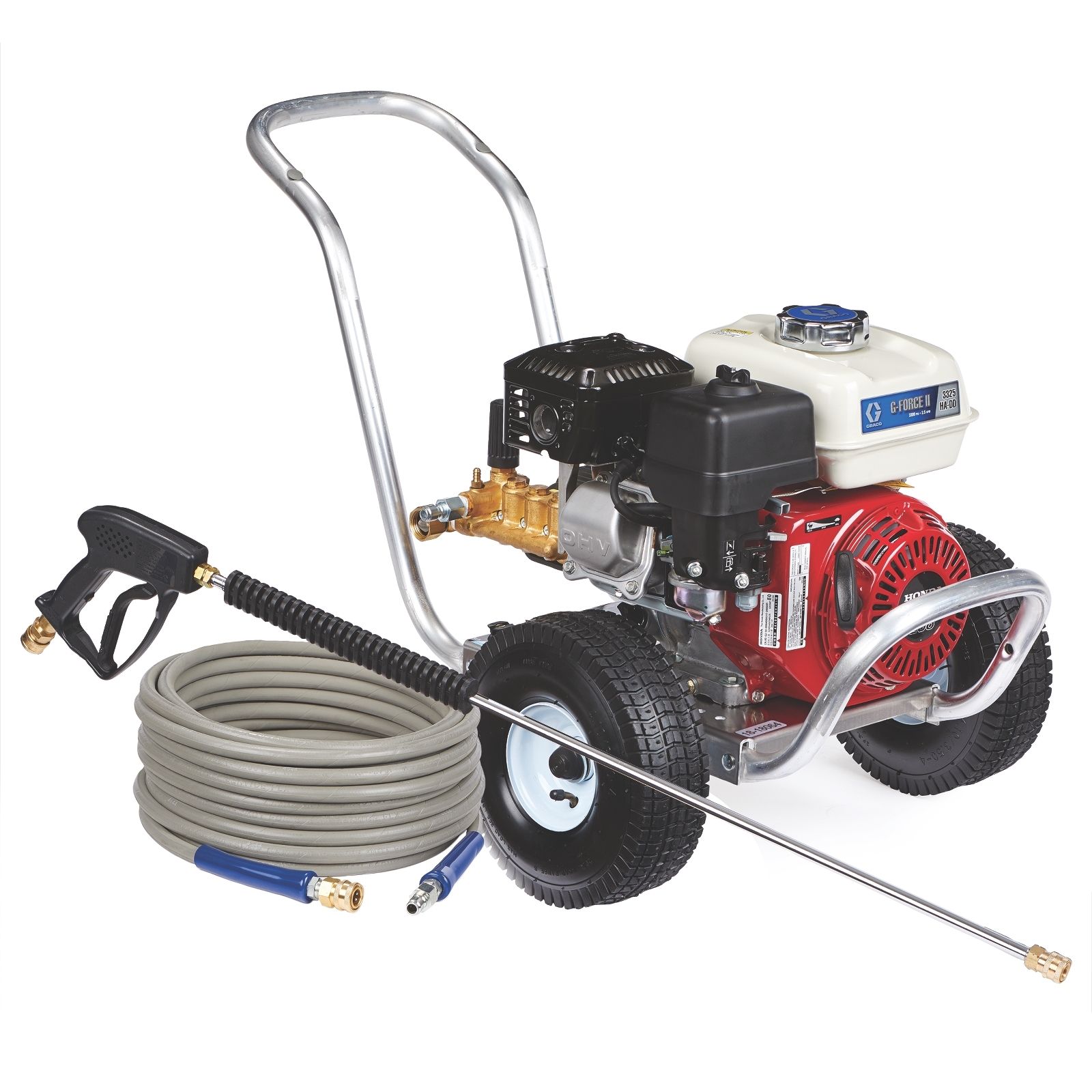

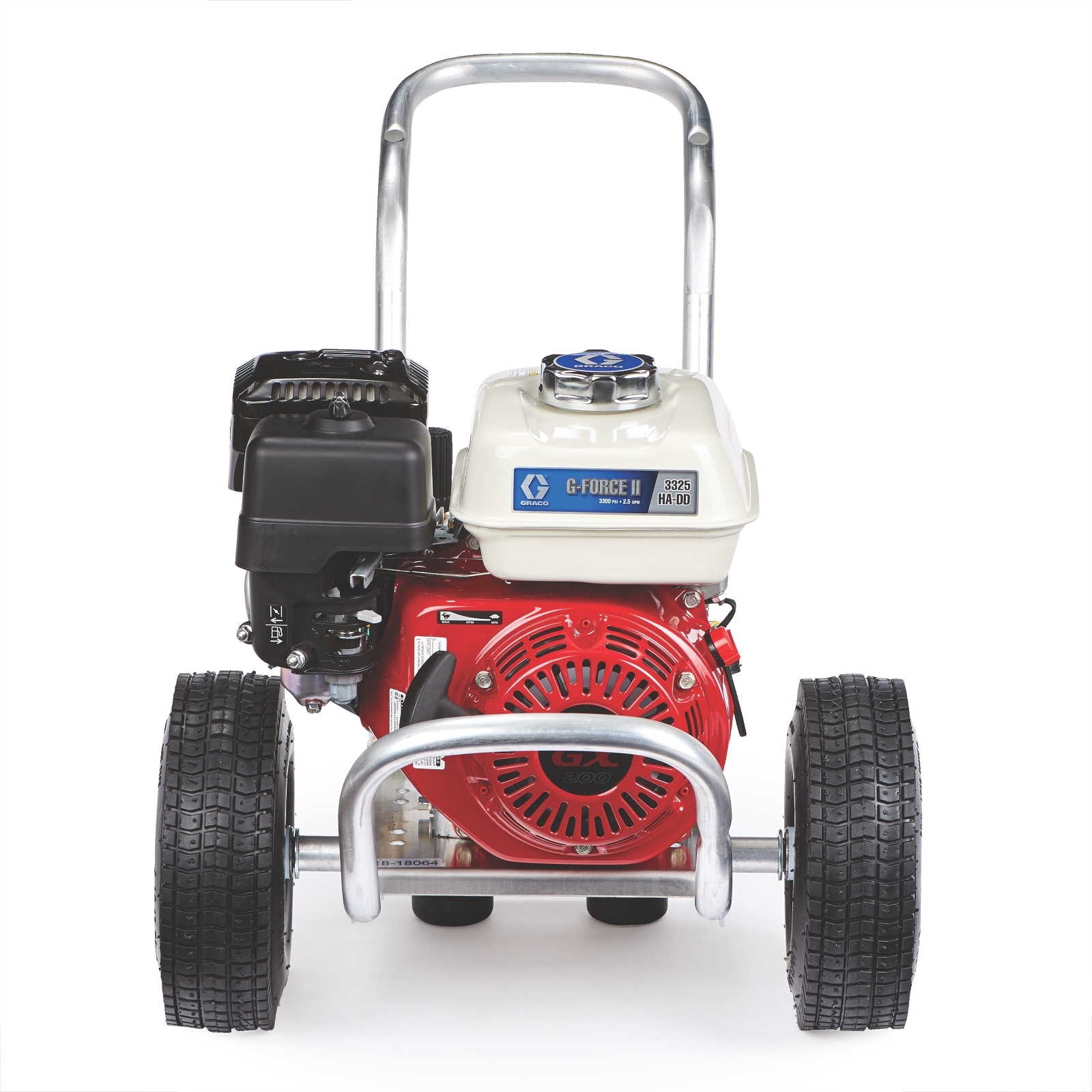

product image product image product image product image product image

G-Force II 3325

G-Force II 3325 HA-DD Pressure Washer

Part Number: 25N634

Ideal for remodelers & property maintenance cleaning needs, the G-Force II 3325 HA-DD pressure washer is the best choice for medium duty applications. It's light, compact, provides everyday reliability and is the perfect choice when you need consistent reliability for the occasional cleaning job.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Ideal for remodelers & property maintenance cleaning needs, the G-Force II 3325 HA-DD pressure washer is the best choice for medium duty applications. It's light, compact, provides everyday reliability and is the perfect choice when you need consistent reliability for the occasional cleaning job.
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Thermal sensor prevents pump from overheating in bypass mode
  • Reliable, AR Triplex Plunger Water Pump
  • 100% Heavy-Gauge Aluminum Frames
    • Up to 40% lighter than steel frames
    • Corrosion resistant to water and chemicals
    • Standard on all Graco models
    • Lifetime Warranty
  • EZ Start Pressure Relief For Easier Starting
    • Standard Graco feature
    • Allows water bypass pump to eliminate pressure build-up in the system
    • No need to pull the gun trigger while starting the washer
  • Direct Drive
    • Compact design with fewer components and lighter weight
    • Pump is connected directly to the drive shaft of the engine
    • Pump rpm matches that of the engine (usually around 3500 rpm)

Specifications & Documents

Technical Specifications

Convert to Metric
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (qt) 3.8
Hose Inlet Diameter (in) 3/8
Hose Length (ft) 50
Includes Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip
Maximum Flow Rate (GPM) 2.5
Maximum Fluid Pressure (psi) 3300
Maximum Operating Temperature (°F) 145
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model G-Force II
Motor Drive Type Direct Drive
Pump Brand AR
Pump Type Triplex Plunger
Recommended Weekly Usage (Hours) 10-20
Series 3325
Type Gas Pressure Washer
Weight (lb) 57
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (L) 3.6
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (in) 3/8
Hose Inlet Diameter (mm) 9.525
Hose Length (cm) 1524
Hose Length (m) 15.2
Hose Length (mm) 15240
Includes Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip
Maximum Flow Rate (L/min) 9.46
Maximum Fluid Pressure (bar) 227.5
Maximum Fluid Pressure (kPa) 22750
Maximum Fluid Pressure (psi) 3300
Maximum Operating Temperature (°C) 63
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (psi) 3300
Model G-Force II
Motor Drive Type Direct Drive
Pump Brand AR
Pump Type Triplex Plunger
Recommended Weekly Usage (Hours) 10-20
Series 3325
Type Gas Pressure Washer
Weight (kg) 26

What's Included

Part No. Description Qty Unit
244785 GB KIT, ACCESSORY, GUN 1 ea
244783 Non-Marking Hose with Quick Disconnects, 3/8 in x 50 ft 1 ea
805634 Chemical Injector Washer Spray Tip 1 ea

Repair Parts

Part No. Description
244783 Non-Marking Hose with Quick Disconnects, 3/8 in x 50 ft
801112 GB SCREEN, INLET, GARDEN HOSE
244784 Professional Grade Gun with 36 in Wand
