G-Force II 4240

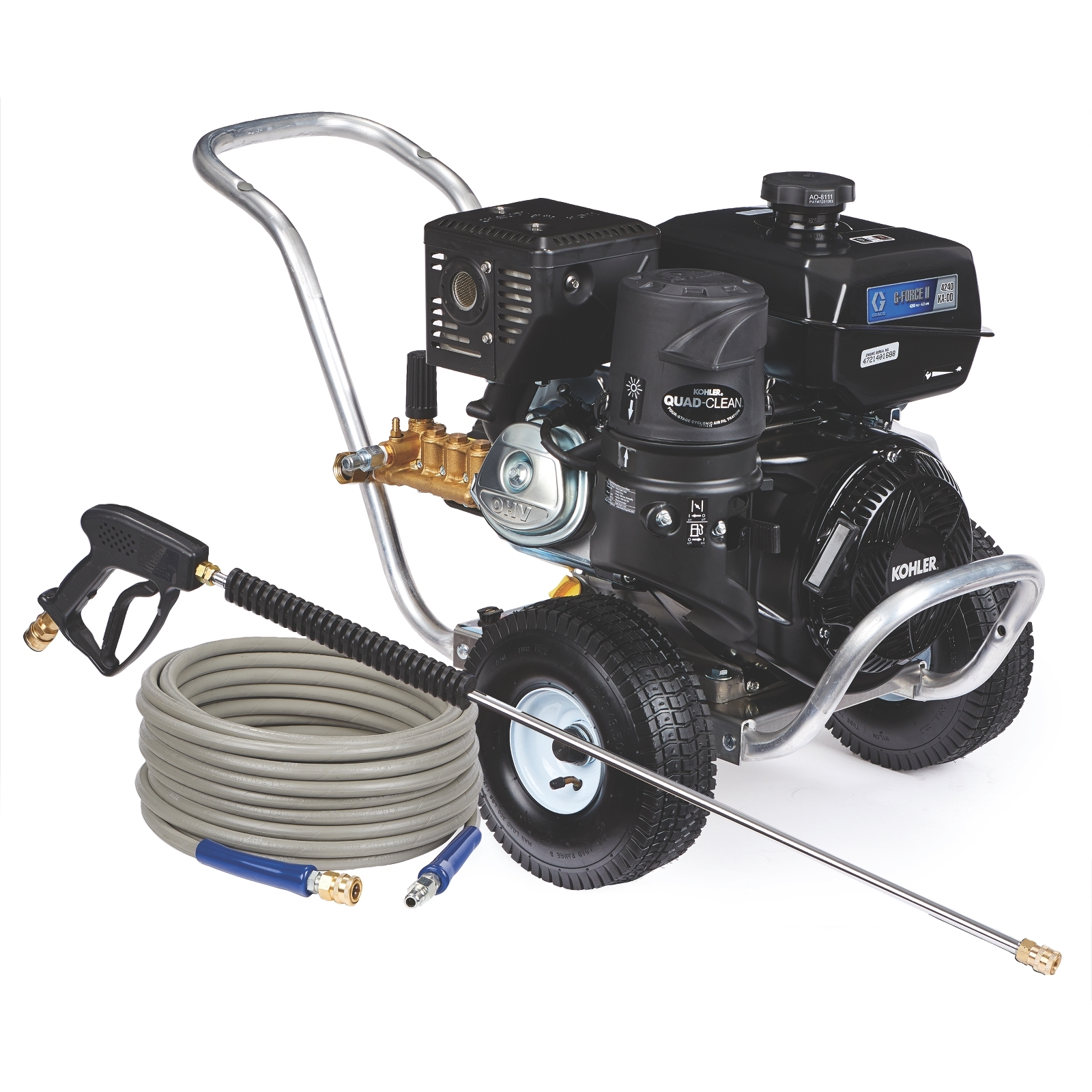

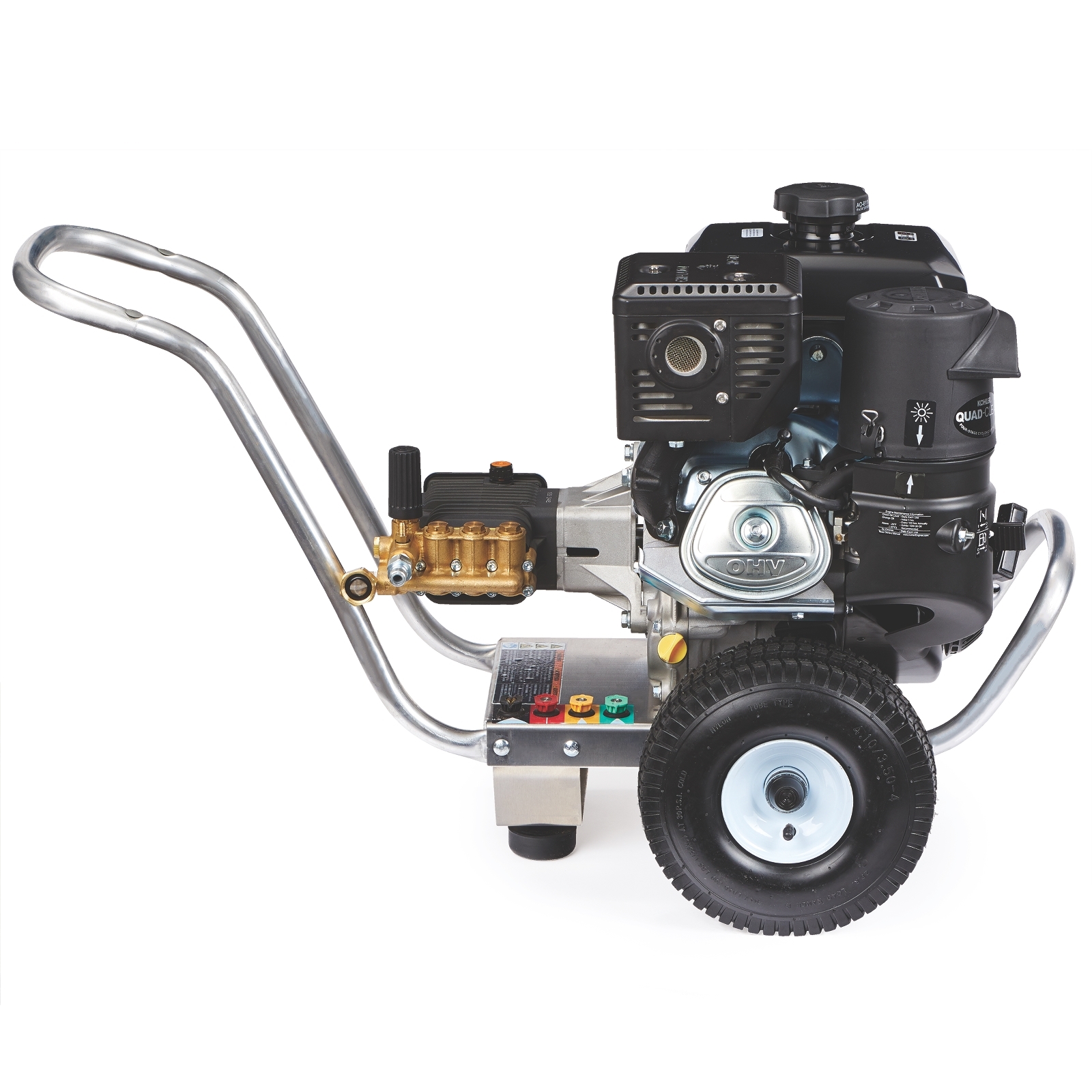

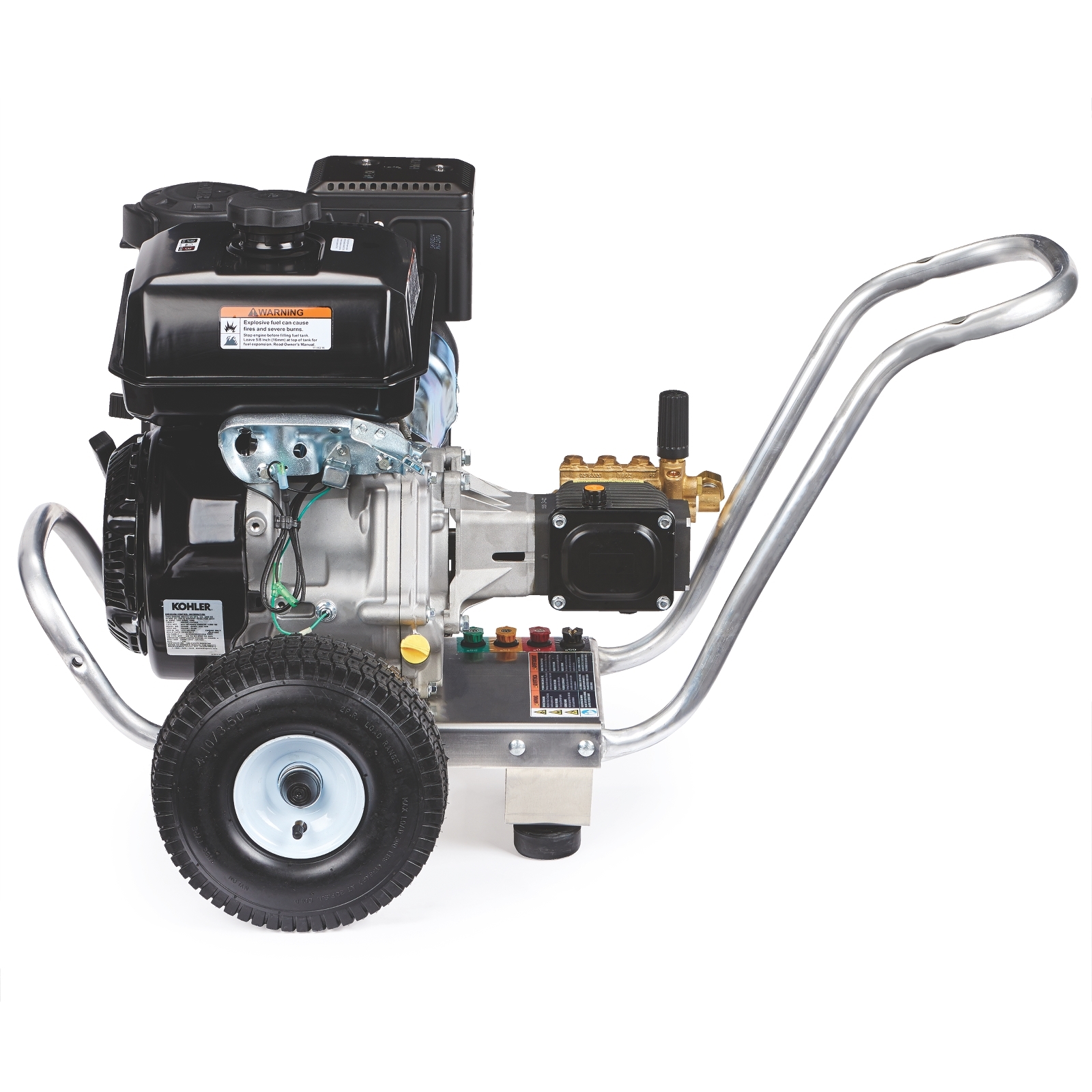

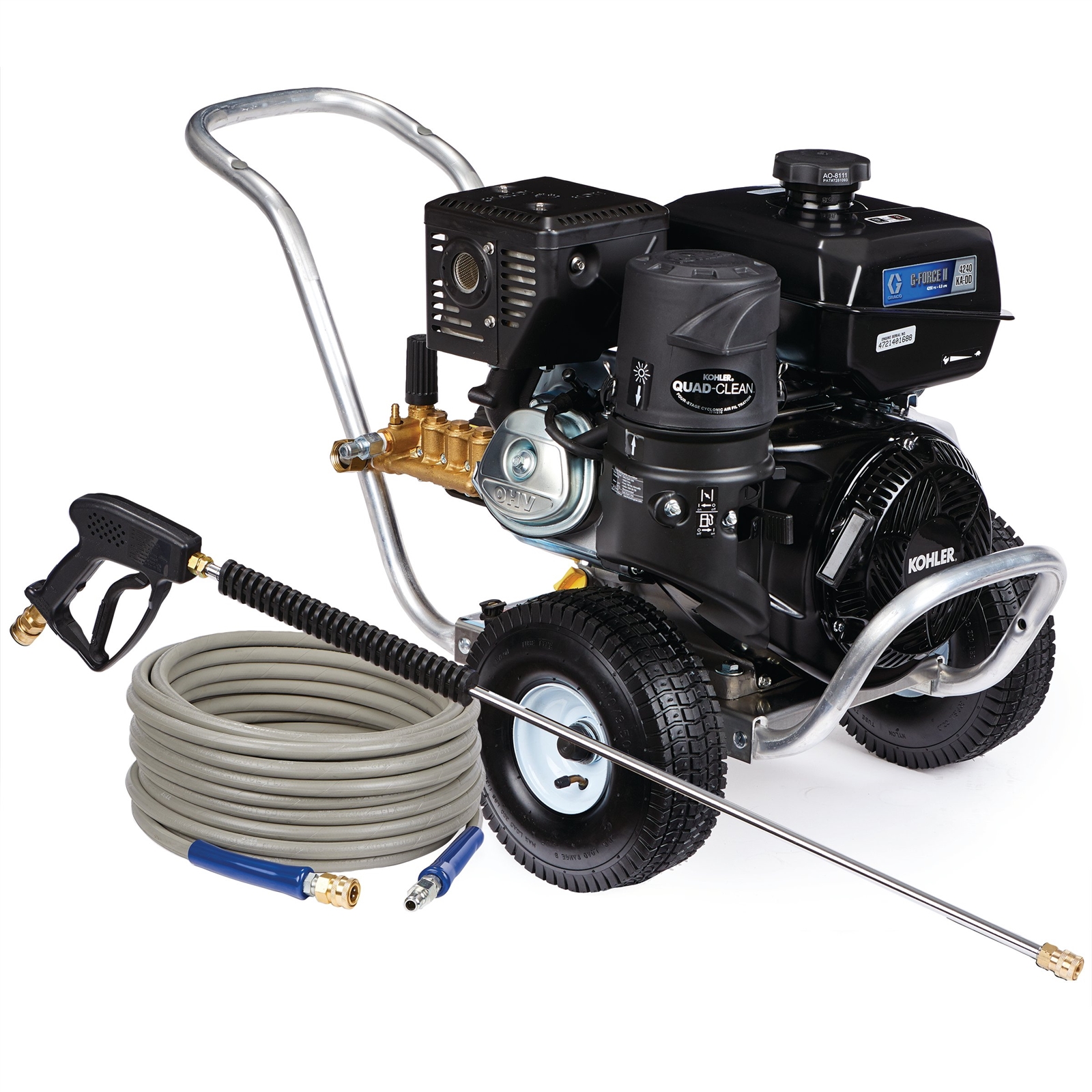

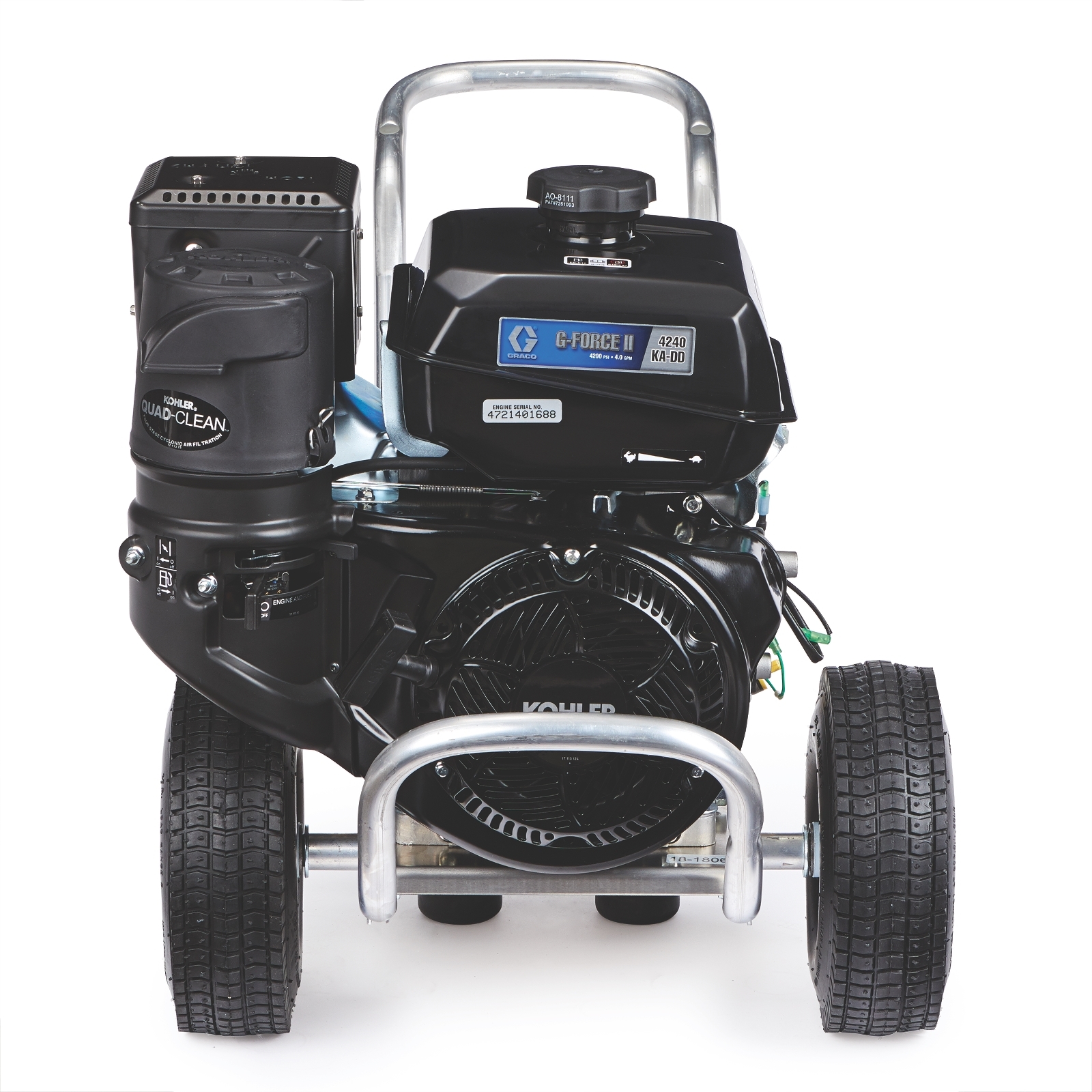

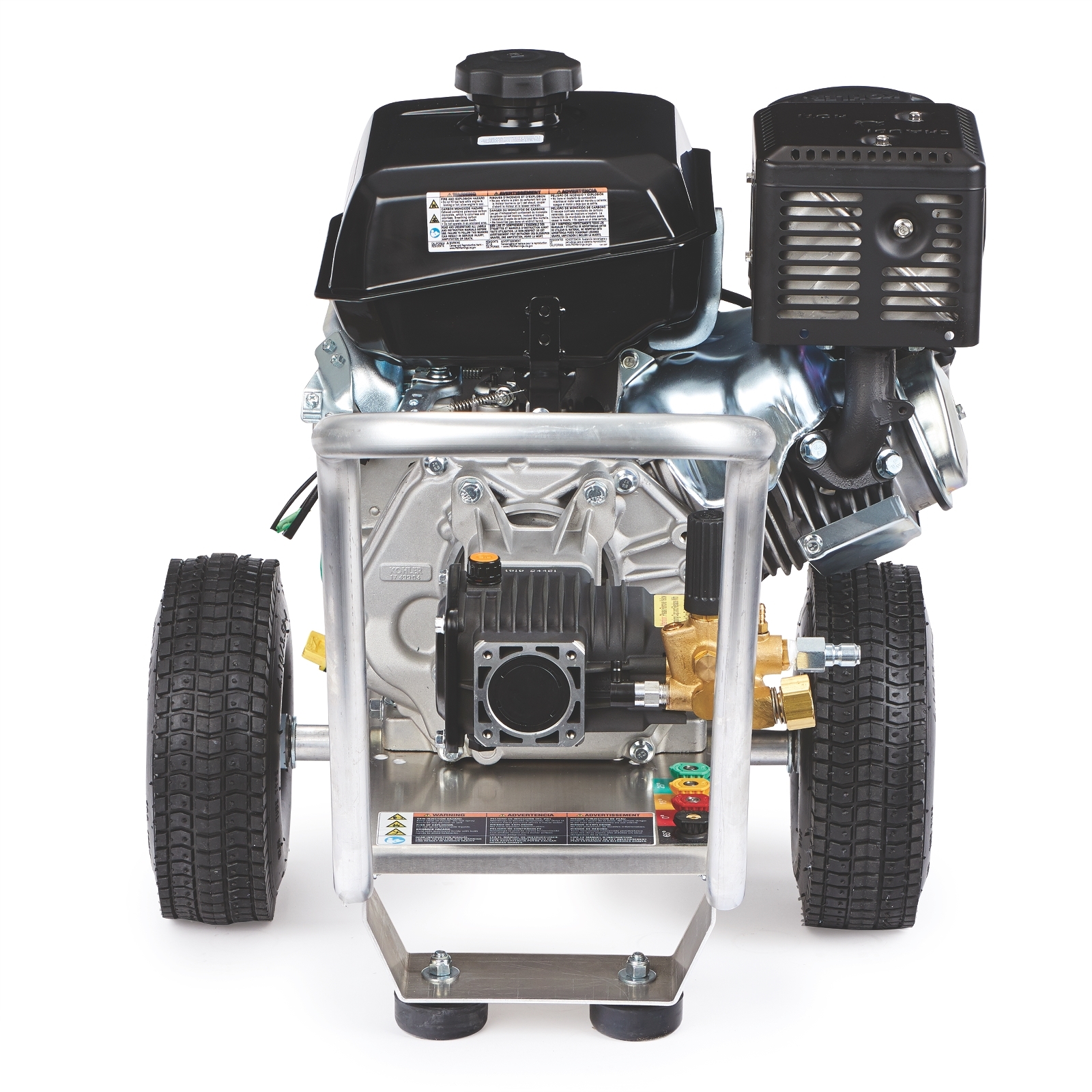

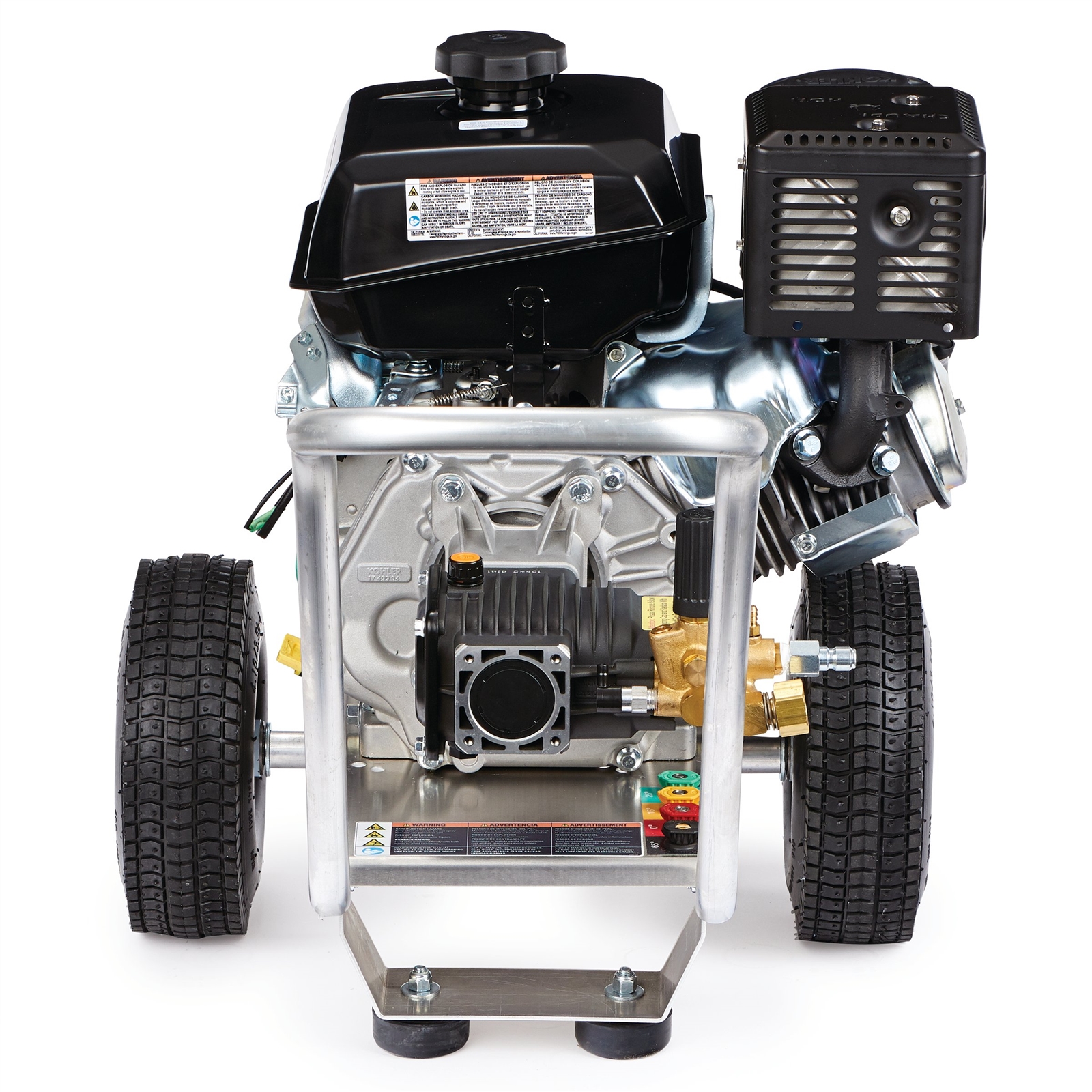

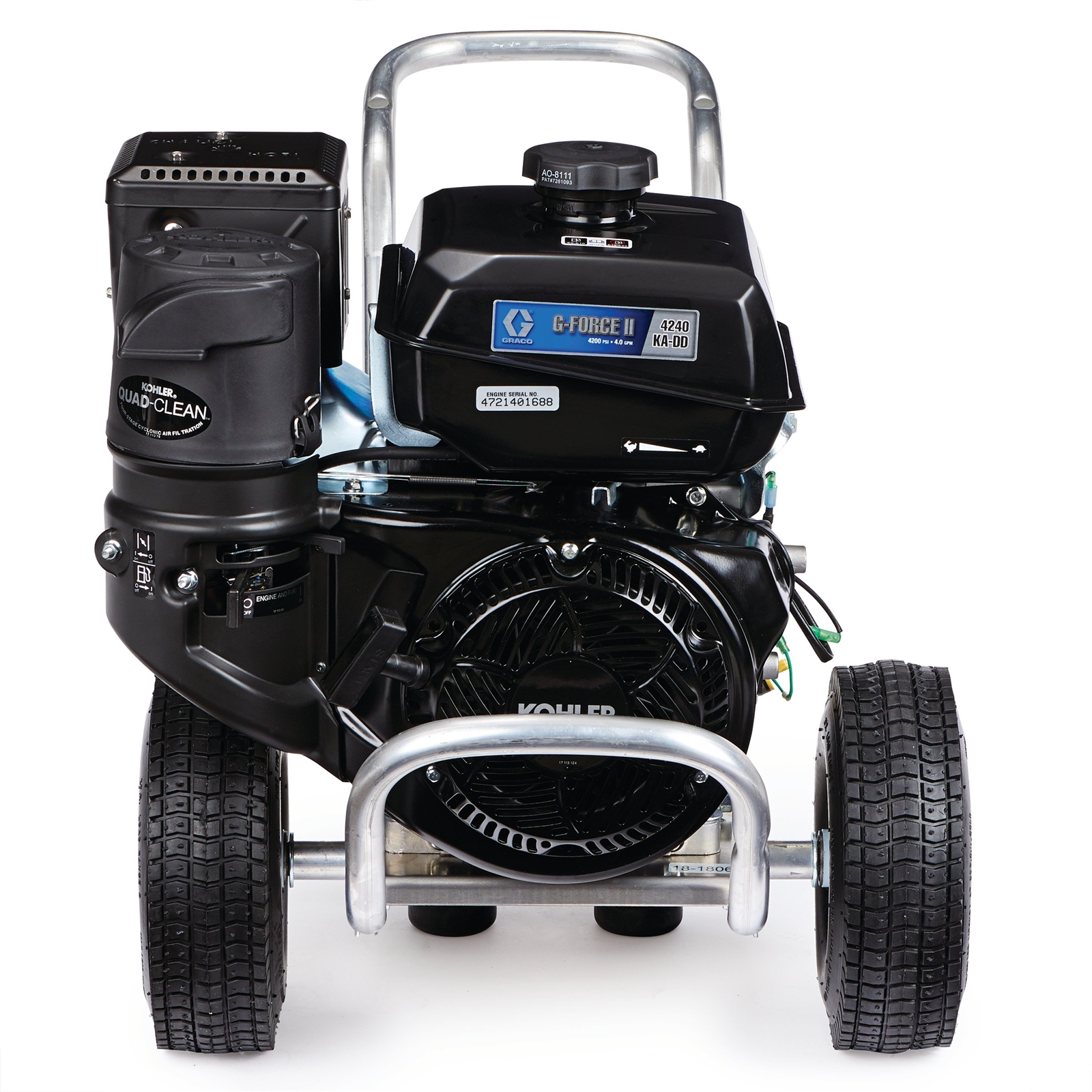

G-Force II 4240 KA-DD Pressure Washer

25N636

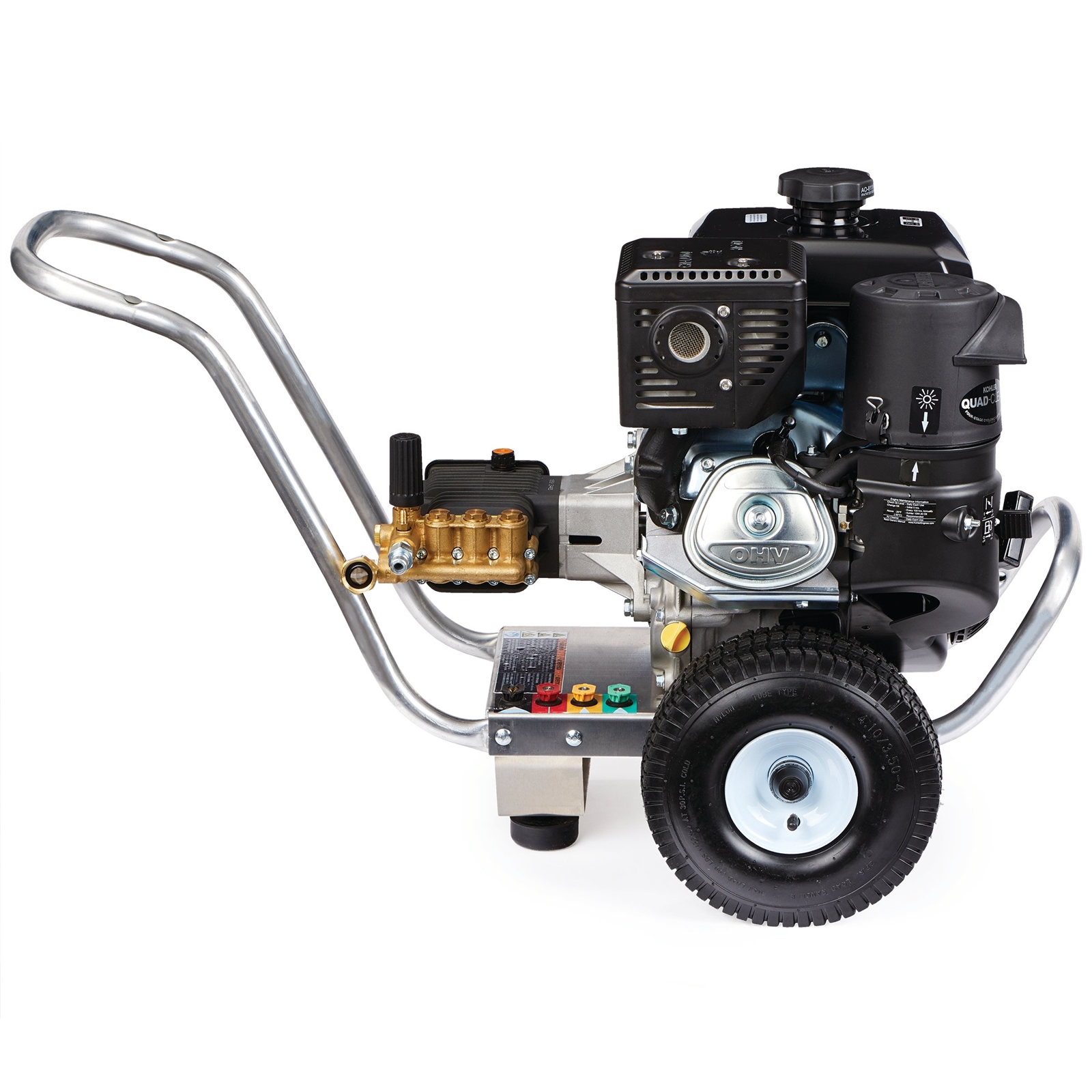

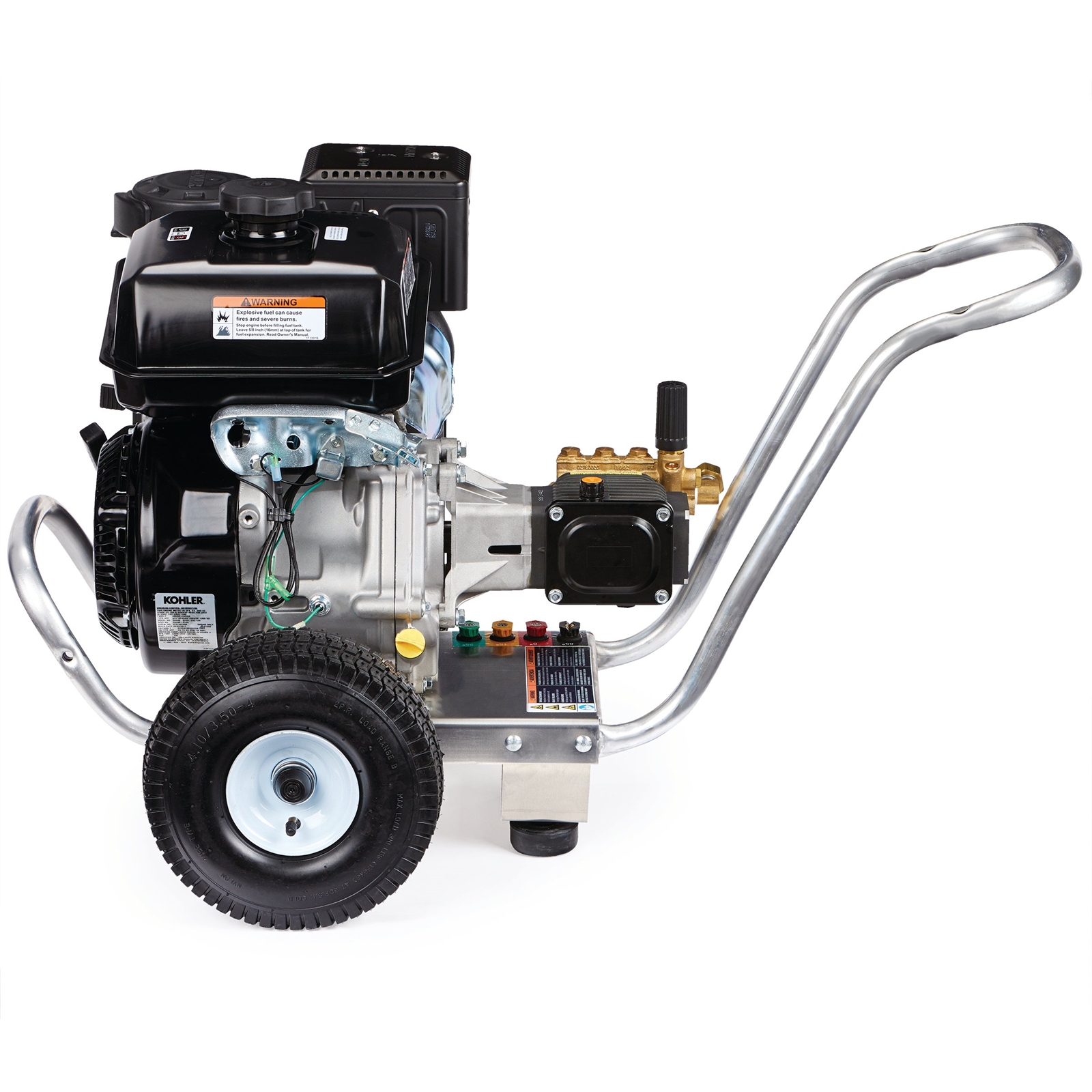

25N636_GForceII_4240_KA-DD_190708_Main 25N636_GForceII_4240_KA-DD_190708_Alt_1 25N636_GForceII_4240_KA-DD_190708_Alt_2 25N636_GForceII_4240_KA-DD_190708_Alt_3 25N636_GForceII_4240_KA-DD_190708_Alt_4

G-Force II 4240

G-Force II 4240 KA-DD Pressure Washer

25N636

Ideal for remodelers & property maintenance cleaning needs, the G-Force II 4240 KA-DD pressure washer is the best choice for medium duty applications. It's light, compact, and is the perfect choice when you need consistent reliability for the occasional cleaning job.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Ideal for remodelers & property maintenance cleaning needs, the G-Force II 4240 KA-DD pressure washer is the best choice for medium duty applications. It's light, compact, and is the perfect choice when you need consistent reliability for the occasional cleaning job.
  • Kohler® Engine
    • Reliable, powerful & easy-to-start
  • Reliable, AR Triplex Plunger Water Pump
  • 100% Heavy-Gauge Aluminum Frame
    • Up to 40% lighter than steel frames
    • Corrosion resistant to water and chemicals
    • Standard on all Graco models
    • Lifetime Warranty
  • EZ Start Pressure Relief For Easier Starting
    • Standard Graco feature
    • Allows water bypass pump to eliminate pressure build-up in the system
    • No need to pull the gun trigger while starting the washer
  • Direct Drive
    • Compact design with fewer components and lighter weight
    • Pump is connected directly to the drive shaft of the engine
    • Pump rpm matches that of the engine (usually around 3500 rpm)

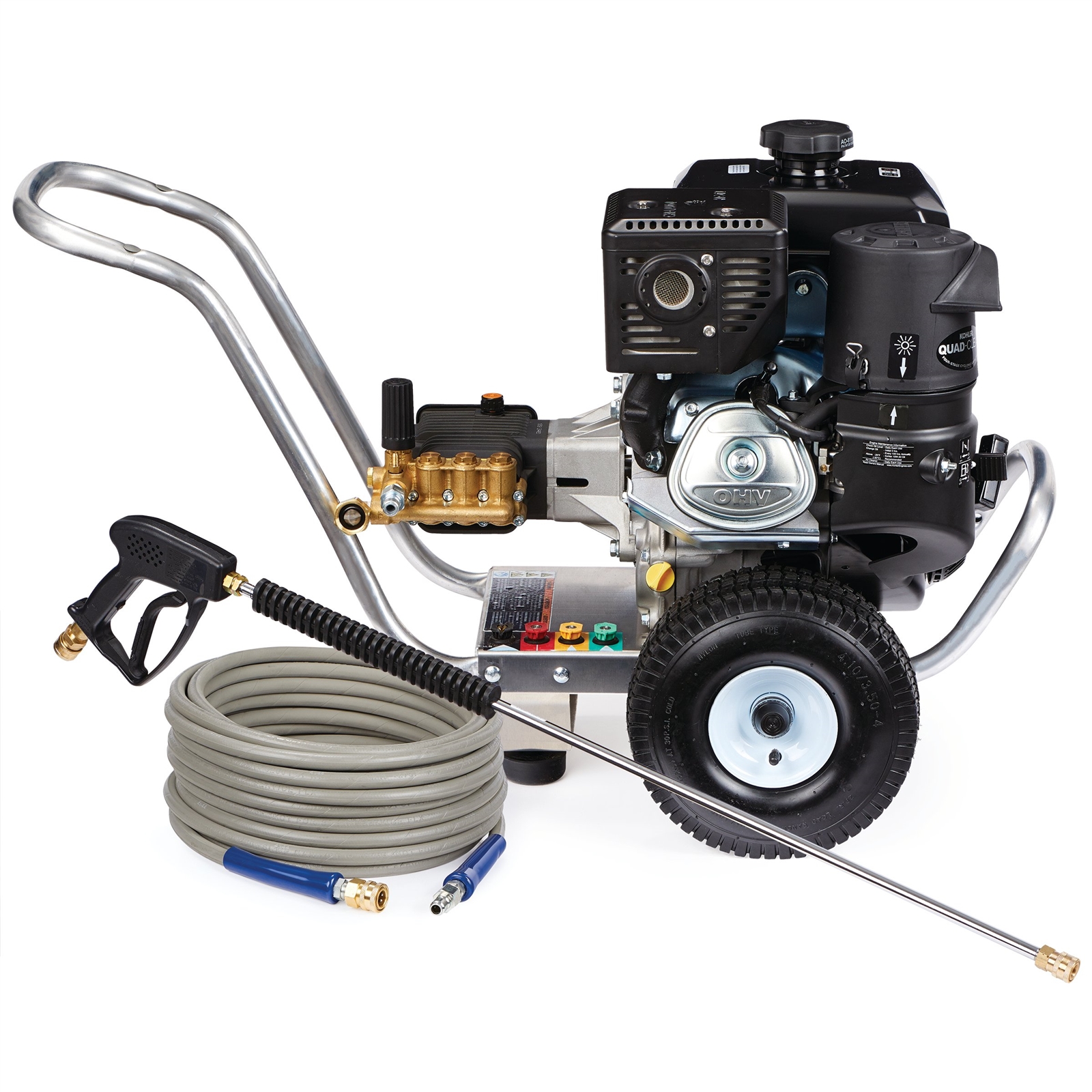

25N636_GForceII_4240_KA-DD_190708_Feat_1

Specifications

Technical Specifications

Convert to Metric
Engine Brand Kohler
Engine Model CH440
Fuel Tank Capacity (qt) 7.7
Hose Inlet Diameter (in) 3/8
Hose Length (ft) 50
Includes Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip
Maximum Flow Rate (GPM) 4
Maximum Fluid Pressure (psi) 4200
Maximum Operating Temperature (°F) 145
Maximum Working Pressure (MPa) 29
Maximum Working Pressure (psi) 4200
Motor Drive Type Direct Drive
Pump Brand AR
Pump Type Triplex Plunger
Recommended Weekly Usage (Hours) 10-20
Type Gas Pressure Washer
Weight (lb) 104
Engine Brand Kohler
Engine Model CH440
Fuel Tank Capacity (L) 7.3
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Length (cm) 1524
Hose Length (m) 15.24
Hose Length (mm) 15240
Includes Professional-Grade Pressure Washer Spray Gun with Quick Connects, 36 in Pressure Washer Wand with Quick Connect, 3/8 in x 50 ft Non-Marking Pressure Washer Hose, 4 ft Chemical Injector Hose with Strainer, 0° Red Pressure Washer Tip, 15° Yellow Pressure Washer Tip, 25° Green Pressure Washer Tip, Black Chemical Pressure Washer Tip
Maximum Flow Rate (L/min) 15.14
Maximum Fluid Pressure (bar) 289.6
Maximum Fluid Pressure (kPa) 28960
Maximum Operating Temperature (°C) 63
Maximum Working Pressure (MPa) 29
Maximum Working Pressure (bar) 290
Maximum Working Pressure (kPa) 29000
Motor Drive Type Direct Drive
Pump Brand AR
Pump Type Triplex Plunger
Recommended Weekly Usage (Hours) 10-20
Type Gas Pressure Washer
Weight (kg) 47

What's Included

Part No. Description Qty Unit
244785 GB KIT, ACCESSORY, GUN 1 ea
805634 Chemical Injector Washer Spray Tip 1 ea
