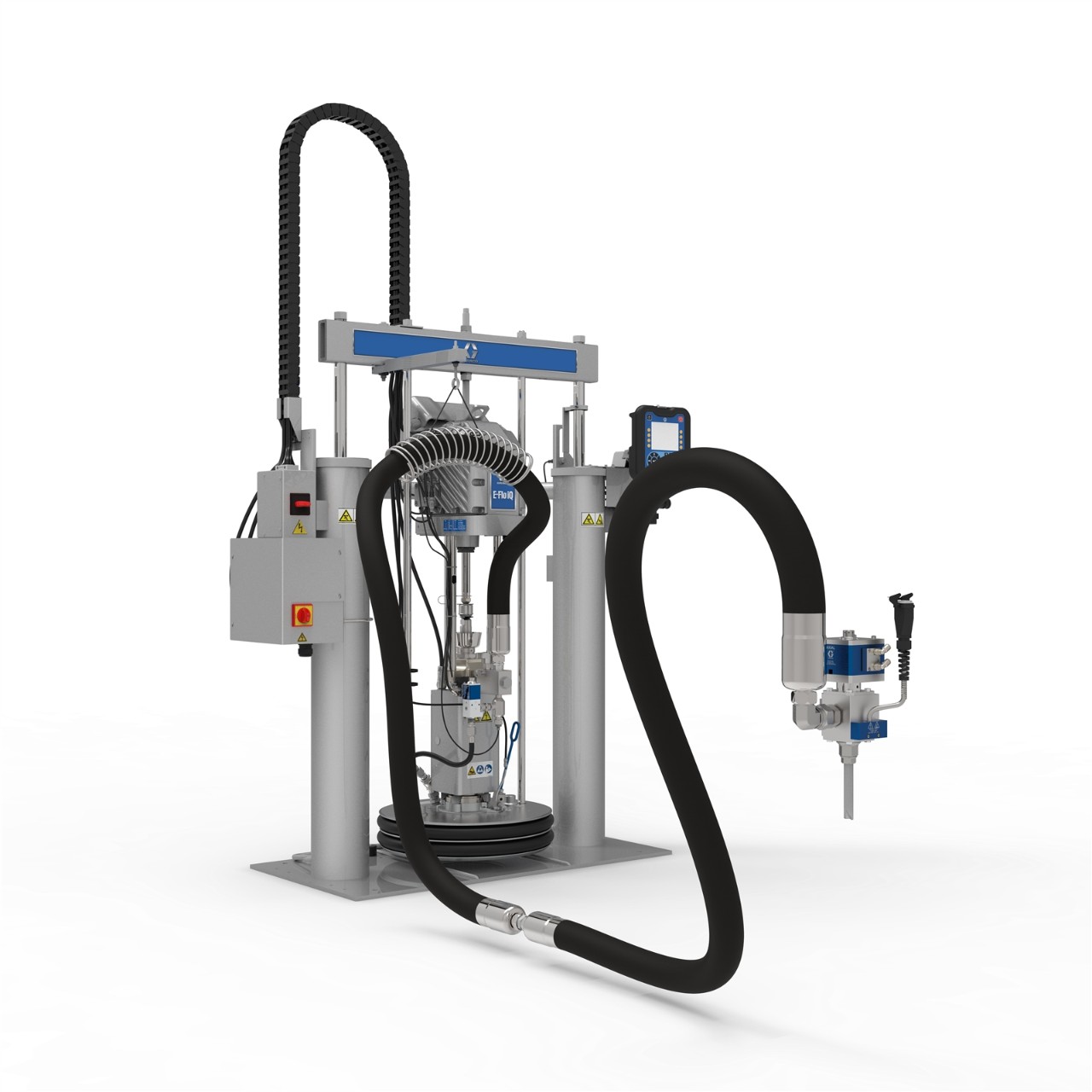

Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 208L (55 Gal.), D200s, 4.6m (15 ft) hose
Part Number: 26B544
Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 208L (55 Gal.), D200s, 4.6m (15 ft) hose
Part Number: 26B544
The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimises maintenance costs and reduces syste...
More Info
Features
Product Brochure
The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimises maintenance costs and reduces system complexity.
- Single Heated E-Flo iQ Urethane Supply Stem
- Delivers consistent control and accurate performance
- Quiet electric servo-driven motor for lower sound levels
- Provides continuous dispensing without the need to reload
- Check-Mate Severe Duty lower for long life and reliable material movement
- High-Quality Heated Hoses
- Graco heated hoses are insulated for an accurate and uniform material temperature.
- Equipped with 4.6m (15 ft) hose
- Axial Rotating Dispense Valves Suited for Urethane Dispense
- Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
- Delivers reliable and consistent beads in high flow applications
- Compact and lightweight design allows for lower payload
- Rotating valve prevents twining and reduces wear
- Remote mounted solenoid
- Easy and Simple Integration
- The communication gateway module (CGM) has integrated mapping of all of the programming data.
- Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1 |
|---|---|
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Rotating Ball/Seat |
| Configuration | Single |
| Container Size | Drum |
| Fluid Outlet Size (in) | 1.0 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gateway | EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface |
| Input Cycle Rate (Hz) | 50/60 |
| Material Container Volume (gal) | 55 |
| Maximum Air Inlet Pressure (MPa) | 0.9 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Ambient Temperature (°F) | 120 |
| Maximum Fluid Temperature (°F) | 158 |
| Maximum Fluid Viscosity (cP) | 3000000 |
| Maximum Fluid Working Pressure (MPa) | 28 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Maximum Hose Length (ft) | 15 |
| Maximum Working Pressure (MPa) | 28 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Ambient Temperature (°F) | 32 |
| Minimum Fluid Viscosity (cP) | 100000 |
| Minimum Voltage (V AC) | 200 |
| Phase | 1, 3 |
| Power Rating (HP) | 2.5 hp |
| Power Type | Electric, Pneumatic |
| Ram Post Diameter (in) | 6.5 |
| Sound Pressure Level (dB(A)) | < 70 |
| Type | Metering System |
| Wetted Material | 319 Cast Aluminium, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel |
| Air Inlet Size (in) | 1 |
| Air Inlet Size (mm) | 25 |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Rotating Ball/Seat |
| Configuration | Single |
| Container Size | Drum |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1.0 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gateway | EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface |
| Input Cycle Rate (Hz) | 50/60 |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (MPa) | 0.9 |
| Maximum Air Inlet Pressure (bar) | 9 |
| Maximum Air Inlet Pressure (kPa) | 900 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Ambient Temperature (°C) | 49 |
| Maximum Flow Rate (cc/min) | 5000 |
| Maximum Flow Rate (l/min) | 5.0 |
| Maximum Fluid Temperature (°C) | 70 |
| Maximum Fluid Viscosity (cP) | 3000000 |
| Maximum Fluid Working Pressure (MPa) | 28 |
| Maximum Fluid Working Pressure (bar) | 240 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Maximum Working Pressure (MPa) | 28 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Ambient Temperature (°C) | 0 |
| Minimum Flow Rate (cc/min) | 10 |
| Minimum Flow Rate (l/min) | 0.01 |
| Minimum Fluid Viscosity (cP) | 100000 |
| Minimum Voltage (V AC) | 200 |
| Phase | 1, 3 |
| Power Type | Electric, Pneumatic |
| Sound Pressure Level (dB(A)) | < 70 |
| Type | Metering System |
| Wetted Material | 319 Cast Aluminium, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel |
