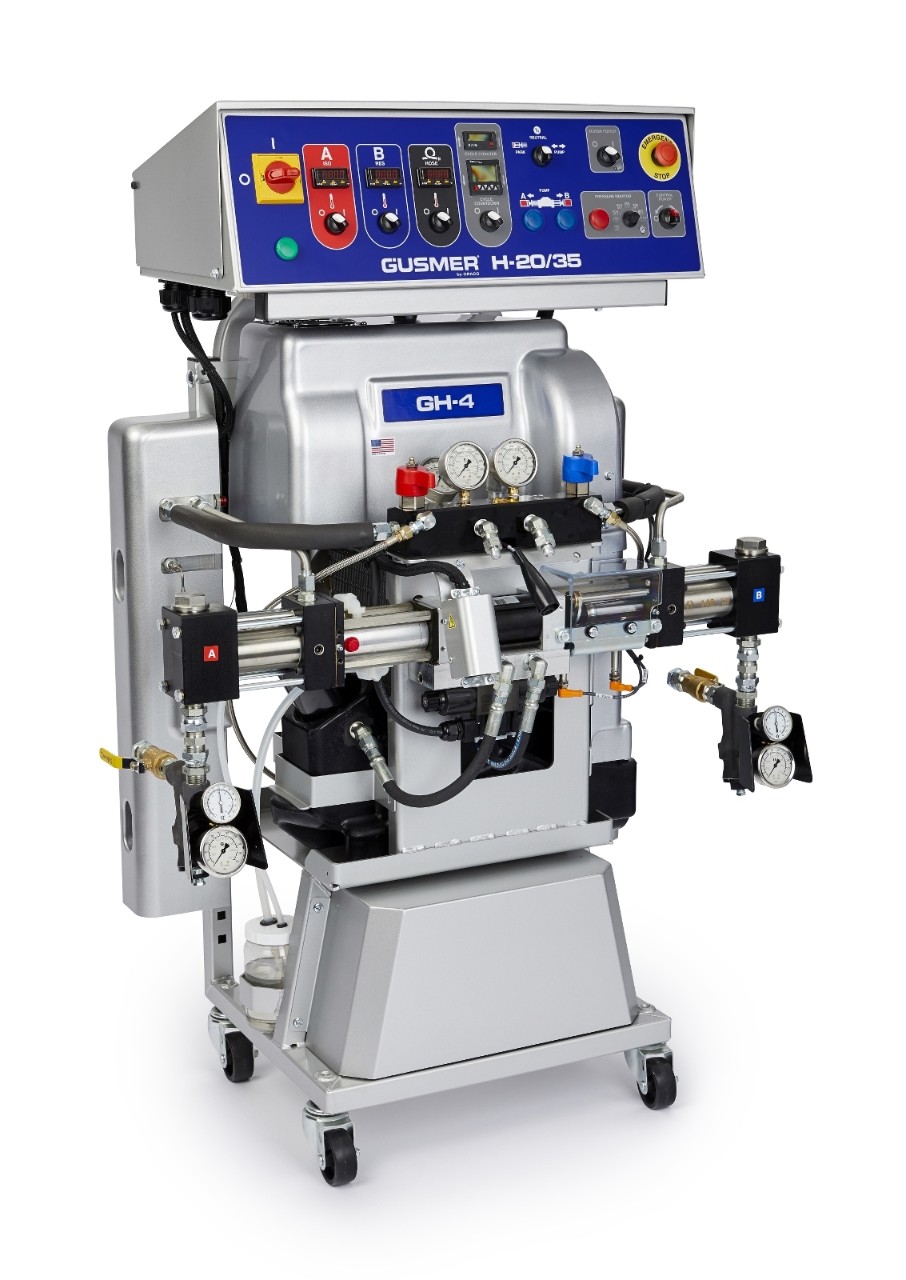

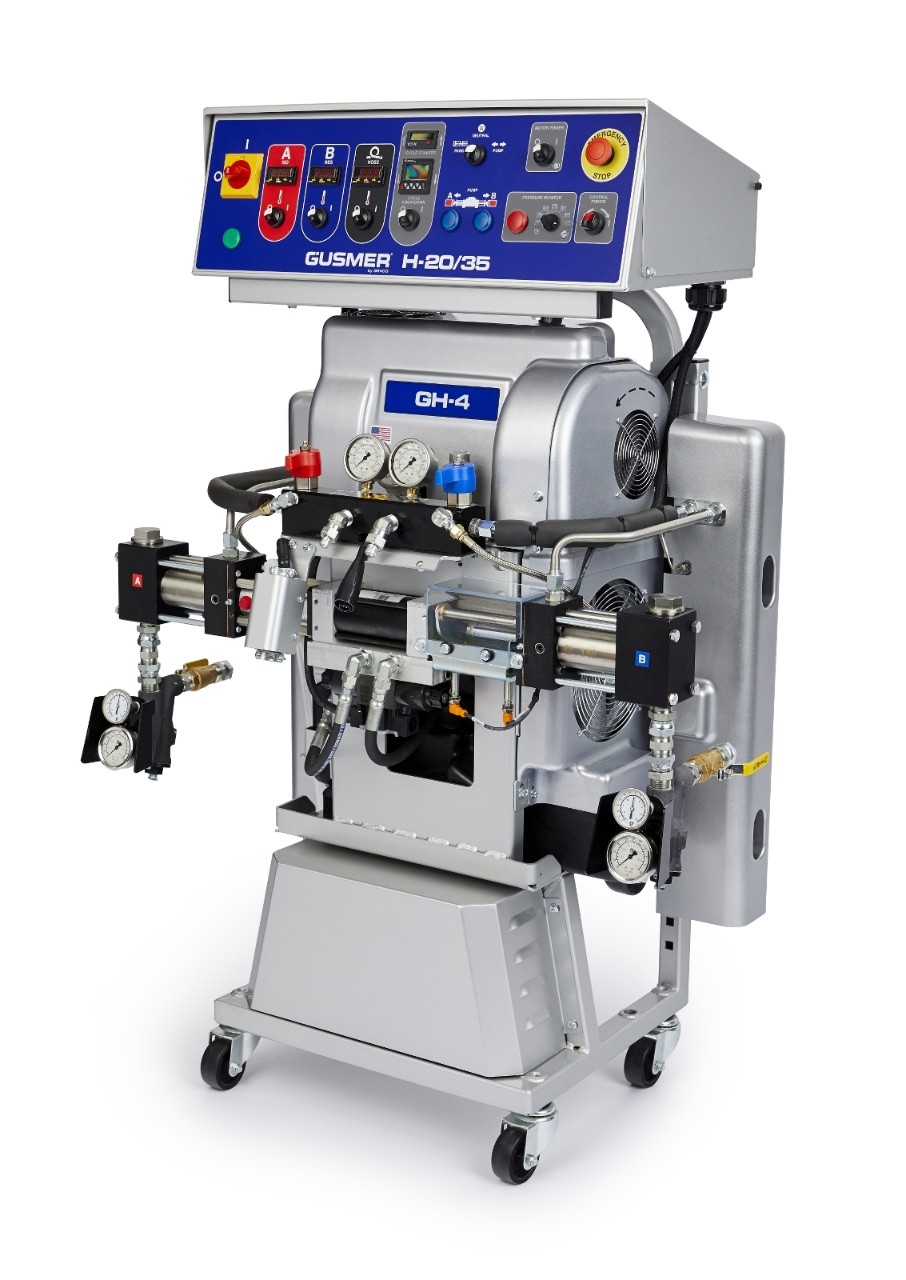

Gusmer GH-4
Gusmer GH-4 Proportioner Package, Fusion AP Gun, Heated Hose with Scuff Guard, 15 kW, 400 V, 3PH
Part Number: APC700
Gusmer GH-4
Gusmer GH-4 Proportioner Package, Fusion AP Gun, Heated Hose with Scuff Guard, 15 kW, 400 V, 3PH
Part Number: APC700
The GH-4 is engineered to be both simple and reliable. Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-4 hydraulic proportioner: a simple, d...
More Info
Features
Product Brochure
The GH-4 is engineered to be both simple and reliable. Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-4 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price.
Ideal for a wide range of spray foam applications, including roofing insulation, residential insulation, commercial wall insulation and concrete lifting.

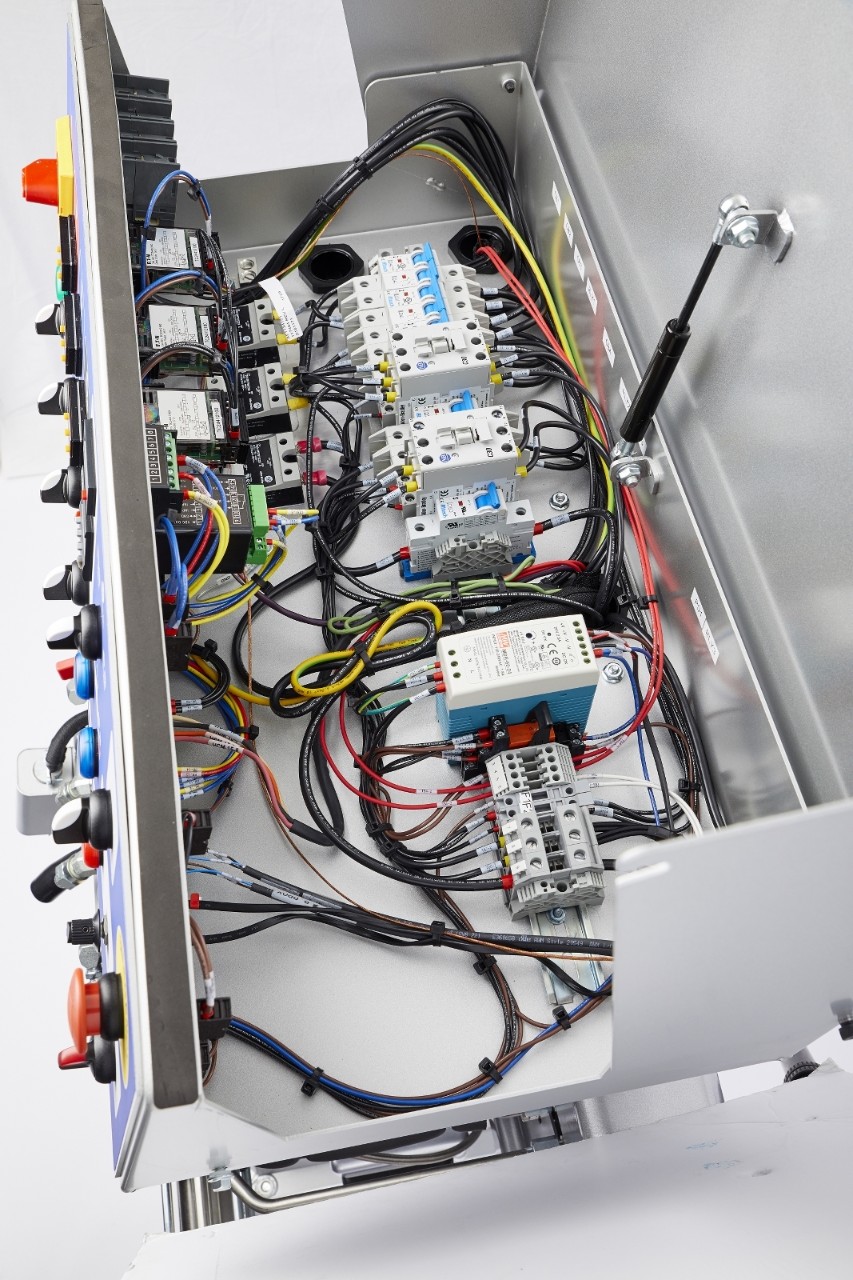

- The Gusmer system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware it’s an easy-to-use and easy-to-maintain design.
Specifications & Documents
Technical Specifications
Convert to Imperial| Gun Type | Fusion AP |
|---|---|
| Hose Length (ft) | 410 |
| Hose type | Single hose |
| Maximum Flow Rate (lb/min) | 45 |
| Maximum Operating Temperature (°F) | 190 |
| Maximum Spray Pressure (psi) | 2000 |
| Mix Ratio | 1:1 |
| Model | Gusmer |
| Overall Depth (in) | 21 |
| Overall Height (in) | 54 |
| Overall Width (in) | 32 |
| Series | GH-4 |
| Type | Proportioner Package |
| Voltage (V) | 400 3 PH |
| Weight (lb) | 585 |
| Gun Type | Fusion AP |
| Hose Length (m) | 125 |
| Hose type | Single hose |
| Maximum Spray Pressure (bar) | 140.0000 |
| Maximum Spray Pressure (kPa) | 1400 |
| Maximum Spray Pressure (psi) | 2000 |
| Mix Ratio | 1:1 |
| Model | Gusmer |
| Overall Depth (cm) | 53.34 |
| Overall Depth (mm) | 533.4 |
| Overall Height (cm) | 137.16 |
| Overall Height (mm) | 1371.6 |
| Overall Width (cm) | 81.28 |
| Overall Width (mm) | 812.8000 |
| Series | GH-4 |
| Type | Proportioner Package |
| Voltage (V) | 400 3 PH |
| Weight (kg) | 26.559 |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 17U244 | KIT,REPAIR,PRESSURE MONITOR |
| 247785 | KIT, MOTOR, 7.5HP, 3PH, 230V/480V |
| 296785 | KIT,HYD CYLINDER REBUILD |
| 17G499 | KIT,CYLINDER,HYD,W/SPACERS |
| 246678 | 15 m (50 ft ) Heated Hose with Scuffguard and 9.5 mm (3/8 in.) Inside Diameter |
| 246103 | Round Fusion Air-Purge Gun with 03 Mix Chamber and 1.5 mm (0.060 in.) Orifice Size |
