GrindLazer High Production Series
GrindLazer HP DC1013 G
Part Number: 25M993
GrindLazer High Production Series

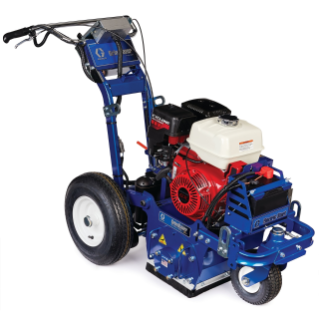

GrindLazer HP DC1013 G
Part Number: 25M993
The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and footpath smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and footpath smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
- DialDown Depth Control System
- Easy Cutter Depth Control
- Easy to “dial down” for precise cutting depth control with multiple positions
- InstaCut Technology
- Ultimate Removal or Inlay Flexibility
- Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
- Allows deck to “float” when on uneven surfaces No-tool system
- Vibration Reduction Technology
- All-Day Comfort
- Up to 4x less vibration than the competition
- Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
- Comfort-grip handlebars for precise steering
- Durable 13 HP Honda Power With Cyclone Filter
- Contractor-Preferred Power
- Cyclone filter protects the engine from harmful airborne dust
- Extreme-Duty ProStart System
- Safer Operation
- Easy cutter start/stop with centrifugal Easy cold weather starting
- Provides longer belt life and eliminates broken recoils
- TriBelt Drive System
- Maximum Road Handling
- 3-cog belt design optimises power transfer and eliminates costly downtime
- Fat Track Front Swivel Wheel
- Fast, Easy Turning
- Proven front caster wheel system makes turning fast and easy
- Manoeuvre curves better No need to “muscle it” while moving
- EasyGlide Wheel Mount System
- Safer, Easier To Manoeuvre
- Front-mounted caster along with dual rear pneumatic air-filled tires
- Pneumatic air-filled tires help eliminate vibration
- Dust Removal
- Vacuum port for optional LazerVac vacuum system
- LineDriver Compatible
- Double Your Productivity
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Filter Type | Cyclone |
|---|---|
| Cut Direction | Forward |
| Cutter Drum Diameter (in) | 5 |
| Cutter Type | Drum |
| Depth Adjustment | Manual |
| Engine Model | GX390 |
| Engine Size (HP) | 13 |
| Engine Start Type | ProStart |
| LineDriver Required | Optional |
| Maximum Cut Rate (ft2/hr) | 800 |
| Maximum Cut Rate w/ LineDriver (ft2/hr) | 1700 |
| Maximum Cut Width (in) | 10 |
| Model | GrindLazer |
| Product Series | High Production Unit |
| Series | High Production Series |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
| Water Connection | Optional |
| Air Filter Type | Cyclone |
| Cut Direction | Forward |
| Cutter Drum Diameter (in) | 5 |
| Cutter Type | Drum |
| Depth Adjustment | Manual |
| Engine Model | GX390 |
| Engine Start Type | ProStart |
| LineDriver Required | Optional |
| Maximum Cut Width (cm) | 25 |
| Maximum Cut Width (mm) | 254 |
| Model | GrindLazer |
| Product Series | High Production Unit |
| Series | High Production Series |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
| Water Connection | Optional |
