FinishPro II 595 PC Pro

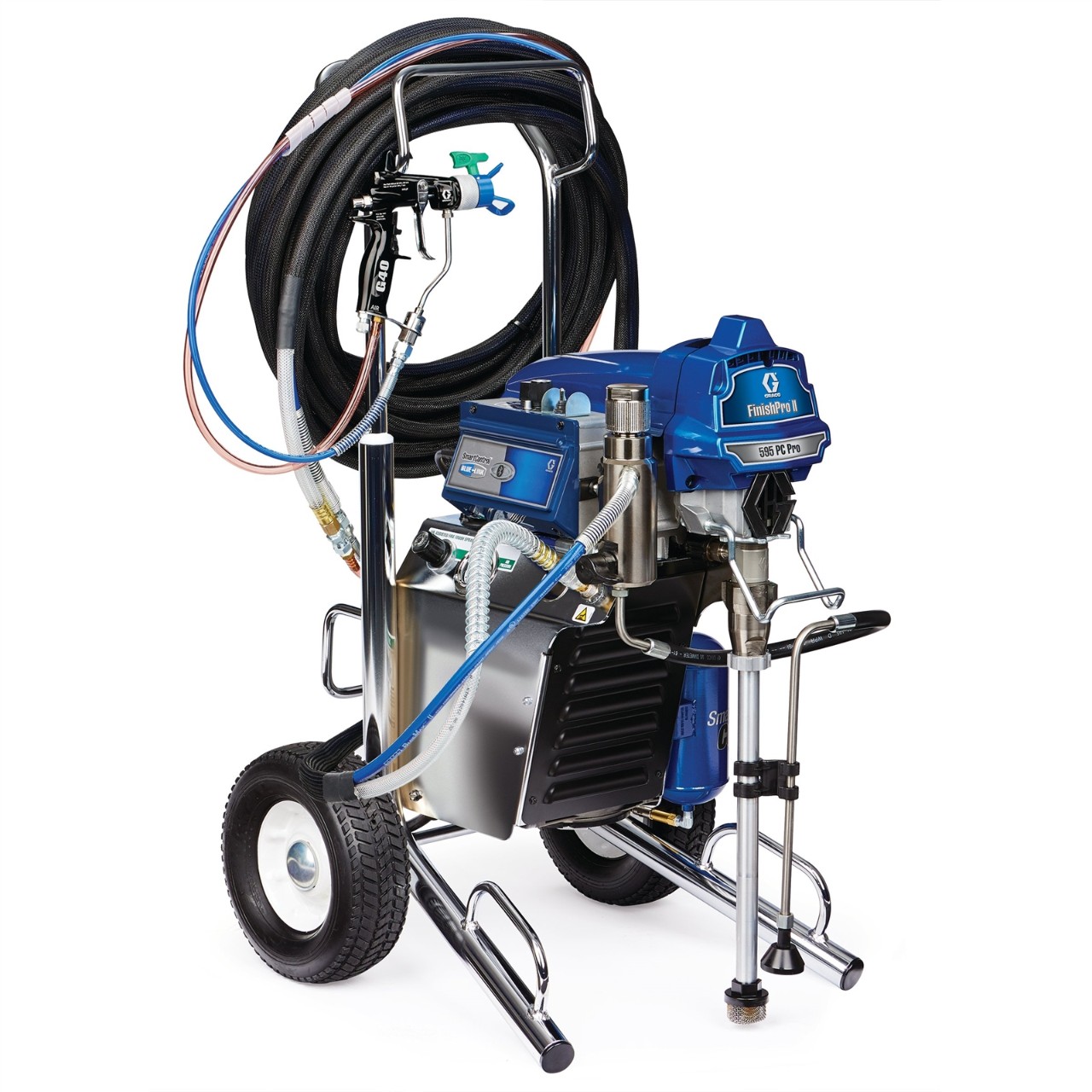

FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer, 230V, IT - DK - CH
Part Number: 17E913
FinishPro II 595 PC Pro
FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer, 230V, IT - DK - CH
Part Number: 17E913
Ideal for commercial or industrial jobs, the FinishPro II 595 PC Pro is the highest performing air-assisted airless sprayer. Finish larger jobs faster with more features and higher flow for more productivity. Easily switch between airless and air-assisted modes for simple jobsite operation.
Features
Product Brochure
Ideal for commercial or industrial jobs, the FinishPro II 595 PC Pro is the highest performing air-assisted airless sprayer. Finish larger jobs faster with more features and higher flow for more productivity. Easily switch between airless and air-assisted modes for simple jobsite operation.
With the FinishPro II 595 PC Pro, you're getting the benefit of two sprayers in one. Easily switch between air-assisted to airless spraying modes with the flip of a switch for the ultimate in application versatility and efficiency to complete jobs faster than ever before.
SmartControl with digital display
- Even pressure delivery on every job
- Constantly monitors performance and adjusts motor speed to match your spraying needs
- Measure sprayer litres/gallons, hours and pressure
- Provides support messages and diagnostic support
- Ideal for low pressure tips for fine finish work and low overspray applications
- FastFlush system
- More spraying & less cleaning
- Clean the pump 4X faster
- High-velocity fluid flow delivered with higher motor speed
- SmartComp
- Superior finish & long-life
- Gun trigger-activated compressor — it is only running when you are spraying!
- Instant air to the gun with zero lag
- Reduces jobsite noise, resulting in less fatigue
- Reduces moisture entering the system and extends compressor life
- Chromex Endurance piston pump
- The most reliable pump
- Lasts two times longer than the next leading brand
- Repack the pump in minutes with the QuikPak cartridge system
- Faster cleaning with the QuikAccess intake foot valve
- ProConnect Pump replacement system
- Eliminate costly downtime
- Exchange pump in minutes
- Pin-less design needs no tools
- High-output on-board air compressor
- Ideal for on-site finish jobs
- Delivers 3.2 ft³/min at 35 psi (0.1 m³/min at 2.4 bar)—enough air to break up the heaviest of materials
- Exclusive pressure unloader results in quieter operation
- Cooling coil reduces air temperature, extending the life of the critical components and providing safer operator handling
- G40 air-assisted airless spray gun
- Premier performance
- Industrial-grade quality delivers superior finishing results
- Integrated air valve improves gun handling
- Contractor PC airless spray gun
- All-day comfort and control
- The lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in second with ProConnect
- Super-Flex hose
- Increased flexibility & manoeuvrability
- Enables you to work in tight spaces and to deliver the best finish quality
- Extremely lightweight, reducing fatigue
- Reduced material build-up and increased durability with Flex Wrap hose skin
- Super-Flex hose
- Increased flexibility & manoeuvrability
- Enables you to work in tight spaces and to deliver the best finish quality
- Extremely lightweight, reducing fatigue
- Reduced material build-up and increased durability with Flex Wrap hose skin
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Replacement Pump | 17C489 |
|---|---|
| Convertible | Non-Convertible |
| Engine Size (HP) | 1.6 Brushless DC |
| Engine Size (kW) | 1.19 |
| Filter Mesh Size | 100 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 60 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | All units shipped complete and ready to spray: with 17Y043 Contractor PC™ gun, LP517 Tip, 246215 RAC X™ guard, 287032 Easy-Out™ filter (60 mesh), 240794 BlueMax™ II hose (1/4 in. x 15 m), 15F446 gun tool, 111733 adjustable wrench, 238049 TSL™ (118 ml), toolbox and hose rack. |
| Maximum Flow Rate (GPM) | 0.68 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 150 |
| Maximum Sound Pressure Level (dB(A)) | 79 |
| Maximum Tip Size (in) | 0.027 |
| Maximum Tip Size 1 Gun (in) | 0.027 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | FinishPro II |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 72 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 52.1 |
| Phase | 1 |
| Power Rating (HP) | 1.4 |
| Power Rating (kW) | 1.04 |
| Power Source | Electric |
| Pressure Control Type | SmartControl |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened stainless steel |
| Pump Type | Endurance |
| Series | 595 PC Pro |
| Spray Gun Type | G40 Gun |
| Spray Type | Airless, Air-Assisted Airless |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 230 |
| Weight (lb) | 112 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten |
| Compatible Replacement Pump | 17C489 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 1.19 |
| Filter Mesh Size | 100 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6,35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 60 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | All units shipped complete and ready to spray: with 17Y043 Contractor PC™ gun, LP517 Tip, 246215 RAC X™ guard, 287032 Easy-Out™ filter (60 mesh), 240794 BlueMax™ II hose (1/4 in. x 15 m), 15F446 gun tool, 111733 adjustable wrench, 238049 TSL™ (118 ml), toolbox and hose rack. |
| Maximum Flow Rate (L/min) | 2.6 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 45 |
| Maximum Sound Pressure Level (dB(A)) | 79 |
| Maximum Tip Size (in) | 0.027 |
| Maximum Tip Size 1 Gun (in) | 0.027 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | FinishPro II |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 103 |
| Overall Height (mm) | 1828.8000 |
| Overall Length (cm) | 59.1 |
| Overall Length (mm) | 590.55 |
| Overall Width (cm) | 52.1 |
| Overall Width (mm) | 1323.3400 |
| Phase | 1 |
| Power Rating (kW) | 1.04 |
| Power Source | Electric |
| Pressure Control Type | SmartControl |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened stainless steel |
| Pump Type | Endurance |
| Region plug type | IT, DK, CH region (type L, K & J plug) |
| Series | 595 PC Pro |
| Spray Gun Type | G40 Gun |
| Spray Type | Airless, Air-Assisted Airless |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 230 |
| Weight (kg) | 51 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten |
Product Manuals
Certifications
Repair Parts
| Part No. | Description |
|---|---|
| 16X842 | CORD, ST, IEC JUMPER |
| 15B071 | INSERT, FILTER |
| 24U579 | Super-Flex Material and Air Hose Set, 15 m (50 ft) |
| 117828 | KIT, O-RING, PTFE, ENCAPULATED |
| 246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
| 246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
| 246384 | Easy Out Pump Manifold Filter, Short, 60 mesh |
| 287807 | KIT, REPAIR, MOTOR, 595 |
| 17C992 | KIT, REPAIR, STINGER TUBE |
| 246385 | Inlet Strainer, Nylon Cap, 7/8 inch |
| 243222 | Q KIT, REPAIR, TRANSDUCER |
| 287952 | KIT,REPAIR,DRAIN HOSE |
| 246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
| 120544 | SWITCH, TOGGLE |
| 115099 | WASHER GARDEN HOSE |
| 15B652 | WASHER, SUCTION SWIVEL |
