Merkur X48/X72

Merkur 48:1 Cart-Mount Airless Sprayer Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Hose, 6 ft (1.8 m) Whip Hose

Part Number: 16U920

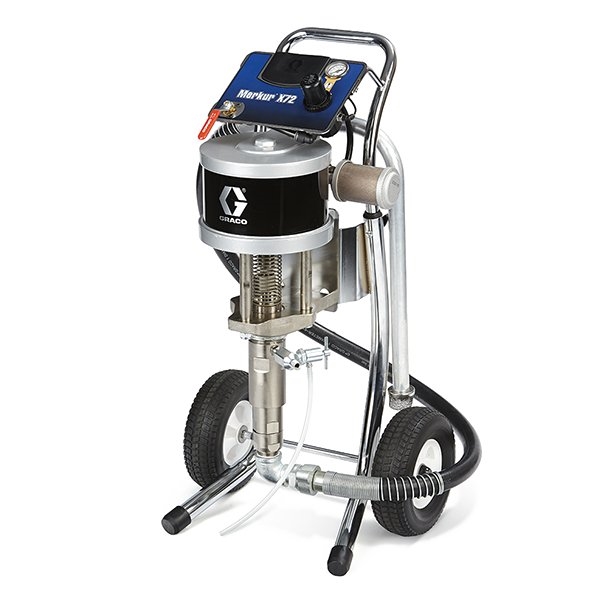

product image

Merkur X48/X72

Merkur 48:1 Cart-Mount Airless Sprayer Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Hose, 6 ft (1.8 m) Whip Hose

Part Number: 16U920

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Features

Product Brochure

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Portable, lightweight sprayer for a wide range of protective coatings projects

  • Compact – fits into tight areas
  • Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
  • Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
  • Easy to use, easy to clean
  • Stainless steel option allows for waterborne coatings
  • Flexible – ideal for a wide range of applications, including marine, rail and steel fabrication
  • The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Protective Coating
Features Portable, Pressure Bleed Valve, Quick Knock-Off Suction Hose, Throat and Piston Packings
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Includes XTR-7 Spray Gun, 519 XHD Tip, Fluid Hose
Inlet Paint Strainer 8 Mesh, 16 Mesh
Lower Configuration Carbon Steel;1-1/4 in. Inlet;Drain Valve
Maximum Air Consumption (SCFM) 60
Maximum Air Inlet Pressure (psi) 100
Maximum Fluid Working Pressure (psi) 4800
Maximum Operating Temperature (°F) 160
Maximum Sound Pressure Level (dB(A)) 68.9
Maximum Tip Size (in) 0.025
Maximum Working Pressure (MPa) 33.1
Maximum Working Pressure (psi) 4800
Mix Ratio 48:1
Model Merkur
Motor Type Pneumatic Motor
Mount Type Cart Mount
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Package Options 3/8 in. x 25 ft. (7.6 m) Hose, 1/4 in. x 6ft (1.8 m) Whip, XTR-5 Gun
Power Source Pneumatic
Pressure Control Type Air Regulator
Pump Pressure Ratio 48:1
Pump Rod Type Carbon Steel
Pump Sleeve Material Stainless Steel
Pump Type Displacement Pump, Pneumatic Piston Pump
Series X48/X72
Type Airless Sprayer
Weight (lb) 99
Compatible Material Protective Coating
Features Portable, Pressure Bleed Valve, Quick Knock-Off Suction Hose, Throat and Piston Packings
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Size (mm) 31.75
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (in) 3/8
Hose Inlet Diameter (mm) 9.525
Includes XTR-7 Spray Gun, 519 XHD Tip, Fluid Hose
Inlet Paint Strainer 8 Mesh, 16 Mesh
Lower Configuration Carbon Steel;1-1/4 in. Inlet;Drain Valve
Maximum Air Inlet Pressure (psi) 100
Maximum Fluid Working Pressure (psi) 4800
Maximum Operating Temperature (°C) 71
Maximum Sound Pressure Level (dB(A)) 68.9
Maximum Tip Size (in) 0.025
Maximum Working Pressure (MPa) 33.1
Maximum Working Pressure (bar) 331
Maximum Working Pressure (kPa) 33100
Maximum Working Pressure (psi) 4800
Mix Ratio 48:1
Model Merkur
Motor Type Pneumatic Motor
Mount Type Cart Mount
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Package Options 3/8 in. x 25 ft. (7.6 m) Hose, 1/4 in. x 6ft (1.8 m) Whip, XTR-5 Gun
Power Source Pneumatic
Pressure Control Type Air Regulator
Pump Pressure Ratio 48:1
Pump Rod Type Carbon Steel
Pump Sleeve Material Stainless Steel
Pump Type Displacement Pump, Pneumatic Piston Pump
Series X48/X72
Type Airless Sprayer
Volume Per Cycle (cm³) 75
Weight (kg) 45

Repair Parts

Part No. Description
181072 Inlet Strainer, SST Cap Double Screen, 1 in
245143 Saleable Pressure Bleed Valve
16U917 LOWER,ASSY, 75CC
XTR524 XTR5+ Airless Spray Gun, Round Handle, 4-Finger Trigger, XHD RAC Tip
