LineLazer V 250DC

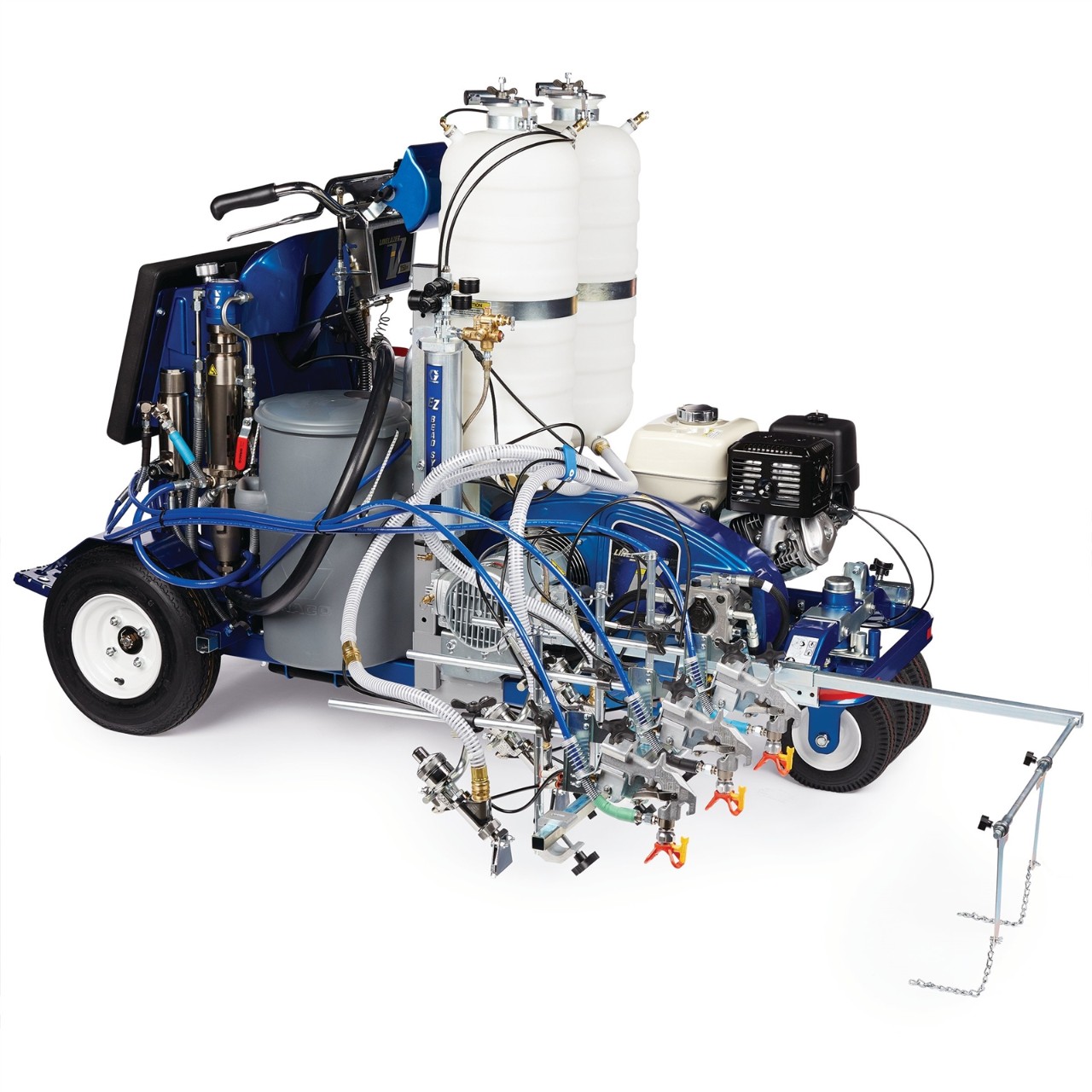

LineLazer V 250DC HP Reflective Series Self-Propelled Petrol Hydraulic Airless Line Striper, 3 Auto Guns, 2 Tanks

Part Number: 17H474

product image product image product image product image product image

LineLazer V 250DC

LineLazer V 250DC HP Reflective Series Self-Propelled Petrol Hydraulic Airless Line Striper, 3 Auto Guns, 2 Tanks

Part Number: 17H474

The LineLazer V 250DC HP Reflective Series provides high-production dual colour striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-colour stripes with reflective beads.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
The LineLazer V 250DC HP Reflective Series provides high-production dual colour striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-colour stripes with reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurised Bead System
    • Onboard closed compressor avoids dust and debris from entering
    • Ensures proper bead flow and paint penetration
    • Large volume bead tank holds up to 54 kg
    • Bead gun activates automatically with spray gun
    • Bead gun with gun-delay ability
    • Adjustable nozzle for bead dispensing width adjustment
  • Dual colour Capable
    • Dual colour applications with a single unit improves efficiency and profitability
  • Automatic Paint Gun System
    • Push button control for lower operator fatigue and accurate (skip-)lines
    • Manual, semi- and automatic guns/mode
  • Dual Graco Hydraulic Motors
    • No-stall hydraulic design provides uninterrupted performance
  • Endurance Chromex Pump
    • Long life pumps provide precise flow for a wide range of striping materials
    • Industry-best pump performance with field-proven design
    • Handle the most demanding materials with long-life rod treatment - 4x harder than ordinary chrome
  • LiveLook Display with SmartControl
    • Track, measure and control every aspect of your job
    • Real-time information for the perfect lines
  • Dual 55 Litre Paint Hoppers
    • Extended striping time with large capacity hopper
  • Honda® GX390 Engine
    • Reliable and easy-to-start
    • Contractor-preferred - excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Front or Rear Gun Mount
    • Up to six guns can be mounted at the front and at the rear
    • Front gun mounting can be used to stripe up to the curb and mounting the gun at the rear to improve straightness and consistency of long lines
  • Additional Features
    • Self-Centring Front Wheel
    • High-Capacity Cooling System
    • Electric Start
    • EasyMark Gun Adjustment System
    • Easy Handlebar Adjustment
    • Easy Out Pump Filter
    • Flex Plus Guns

Specifications & Documents

Technical Specifications

Convert to Imperial
None
Bead Tank Size (lb) 240
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Model GX390
Fuel Tank Capacity (gal) 1.4
Gun Activation 3 Automatic
Hopper Volume Capacity (gal) 30
Includes Pressurised Bead System (2 Tanks), Flex Plus Gun (3), LineLazer RAC 5 321 Spray Tip (3), LineLazer RAC 5 425 Spray Tip (3), LineLazer RAC 5 627 Spray Tip (3), RAC 5 Tip Guard (3), 3/8 in. x 3.7 m (12 ft) BlueMax II Airless Hose (2), 3/8 in. x 0.9 m (3 ft) BlueMax II Airless Whip Hose (2), TSL, 118 ml (4 oz)
Maximum Flow Rate (GPM) 2.5
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (in) 0.031
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colours Two Colours
Number of Guns 3
Number of Hoppers 2
Number of Pumps 2
Overall Height (in) 55.7
Overall Length (in) 73.5
Overall Width (in) 33
Power Rating (HP) 13
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product series HP reflective
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (lb) 864
None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Model GX390
Fuel Tank Capacity (L) 5.3
Gun Activation 3 Automatic
Hopper Volume Capacity (L) 114
Includes Pressurised Bead System (2 Tanks), Flex Plus Gun (3), LineLazer RAC 5 321 Spray Tip (3), LineLazer RAC 5 425 Spray Tip (3), LineLazer RAC 5 627 Spray Tip (3), RAC 5 Tip Guard (3), 3/8 in. x 3.7 m (12 ft) BlueMax II Airless Hose (2), 3/8 in. x 0.9 m (3 ft) BlueMax II Airless Whip Hose (2), TSL, 118 ml (4 oz)
Maximum Flow Rate (L/min) 9.5
Maximum Operating Speed (km/h) 16.1
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (cm) 0.0787
Maximum Tip Size (in) 0.031
Maximum Tip Size (mm) 0.7874
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colours Two Colours
Number of Guns 3
Number of Hoppers 2
Number of Pumps 2
Overall Height (cm) 141.5
Overall Height (mm) 1414.8
Overall Length (cm) 186.7
Overall Length (mm) 1866.9
Overall Width (cm) 83.8
Overall Width (mm) 838
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product series HP reflective
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (kg) 392

Product Manuals


What's Included

Part No. Description Qty Unit
16R962 GB KIT, ACCESSORY, BEAD SYS LL250 1 ea
16U439 GB KIT, ACCESSORY, BEAD TANK 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 3 ea
LL5321 LineLazer RAC 5 SwitchTip, 321 3 ea
LL5425 LineLazer RAC 5 SwitchTip, 425 3 ea
LL5627 LineLazer RAC 5 SwitchTip, 627 3 ea
243161 RAC 5 HandTite Tip Guard 3 ea
245226 HOSE, CPLD, 3/8" X 3' 2 ea
238049 TSL Throat Seal Liquid, 118 ml 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
277068 Q GB KIT, REPAIR, PUMP
17C063 SWITCH,ROCKER, SPST
