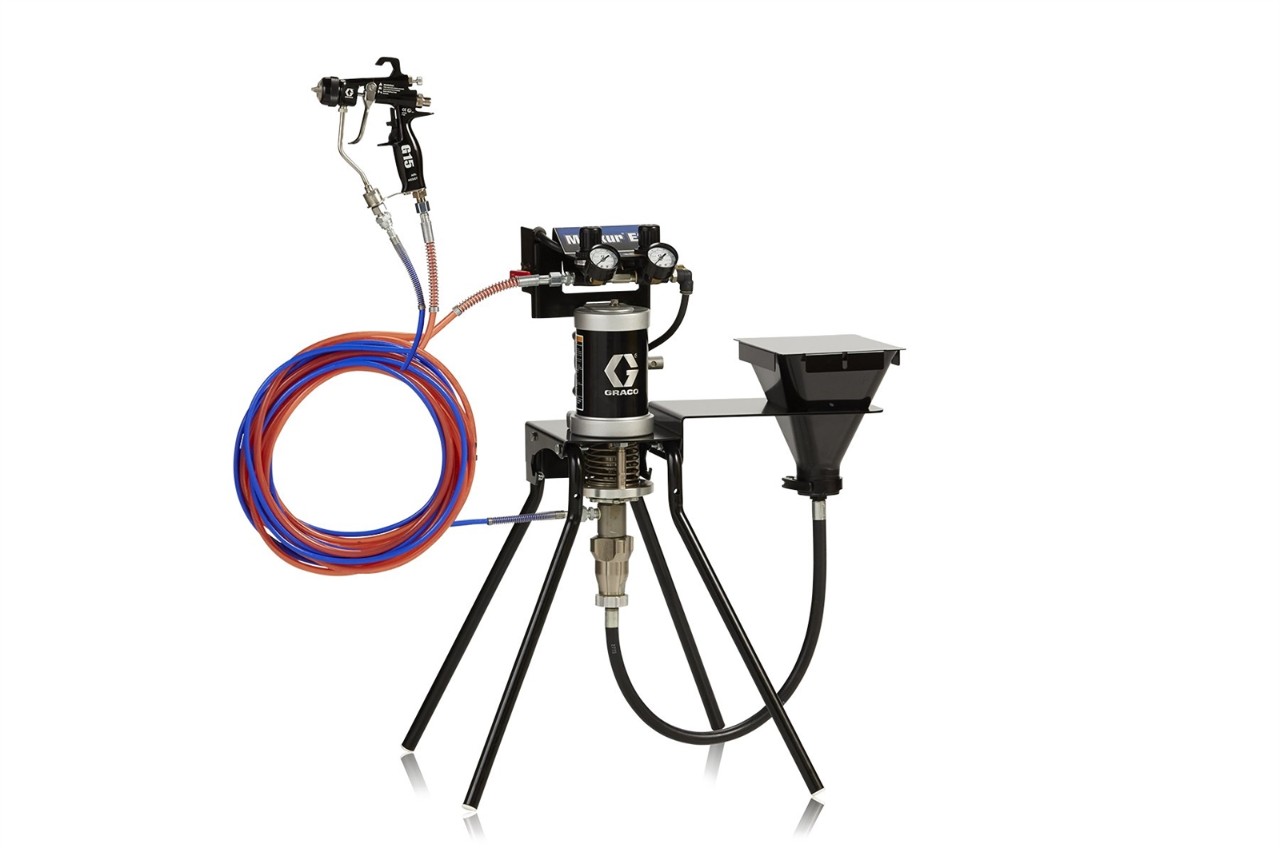

Merkur ES
15:1 Merkur ES Air Assisted Package, 1.5 lpm (0.4 gpm) fluid flow, standard mount, with G15 gun, hopper and stainless steel
24W283
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Features
Product Brochure
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material needed to fill the system than leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control. Also fitted with an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leave less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
Specifications & Documents
Technical Specifications
Convert to Imperial| Air-Assisted | |
| Convertible | Non-Convertible |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G15 |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.125 |
| Includes | G15 Gun, Hopper, Stand Mount |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 76.5 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 15:1 |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 32 |
| Wetted Material | Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Air-Assisted | |
| Convertible | Non-Convertible |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G15 |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (cm) | 0.3175 |
| Hose Inlet Diameter (mm) | 3 |
| Includes | G15 Gun, Hopper, Stand Mount |
| Maximum Hose Length (m) | 7.6 |
| Maximum Sound Pressure Level (dB(A)) | 76.5 |
| Maximum Tip Size (cm) | 0.0483 |
| Maximum Tip Size (mm) | 0.4826 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (bar) | 103 |
| Maximum Working Pressure (kPa) | 10300 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 15:1 |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (kg) | 14.5 |
| Wetted Material | Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
Product Manuals
CAD Drawings
24F150-3D-EN.zip
()
Repair Parts
| Part No. | Description |
|---|---|
| 24G702 | Complete Stainless Steel Pump Replacement Kit for Merkur ES Packages |
| 24G693 | Complete 63.5 mm (2.5 in) Merkur ES Air Motor Repair Kit |
| 17A493 | Hopper Kit, 2 Litres (0.5 gal), attaches to wall or stand mount |
| 17C166 | Bungee cord for attaching hopper lid |
| 24A360 | Air Valve End Cap Kit, Standard, for systems with no DataTrak or with DataTrak with Cycle Count |
| 24H665 | Alternate U-Cup Pump Packing Kit (UHMWPE) for Merkur ES Packages |
| 256426 | Package of 10 strainers for Kits 24F149 and 256420 |
| 17B208 | Hopper O-Ring Kit |
| 24F161 | Airless to Air-Assisted Conversion Kit |
| 24C853 | G15 Air-Assist Carbide Gun for low to medium-viscosity materials |
| 24A535 | Air Valve Seal Kit, for Air Valve Models 24A351 and 24A353 |
| 24A537 | Air Valve Repair Kit, for Air Valve Models 24A351 and 24A353 |
| 24F160 | Standard Push-on Strainer Kit |
Recommended Accessories
15.2 m (50 ft) Air Hose
View Details
15.2 m (50 ft) Fluid Hose, 228 bar (3300 psig)
View Details
208 l (55 gal) Drum Suction Hose and Strainer, 1 in fluid inlet
View Details
Air Control Gauge Covers, 5 sheets of 10 covers
View Details
Air Gauge Lens Cover Kit (sheet of 12 covers)
View Details
Drain Valve Kit, includes drain valve, coupling and hose
View Details
G15 Air-Assist Carbide Gun for low to medium-viscosity materials
View Details
Hopper Kit, 5 l (1.5 gal) polyethylene
View Details
Hopper Screens (Pack of 5)
View Details
Hose Clips, pack of 10
View Details
Inline Fluid Filter, plated steel
View Details
Inline Fluid Filter, stainless steel
View Details
Manifold Filter, Long, 30 mesh, 2 pk
View Details
Manifold Filter, Long, 60 mesh, 2 pk
View Details
Mini High Pressure Corrosion Resistant Fluid Regulator, 104 bar (1500 Max psi), 10-83 bar (150-1200 psi) Range, 3.7 L/min (1.0 GPM...
View Details
PTFE Lined Suction Hose for 19 l (5 gal) Pails and Strainer, 1 in inlet
View Details
PTFE Lined Suction Hose for 19 l (5 gal) Pails and Strainer, 3/4 in inlet
View Details
PTFE Lined Suction Hose for Cart Mount Pump, 1 in inlet
View Details
PTFE Lined Suction Hose for Cart Mount Pump, 3/4 in inlet
View Details
PTFE Lined Suction Hose for Wall Mount Pumps, 1/2 in inlet
View Details
Second AA Gun Kit, includes air regulator and gauge
View Details
Suction hose, 5/8” OD, for 18.9 l (5 gal) pail
View Details
Suction tube for 3.7 l (1 gal) pail, stainless steel
View Details
TSL Throat Seal Liquid, 0.25 Litre
View Details
TSL Throat Seal Liquid, 118 ml
View Details
Upgrade Kit for 400 cc Air Motors
View Details
Upgrade Kit for 700 cc, 1200 cc and 1800 cc Air Motors
View Details
