Reactor 3 E-XP1

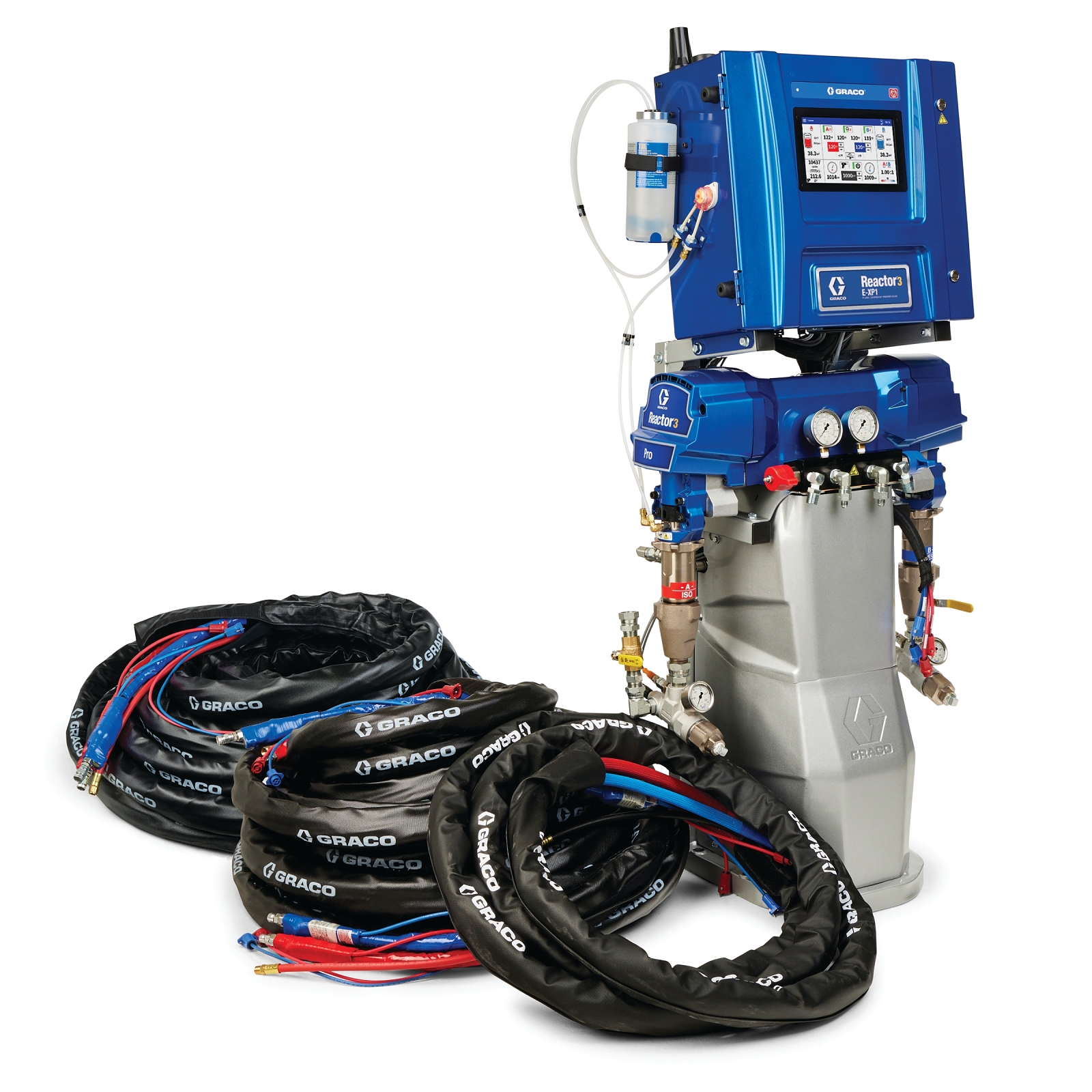

Reactor 3 E-XP1 Pro Tier polyurea proportioner package, 200 ft internal heated hose, 10 kW
Part Number: IHR321
Reactor 3 E-XP1
Reactor 3 E-XP1 Pro Tier polyurea proportioner package, 200 ft internal heated hose, 10 kW
Part Number: IHR321
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimise spray parameters and maximise productivity.
Features
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimise spray parameters and maximise productivity.
The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business; it is a great starter machine. Due to the smaller heaters, the E-XP1 is also a good choice for contractors in temperate climates where larger heaters are not required.
- Auto pressure balance
- Automatically adjusts temperatures to optimise fluid pressures and maximise yield
- Power management
- Select the desired heater wattage for reduced power consumption
- Cellular software updates
- Automatically stay up to date with the latest Reactor software
- Touchscreen advanced display module (ADM)
- A large new touchscreen interface
- Intuitive operation and navigation
- All spray operations controllable from one screen
- Independent hose control
- Control A and B materials to different temperatures for improved pressure balancing
- Optimises yield
- Advanced electric design
- A brushless motor for improved pressure/flow performance
- New temperature control boards for independent hose heat
- Voltage jumpers for easy changing between voltages
- The robust UL listed electrical hose connectors are colour coded and keyed for error proof assembly
- Reduced size
- The reduced footprint provides additional room in your rig
- The compact design protects the flow meters and hose connections from being damaged in your rig
Specifications & Documents
Technical Specifications
Convert to ImperialFrequency (Hz) | 50/60 |
---|---|
Hose Heating Type | Internally heated |
Hose Length (ft) | 200 |
Maximum Flow Rate (GPM) | 1.0 |
Maximum Fluid Temperature (°F) | 190 |
Maximum Spray Pressure (MPa) | 20.7 |
Maximum Spray Pressure (psi) | 3000 |
Model | Reactor 3 |
Overall Depth (in) | 15 |
Overall Height (in) | 56.5 |
Overall Width (in) | 24.9 |
Power Rating (kW) | 10 |
Product series | Pro |
Series | E-XP1 |
Transfer pumps | Transfer pumps |
Type | Proportioner Package |
Voltage (V) | 200-240 VAC, 1–ph, 200-240 VAC, 3–ph DELTA, 350-415 VAC, 3–ph WYE |
Weight (lb) | 260 |
Frequency (Hz) | 50/60 |
Hose Heating Type | Internally heated |
Maximum Flow Rate (L/min) | 3.8 |
Maximum Fluid Temperature (°C) | 88 |
Maximum Spray Pressure (MPa) | 20.7 |
Maximum Spray Pressure (bar) | 207 |
Maximum Spray Pressure (psi) | 3000 |
Model | Reactor 3 |
Power Rating (kW) | 10 |
Product series | Pro |
Series | E-XP1 |
Transfer pumps | Transfer pumps |
Type | Proportioner Package |
Voltage (V) | 200-240 VAC, 1–ph, 200-240 VAC, 3–ph DELTA, 350-415 VAC, 3–ph WYE |
Weight (kg) | 118 |
