Dura-Flo

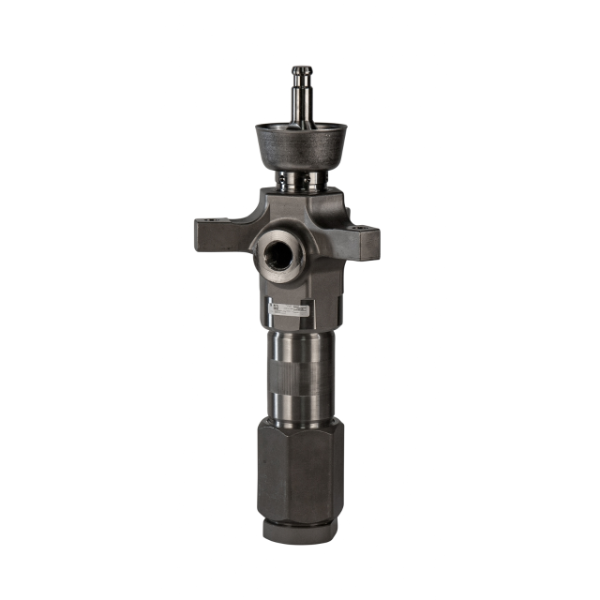

45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Part Number: P45LSS

product image product image product image

Dura-Flo

45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Part Number: P45LSS

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximise your plant's production capacity.

Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure

(English Only)

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximise your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer

  • NXT 6500 Air Motor
    • Modular design for easier maintenance
    • Rugged body armour won't rust or dent
    • Highest technology air motor on the market
  • 290cc Dura-Flo Lower
    • Severe Duty coatings on rods and cylinder Extends production time
  • Standard Threaded Coupler -

  • 1 in.-11 1/2 NPT Female outlet

    • Replaceable Seat

      • Minimises service costs
    • Cast Outlet and Inlet Housing

      • Improves structural integrity
    • Optional DataTrak™ Control

      • Runaway protection
      • Pump diagnostics
      • Material usage

    (English Only)

    Specifications & Documents

    Technical Specifications

    Convert to Imperial
    Ambient/Warm Melt/Hot Melt Ambient
    Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Moulding, Spray, Fluid Transfer, Unloading, Underfill
    Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
    Fluid Inlet Size (in) 2
    Fluid Inlet Thread Gender Female
    Fluid Inlet Thread Type NPT
    Fluid Outlet Size (in) 1
    Fluid Outlet Thread Gender Female
    Fluid Outlet Thread Type NPT
    Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
    Material Stainless Steel
    Maximum Working Pressure (MPa) 31.4
    Maximum Working Pressure (psi) 4550
    Model Dura-Flo
    Power Type Pneumatic
    Pump Ratio 45:1
    Type Piston Pump Package
    Ambient/Warm Melt/Hot Melt Ambient
    Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Moulding, Spray, Fluid Transfer, Unloading, Underfill
    Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
    Fluid Inlet Size (in) 2
    Fluid Inlet Size (mm) 50.8000
    Fluid Inlet Thread Gender Female
    Fluid Inlet Thread Type NPT
    Fluid Outlet Size (in) 1
    Fluid Outlet Size (mm) 25.4000
    Fluid Outlet Thread Gender Female
    Fluid Outlet Thread Type NPT
    Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
    Material Stainless Steel
    Maximum Working Pressure (MPa) 31.4
    Maximum Working Pressure (bar) 314
    Maximum Working Pressure (kPa) 31400
    Maximum Working Pressure (psi) 4550
    Model Dura-Flo
    Power Type Pneumatic
    Pump Ratio 45:1
    Type Piston Pump Package

    Product Manuals

    CAD Drawings

    Sales Literature

    344905EN Supply Pumps Brochure (501 KB)
    (English Only)

    Repair Parts

    Part No. Description
    N65LN0 NXT Air Motor, 6500 cc, Low Noise Exhaust, No Monitoring
    L290SS Dura-Flo 1200 (290 cc) Lower, Stainless Steel, Severe-Duty Rod and Cylinder, 3 UHMWPE/2 PTFE Packings
