GrindLazer High Production Series

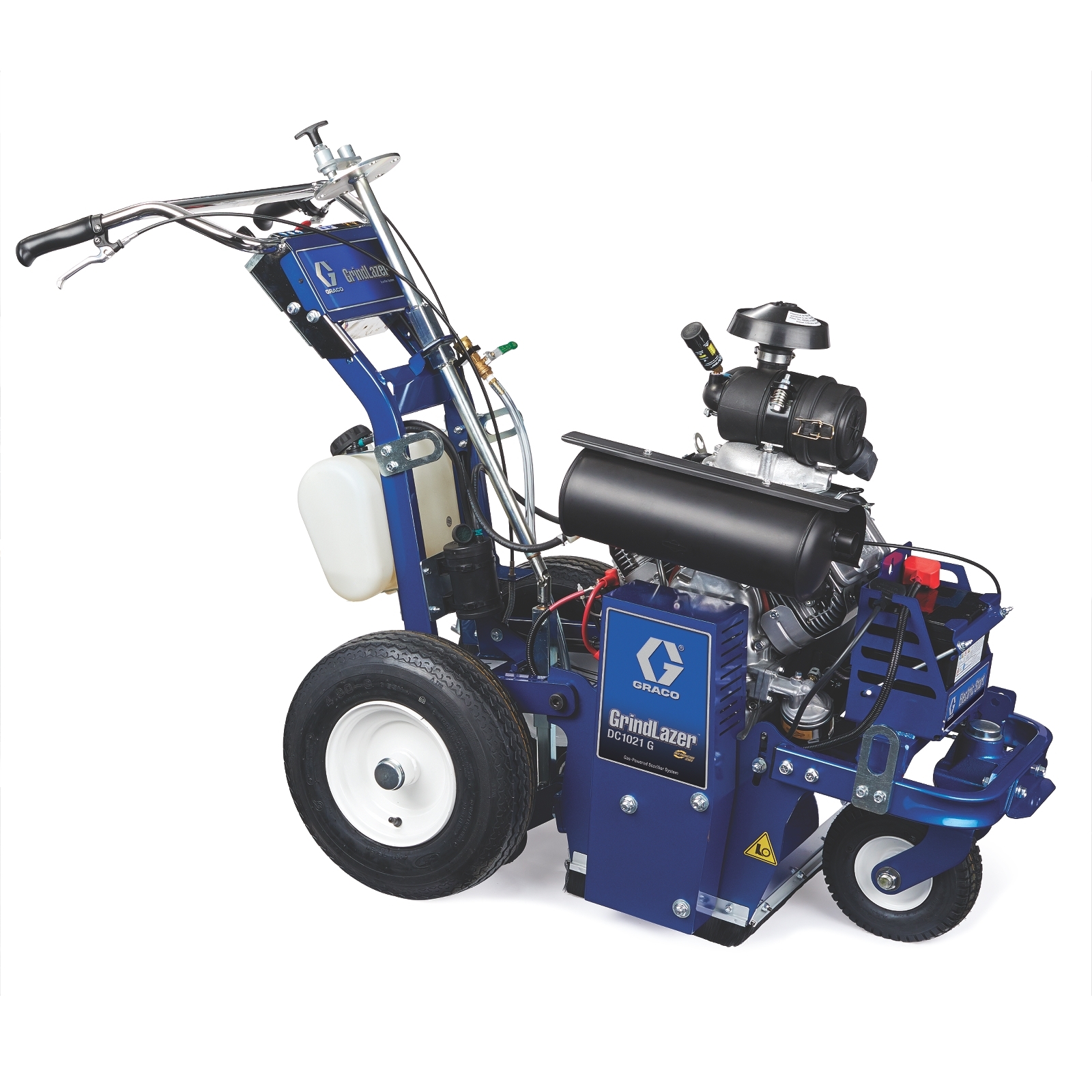

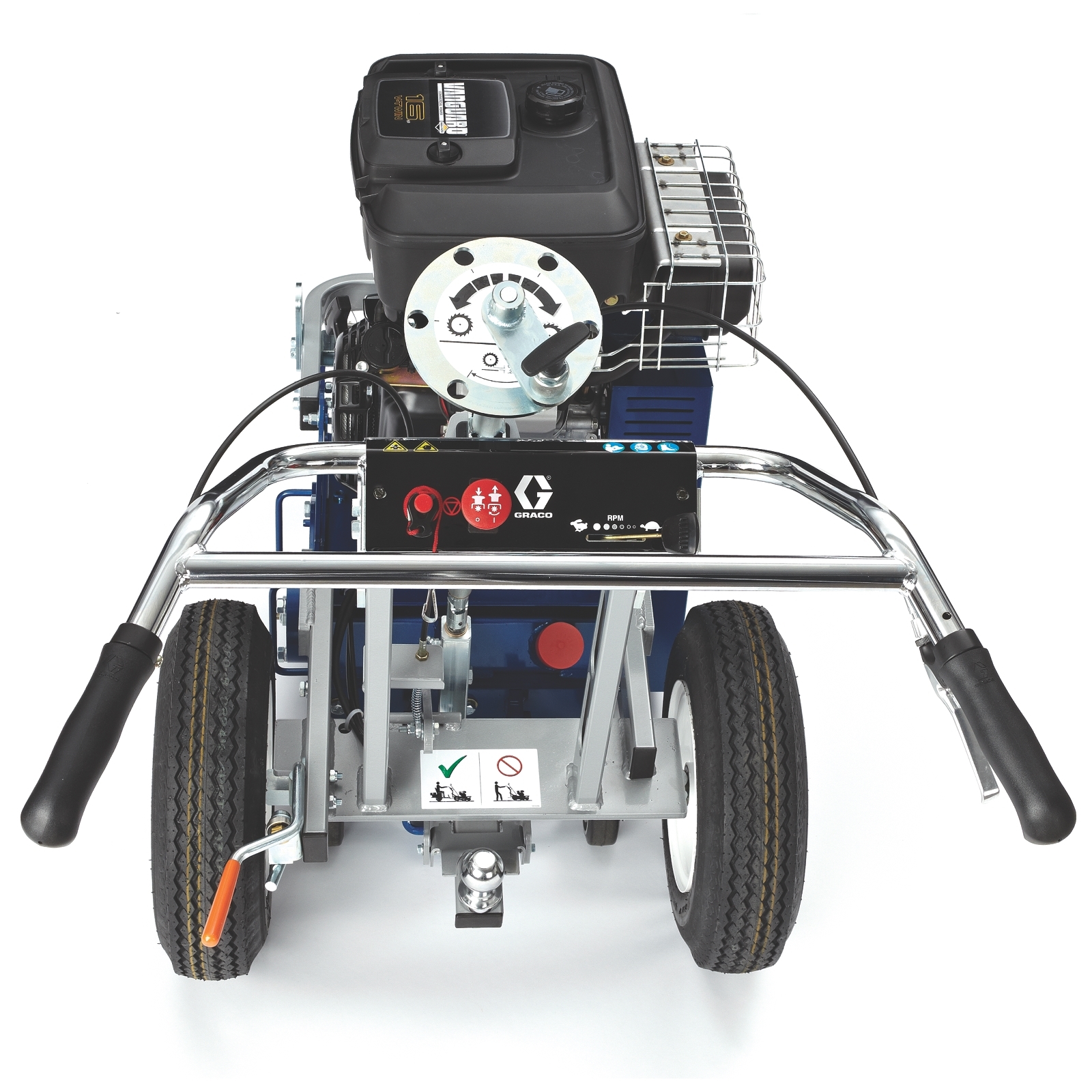

GrindLazer HP DC1021 G Gas-Powered Scarifier

Part Number: 25M994

product image product image

GrindLazer High Production Series

GrindLazer HP DC1021 G Gas-Powered Scarifier

Part Number: 25M994

The GrindLazer HP DC1021 G is the high production choice for demanding scarifier jobs. Its “Up-Cut” cutting direction removes all types of lines on parking lots or roadways while providing the power for inlay/grooving jobs. The LineDriver will help you finish jobs faster and more accurately.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The GrindLazer HP DC1021 G is the high production choice for demanding scarifier jobs. Its “Up-Cut” cutting direction removes all types of lines on parking lots or roadways while providing the power for inlay/grooving jobs. The LineDriver will help you finish jobs faster and more accurately.
  • DialDown Depth Control System
    • Easy Cutter Depth Control
    • Easy to “dial down” for precise cutting depth control with multiple positions
  • InstaCut Technology
    • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
    • Provides ultimate flexibility for removal and inlay
    • No-tool system
    • Allows deck to “float” when on uneven surfaces
  • Vibration Reduction Technology
    • All-Day Comfort
    • Up to 4x less vibration than the competition
    • Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
    • Comfort-grip handlebars for precise steering
  • Vanguard 21 HP Engine with Donaldson Heavy-Duty Filtration
    • Improved filtration to work longer and improve engine life
    • Electric start system allows for easy starting with the turn of a key – even in cold weather
  • Extreme-Duty ProStart System
    • Safer Operation
    • Easy cutter start/stop with centrifugal clutch - one of the safest units on the market today
    • Easy cold weather starting Provides longer belt life and eliminates broken recoils
  • TriBelt Drive System
    • Maximum Road Handling
    • 3-cog belt design optimizes power transfer and eliminates costly downtime
  • Fat Track Front Swivel Wheel
    • Fast, Easy Turning
    • Proven front caster wheel system makes turning fast and easy
    • Maneuver curves better
    • No need to “muscle it” while moving
  • EasyGlide Wheel Mount System
    • Safer, Easier To Maneuver
    • Front-mounted caster along with dual rear pneumatic air-filled tires
    • Pneumatic air-filled tires helps eliminate vibration
  • Dust Removal
    • Vacuum port for optional LazerVac System

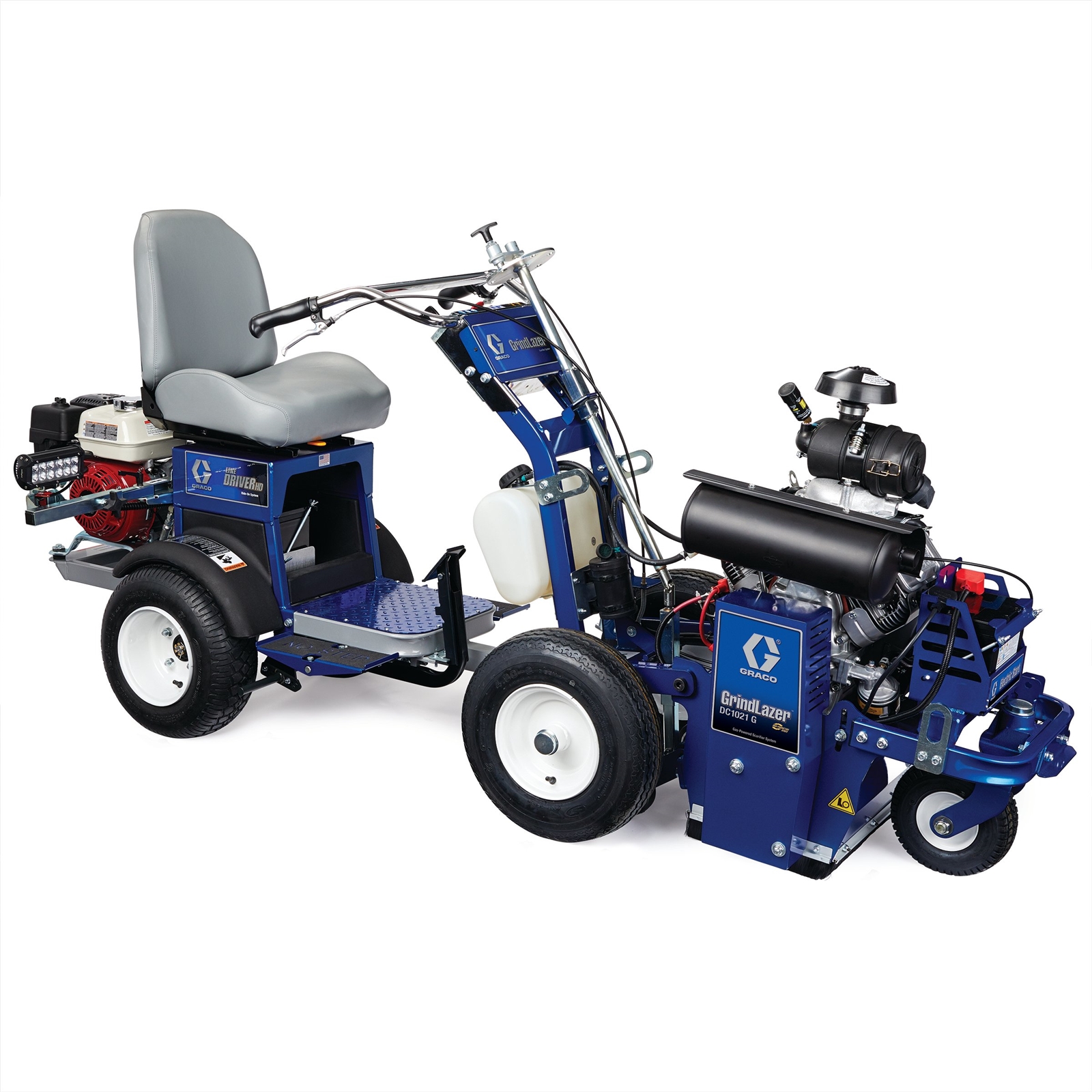

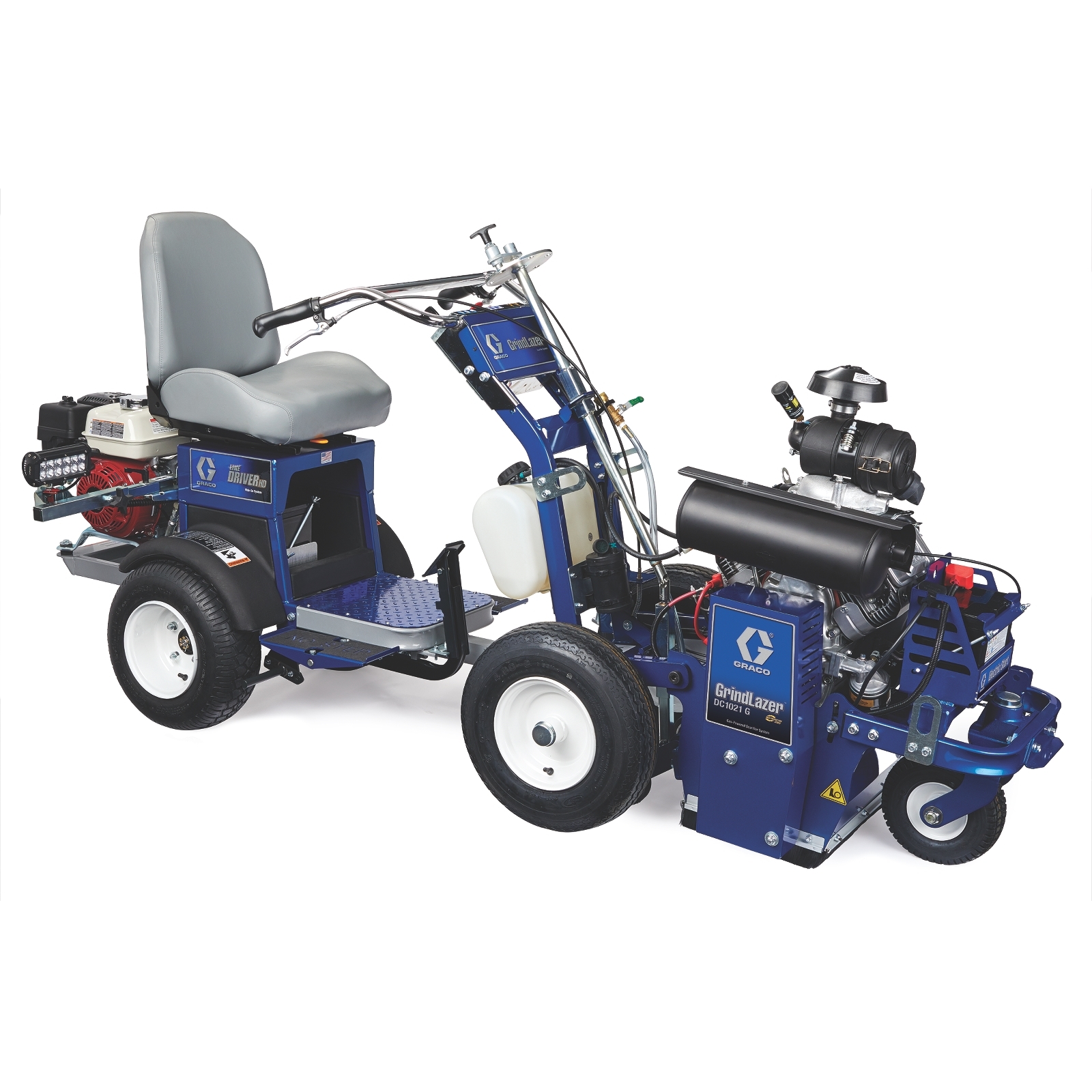

  • LineDriver Required

Specifications & Documents

Technical Specifications

Convert to Metric
Air Filter Type Donaldson Heavy-Duty
Cut Direction Reverse
Cutter Drum Diameter (in) 5
Cutter Type Drum
Depth Adjustment Manual
Engine Brand Vanguard
Engine Size (HP) 21
Engine Start Type Electric Start
LineDriver Required Required
Maximum Cut Rate w/ LineDriver (ft2/hr) 2100
Maximum Cut Width (in) 10
Model GrindLazer
Product Series High Production
Series High Production Series
Type Concrete Scarifier
Vacuum Port Yes
Water Connection Optional
Air Filter Type Donaldson Heavy-Duty
Cut Direction Reverse
Cutter Drum Diameter (in) 5
Cutter Type Drum
Depth Adjustment Manual
Engine Brand Vanguard
Engine Start Type Electric Start
LineDriver Required Required
Maximum Cut Width (cm) 25
Maximum Cut Width (mm) 254
Model GrindLazer
Product Series High Production
Series High Production Series
Type Concrete Scarifier
Vacuum Port Yes
Water Connection Optional
