GrindLazer High Production Series

GrindLazer HP DC1021 G DCS

25N659

25N659_GrindLazer_HP_DC1021_G_DCS_190604_Main 25N659_GrindLazer_HP_DC1021_G_DCS_190604_Alt_1 25N659_GrindLazer_HP_DC1021_G_DCS_190604_Alt_2 25N659_GrindLazer_HP_DC1021_G_DCS_190604_Alt_3 25N659_GrindLazer_HP_DC1021_G_DCS_190604_Alt_4

GrindLazer High Production Series

GrindLazer HP DC1021 G DCS

25N659

The GrindLazer HP DC1021 G DCS is the high production choice when it comes to the most demanding scarifier jobs. Its “Up-Cut” cutting direction allows you to remove all types of lines found on parking lots or roadways while having the power for inlay/grooving jobs. LineDriver is required.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The GrindLazer HP DC1021 G DCS is the high production choice when it comes to the most demanding scarifier jobs. Its “Up-Cut” cutting direction allows you to remove all types of lines found on parking lots or roadways while having the power for inlay/grooving jobs. LineDriver is required.
  • Depth Control System
    • Eliminate Measuring & Guesswork
    • Quickly & easily adjust the cutter depth to align with ever-changing terrain
    • Accurate cut depth for tape or thermoplastic inlays
    • Eliminates damage due to “dropped drums”

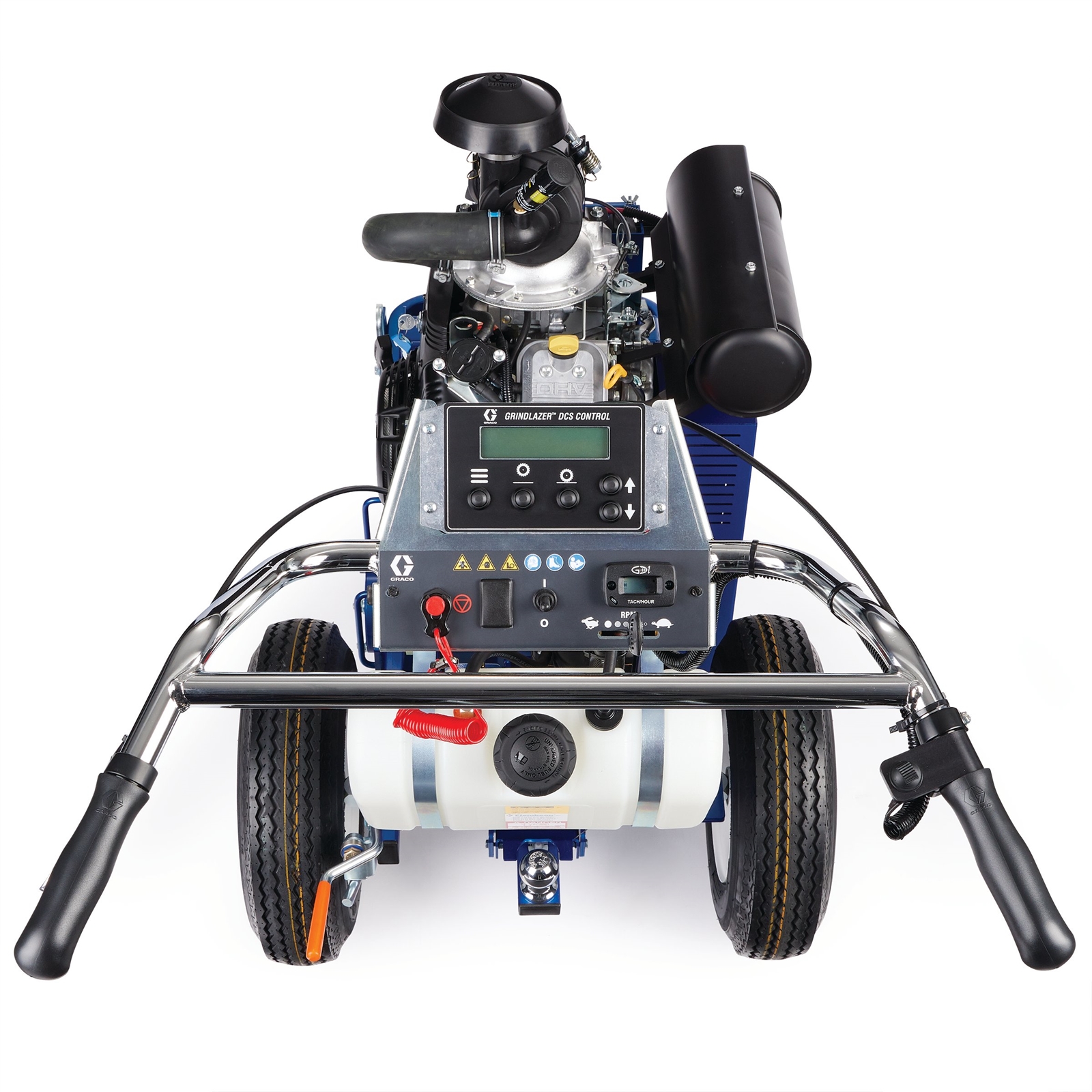

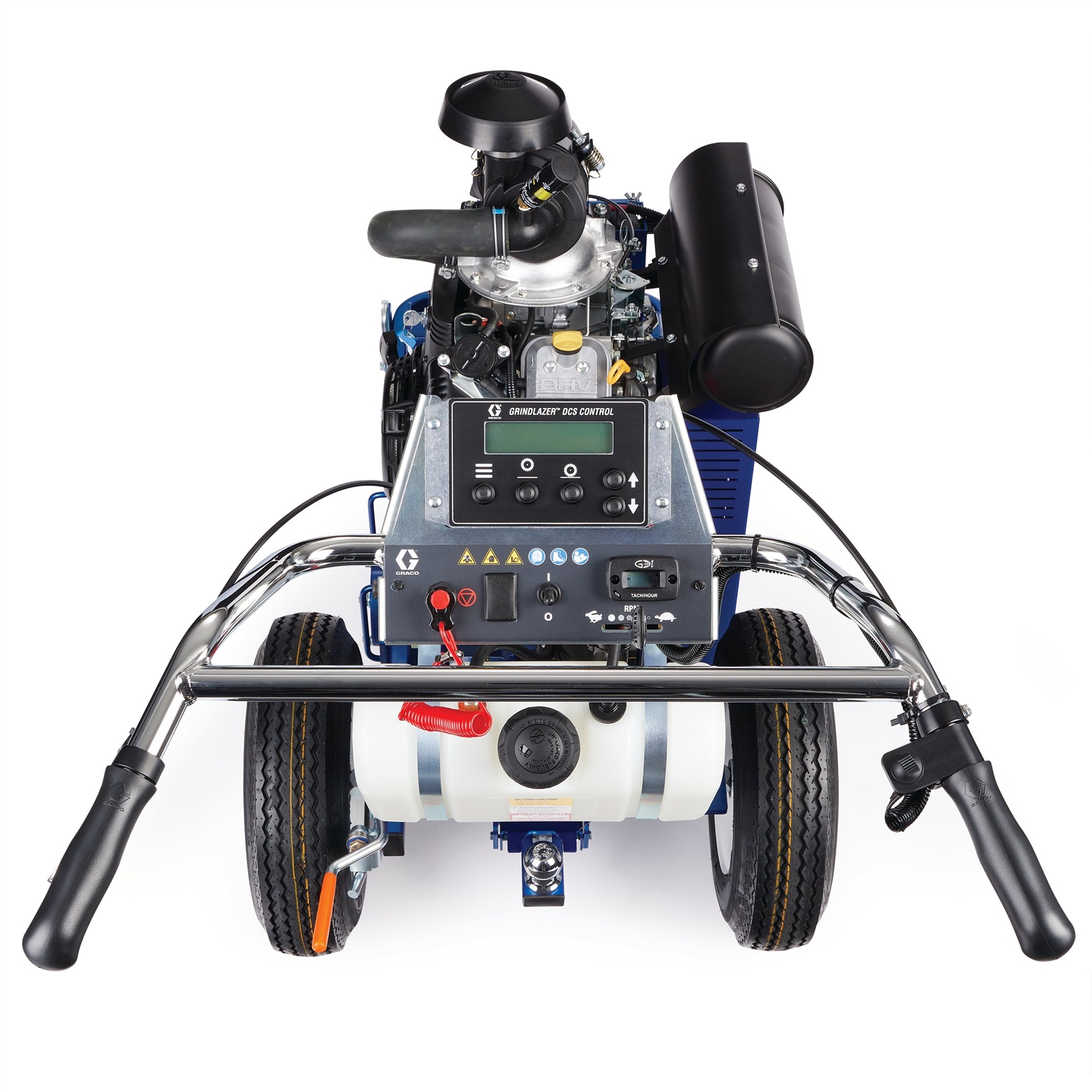

  • DCS Controller
    • Ultimate Control & Application Flexibility
    • User settable “zero point” to match cutter assembly
    • Displays “active depth”
    • English and metric units
    • Robust design stands up the harsh abuse
    • Fully-encapsulated electronic components
    • Ultimate protection from vibration, jobsite and weather conditions
  • Remote Momentary Switch
    • Total Operator Control
    • Control cut depth while keeping both hands on the GrindLazer
  • InstaCut Technology
    • Ultimate Removal or Inlay Flexibility
    • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
    • Allows deck to “float” when on uneven surfaces
    • No-tool system
  • Vibration Reduction Technology
    • All-Day Comfort
    • Up to 4x less vibration than the competition Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
    • Comfort-grip handlebars for precise steering
  • Vanguard 21 HP Engine with Donaldson Heavy-Duty Filtration
    • Improved filtration to work longer and improve engine life
    • Electric start system allows for easy starting with the turn of a key – even in cold weather
  • Extreme-Duty ProStart System
    • Safer Operation
    • Easy cutter start/stop with centrifugal clutch - one of the safest units on the market today Easy cold weather starting
    • Provides longer belt life and eliminates broken recoils
  • TriBelt Drive System
    • Maximum Road Handling
    • 3-cog belt design optimizes power transfer and eliminates costly downtime
  • Fat Track Front Swivel Wheel
    • Fast, Easy Turning
    • Proven front caster wheel system makes turning fast and easy
    • Maneuver curves better
    • No need to “muscle it” while movin
  • Additonal Features
    • EasyGlide Wheel Mount System
    • Dustr-Free Vacuum Port
    • LineDriver Required
25N659_GrindLazer_HP_DC1021_G_DCS_190604_Alt_4

Specifications

Technical Specifications

Convert to Metric
Air Filter Type Donaldson Heavy-Duty
Cut Direction Reverse
Cutter Drum Diameter (in) 7
Cutter Type Drum
Engine Brand Vanguard
Engine Size (HP) 21
Engine Start Type Electric Start
LineDriver Required Required
Maximum Cut Rate w/ LineDriver (ft2/hr) 2100
Maximum Cut Width (in) 10
Type Concrete Scarifier
Vacuum Port Yes
Air Filter Type Donaldson Heavy-Duty
Cut Direction Reverse
Cutter Type Drum
Engine Brand Vanguard
Engine Size (HP) 21
Engine Start Type Electric Start
LineDriver Required Required
Maximum Cut Rate w/ LineDriver (ft2/hr) 2100
Maximum Cut Width (cm) 25
Maximum Cut Width (mm) 254
Type Concrete Scarifier
Vacuum Port Yes
