GrindLazer High Production Series

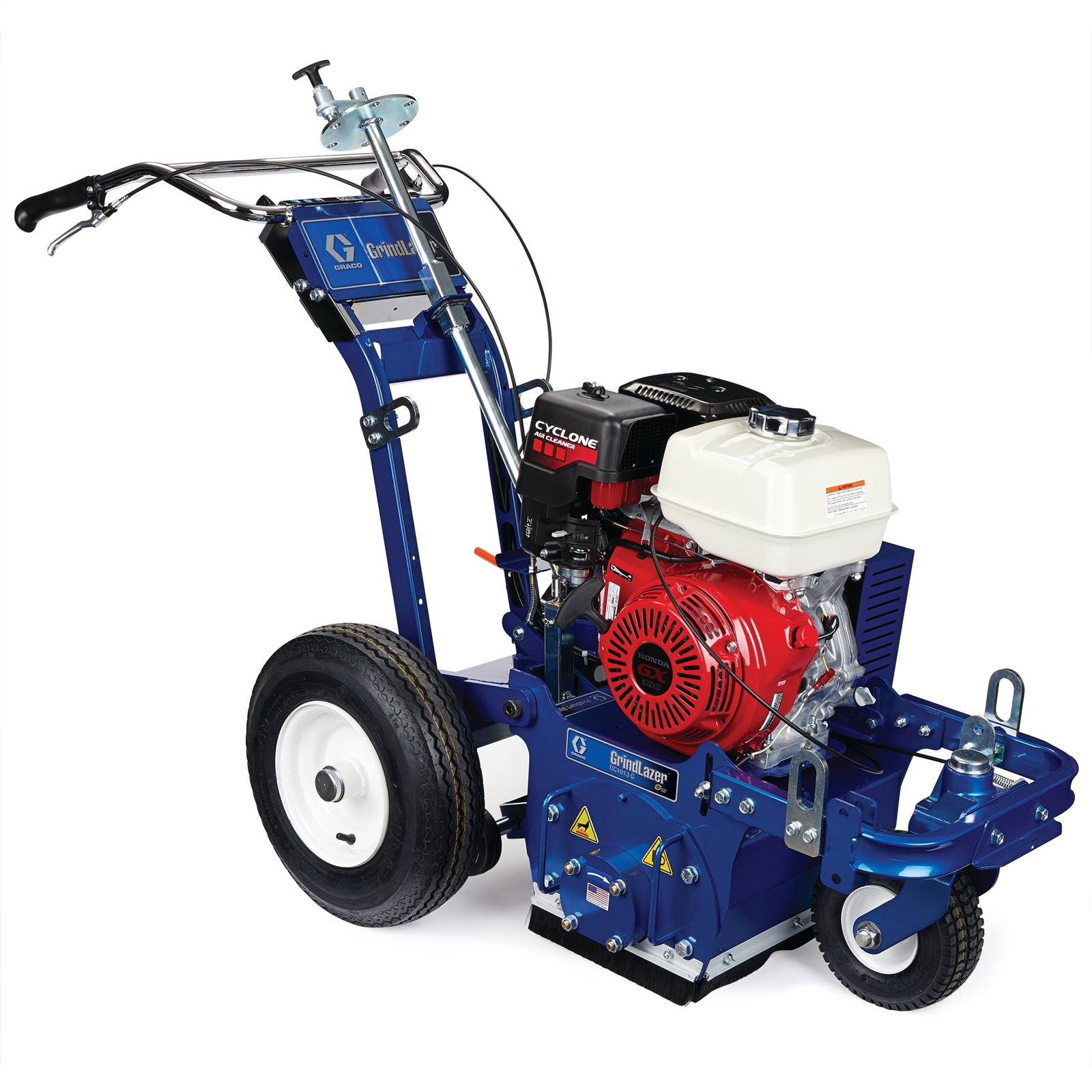

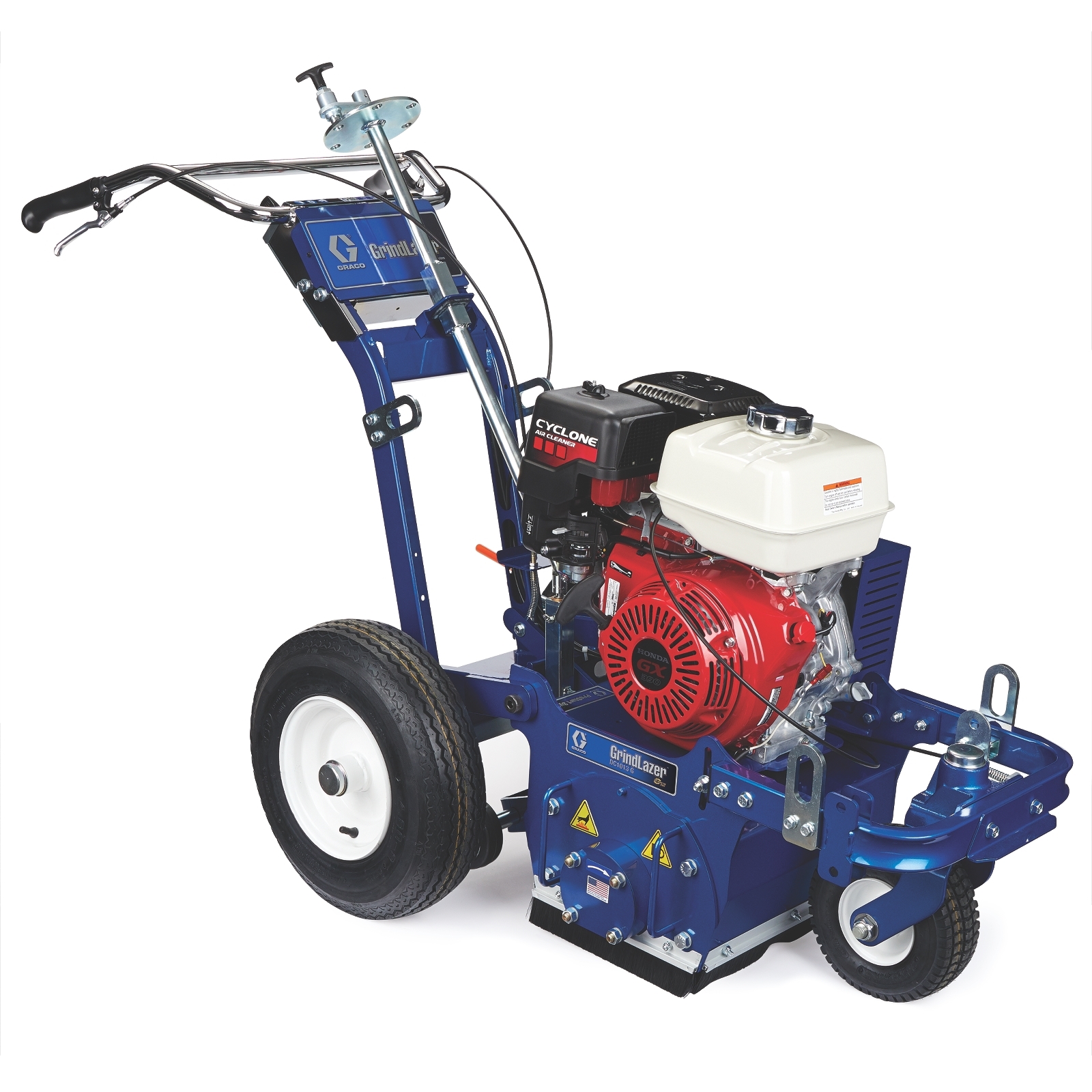

GrindLazer HP DC1013 G Gas-Powered Scarifier

Part Number: 25M993

product image

GrindLazer High Production Series

GrindLazer HP DC1013 G Gas-Powered Scarifier

Part Number: 25M993

The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and sidewalk smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and sidewalk smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
  • DialDown Depth Control System
    • Easy Cutter Depth Control
    • Easy to “dial down” for precise cutting depth control with multiple positions
  • InstaCut Technology
    • Ultimate Removal or Inlay Flexibility
    • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
    • Allows deck to “float” when on uneven surfaces No-tool system
  • Vibration Reduction Technology
    • All-Day Comfort
    • Up to 4x less vibration than the competition
    • Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
    • Comfort-grip handlebars for precise steering
  • Durable 13 HP Honda Power With Cyclone Filter
    • Contractor-Preferred Power
    • Cyclone filter protects the engine from harmful airborne dust
  • Extreme-Duty ProStart System
    • Safer Operation
    • Easy cutter start/stop with centrifugal Easy cold weather starting
    • Provides longer belt life and eliminates broken recoils
  • TriBelt Drive System
    • Maximum Road Handling
    • 3-cog belt design optimizes power transfer and eliminates costly downtime
  • Fat Track Front Swivel Wheel
    • Fast, Easy Turning
    • Proven front caster wheel system makes turning fast and easy
    • Maneuver curves better No need to “muscle it” while moving
  • EasyGlide Wheel Mount System
    • Safer, Easier To Maneuver
    • Front-mounted caster along with dual rear pneumatic air-filled tires
    • Pneumatic air-filled tires help eliminate vibration
  • Dust Removal
    • Vacuum port for optional LazerVac vacuum system
  • LineDriver Compatible
    • Double Your Productivity

Specifications & Documents

Technical Specifications

Convert to Metric
Air Filter Type Cyclone
Cut Direction Forward
Cutter Drum Diameter (in) 5
Cutter Type Drum
Depth Adjustment Manual
Engine Brand Honda
Engine Model GX390
Engine Size (HP) 13
Engine Start Type ProStart
LineDriver Required Optional
Maximum Cut Rate (ft2/hr) 800
Maximum Cut Rate w/ LineDriver (ft2/hr) 1700
Maximum Cut Width (in) 10
Model GrindLazer
Product Series High Production
Series High Production Series
Type Concrete Scarifier
Vacuum Port Yes
Water Connection Optional
Air Filter Type Cyclone
Cut Direction Forward
Cutter Drum Diameter (in) 5
Cutter Type Drum
Depth Adjustment Manual
Engine Brand Honda
Engine Model GX390
Engine Start Type ProStart
LineDriver Required Optional
Maximum Cut Width (cm) 25
Maximum Cut Width (mm) 254
Model GrindLazer
Product Series High Production
Series High Production Series
Type Concrete Scarifier
Vacuum Port Yes
Water Connection Optional
