XM 70

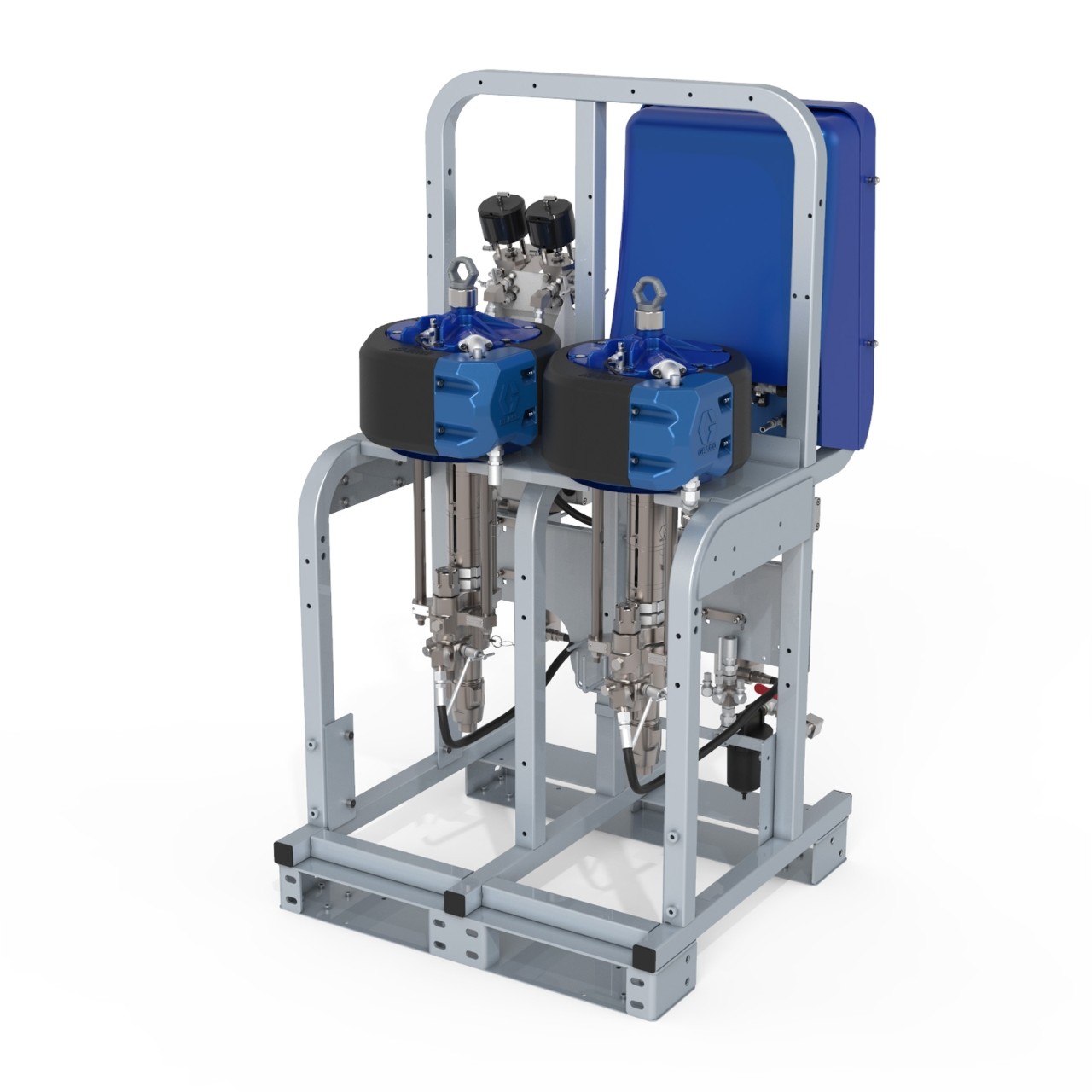

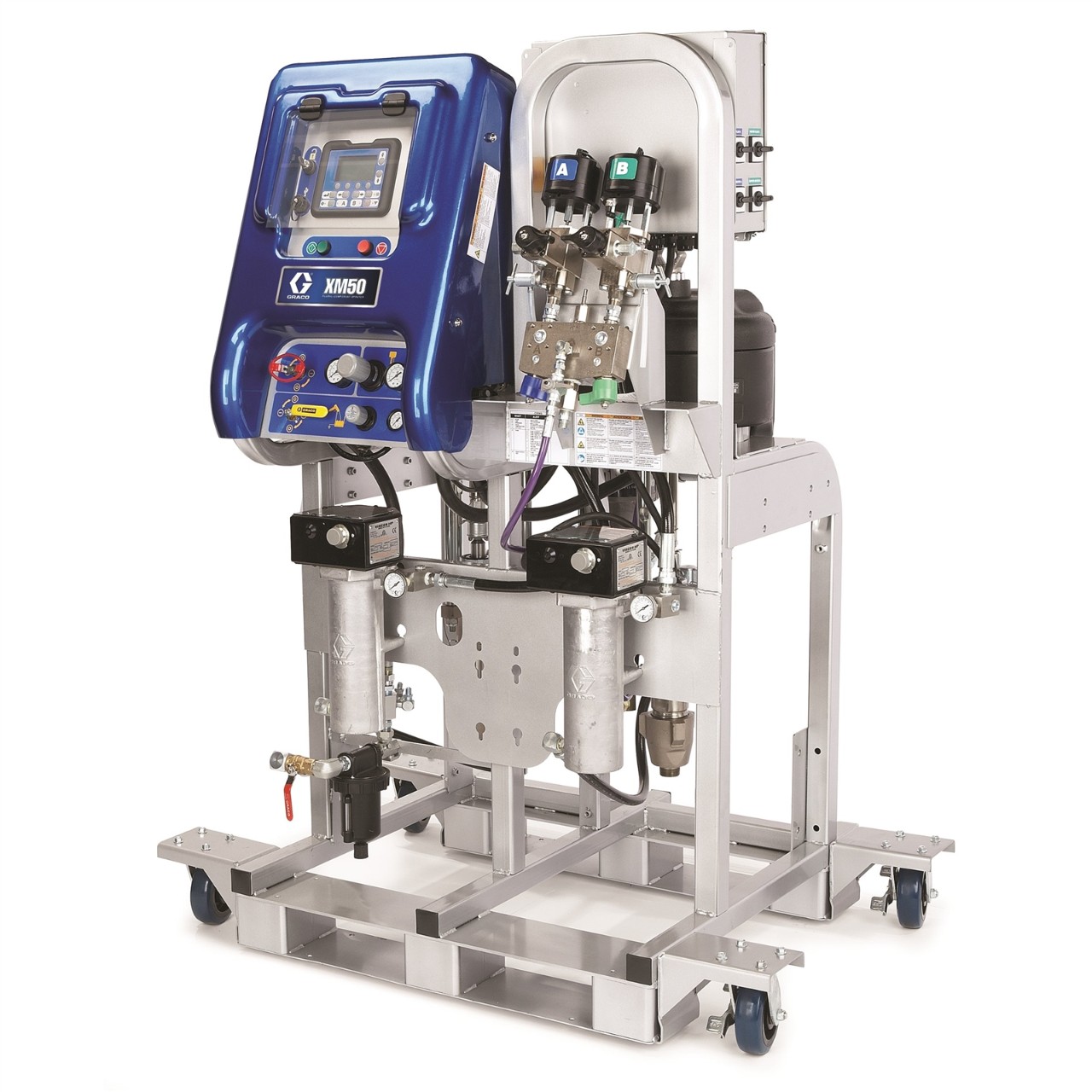

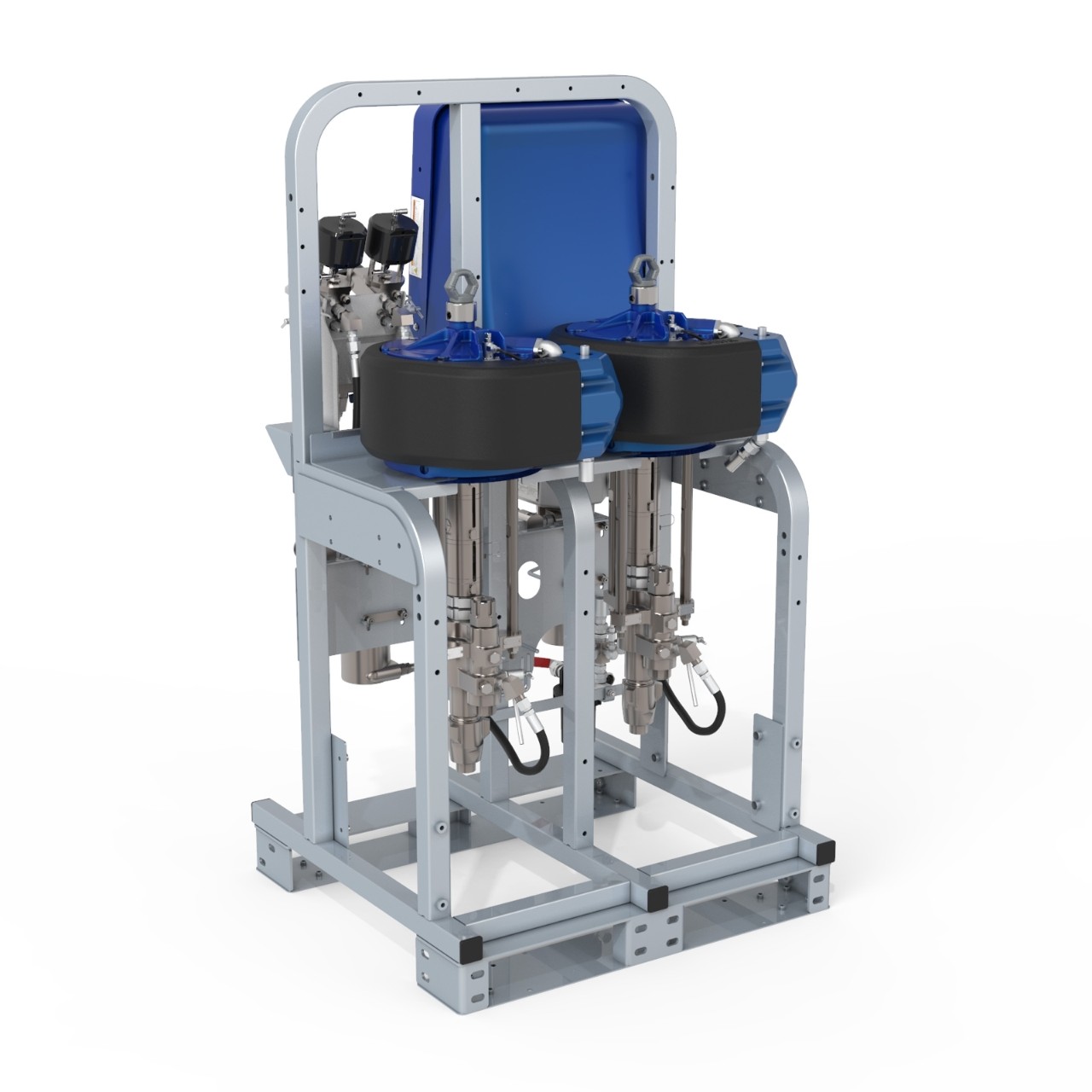

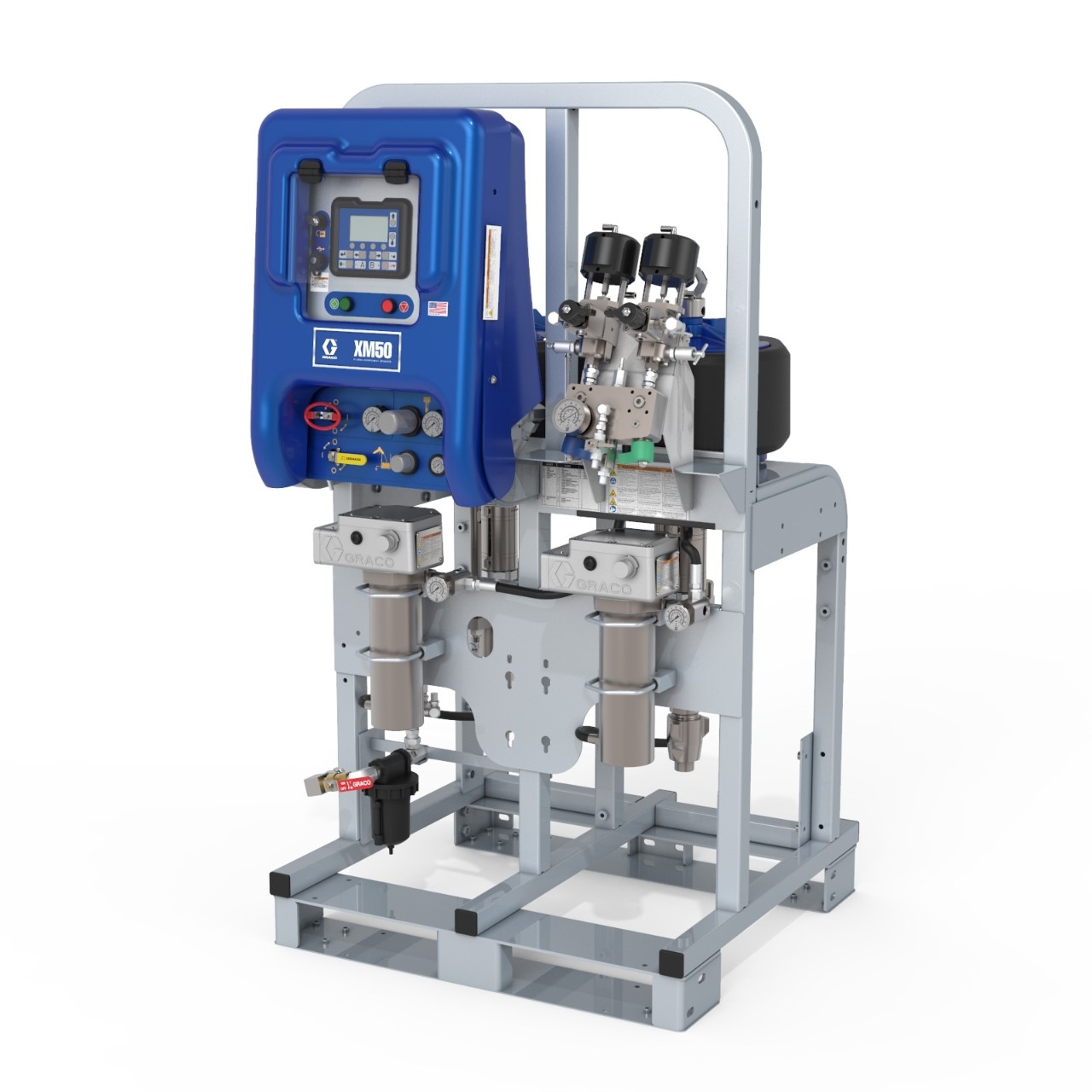

XM70 HL Sprayer, Pump Filter, Remote Manifold, IS/Alternator, Heater
Part Number: XM7E00
XM 70
XM70 HL Sprayer, Pump Filter, Remote Manifold, IS/Alternator, Heater
Part Number: XM7E00
Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.
Features
Product BrochureEngineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.
Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.
- New dosing technology assures accurate, on-ratio mixing for better yield and less waste
- Advanced, intuitive user controls provide real-time display of ratio
- USB port lets you easily access and download historical spraying data
- Supports multiple spray guns for added productivity
- Allows for easy crane transport with eye hooks on air motors
- Variable ratio system - handles material ratios from 1:1 to 10:1
Specifications & Documents
Technical Specifications
Convert to Imperial| 20 gallon heated hopper method | None |
|---|---|
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Compatible Material | Protective coating, Primer, Epoxy, Polyurethane, Two-component coating, Solvents |
| Component Type | Plural-Component |
| Configuration | With Primary Heater |
| Feed Pumps | None |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Flush Type | Solvent |
| Gun Type | Airless Gun |
| Includes | Whip Hose, Static Mixer, XTR Spray Gun |
| Location Category | Hazardous location |
| Material Application | Paints, Primers |
| Maximum Air Consumption (SCFM) | 70 scfm/gpm at 100psi |
| Maximum Air Inlet Pressure (MPa) | 1.03 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Fluid Temperature (°F) | 160 |
| Maximum Fluid Viscosity (cP) | 20000 |
| Maximum Mix Ratio | 10:1 |
| Maximum Operating Temperature (°F) | 130 |
| Maximum Spray Pressure (MPa) | 43.5 |
| Maximum Spray Pressure (psi) | 6300 |
| Maximum Working Pressure (MPa) | 43.5 |
| Maximum Working Pressure (psi) | 6300 |
| Maximum flow rate (cc/min) | 11360 |
| Measuring Type | Electronic positive displacement |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Fluid Viscosity (cP) | 200 |
| Minimum Mix Ratio | 1:1 |
| Mix Accuracy (%) | 5% |
| Model | XM |
| Number of Tanks | 0 |
| Overall Height (in) | 70 |
| Power Source | Alternator |
| Primary Fluid Heater Included | Yes |
| Product Type | Plural Component |
| Pump Filter Included | Yes |
| Remote Mix Manifold Included | Yes |
| Series | 70 |
| Sound Power Level (dB(A)) | 95.1 at 70psi (0.48 MPa, 4.8 bar) |
| Sound Pressure Level (dB(A)) | 84.8 at 70psi (0.48 MPa, 4.8 bar) |
| Supply Hoppers | None |
| Type | Plural Component Sprayer |
| Voltage (V) | 240 |
| Wetted Material | Aluminium, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene |
| 20 gallon heated hopper method | None |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Compatible Material | Protective coating, Primer, Epoxy, Polyurethane, Two-component coating, Solvents |
| Component Type | Plural-Component |
| Configuration | With Primary Heater |
| Feed Pumps | None |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Flush Type | Solvent |
| Gun Type | Airless Gun |
| Includes | Whip Hose, Static Mixer, XTR Spray Gun |
| Location Category | Hazardous location |
| Material Application | Paints, Primers |
| Maximum Air Inlet Pressure (MPa) | 1.03 |
| Maximum Air Inlet Pressure (bar) | 10.3 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (L/min) | 11.4 |
| Maximum Fluid Temperature (°C) | 71 |
| Maximum Fluid Viscosity (cP) | 20000 |
| Maximum Mix Ratio | 10:1 |
| Maximum Operating Temperature (°C) | 54 |
| Maximum Spray Pressure (MPa) | 43.5 |
| Maximum Spray Pressure (bar) | 435 |
| Maximum Spray Pressure (kPa) | 43500 |
| Maximum Spray Pressure (psi) | 6300 |
| Maximum Working Pressure (MPa) | 43.5 |
| Maximum Working Pressure (bar) | 435 |
| Maximum Working Pressure (kPa) | 43500 |
| Maximum air consumption (m3/min) | 1.96 m3/min per lpm at 100psi |
| Maximum flow rate (cc/min) | 11360 |
| Measuring Type | Electronic positive displacement |
| Minimum Flow Rate (L/min) | 0.95 |
| Minimum Fluid Viscosity (cP) | 200 |
| Minimum Mix Ratio | 1:1 |
| Minimum flow rate (cc/min) | 950 |
| Mix Accuracy (%) | 5% |
| Model | XM |
| Number of Tanks | 0 |
| Overall Height (cm) | 177.8 |
| Overall Height (mm) | 1778 |
| Power Source | Alternator |
| Primary Fluid Heater Included | Yes |
| Product Type | Plural Component |
| Pump Filter Included | Yes |
| Remote Mix Manifold Included | Yes |
| Series | 70 |
| Sound Power Level (dB(A)) | 95.1 at 70psi (0.48 MPa, 4.8 bar) |
| Sound Pressure Level (dB(A)) | 84.8 at 70psi (0.48 MPa, 4.8 bar) |
| Supply Hoppers | None |
| Type | Plural Component Sprayer |
| Voltage (V) | 240 |
| Wetted Material | Aluminium, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene |
