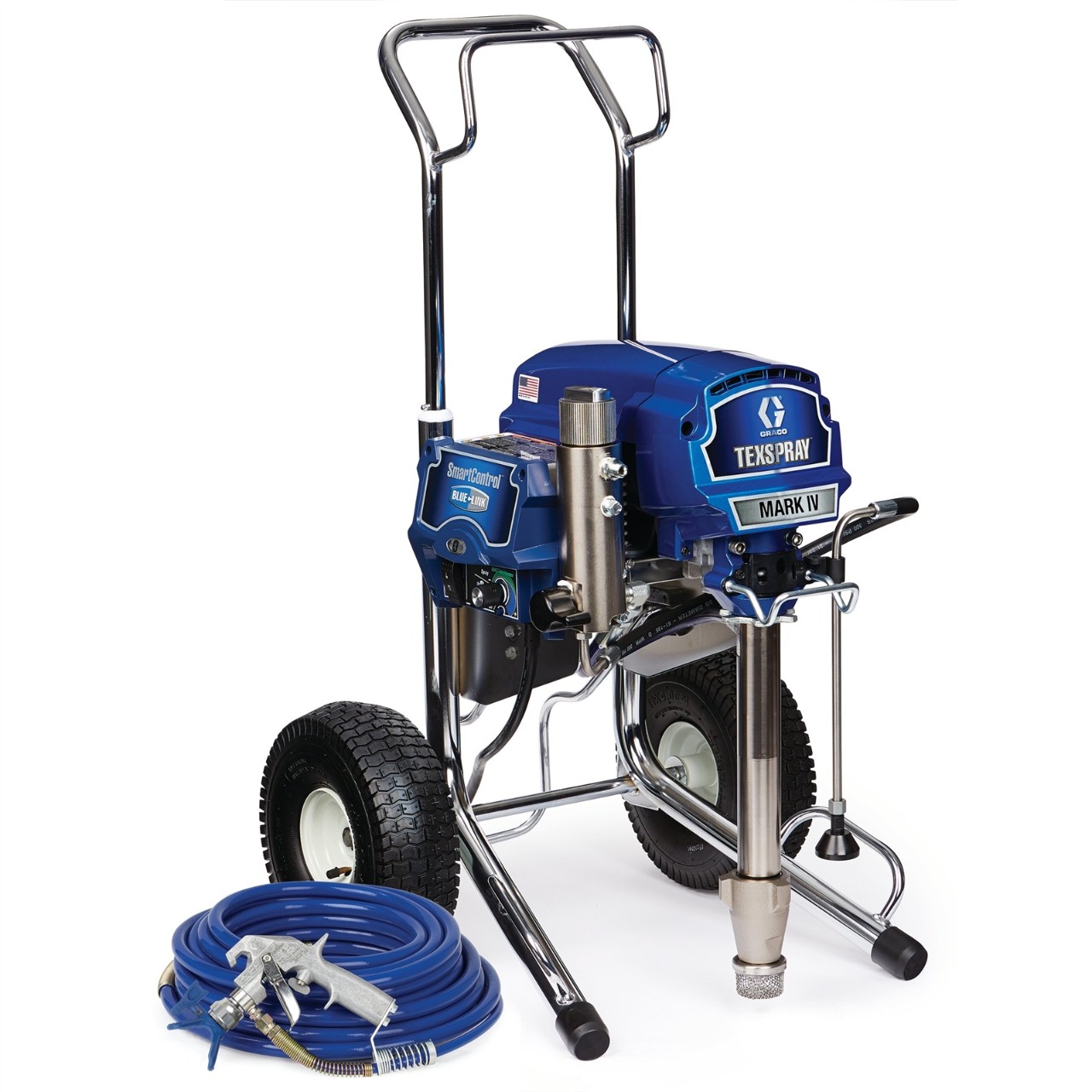

TexSpray Mark IV

TexSpray Mark IV Standard Series Electric Airless Sprayer, 230V, IT - DK - CH

17E652

TexSpray Mark IV

TexSpray Mark IV Standard Series Electric Airless Sprayer, 230V, IT - DK - CH

17E652

The TexSpray Mark IV is designed to save time and money by allowing you to spray more square metres in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
The TexSpray Mark IV is designed to save time and money by allowing you to spray more square metres in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.

Everyday Reliability. TexSpray Mark Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X longer than the next leading brand
    • Long life ceramic and stainless steel balls included for maximum versatility
    • Faster cleaning with the QuikAccess intake foot valve
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimised fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximise uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • Prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • MaxPower DC Motor & Advantage Drive
    • Maintenance-Free Power
    • Field proven brushless design
    • The Longest Lasting Drive
    • Improved jobsite conditions with extremely quiet operation
  • WatchDog Pump Protection System
    • Prevents dry pumping damage
    • Automatically shuts pump down when if the material supply is too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
  • Rugged, Durable Cart Design
    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles

Specifications & Documents

Technical Specifications

Convert to Imperial
0
Compatible Material Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster
Compatible Replacement Pump 17H828
Convertible Non-Convertible
Cycles per Gallon 195
Engine Size (HP) 2.0 Brushless DC
Engine Size (kW) 1.5
Filter Mesh Size 60
Fluid Hose Inside Diameter (in) 3/8
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50
Hose Inlet Diameter (in) 3/8
Includes All units shipped complete and ready to spray: with 246468 Flex Plus gun, PAA425 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (1/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml).
Maximum Flow Rate (GPM) 0.95
Maximum Fluid Working Pressure (psi) 3300
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.035
Maximum Tip Size 1 Gun (in) 0.035
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type Brushless DC
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 28.5
Overall Length (in) 26
Overall Width (in) 22.5
Phase 1
Power Rating (HP) 2.0
Power Rating (kW) 1.5
Power Source Electric
Pressure Control Type SmartControl 4.0
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Sleeve Material Hard Chrome
Pump Type Endurance
Series Mark IV
Spray Gun Type Flex Plus Gun
Spray Type Airless
Standards Met CE
Type Airless Sprayer
Voltage (V) 230
Volume per Cycle (cycles/gal) 195
Weight (lb) 98
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
0
Compatible Material Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster
Compatible Replacement Pump 17H828
Convertible Non-Convertible
Cycles per Gallon 195
Engine Size (HP) 2.0 Brushless DC
Engine Size (kW) 1.5
Filter Mesh Size 60
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Includes All units shipped complete and ready to spray: with 246468 Flex Plus gun, PAA425 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (1/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml).
Maximum Flow Rate (L/min) 3.6
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0889
Maximum Tip Size (mm) 0.8890
Maximum Tip Size 1 Gun (cm) 0.0889
Maximum Tip Size 1 Gun (mm) 0.8890
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 22.7
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type Brushless DC
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 72.5
Overall Height (mm) 723.9000
Overall Length (cm) 66
Overall Length (mm) 660.4
Overall Width (cm) 57.2
Overall Width (mm) 571.5000
Phase 1
Power Rating (HP) 2.0
Power Rating (kW) 1.5
Power Source Electric
Pressure Control Type SmartControl 4.0
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Sleeve Material Hard Chrome
Pump Type Endurance
Series Mark IV
Spray Gun Type Flex Plus Gun
Spray Type Airless
Standards Met CE
Type Airless Sprayer
Voltage (V) 230
Weight (kg) 45
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
