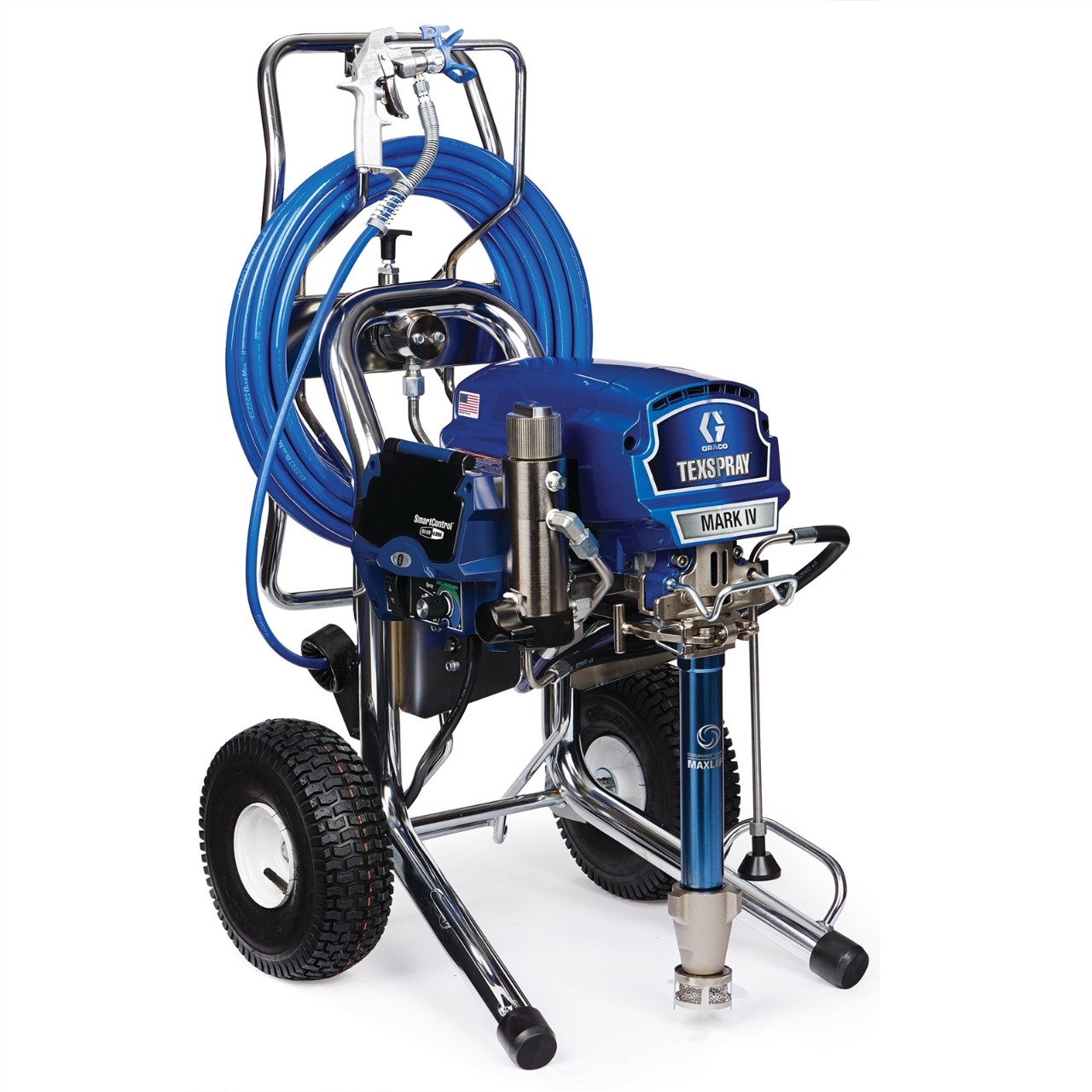

TexSpray Mark IV

TexSpray Mark IV ProContractor Series Electric Airless Sprayer, 230V, EU

17E653

TexSpray Mark IV

TexSpray Mark IV ProContractor Series Electric Airless Sprayer, 230V, EU

17E653

The TexSpray Mark IV is designed to save time and money by allowing you to spray more square metres in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
The TexSpray Mark IV is designed to save time and money by allowing you to spray more square metres in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.

Work Smarter, Finish More Jobs. TexSpray Mark ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough vortex rotating rod technology
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimised fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximise uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision Pressure Control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 90 metres (300 ft) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • MaxPower Motor & Precision Advantage Drive
    • Proven power and performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a lifetime warranty
  • Additional Features:
    • WatchDog Pump Protection System
    • Easy Out Filter Manifold
    • Heavy-Duty Prime Valve
    • Rugged, Durable Cart Design

Specifications & Documents

Technical Specifications

Convert to Imperial
0
Compatible Material Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster
Compatible Replacement Pump 17H832
Convertible Non-Convertible
Cycles per Gallon 195
Engine Size (HP) 2.0 Brushless DC
Engine Size (kW) 1.5
Filter Mesh Size 60
Fluid Hose Inside Diameter (in) 3/8
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50
Hose Inlet Diameter (in) 3/8
Hose Reel Type QuikReel
Includes All units shipped complete and ready to spray: with 246468 Flex Plus gun, PAA425 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (1/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml).
Inlet Paint Strainer Heavy Duty Rock Catcher
Maximum Flow Rate (GPM) 0.95
Maximum Fluid Working Pressure (psi) 3300
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.035
Maximum Tip Size 1 Gun (in) 0.035
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type Brushless DC
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 39
Overall Length (in) 29.5
Overall Width (in) 22.5
Phase 1
Power Rating (HP) 2.0
Power Rating (kW) 1.5
Power Source Electric
Pressure Control Type SmartControl 4.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance Vortex
Series Mark IV
Spray Gun Type Flex Plus Gun
Spray Type Airless
Standards Met CE
Type Airless Sprayer
Voltage (V) 230
Volume per Cycle (cycles/gal) 195
Weight (lb) 119
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
0
Compatible Material Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster
Compatible Replacement Pump 17H832
Convertible Non-Convertible
Cycles per Gallon 195
Engine Size (HP) 2.0 Brushless DC
Engine Size (kW) 1.5
Filter Mesh Size 60
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Reel Type QuikReel
Includes All units shipped complete and ready to spray: with 246468 Flex Plus gun, PAA425 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (1/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml).
Inlet Paint Strainer Heavy Duty Rock Catcher
Maximum Flow Rate (L/min) 3.6
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0889
Maximum Tip Size (mm) 0.8890
Maximum Tip Size 1 Gun (cm) 0.0889
Maximum Tip Size 1 Gun (mm) 0.8890
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 22.7
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type Brushless DC
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 99
Overall Height (mm) 990.6000
Overall Length (cm) 75
Overall Length (mm) 749.3
Overall Width (cm) 57.2
Overall Width (mm) 571.5000
Phase 1
Power Rating (HP) 2.0
Power Rating (kW) 1.5
Power Source Electric
Pressure Control Type SmartControl 4.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance Vortex
Series Mark IV
Spray Gun Type Flex Plus Gun
Spray Type Airless
Standards Met CE
Type Airless Sprayer
Voltage (V) 230
Weight (kg) 54
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
