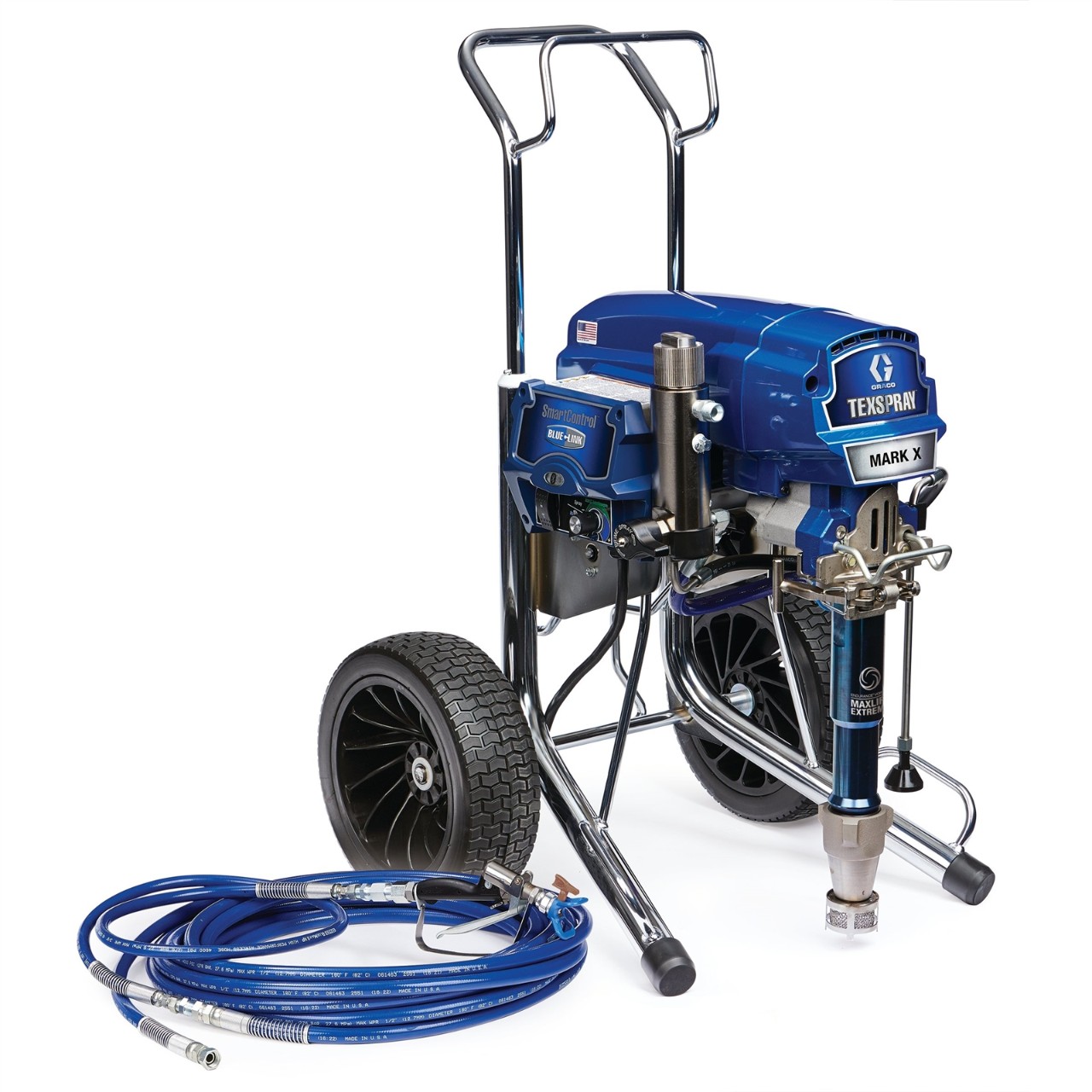

Mark X HD IronMan Series Electric Airless Sprayer, 230V, Multi
Part Number: 17H898
Mark HD X
Mark X HD IronMan Series Electric Airless Sprayer, 230V, Multi
Part Number: 17H898
THE most powerful electric airless texture sprayer. The Mark X HD 230 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V. It easily sprays skim coat in a Q4 finish, multiple texture finishes and the all primers and paints.
Features
Product Brochure
THE most powerful electric airless texture sprayer. The Mark X HD 230 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V. It easily sprays skim coat in a Q4 finish, multiple texture finishes and the all primers and paints.
Beyond Jobsite Tough. Mark HD IronMan Series electric airless texture sprayers are built to routinely handle the rugged demands of large commercial and industrial jobs – day in and day out.
- Endurance Vortex MaxLife Extreme Piston Pump
- The longest durability & life
- Breakthrough Vortex Rotating Piston Technology
- Longest-life packings and piston rod 3X pump rod life
- Maximum versatility no matter what you’re spraying Long Life ceramic and stainless steel balls included for maximum versatility
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Flat Proof Tyres
- Never have a flat tyre again
- Tyres can’t be punctured by nails, screws, or any sharp debris
- SmartControl 4.0 with ProGuard Protection System
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximise uptime: Set maintenance schedules, alerts, & jobsite notes
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimised fluid passageways for the heaviest coatings
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through the filter
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a lifetime warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- Additional Features
- Easy Out Filter Manifold
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent |
|---|---|
| Compatible Replacement Pump | 17H836 |
| Convertible | Non-Convertible |
| Cycles per Gallon | 70 |
| Engine Size (HP) | 4.0 Brushless DC |
| Engine Size (kW) | 3 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/2 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 245820 HD Inline Texture gun, HDA 531 + 541 Tip, 246215 RAC X™ Guard, 278499 BlueMax™ II Hose (1/2 in. x 15 m), 191239 BlueMax™ II Whip Hose (3/8 in. x 3.5 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Inlet Paint Strainer | Heavy-duty rock catcher |
| Maximum Flow Rate (GPM) | 2.2 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 200 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.051 |
| Maximum Tip Size 1 Gun (in) | 0.051 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Mark HD |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 29.5 |
| Overall Length (in) | 26 |
| Overall Width (in) | 24 |
| Phase | 1 |
| Power Rating (HP) | 4.0 |
| Power Rating (kW) | 3.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife Extreme |
| Pump Type | Endurance Vortex |
| Series | X |
| Spray Gun Type | HD-inline texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 70 |
| Weight (lb) | 154 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, PEEK, Brass |
| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent |
| Compatible Replacement Pump | 17H836 |
| Convertible | Non-Convertible |
| Cycles per Gallon | 70 |
| Engine Size (kW) | 3 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/2 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Inlet Diameter (cm) | 1.27 |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Inlet Diameter (mm) | 12.7 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 245820 HD Inline Texture gun, HDA 531 + 541 Tip, 246215 RAC X™ Guard, 278499 BlueMax™ II Hose (1/2 in. x 15 m), 191239 BlueMax™ II Whip Hose (3/8 in. x 3.5 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Inlet Paint Strainer | Heavy-duty rock catcher |
| Maximum Flow Rate (L/min) | 8.3 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 60 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.051 |
| Maximum Tip Size 1 Gun (in) | 0.051 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 22700 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Mark HD |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 74.9 |
| Overall Height (mm) | 749.3000 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660.4 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 609.6000 |
| Phase | 1 |
| Power Rating (kW) | 3.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife Extreme |
| Pump Type | Endurance Vortex |
| Series | X |
| Spray Gun Type | HD-inline texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 70 |
| Weight (kg) | 70 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, PEEK, Brass |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 278499 | HOSE, CPLD, 1/2 IN X 50 FT |
| 258909 | KIT, REPAIR, MOTOR |
| 243222 | Q KIT, REPAIR, TRANSDUCER |
| 24V029 | KIT,REPAIR,HOSE,COUPLED, 1/2" |
| 16Y496 | KIT,DISPLAY, GMAX, PREMIUM |
| 117285 | PACKING, O-RING |
| 15V573 | Q STRAINER, CRUSH PROOF,1-11 1/2 NPSM |
| 15C766 | TUBE, DIFFUSION |
| 15D527 | SWITCH, ROCKER, 240V |
