Mini High Pressure Corrosion Resistant Fluid Regulator, 1500 Max psi, 150-1200 psi Range, 1.0 GPM, SST, Spring Type, 1/4(f) x 1/4(m)

Part Number: 222121

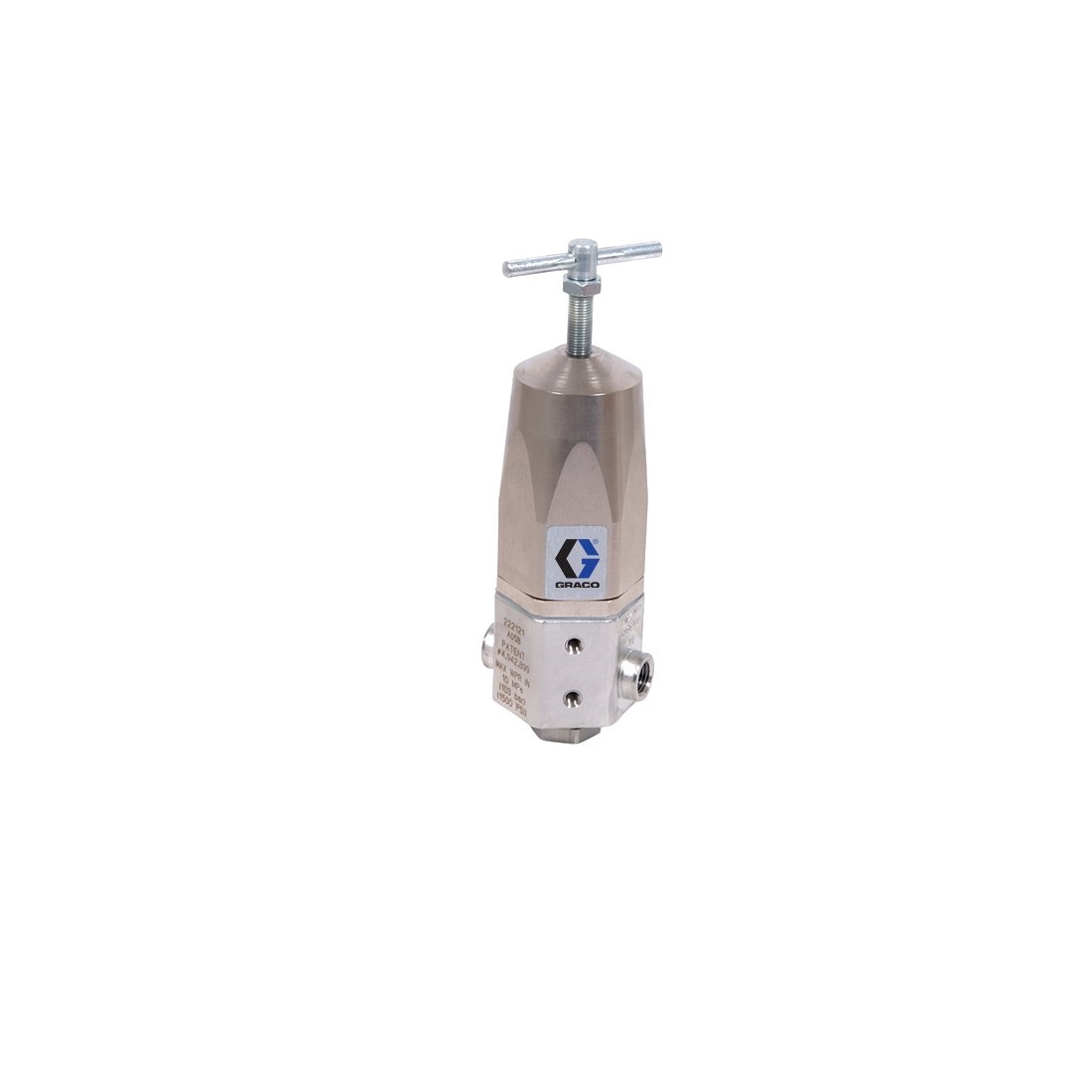

product image
Image is for illustrative purposes only.

Mini High Pressure Corrosion Resistant Fluid Regulator, 1500 Max psi, 150-1200 psi Range, 1.0 GPM, SST, Spring Type, 1/4(f) x 1/4(m)

Part Number: 222121

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
  • Stainless steel wetted materials are compatible with catalyst and waterborne materials
  • Tungsten and carbide materials ensure low wear and long life
  • Valve cartridge for quick cleaning and replacement – reduce downtime
  • Compact and lightweight design saves space and reduces payload for spray packages
  • Pressure adjustment key with locking mechanism protects production settings

Specifications & Documents

Technical Specifications

Convert to Metric
Actuation Type Spring
Construction Stainless Steel
Includes Regulator Only
Inlet Size (in) 1/4
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 1
Maximum Regulated Pressure (MPa) 8.3
Maximum Regulated Pressure (psi) 1200
Maximum Viscosity (cP) 500
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Minimum Regulated Pressure (MPa) 1.0
Minimum Regulated Pressure (psi) 150
Outlet Size (in) 1/4
Type Fluid Regulator
Actuation Type Spring
Construction Stainless Steel
Includes Regulator Only
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 3.8
Maximum Regulated Pressure (MPa) 8.3
Maximum Regulated Pressure (bar) 83
Maximum Regulated Pressure (kPa) 8300
Maximum Regulated Pressure (psi) 1200
Maximum Viscosity (cP) 500
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (bar) 103
Maximum Working Pressure (kPa) 10300
Maximum Working Pressure (psi) 1500
Minimum Regulated Pressure (MPa) 1.0
Minimum Regulated Pressure (bar) 10.4
Minimum Regulated Pressure (kPa) 1040
Minimum Regulated Pressure (psi) 150
Outlet Size (cm) 0.635
Outlet Size (in) 1/4
Outlet Size (mm) 6.35
Type Fluid Regulator
