Intelligent Paint Kitchen System

Take full control of your paint mix room with the Intelligent Paint Kitchen. It’s a smart set of sensors, actuators and control modules that communicate with each other to optimize industrial paint supply and circulation. It allows pump control, tank control, and overall (remote) control.

Cost-Effective Control of Electric and Pneumatic Pumps

Tank Control, Pump Control, and Overall Control

Factory paint kitchen diagram highlights different areas of control. Tank control is in yellow. Pump control is in blue. Overall or remote control is in green.
Tank Control Maintains Quality Tank Control Maintains Quality Tank Control Maintains Quality

Tank Control Maintains Quality

Closeup of paint kitchen diagram highlights tank control equipment in yellow.

The Tank Control Module allows monitoring and control of tank levels and agitator speeds. This keeps paint viscosity consistent, resulting in a top quality finish you can count on.

close
Pump Control Optimizes Quality Pump Control Optimizes Quality Pump Control Optimizes Quality

Pump Control Optimizes Quality

Close up of paint kitchen diagram highlights pump control equipment in blue.

Fluid pressure and flow rates are controlled by the Pump Control Module. It keeps your pressure and flow stable and in balance, ensures optimal paint feed to the applicators, and reduces paint shear.

close
Overall (Remote) Control Improves Safety Overall (Remote) Control Improves Safety Overall (Remote) Control Improves Safety

Overall (Remote) Control Improves Safety

Closeup of paint kitchen diagram highlights remote control equipment in green.

The Supervisor Box and HMI Touchscreen allow you to remotely control the paint mix room and easily access critical paint circulation data from outside the hazardous area. This not only improves worker safety, it provides real-time information that can be used to improve the environment.

close

Intelligent paint kitchen system components

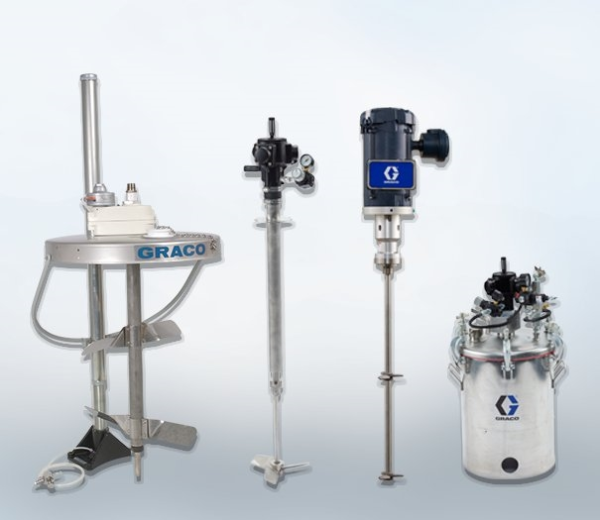

Paint agitators

Agitators

Properly mixing material is the first step in industrial finishing success. Graco offers industrial agitators and agitator motors that fit all kinds of containers and applications.

21971_605x525

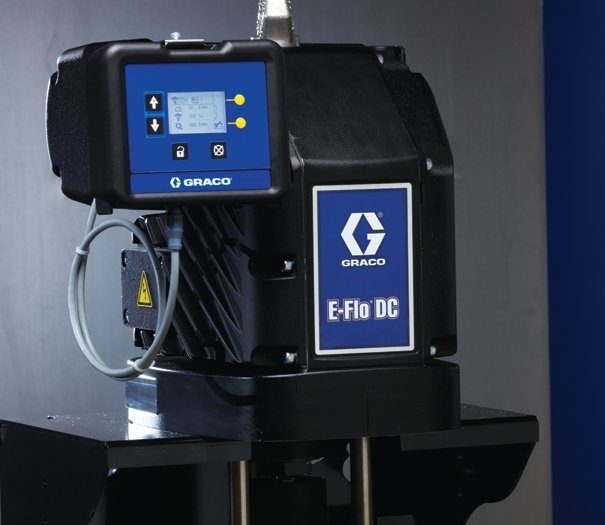

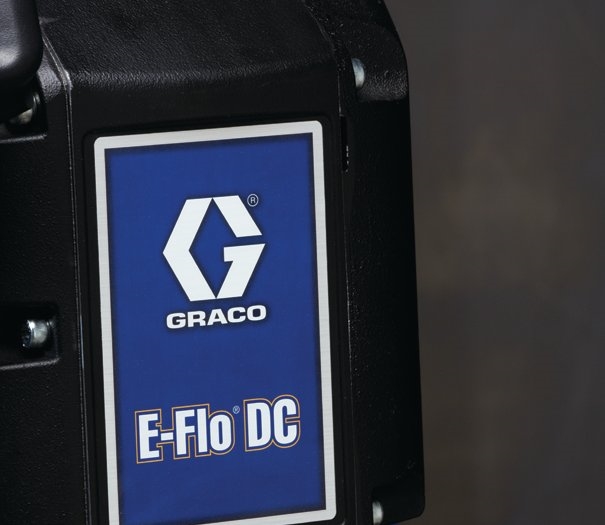

E-Flo DC 2-Ball Pumps

Dual control electric supply pump performs well under high pressure (up to 3000 psi or 206 bar). Adding advanced control optimizes fluid pressure and flow rates, especially with Intelligent Paint Kitchen technology.

21997_605x525

E-Flo DC 4-Ball Pumps

Ideal for small to medium circulation systems with up to 2000 cc per cycle outputs, this dual control electric pump minimizes pulsation with its unique four-ball lower. Advanced control adds easy integration with Intelligent Paint Kitchen technology.

Endura-Flo_Family

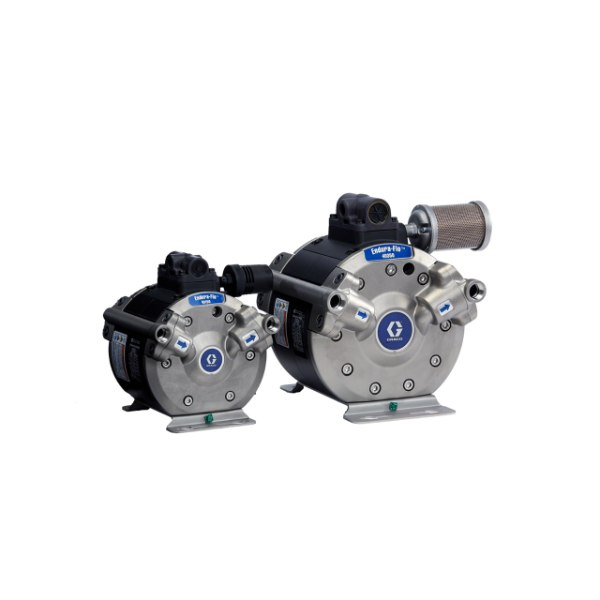

Endura-Flo Pumps

Choose between Graco’s Endura-Flo Extended Pressure 4:1 models or Extended Durability 3:1.

Glutton bellows pump

Glutton Pumps

Graco’s Glutton bellows seal design pump handles a broad range of coatings. The external check allows for quick maintenance for materials that pack or mat out easily.

18381_605x525

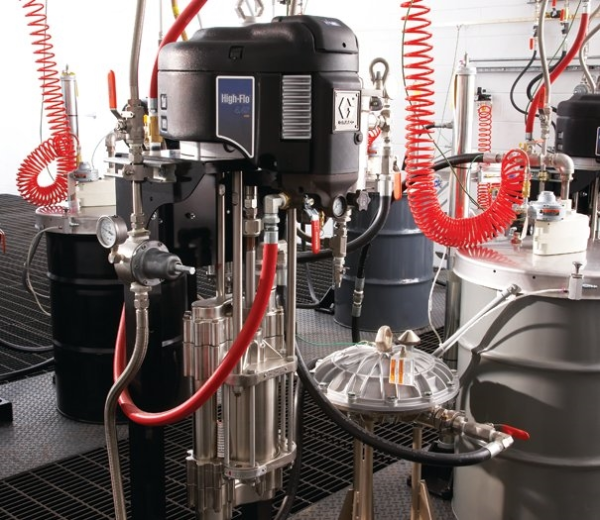

High-Flo 4-Ball Pumps

High-Flo 4-Ball pneumatic pumps are designed to handle tough finishing applications, run longer and give you outstanding performance.

Husky double diaphragm pump

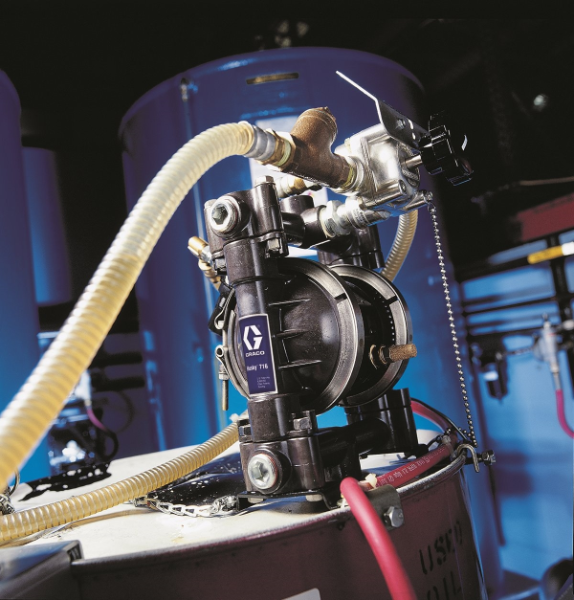

Husky Pumps

Graco’s line of Husky double diaphragm pumps are manufactured with your productivity in mind – providing you with one of the most reliable and efficient pumps in the market. Available in pneumatic and electric options, each diaphragm pump is tested before leaving our factories.

15211_605x525_1

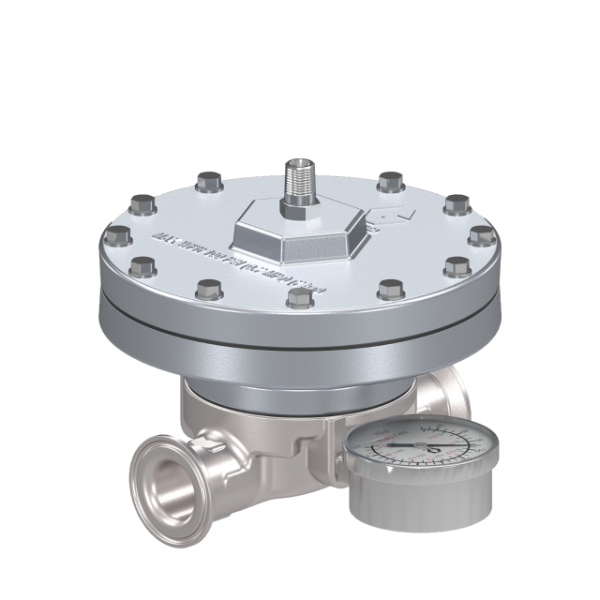

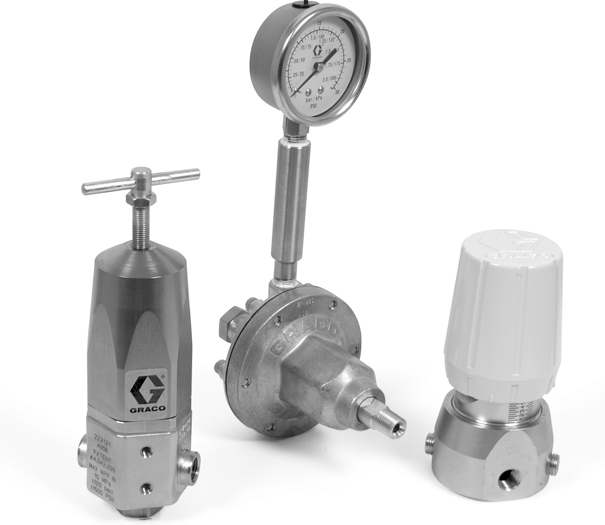

Regulators

Precise fluid control is crucial to any finishing process. Graco has a proven line of fluid and back pressure regulators to meet all of your finishing needs.

15232

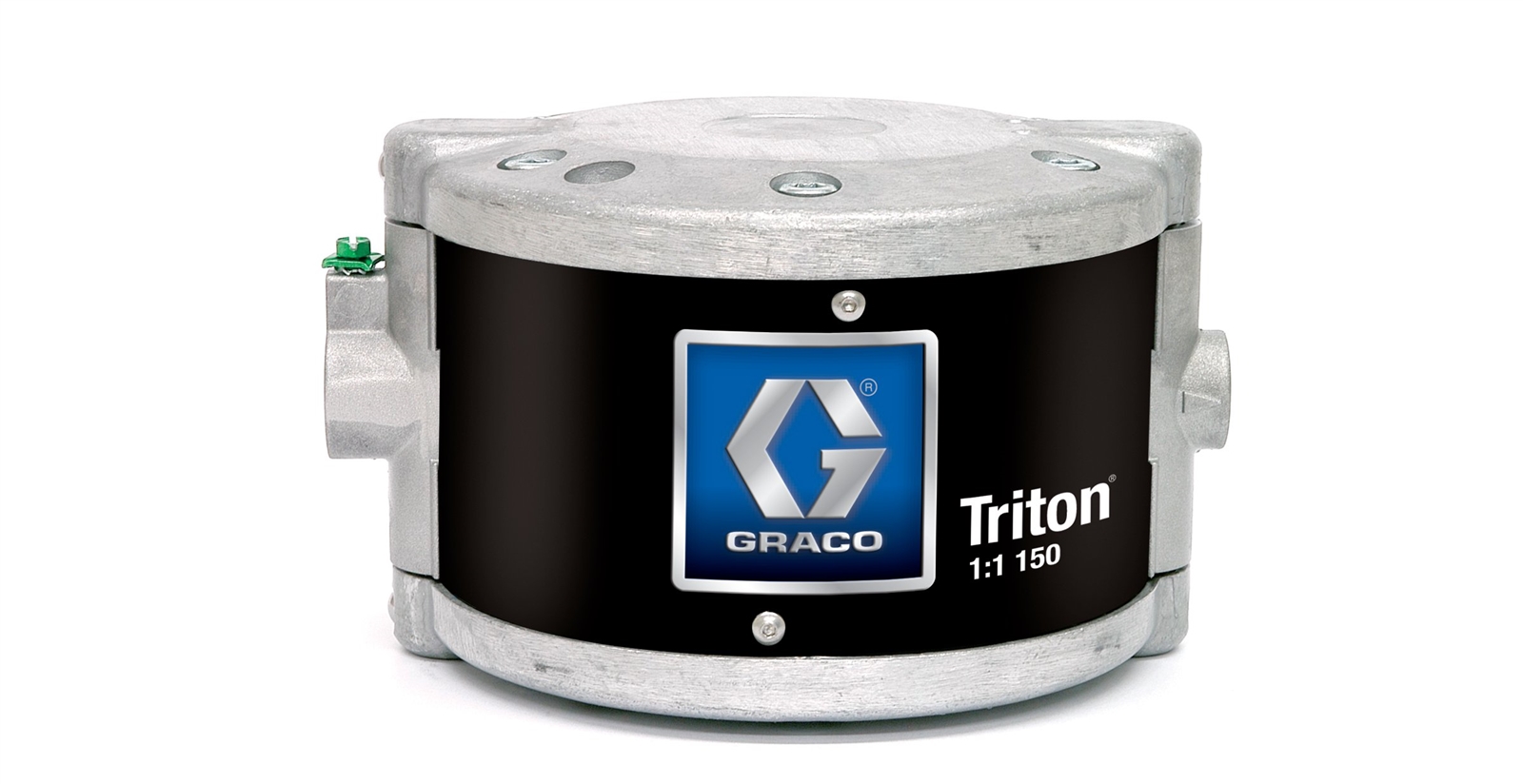

Triton 1:1 Pumps

Graco’s Triton 1:1 Pumps offer a more effective alternative to traditional pressure pots and standard diaphragm pumps. By utilizing air-operated diaphragm technology, this spray package applies a high quality, decorative finish to wood and metal.

Intelligent Paint Kitchen Resources

Intelligent Control

Intelligent Control

Learn how to optimize your factory paint mix room without spending a lot of money on new equipment.

Intelligence is Powerful

Intelligence is Powerful

Intelligent, easy-to-use products make more intelligent paint room operations.

Paint Kitchen Builder

Paint Kitchen Builder

Start with a pump and control module. Add components, as needed.
