Automated Paint Systems
Manufacturers of all sizes are benefiting from automation. Complete your automated paint line with spray guns and mixing systems that easily integrate with robots and reciprocators.
WHY ROBOTIC PAINT SPRAYING?
DECREASE COSTS, INCREASE QUALITY WITH AUTOMATION
Through paint line automation, you can...
- Lower operating costs by reducing material waste by up to 30 percent
- Reduce labor costs while dramatically improving quality, reducing scrap and rework due to operator error
- Protect employees from dangerous conditions and repetitive tasks
- Achieve high transfer efficiency, lowering the amount of paint sprayed, VOCs and waste disposal
Easy integration with robots and reciprocators
Graco proportioners and automatic spray guns easily integrate with robots and reciprocators.
Proportioner Options
ProMix PD Positive Displacement System mixes material closer to the gun. This not only makes color changes faster, it also reduces flushing waste by up to 80 percent.
ProMix 2KS and 3KS Meter-Based Systems increase efficiency for mixing two- and three-component materials. Optimize for up to 30 colors and four catalysts.
Compatible Robots
Painting robots compatible with Graco finishing solutions include:
Fanuc: P-250, P-250iB, P-350, P-350iB/45, P-50, P-50iB, Paint Mate 200iA, Paint Mate 200iA/5L
Yaskawa Motoman: EPX2700, EPX2800, EPX1250, EPX2050, MPX3500, EPX2800R, EPX2900
ABB: IRB 5400, IRB 5500, IRB 580, IRB 52
Kawasaki: KF121, KJ264, KJ314
Applicator Options
ProBell Rotary Bell Applicators have the most advanced atomization technology, resulting in the best finish quality and transfer efficiency.
Pro Xpc Auto Electrostatic Spray Guns are lightweight and ideal for robots and fixtures with lower payloads with low voltage cable.
Pro Xp Auto Electrostatic Spray Guns are turbine-powered and ideal for low pressure, high quality spraying.
AirPro EFX Air Spray Guns are compact, lightweight and designed for small component, precision finishing.
AirPro Auto Air Spray Guns work well for the largest number of applications. The versatile applicators are ideal for low pressure spraying.
G40 Auto Air-Assist Spray Guns produce tight pattern widths and good transfer efficiency with high-pressure spraying.
AL Auto Airless Spray Guns are designed for high pressure spraying of high viscosity materials. They work well at high production speeds for general metal finishing applications.
Automation ROI Calculator
Automation saves money and improves efficiency. What's your return on investment?
Automated Paint System Components

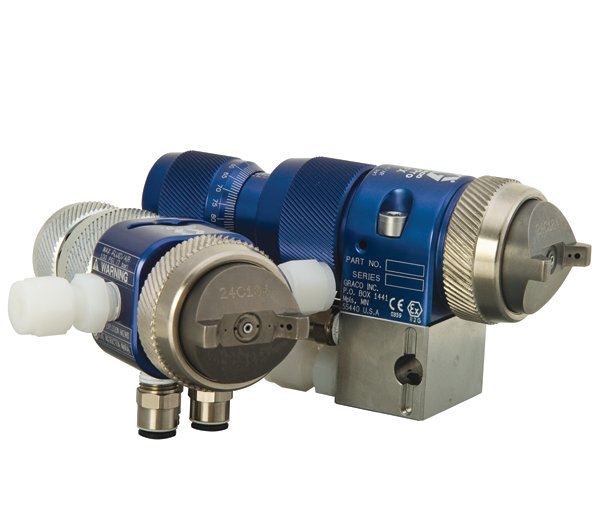

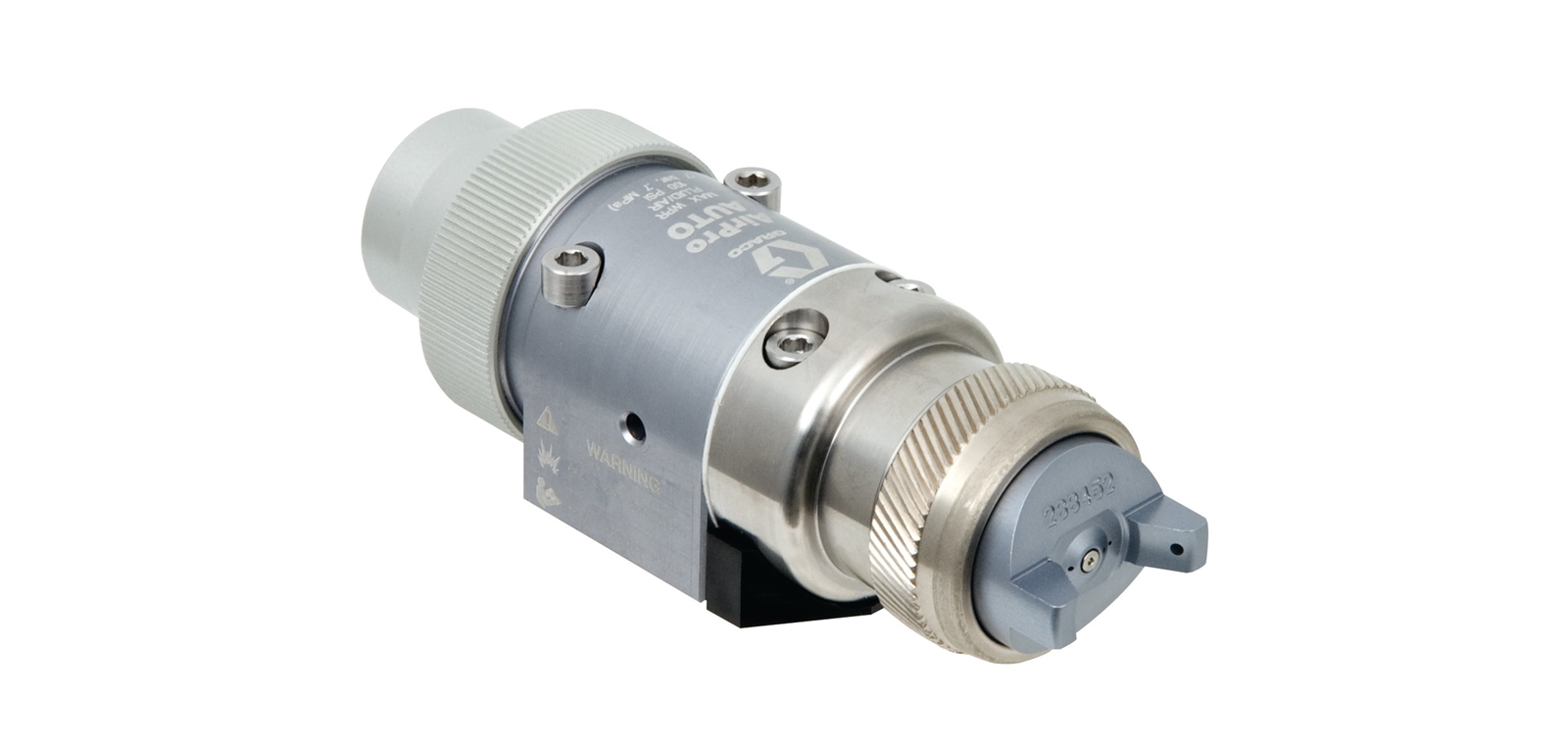

AirPro Automatic Spray Guns
AirPro Automatic guns have a wide standard product offering with compliant gun models, in addition to HVLP and conventional. Ideal for metal, wood and high wear applications.

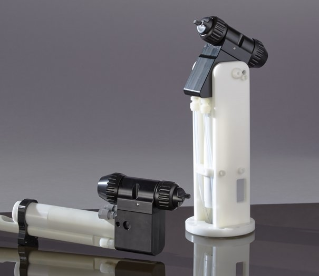

AirPro EFX Automatic Spray Guns
AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow.

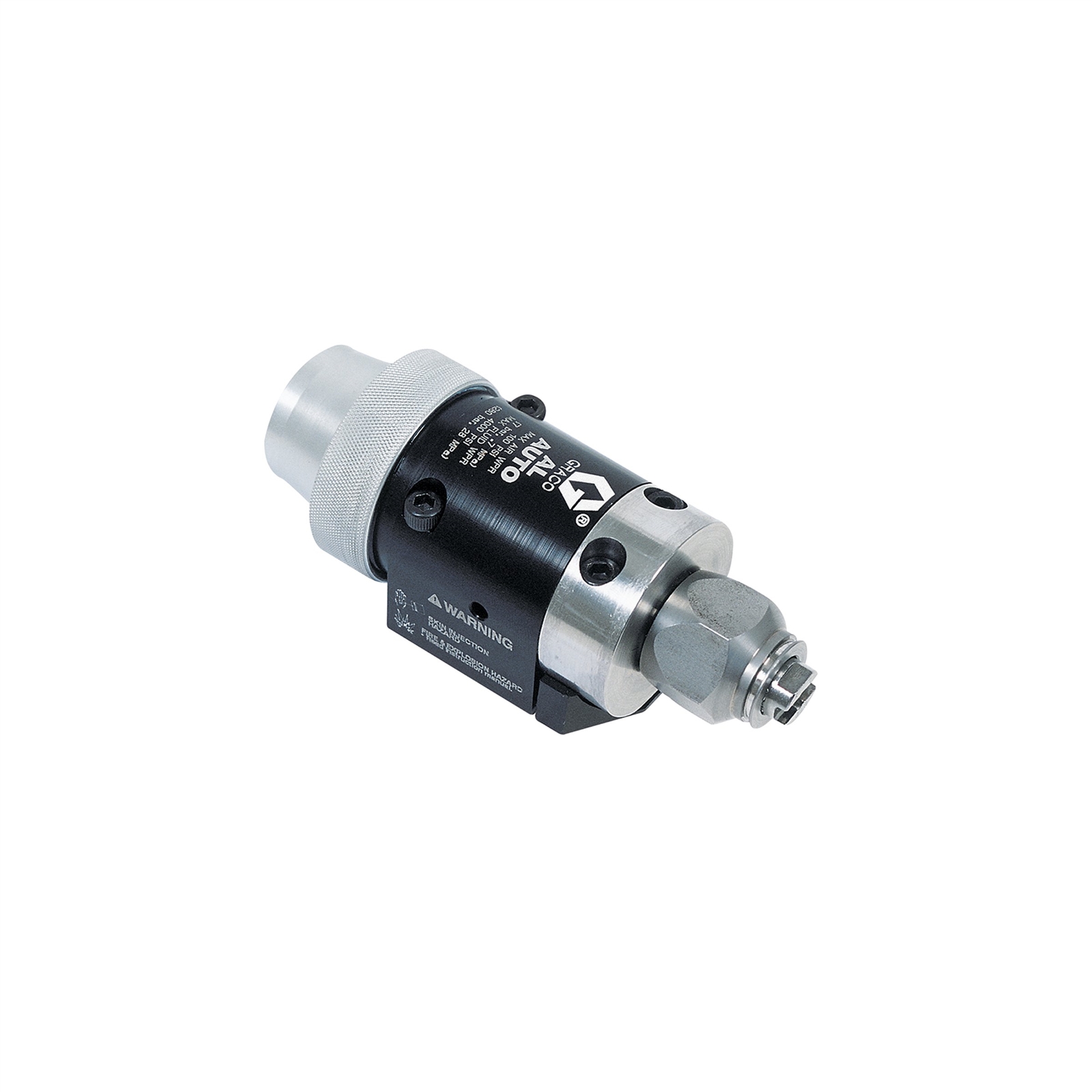

AL Series Automatic Spray Guns
Graco’s AL Series Automatic spray guns for airless spraying of paints and coatings. Ideal for general metal applications.

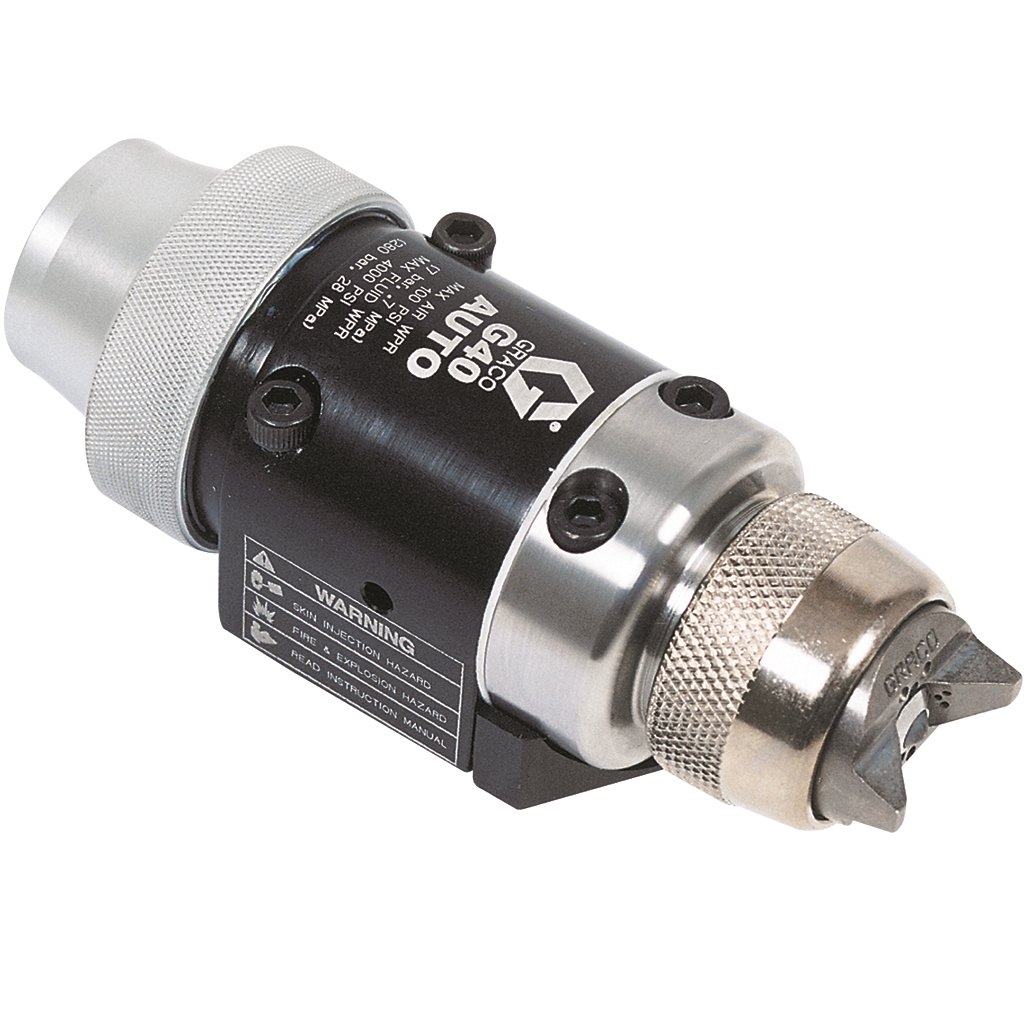

G40 Auto Air-Assisted Spray Guns
Graco’s G40 Automatic Air-Assisted spray guns for liquid coatings are recommended for high finish quality applications at low and medium pressure.

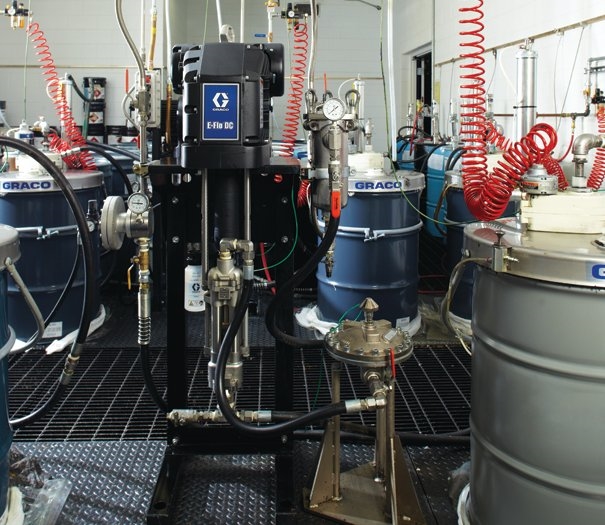

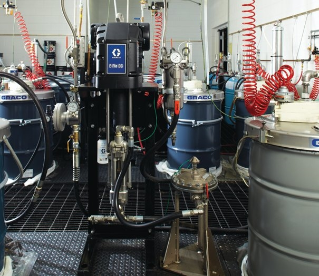

Intelligent Paint Kitchen System
Take full control of your paint mix room with the Intelligent Paint Kitchen. It’s a smart set of sensors, actuators and control modules that communicate with each other to optimize industrial paint supply and circulation. It allows pump control, tank control, and overall (remote) control.
PerformAA Auto
Achieve top-notch results at high production speeds with automatic air-assisted spray guns that deliver performance above all on flat lines, robots, reciprocators and other automated systems.

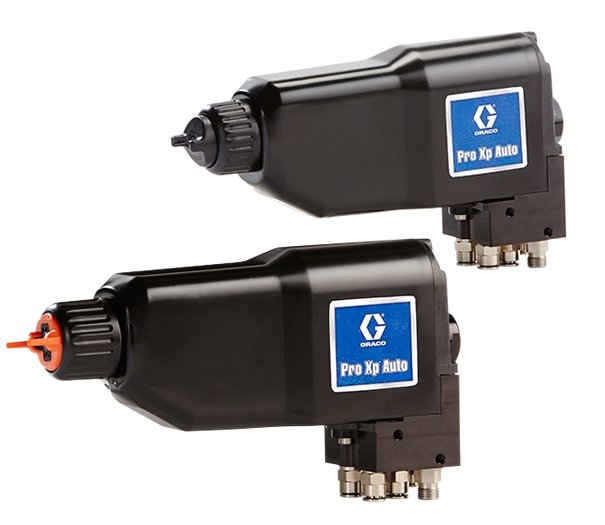

Pro Xp Auto Electrostatic Spray Guns
Pro Xp automatic electrostatic spray guns deliver expert performance to automated paint lines. Achieve high transfer efficiency when spraying high conductivity, standard or waterborne coating.
Pro Xpc Auto Electrostatic Spray Guns
The Pro Xpc Auto electrostatic spray gun offers excellent finish quality and leading class transfer efficiency. The automatic applicator is just the right size for robots and fixtures with payload limits.

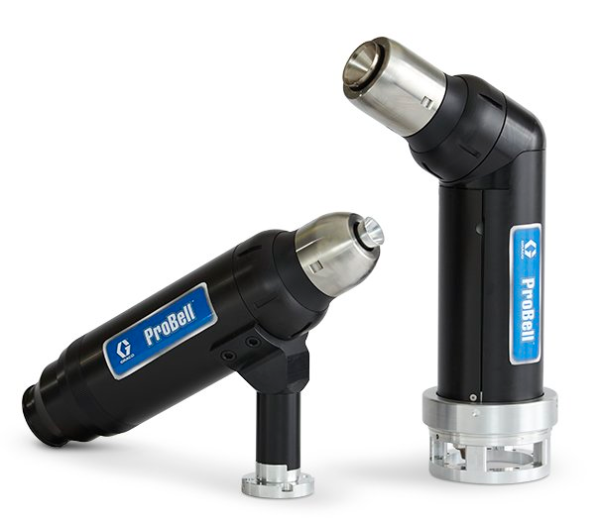

ProBell Rotary Applicators
Easy to integrate, operate, and service, ProBell® brings convenience and high performance to any finishing application in any industry. The automatic rotary atomizer continually improves quality, transfer efficiency and cleanliness while spraying with robots, reciprocators or on a fixed mount.
ProControl 1KE Plus
Actively manage one-component (1K) fluids for better spray performance and efficiency. Choose the control and customization that meet your finishing needs.

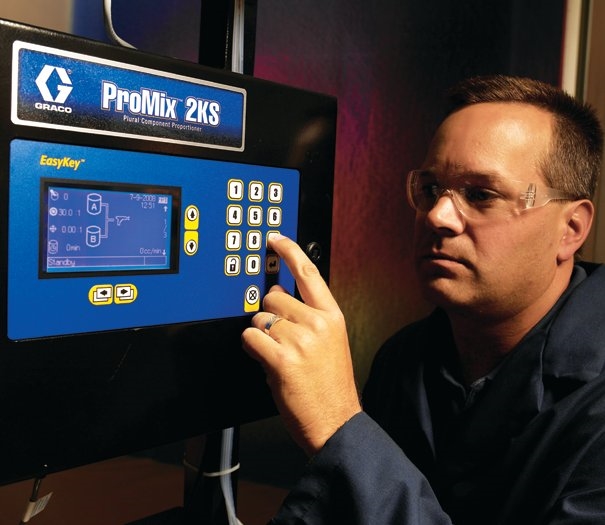

ProMix 2KS
ProMix 2KS plural component mixing system offers precise and reliable electronic proportioning from entry level to upgraded applications. Compatible with solventborne, waterborne and acid catalyzed materials, the two-component proportioner provides the flexibility and efficiency you need on your pro...

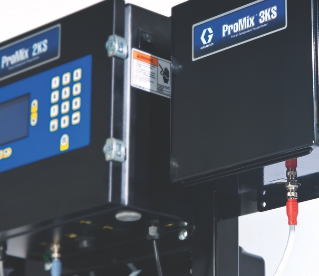

ProMix 3KS
Graco’s ProMix 3KS plural component mixing system offers mixing precision for three-component materials. Purchase with a ProMix 2KS or upgrade an existing 2KS.

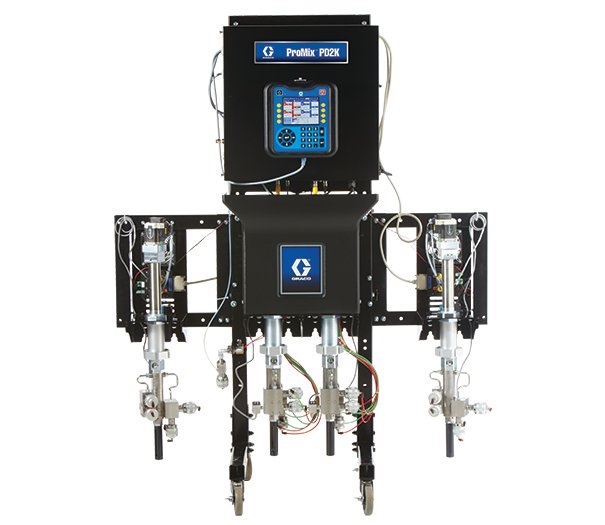

ProMix PD
The ProMix Positive Displacement (PD) Proportioner Platform is redefining fluid control, plural component mixing and manufacturing processes. Stay on ratio within 1 percent mixing accuracy. Stay on budget with less rework and simple maintenance.
