1:1 Precision Flow Fluid Pressure Regulator, 90 psi (6.2 bar) max pressure, silver ratio spacer
Part Number: 24C375

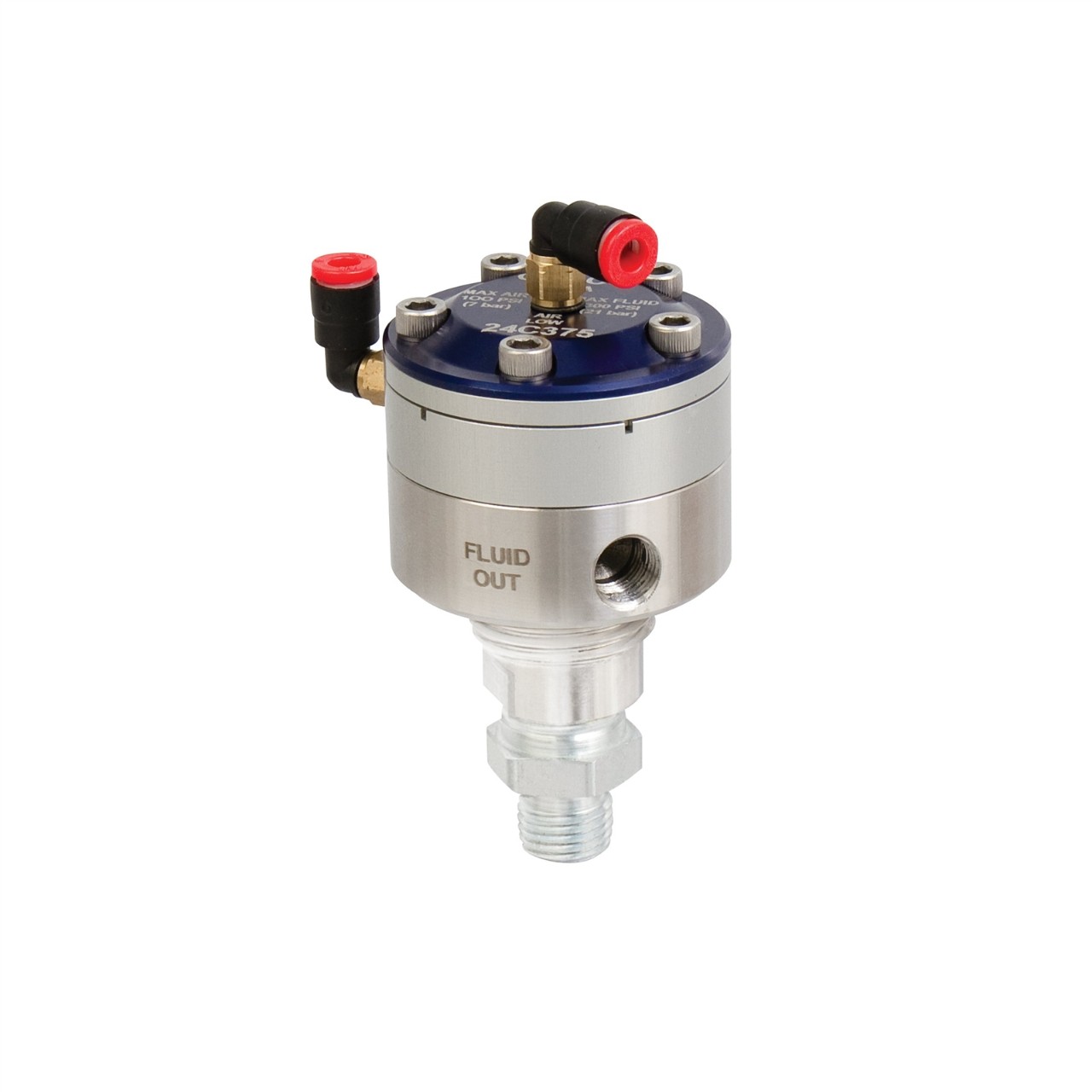

Image is for illustrative purposes only.
1:1 Precision Flow Fluid Pressure Regulator, 90 psi (6.2 bar) max pressure, silver ratio spacer
Part Number: 24C375
Fluid regulators keep your system functioning more productively.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Fluid regulators keep your system functioning more productively.
- Available with mechanical control or pneumatic control
- Suitable for fluids with low and high viscosities
- Models available with wetted parts made of stainless steel
- Application-oriented pressure ranges
Specifications & Documents
Technical Specifications
Convert to Metric| Actuation Type | Air |
|---|---|
| Construction | Stainless Steel |
| Includes | Regulator Only |
| Inlet Size (in) | 1/4 |
| Inlet Thread Type | NPT |
| Maximum Regulated Pressure (MPa) | 0.7 |
| Maximum Regulated Pressure (psi) | 100 |
| Maximum Working Pressure (MPa) | 0.6 |
| Maximum Working Pressure (psi) | 90 |
| Minimum Working Pressure (psi) | 1 |
| Outlet Size (in) | 1/8 |
| Type | Fluid Regulator |
| Actuation Type | Air |
| Construction | Stainless Steel |
| Includes | Regulator Only |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Type | NPT |
| Maximum Regulated Pressure (MPa) | 0.7 |
| Maximum Regulated Pressure (bar) | 7 |
| Maximum Regulated Pressure (kPa) | 700 |
| Maximum Regulated Pressure (psi) | 100 |
| Maximum Working Pressure (MPa) | 0.6 |
| Maximum Working Pressure (bar) | 6.3 |
| Maximum Working Pressure (kPa) | 630 |
| Maximum Working Pressure (psi) | 90 |
| Minimum Working Pressure (bar) | 0.069 |
| Minimum Working Pressure (kPa) | 6.9 |
| Minimum Working Pressure (kg/cm²) | 0.07 |
| Minimum Working Pressure (psi) | 1 |
| Outlet Size (cm) | 0.3175 |
| Outlet Size (in) | 1/8 |
| Outlet Size (mm) | 3.175 |
| Type | Fluid Regulator |
Product Manuals
CAD Drawings
24C375-3D-EN.zip
(592 KB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
