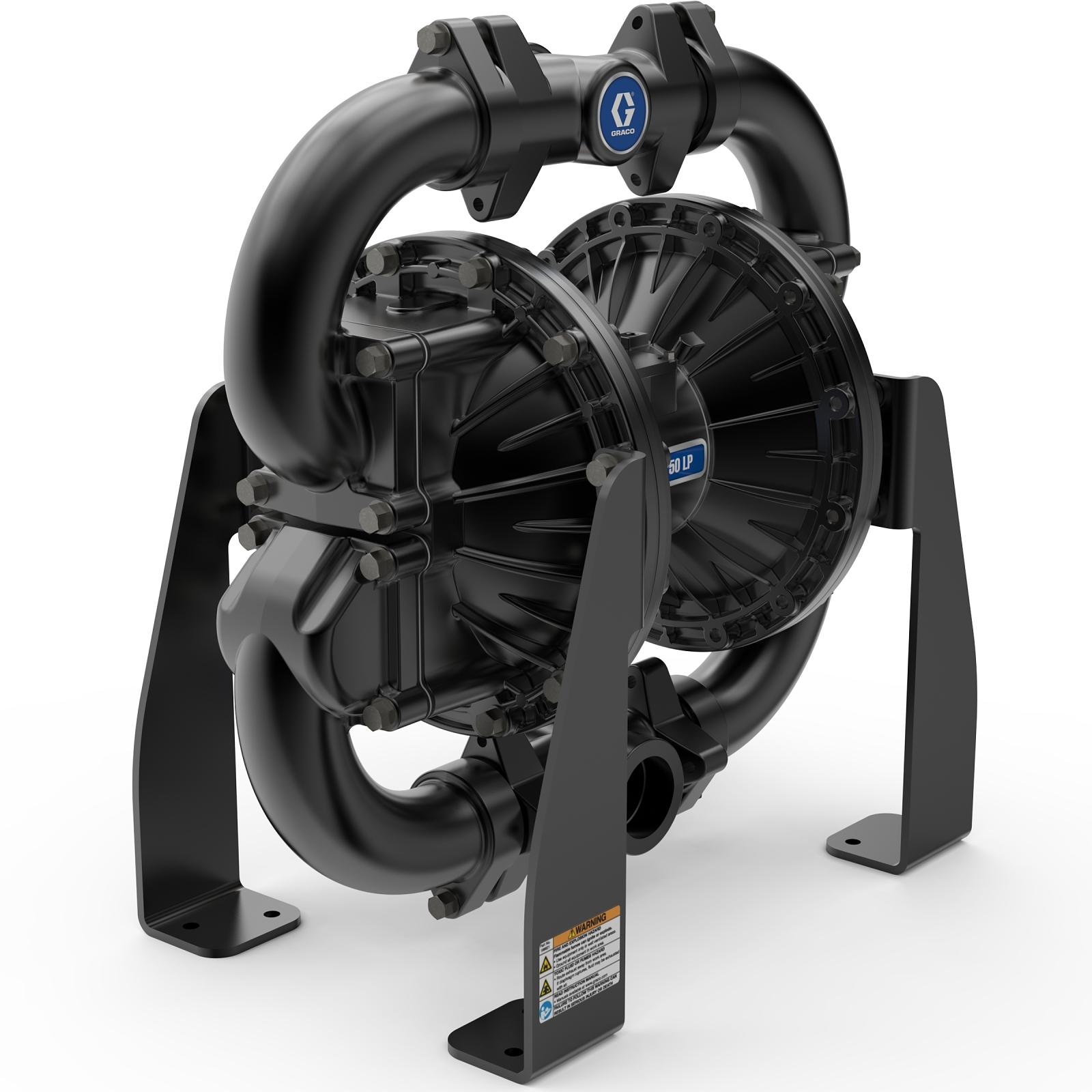

Husky 2150LP

Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, SP Diaphragms

Part Number: 25U615

Husky 2150LP

Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, SP Diaphragms

Part Number: 25U615

Waste Transfer, Simplified.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Waste Transfer, Simplified.

Built for waste and trash transfer in mines, sumps, and in-plant

  • Pump solids up to 1.8-inches in diameter without clogging
  • Durable powder-coated finish protects your pump in the harshest environments
  • External air valve is replacable without pump dissassembly
  • Fluid flow up to 150 gpm (568 lpm)
  • Made in the USA
  • Self-priming and runs dry
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps

Specifications & Documents

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 0.75
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 0.5
Air Inlet Thread Type NPT
Center Section Material Aluminum
Check Material Buna
Connection Type Threaded
Diaphragm Compatible Material Santoprene
Diaphragm Material Santoprene
Fluid Inlet Size (in) 2
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 2
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
Manifold Configuration Center Port
Maximum Air Consumption (SCFM) 175
Maximum Air Pressure (MPa) 0.83
Maximum Air Pressure (psi) 120
Maximum Cycle Rate (CPM) 145
Maximum Flow Rate (GPM) 150
Maximum Fluid Pressure (MPa) 0.83
Maximum Fluid Pressure (psi) 120
Maximum Operating Temperature (°F) 180
Maximum Solid Size (in) 1.8
Minimum Operating Temperature (°F) -40
Model Husky
Motor Type Air
Power Source Air
Series 2150LP
Type Pneumatic Diaphragm Pump
Weight (lb) 76
Wetted Material Aluminum
Air Exhaust Port Thread Type NPT
Air Inlet Thread Type NPT
Center Section Material Aluminum
Check Material Buna
Connection Type Threaded
Diaphragm Compatible Material Santoprene
Diaphragm Material Santoprene
Fluid Inlet Size (cm) 5
Fluid Inlet Size (mm) 50
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 5
Fluid Outlet Size (mm) 50
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
Manifold Configuration Center Port
Maximum Air Pressure (MPa) 0.83
Maximum Air Pressure (bar) 8.27
Maximum Air Pressure (kPa) 827.37
Maximum Cycle Rate (CPM) 145
Maximum Flow Rate (L/min) 189.3
Maximum Fluid Pressure (MPa) 0.83
Maximum Fluid Pressure (bar) 8.27
Maximum Fluid Pressure (kPa) 827.37
Maximum Operating Temperature (°C) 82
Maximum Solid Size (cm) 4.57
Maximum Solid Size (mm) 45.72
Minimum Operating Temperature (°C) -40
Model Husky
Motor Type Air
Power Source Air
Series 2150LP
Type Pneumatic Diaphragm Pump
Wetted Material Aluminum
