Sikagard-834

Sikagard^®-834 for EV Battery

Product Description

Sikagard®-834 is a modified epoxy-based intumescent fire protection coating for electric vehicle (EV) batteries. The solvent-free, 100 percent solids material provides durable corrosion-resistance, as well as protection against thermal events in electric vehicle battery systems.

Sikagard-834 is easily applied with standard airless spray equipment and requires no reinforcement. The fire protection coating cures rapidly to a very tough and resistant finish, and is ready for handling and transport after 24 hours.

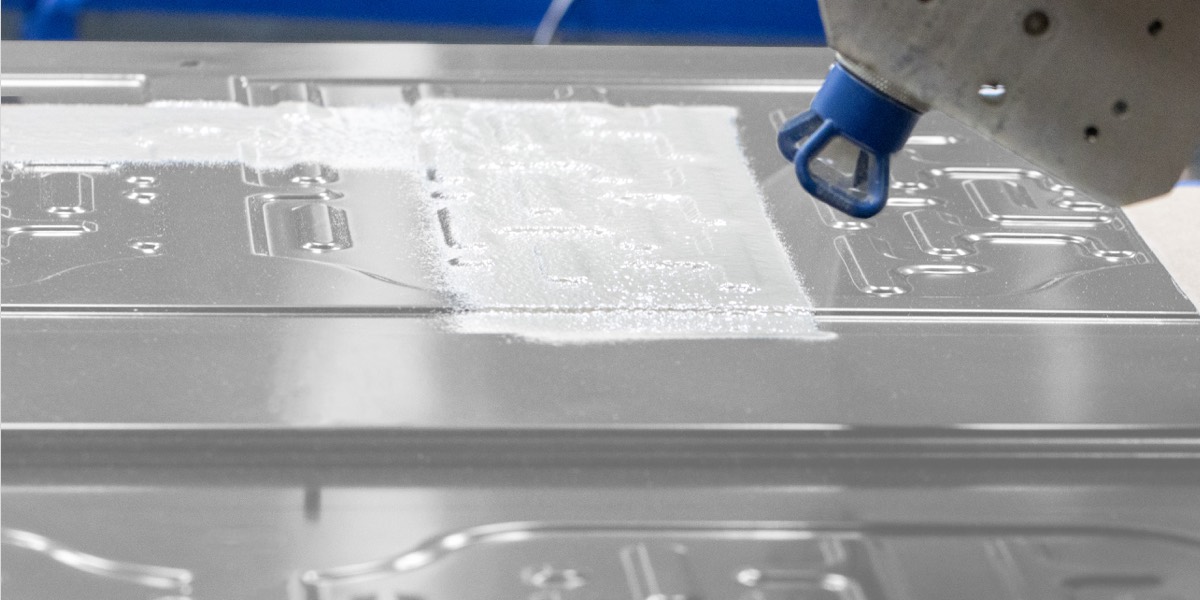

Video: An airless sprayer applies Sikagard-834 fireproofing on an EV battery component.

Product Features

Sikagard-834 intumescent coating includes these characteristics:

• Solvent-free, 100 percent solids
• Low odor and zero flash risk
• Halogen-free
• Easy application with single-leg spray equipment
• Rapid cure - next day handling and transport
• Highly resistant to mechanical impact and damage in service
• Durable for a long service life
• No primer or top coat needed
• Excellent corrosion protection properties

Properties

The epoxy-based fireproofing material has these qualities:

• Chemical base: Two-component modified epoxy
• Color: Light grey
• Cure mechanism: Polyaddition
• Density: 1.25 kg/l
• Solid content (CQP002-2): 100%
• Curing time (CQP049-2): 8h for touch dry, 24h for full curing
• Mixing ratio: By weight: 100 : 8.5; By volume: 100 : 11.4
• Application temperature: +5 to +40˚C
• Pot-life: 30 minutes (23˚C/50%RH), 15 minutes (35˚C/50%RH)
• Service Temperature: -40˚C to +80˚C
• Shelf life (CQP016-1): 24 months (23˚C/50%RH)

Surface Preparation

Before applying Sikagard-834 intumescent fire protection coating, the substrate must be clean, dry, sound and homogeneous, free from oils, grease, dust and loose or friable particles. Paint, cement laitance and other poorly adhering contaminants must be removed.

Sikagard-834 adheres without primers and/or activators on clean metals. For detailed advice, please contact Sika Technical Service. For complete product information, please refer to sika.com.

Recommended Uses

EV battery

Solution for Applying Sikagard-834

Only Graco offers a complete dispensing solution for advanced fireproofing materials like Sikagard-834 for EV battery. Designed for the application of plural component intumescent fire protection coatings, Graco’s fully automated system provides a thorough and effective coating ideal for high-volume production.
