SaniForce Beverage

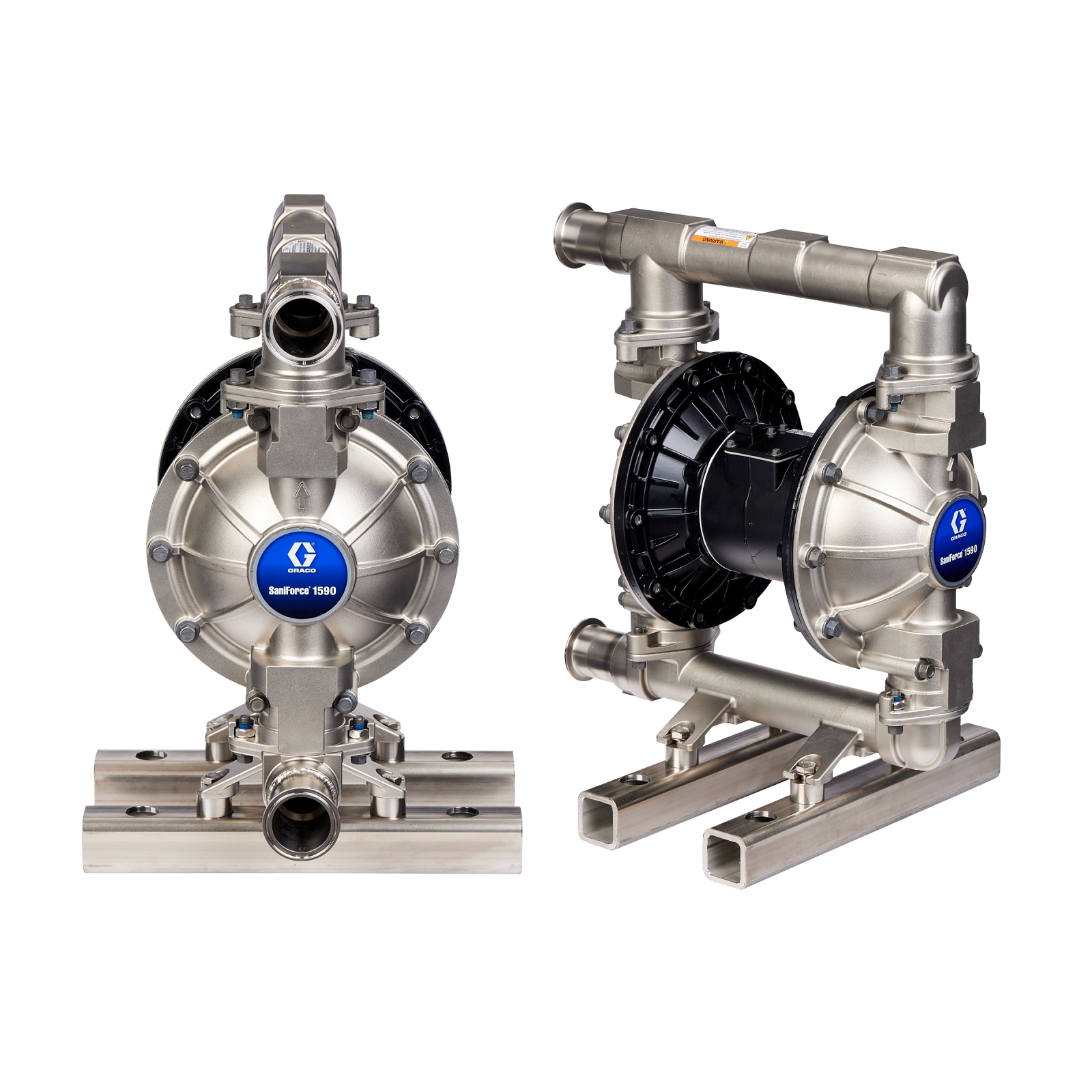

SaniForce Beverage Series Air Operated Double Diaphragm Pumps

product image

SaniForce Beverage

SaniForce Beverage Series Air Operated Double Diaphragm Pumps

Graco, a trusted name in reliable fluid transfer, offers the SaniForce Beverage (BV) Pumps designed specifically for wineries, breweries, distilleries, and general beverage transfer applications. These pumps are a part of Graco’s proven Air-Operated Double Diaphragm pump technology, providing a safe... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Graco, a trusted name in reliable fluid transfer, offers the SaniForce Beverage (BV) Pumps designed specifically for wineries, breweries, distilleries, and general beverage transfer applications. These pumps are a part of Graco’s proven Air-Operated Double Diaphragm pump technology, providing a safe, flexible, and cost-effective solution for beverage transfer needs.

The BV pumps offer a flexible and reliable solution for beverage transfer in wineries, breweries, and distilleries. Designed with FDA compliant materials for hygienic transfer and including polychloroprene balls for a safer and quieter operation.

  • These pumps offer exceptional flexibility and convenience for wine industry applications. The ability to easily mount on carts allows for convenient movement for tank or barrel transfer in your production process. This portability enhances operational efficiency and ensures optimal performance.
  • The FDA-compliant construction, stainless steel fluid section, and FDA approved elastomers guarantee the highest standards of hygiene and safety.
  • Benefit from easy serviceability with the externally serviceable air valve, reducing maintenance time and costs.
  • Achieve high flow rates of up to 150 gallons per minute, meeting the demands of your beverage transfer process.
Loading ...
Products currently unavailable.

Ordering Information

1-10 of 31 Results

Part Number Price
Show All (31)

Specifications & Documents

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 0.5
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Beverage
Ball Material Polychloroprene Weighted
Center Section Material Aluminum
Diaphragm Material Santoprene
Fluid Inlet Thread Type End Flange
Fluid Outlet Thread Type End Flange
Fluid Section Material 316 Stainless Steel
Manifold Configuration End Port
Manifold O-Ring Material PTFE
Maximum Air Pressure (psi) 120
Maximum Fluid Pressure (psi) 120
Maximum Working Pressure (MPa) 0.8
Maximum Working Pressure (psi) 120
Power Source Air
Pump Ratio 1:1
Seat Material Stainless Steel
Standards Met EN 1024:2004 Type 2.1, FDA Compliant Materials
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 0.5
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Beverage
Ball Material Polychloroprene Weighted
Center Section Material Aluminum
Diaphragm Material Santoprene
Fluid Inlet Thread Type End Flange
Fluid Outlet Thread Type End Flange
Fluid Section Material 316 Stainless Steel
Manifold Configuration End Port
Manifold O-Ring Material PTFE
Maximum Air Pressure (psi) 120
Maximum Fluid Pressure (psi) 120
Maximum Working Pressure (MPa) 0.8
Maximum Working Pressure (psi) 120
Power Source Air
Pump Ratio 1:1
Seat Material Stainless Steel
Standards Met EN 1024:2004 Type 2.1, FDA Compliant Materials
