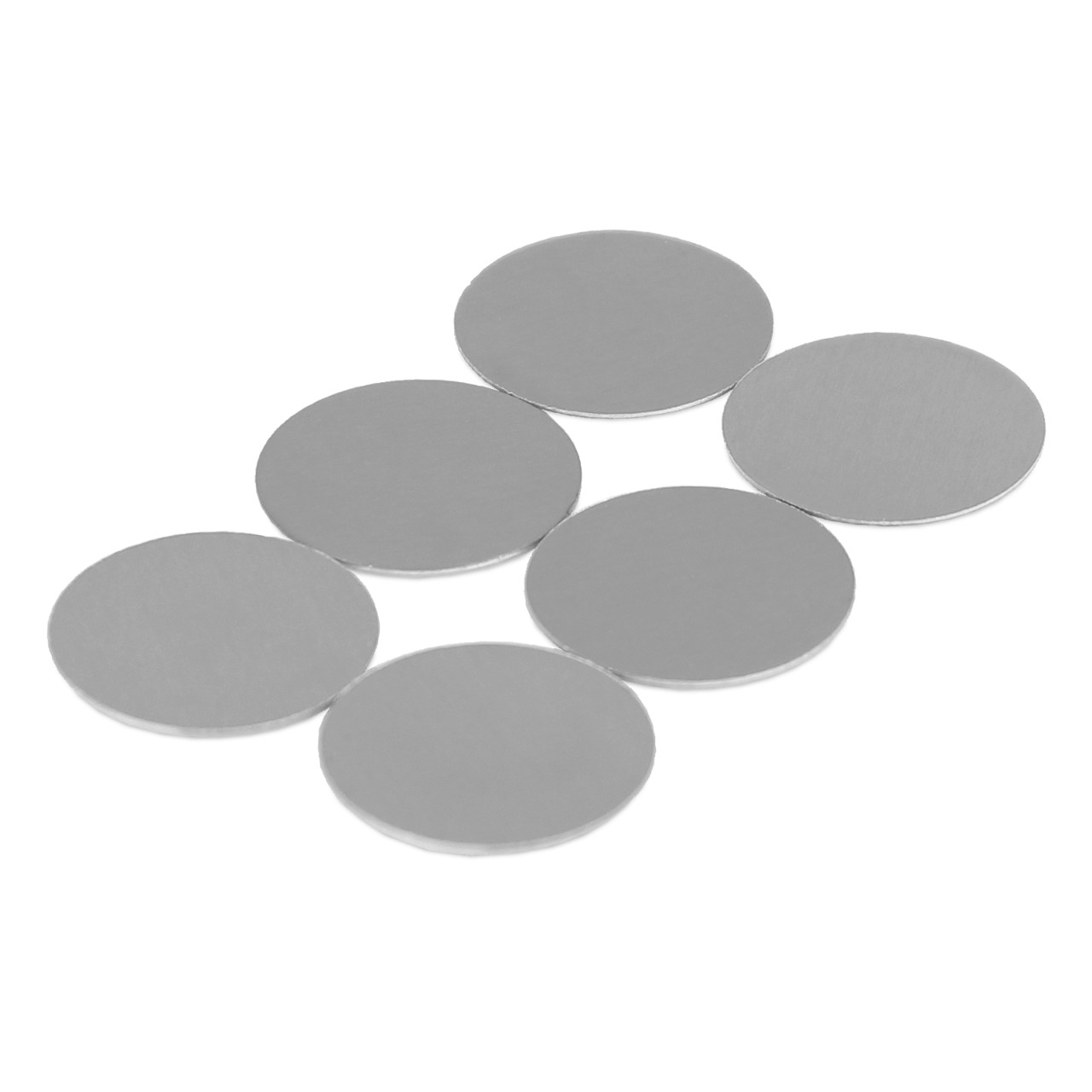

Blowout Disc Kit - (6) Aluminum, 2350 psi, 11/16 in.
Part Number: 563965
Image is for illustrative purposes only.
Blowout Disc Kit - (6) Aluminum, 2350 psi, 11/16 in.
Part Number: 563965
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.
Requires replacement of the rupture disc to restart the lube system.
Easy information on blocked lines, high system pressure or blocked bearings.
Replacement Rupture Packs of 6 (11/16 inch / 17.5 mm diameter discs)
2,350 psi - aluminum
- Lubriquip part number 560-900-300
Specifications & Documents
Technical Specifications
Convert to Metric| Color | Aluminum |
|---|---|
| Maximum Working Pressure (MPa) | 16.2 |
| Maximum Working Pressure (psi) | 2350 |
| Number of Pieces | 6 |
| Overall Diameter (in) | 0.688 |
| Type | Rupture Disk |
| Color | Aluminum |
| Maximum Working Pressure (MPa) | 16.2 |
| Maximum Working Pressure (bar) | 162 |
| Maximum Working Pressure (kPa) | 16192 |
| Maximum Working Pressure (psi) | 2350 |
| Number of Pieces | 6 |
| Overall Diameter (cm) | 1.7 |
| Overall Diameter (mm) | 17 |
| Type | Rupture Disk |
