Stainless Steel Fluid Gauges with Dampeners, 0-2000 psi (0-140 bar) 1/4 in npt(f)
Part Number: 110182

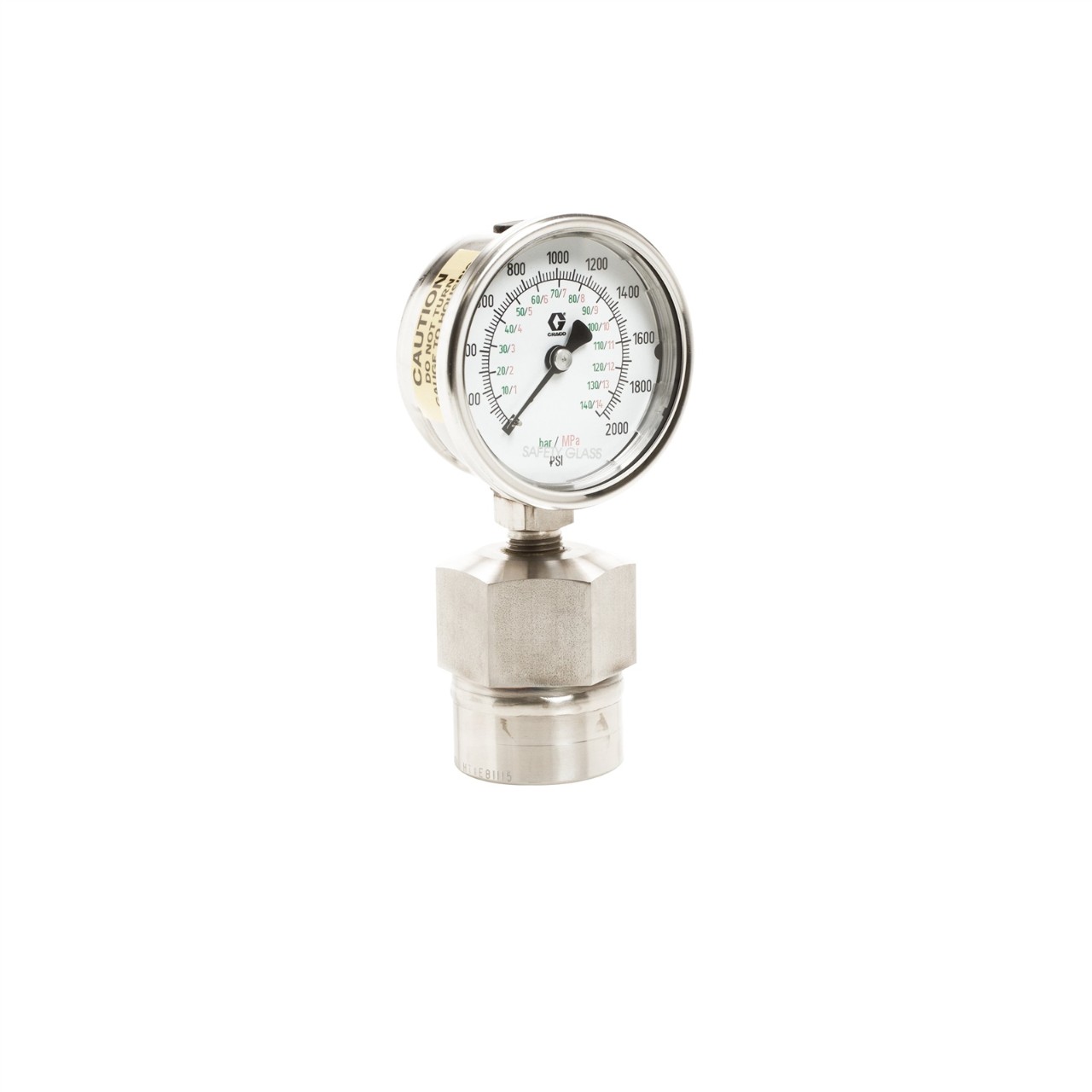

Image is for illustrative purposes only.
Stainless Steel Fluid Gauges with Dampeners, 0-2000 psi (0-140 bar) 1/4 in npt(f)
Part Number: 110182
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
- Dampener protects gauge from severe pressure pulsation
- Corrosion Resistant
- 2.5 in (63mm) diameter dial
- 1/4 in NPT connections
Specifications & Documents
Technical Specifications
Convert to Metric| Dial Diameter (in) | 2.5 |
|---|---|
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Working Pressure (MPa) | 14 |
| Maximum Working Pressure (psi) | 2000 |
| Type | Pressure Gauge |
| Dial Diameter (cm) | 6 |
| Dial Diameter (in) | 2.5 |
| Dial Diameter (mm) | 64 |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Working Pressure (MPa) | 14 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Maximum Working Pressure (psi) | 2000 |
| Type | Pressure Gauge |
