Trabon

Proximity Switch, 7/16-20, 7500 psi (517.1 bar)

17L983

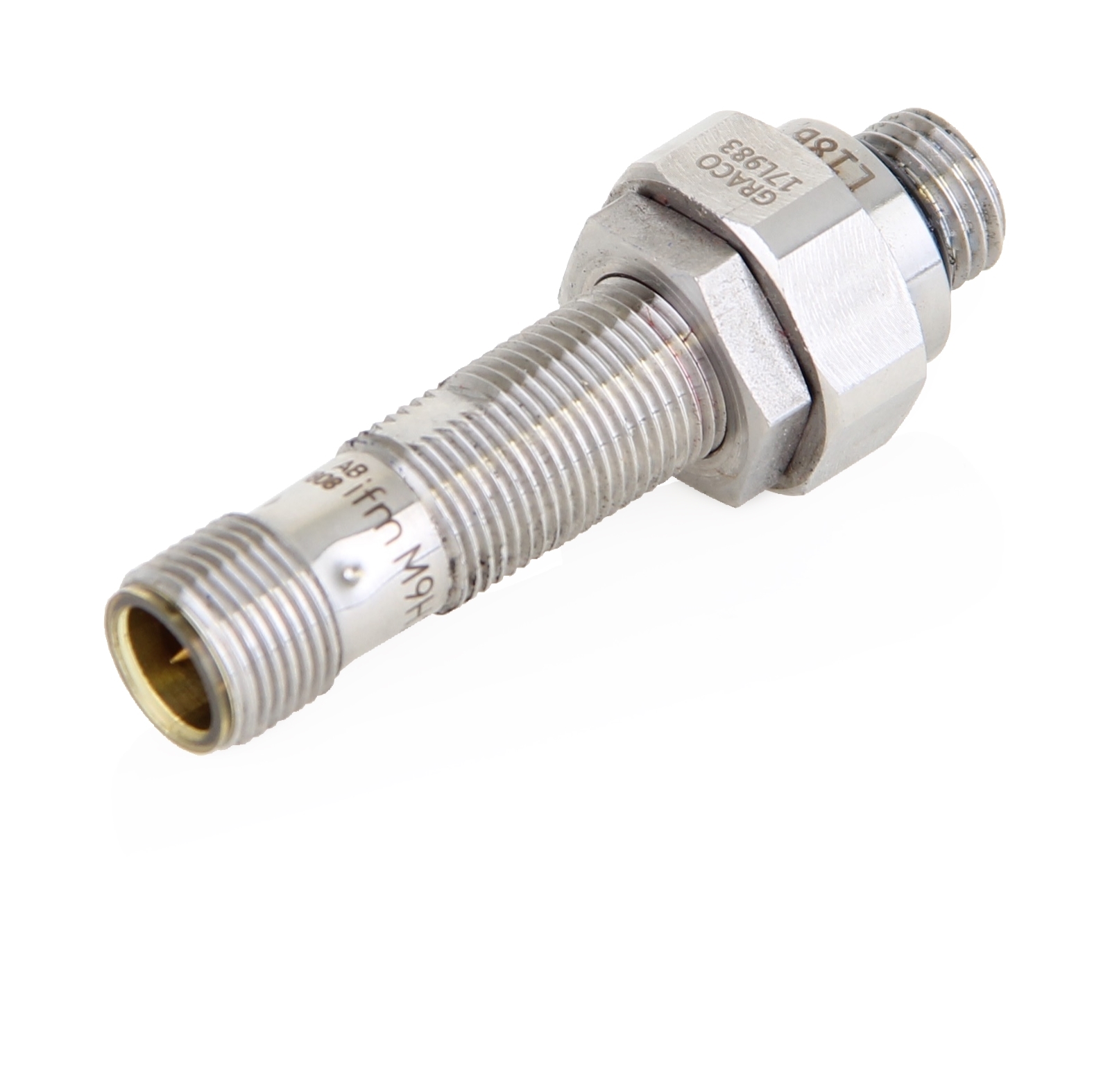

Image is for illustrative purposes only.

Trabon

Proximity Switch, 7/16-20, 7500 psi (517.1 bar)

17L983

Magnetically-operated sensing devices for sending system data to the controller or PLC.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Magnetically-operated sensing devices for sending system data to the controller or PLC.

  • Available in 115 VAC or 12-32 VDC
  • Available for all series progressive families to provide cycle rates up to 200 CPM
  • Pressure ratings up to 10,000 psi (690 bar)
  • Variety of electrical connections and voltages with or without LED indication
  • Select models available with UL and CSA approvals

Specifications & Documents

Technical Specifications

Convert to Metric
Application Off-Road Equipment, On-Road Vehicles, In-Plant Machinery
Compatible Material Oil, Grease
Material PBT (Pocan), PC (Makrolon), FPM, Stainless Steel
Maximum Voltage (V dc) 32
Maximum Working Pressure (MPa) 51.7
Maximum Working Pressure (psi) 7500
Minimum Voltage (V dc) 9.6
Power Connection Type M12
Type Field-Sensing Magnetic
Application Off-Road Equipment, On-Road Vehicles, In-Plant Machinery
Compatible Material Oil, Grease
Material PBT (Pocan), PC (Makrolon), FPM, Stainless Steel
Maximum Voltage (V dc) 32
Maximum Working Pressure (MPa) 51.7
Maximum Working Pressure (bar) 517.1
Maximum Working Pressure (kPa) 51710
Minimum Voltage (V dc) 9.6
Power Connection Type M12
Type Field-Sensing Magnetic
