Stellair ACE

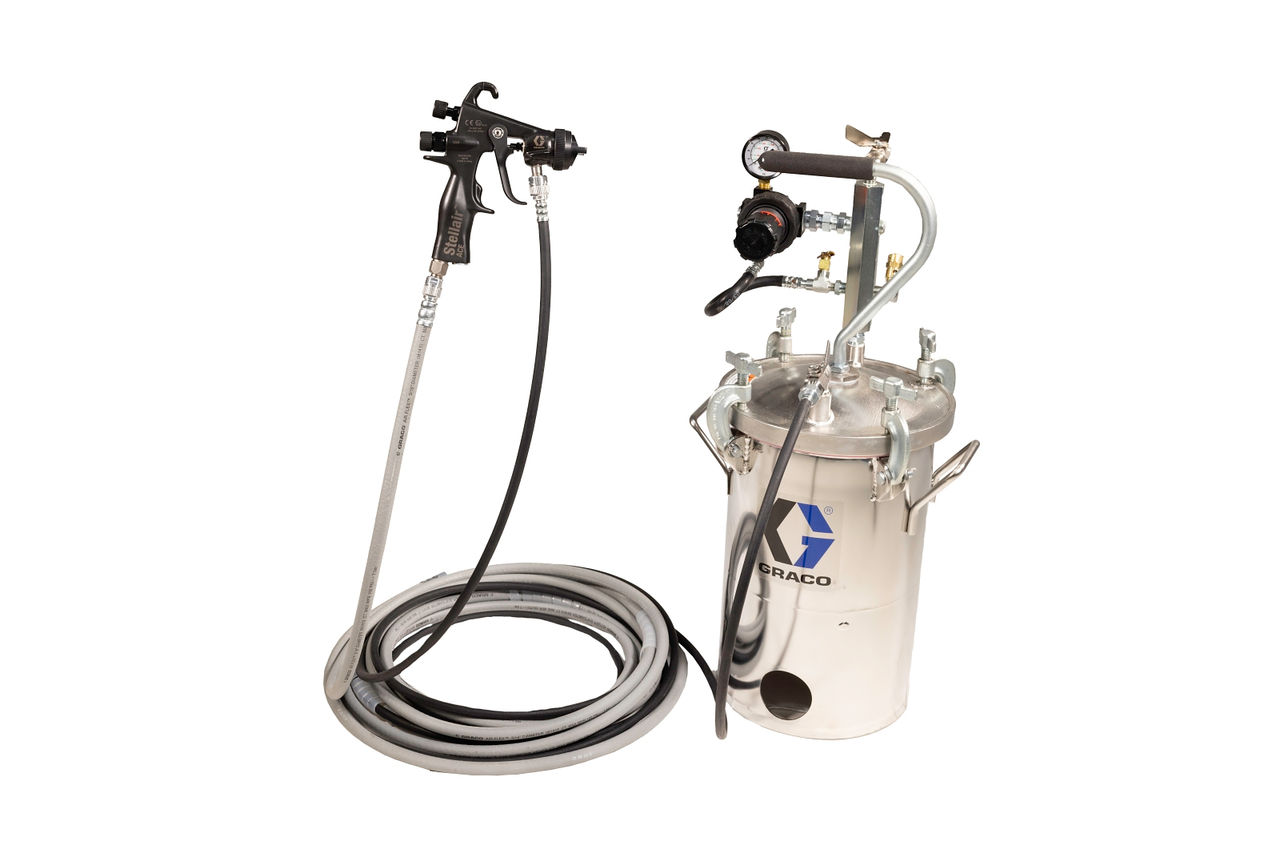

5 Gallon (19 L) Pressure Pot with Stellair ACE Air Spray Gun, 0.055 in (1.4 mm) nozzle, 25 ft (7.6 m) fluid and air hose
Part Number: 2006499
Image is for illustrative purposes only.
Stellair ACE
5 Gallon (19 L) Pressure Pot with Stellair ACE Air Spray Gun, 0.055 in (1.4 mm) nozzle, 25 ft (7.6 m) fluid and air hose
Part Number: 2006499
Stellair ACE air spray gun and stainless steel (ASME) pressure pot package delivers fine finish spraying for both waterborne and solvent-borne fluids.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Stellair ACE air spray gun and stainless steel (ASME) pressure pot package delivers fine finish spraying for both waterborne and solvent-borne fluids.
- With electroplated surfaces that prevent debris build-up and keep your operation free of contaminants, Graco pressure pot is precision welded and surfaced.
- The carbon reinforced polymer construction of the Stellair ACE air spray gun assures durability, while relieving stress injuries and fatigue.
- ASME rating ensures pressure pot package meets factory standards.
- High volume low pressure (HVLP) / low volume medium pressure (LVMP) air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
- Quick connect fluid and air hose fittings can be tightened and removed by hand.
- Flexible and lightweight, 25-foot (7.6 meter) hose moves with you at any angle.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Liquid Finishing |
|---|---|
| Compatible Material | Solventborne, Waterborne |
| Fluid Outlet Size (in) | 0.375 |
| Gun Included | 0 |
| Gun Technology | HVLP/LVMP |
| Gun Type | Air Spray |
| Includes | Fluid Hose, Air Hose, Fluid Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Model | Stellair ACE |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Gun |
| Type | Spray Gun |
| Weight (lb) | 74 |
| Application | Liquid Finishing |
| Compatible Material | Solventborne, Waterborne |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250000000000004 |
| Gun Included | 0 |
| Gun Technology | HVLP/LVMP |
| Gun Type | Air Spray |
| Includes | Fluid Hose, Air Hose, Fluid Regulator, Applicator |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Model | Stellair ACE |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Gun |
| Type | Spray Gun |
| Weight (kg) | 34 |
