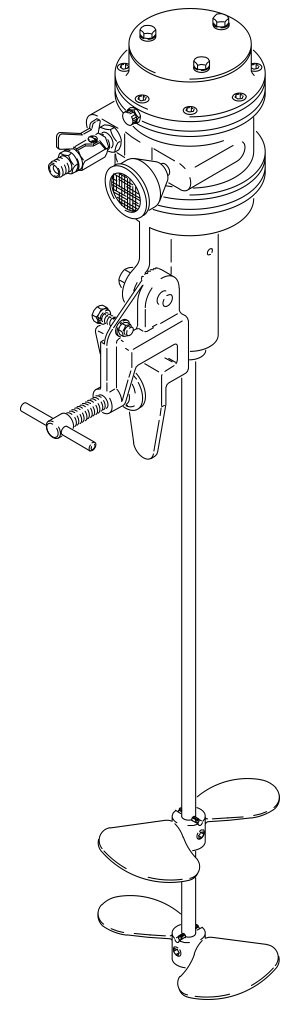

Clamp Mounted Drum Agitator, air driven, 2-1/2 HP, 41.5 inches (105.4 cm) long, includes dual round prop; open drum
Part Number: 225883
Image is for illustrative purposes only.
Clamp Mounted Drum Agitator, air driven, 2-1/2 HP, 41.5 inches (105.4 cm) long, includes dual round prop; open drum
Part Number: 225883
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
- Clamp mounts agitator directly to drum
- Adjustable shaft angle reduces mixing vortex and air entrapment
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob fine-tunes agitator speed to ideal mixing parameters
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Type | NPT |
| Construction | Aluminum, Carbon Steel, Iron |
| For Use With | 55 Gallon (208 Liter) Drum |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 2500 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 2.5 |
| Type | Agitator |
| Weight (lb) | 36 |
| Air Inlet Size (cm) | 0.9525 |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Type | NPT |
| Construction | Aluminum, Carbon Steel, Iron |
| For Use With | 55 Gallon (208 Liter) Drum |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 2500 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Type | Agitator |
| Weight (kg) | 16.3 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
