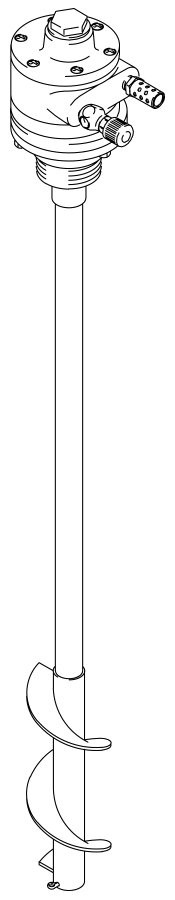

Twistork Drum Agitator, reversible, non-siphon, air driven, 1-1/2 HP, 37.25 in (95 cm) in length, 304 stainless steel material

Part Number: 235534

Image is for illustrative purposes only.

Twistork

Twistork Drum Agitator, reversible, non-siphon, air driven, 1-1/2 HP, 37.25 in (95 cm) in length, 304 stainless steel material

Part Number: 235534

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
  • Helix blade effectively mixes higher viscosity materials
  • Mounts directly to 2-inch drum bung
  • Comes in stainless steel or carbon steel
  • Siphon model allows material transfer though agitator shaft
  • Sealed agitator drive prevents material contamination and evaporation
  • Approved by ATEX for use in hazardous locations
  • Maximum viscosity is 10,000 cps

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/8
Air Inlet Thread Type NPT
For Use With 55 Gallon (208 Liter) Drum
Maximum Speed (RPM) 800
Maximum Viscosity (cP) 10000
Maximum Working Pressure (psi) 100
Model Twistork
Motor Type Pneumatic - Rotary Vane
Power Rating (HP) 1.5
Type Agitator
Weight (lb) 17.6
Wetted Material Stainless Steel, Fluoroelastomer, Acetal
Air Inlet Size (cm) 0.3175
Air Inlet Size (mm) 3.175
Air Inlet Thread Type NPT
For Use With 55 Gallon (208 Liter) Drum
Maximum Speed (RPM) 800
Maximum Viscosity (cP) 10000
Maximum Working Pressure (bar) 7
Maximum Working Pressure (kPa) 700
Model Twistork
Motor Type Pneumatic - Rotary Vane
Power Rating (HP) 1.5
Type Agitator
Weight (kg) 8.0
Wetted Material Stainless Steel, Fluoroelastomer, Acetal
