High Pressure Fluid Back Pressure Regulator, 3000 Max psi, SST, Spring Type, 1/4(f) x 1/4(f) inlet/outlet, gauge not included

Part Number: 238926

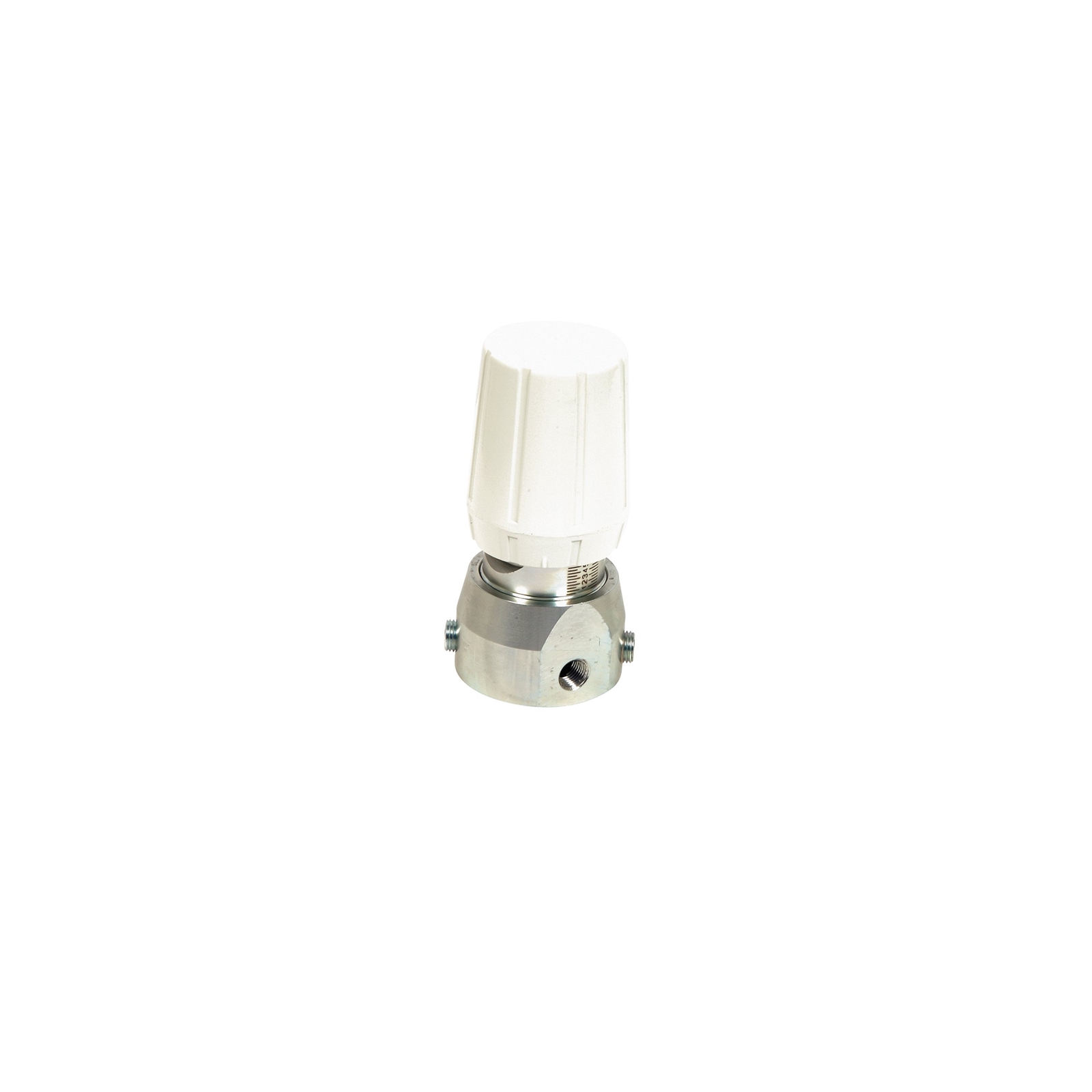

product image
Image is for illustrative purposes only.

High Pressure Fluid Back Pressure Regulator, 3000 Max psi, SST, Spring Type, 1/4(f) x 1/4(f) inlet/outlet, gauge not included

Part Number: 238926

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
  • Tungsten and carbide materials ensure low wear and long life
  • Plated carbon steel housing is compatible with solvent-borne materials
  • Laser-marked indication lines for easy pressure adjustment and process control
  • Ergonomic adjustment knob

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Solventborne
Construction Stainless Steel, Tungsten Carbide, PTFE, Acetal Homopolymer
Gauge Port Size (in) 1/4
Gauge Port Type NPT
Inlet Size (in) 1/4
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 3.5
Maximum Regulated Pressure (psi) 3000
Maximum Viscosity (cP) 500
Maximum Working Pressure (psi) 3000
Minimum Regulated Pressure (MPa) 7
Minimum Regulated Pressure (psi) 1000
Outlet Size (in) 1/4
Outlet Thread Type NPT
Type Back Pressure Regulator
Compatible Material Solventborne
Construction Stainless Steel, Tungsten Carbide, PTFE, Acetal Homopolymer
Gauge Port Size (cm) 0.635
Gauge Port Size (in) 1/4
Gauge Port Size (mm) 6.35
Gauge Port Type NPT
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 13.25
Maximum Regulated Pressure (bar) 207
Maximum Regulated Pressure (kPa) 20700
Maximum Regulated Pressure (psi) 3000
Maximum Viscosity (cP) 500
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 21000
Maximum Working Pressure (psi) 3000
Minimum Regulated Pressure (MPa) 7
Minimum Regulated Pressure (bar) 70
Minimum Regulated Pressure (kPa) 7000
Minimum Regulated Pressure (psi) 1000
Outlet Size (cm) 0.635
Outlet Size (in) 1/4
Outlet Size (mm) 6.35
Outlet Thread Type NPT
Type Back Pressure Regulator
