Husky 716

Husky® 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evac/Transfer, Water, Antifreeze, Windshield Wash Fluid

241906

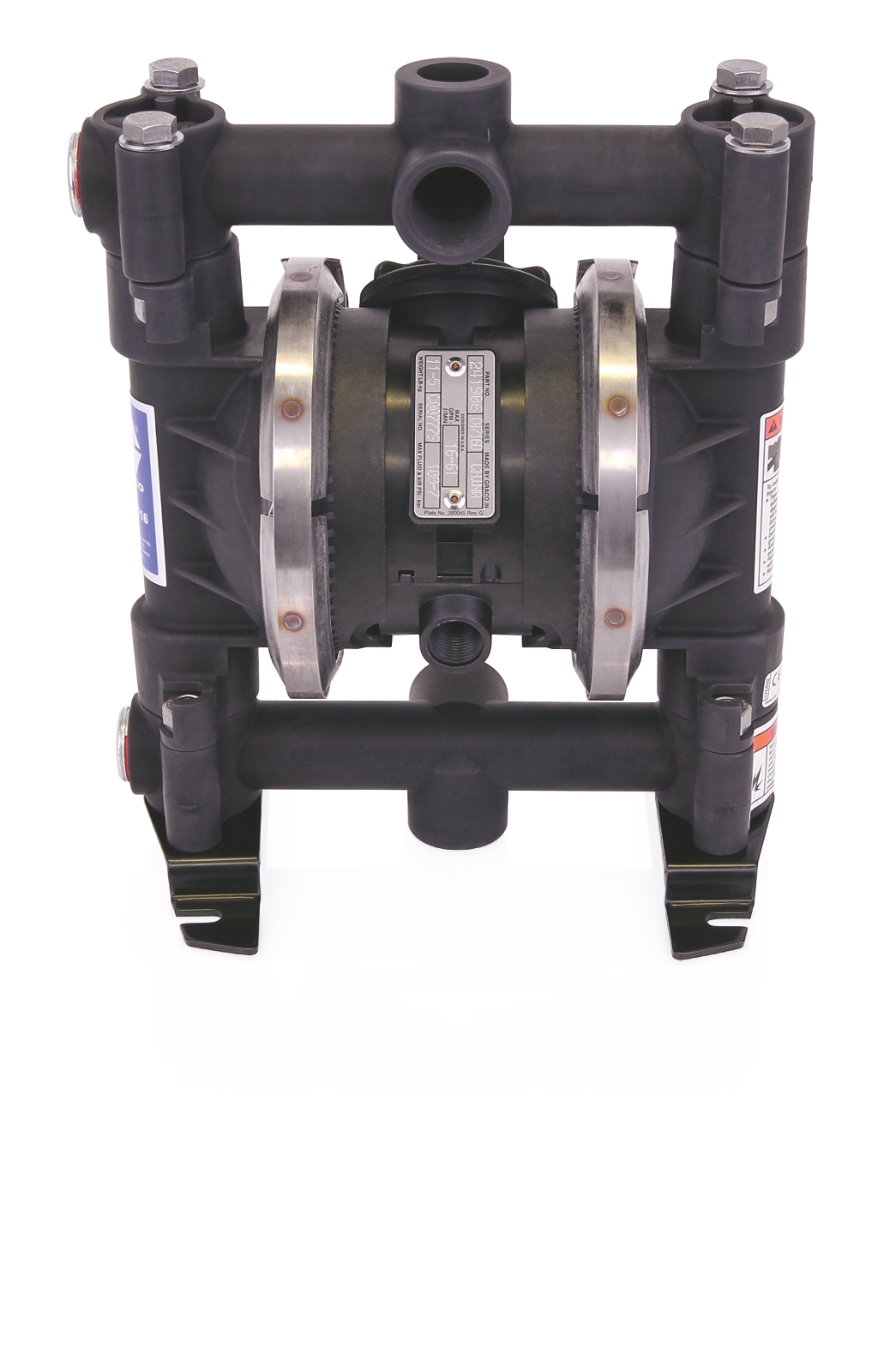

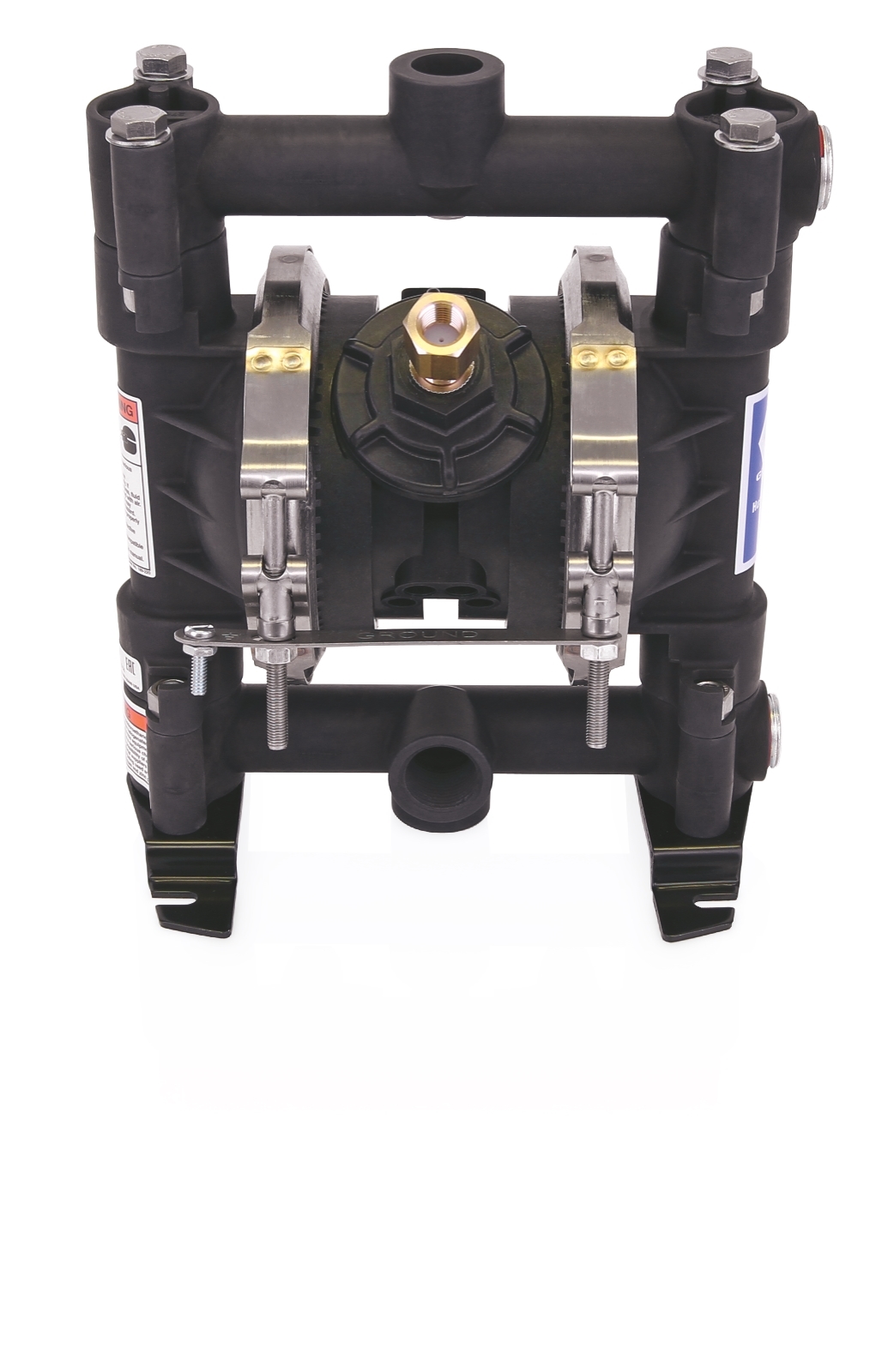

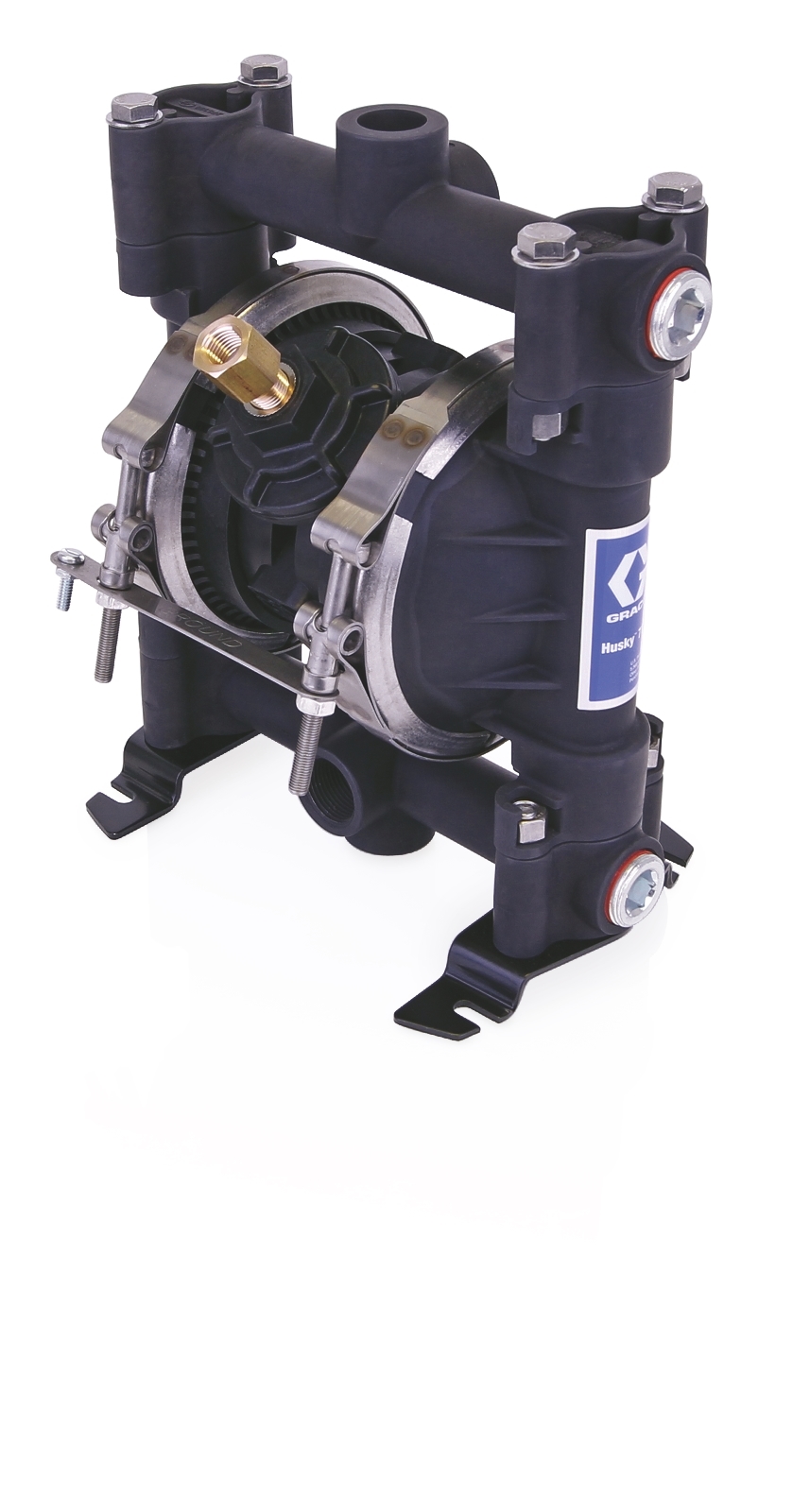

241906_Husky_716_AODD_Pump_FF 241906_Husky_716_AODD_Pump_LF 241906_Husky_716_AODD_Pump_BF

Husky 716

Husky® 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evac/Transfer, Water, Antifreeze, Windshield Wash Fluid

241906

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options.

Ideal for bulk antifreeze and windshield solvent transfer.

  • Center- and end-porting
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks

Specifications

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 3/8
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Buna-N
Compatible Material Oil, Water, Antifreeze, Windshield Washer Fluid
Connection Type Threaded
Diaphragm Material Buna-N
Fluid Inlet Size (in) 3/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
For Use With Oil, Water, Anti-freeze, Washer Fluid, Used Oil
Manifold O-Ring Material PTFE
Material Aluminum
Maximum Air Consumption (SCFM) 28
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (GPM) 16
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°F) 180
Maximum Solid Size (in) 0.09375
Overall Height (in) 10.43
Power Source Air
Standards Met CE
Type Pneumatic Diaphragm Pump
Weight (lb) 8.5
Wetted Material Aluminum, Buna-N, PTFE
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Buna-N
Compatible Material Oil, Water, Antifreeze, Windshield Washer Fluid
Connection Type Threaded
Diaphragm Material Buna-N
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.905
Fluid Outlet Size (mm) 19.05
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
For Use With Oil, Water, Anti-freeze, Washer Fluid, Used Oil
Manifold O-Ring Material PTFE
Material Aluminum
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (L/min) 60.6
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Operating Temperature (°C) 82
Maximum Solid Size (cm) 0.2383
Maximum Solid Size (mm) 2.383
Power Source Air
Standards Met CE
Type Pneumatic Diaphragm Pump
Wetted Material Aluminum, Buna-N, PTFE
