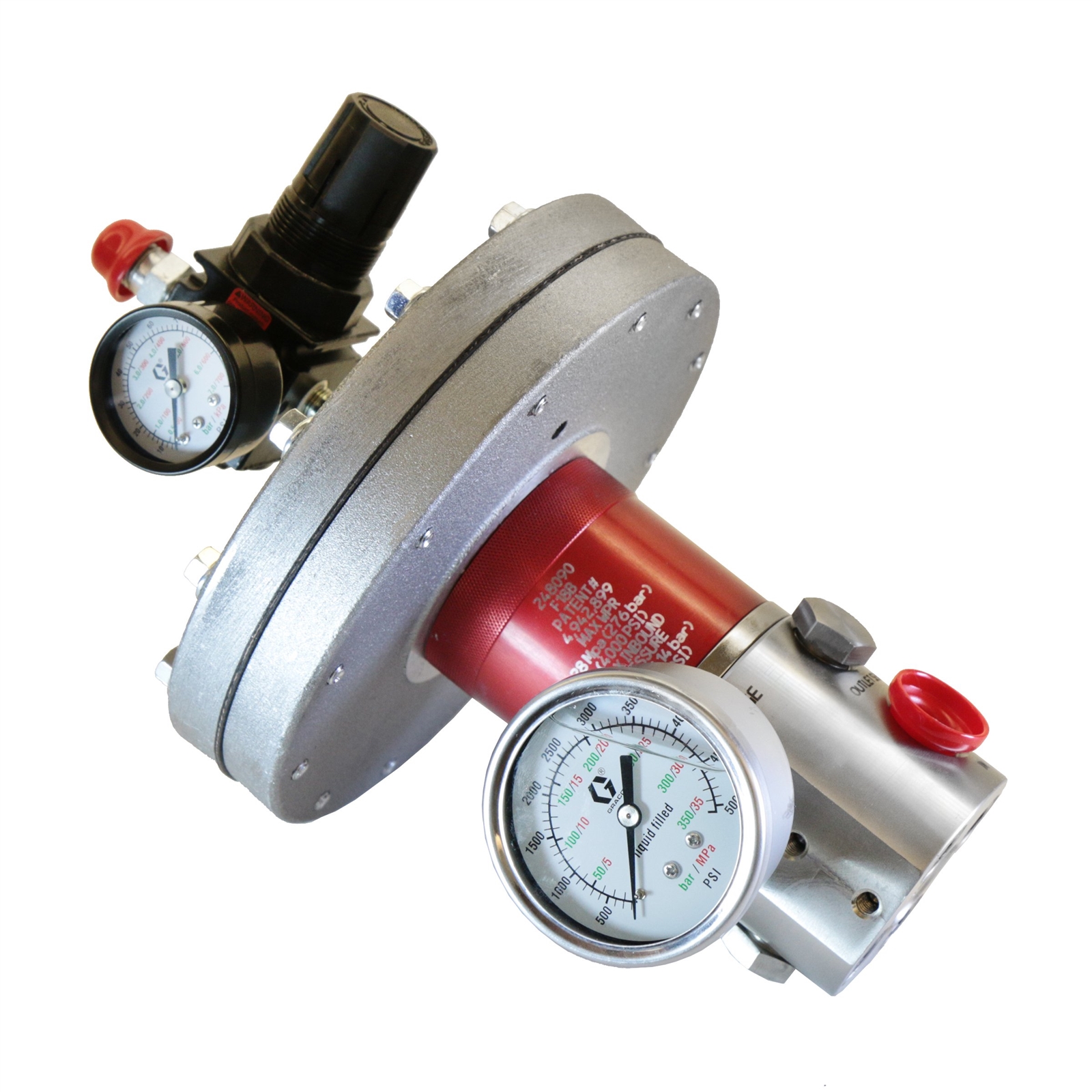

Air-Operated Fluid Pressure Regulator
Part Number: 248090
Air-Operated Fluid Pressure Regulator
Part Number: 248090
For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.
- Compatible with catalyst and waterborne materials
- Manual or air-operated
- Tungsten and carbide materials to resist wear
- Valve cartridge for quick cleaning and replacement
- Compact and lightweight – perfect for spray packages
Specifications & Documents
Technical Specifications
Convert to Metric| Actuation Type | Air |
|---|---|
| Application | Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating |
| Compatible Material | Waterborne |
| Construction | Stainless Steel, Passivated Stainless Steel, Nickel, Cobalt, Tungsten Carbide, PTFE |
| Flow Control Type | Regulation |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Inlet Size (in) | 1/2 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Regulated Pressure (MPa) | 28 |
| Maximum Regulated Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (MPa) | 41 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (MPa) | 3.4 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (in) | 1/2 |
| Outlet Thread Type | NPT |
| Type | Fluid Regulator |
| Actuation Type | Air |
| Application | Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating |
| Compatible Material | Waterborne |
| Construction | Stainless Steel, Passivated Stainless Steel, Nickel, Cobalt, Tungsten Carbide, PTFE |
| Flow Control Type | Regulation |
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 7.57 |
| Maximum Regulated Pressure (MPa) | 28 |
| Maximum Regulated Pressure (bar) | 276 |
| Maximum Regulated Pressure (kPa) | 27600 |
| Maximum Regulated Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (MPa) | 41 |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (MPa) | 3.4 |
| Minimum Regulated Pressure (bar) | 34 |
| Minimum Regulated Pressure (kPa) | 3400 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (cm) | 1.27 |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Outlet Thread Type | NPT |
| Type | Fluid Regulator |
