Mini Fire-Ball 225

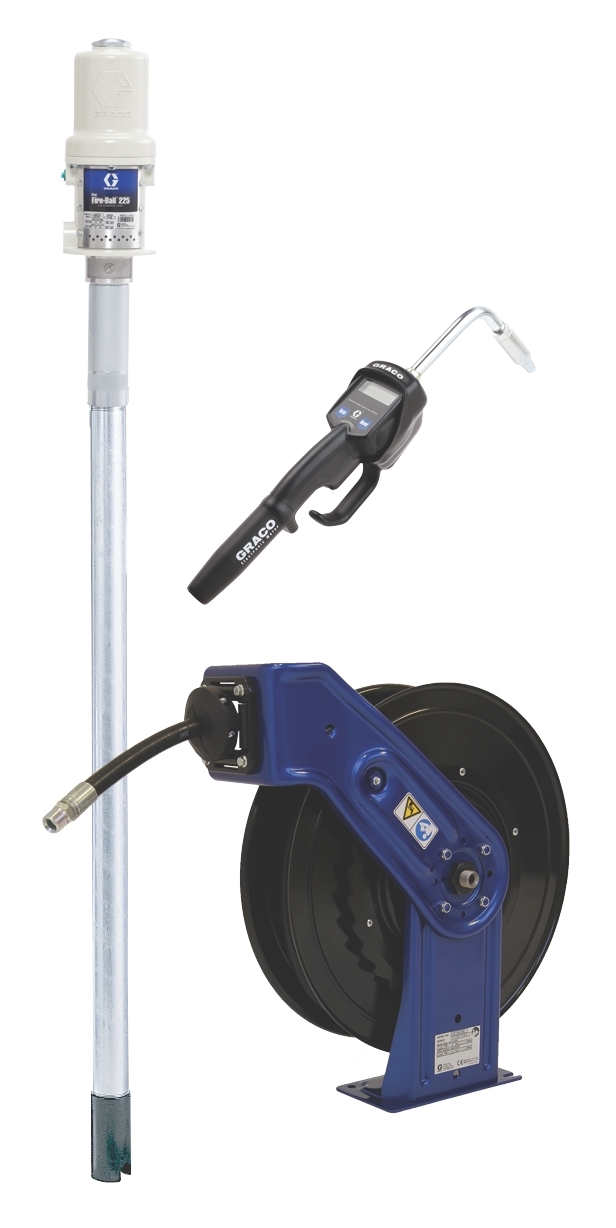

Mini Fire-Ball® 225 3:1 1/2" x 50' Manual Hose Reel Package for Oil

248623

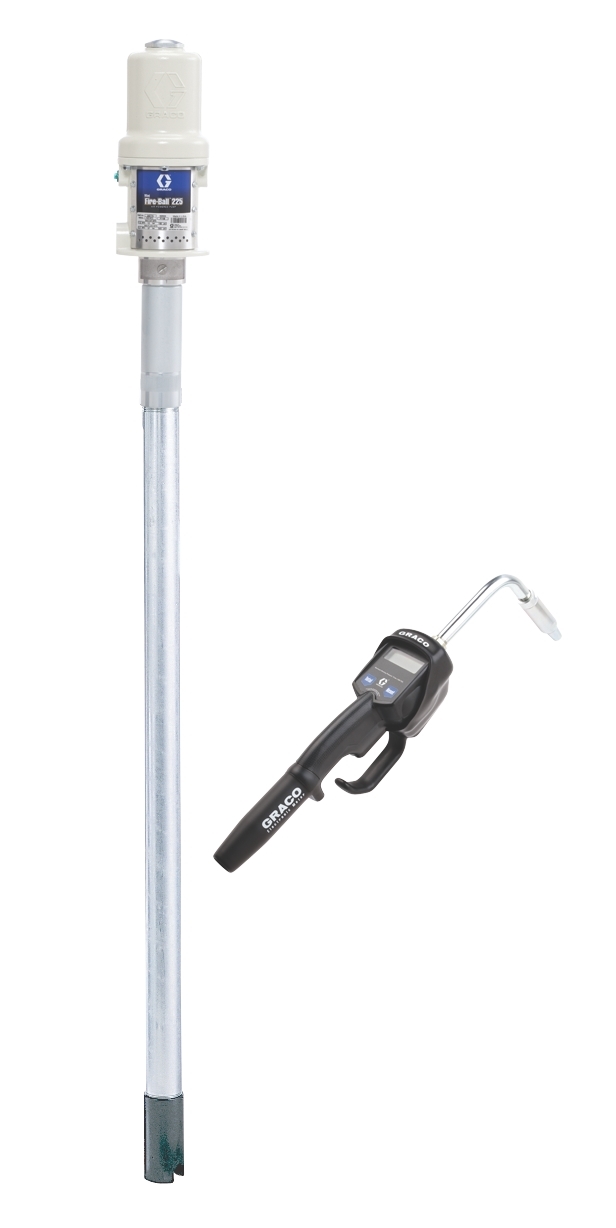

248623_Mini_Fire_Ball_225_Package 248623_Mini_Fire_Ball_225_Package_no_reel

Mini Fire-Ball 225

Mini Fire-Ball® 225 3:1 1/2" x 50' Manual Hose Reel Package for Oil

248623

You can't afford down time, espeically when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

You can't afford down time, espeically when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.

  • Durable

    • Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs

    • Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life

    • In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime

    • Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing

    • Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing

    • Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant

    • Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil
Fluid Inlet Size (in) 1.5
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1/2
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter
Maximum Air Working Pressure 180
Maximum Flow Rate (gpm @ 80 cpm) 1.84
Maximum Fluid Working Pressure (psi) 540
Maximum Working Pressure (MPa) 3.7
Maximum Working Pressure (psi) 540
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 3:1
Pump Weight (lb) 16
Series 225
Type Piston Pump Package
Wetted Material Steel, Buna-N, Polyurethane, Aluminum, Rulon
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil
Fluid Inlet Size (cm) 3.8100
Fluid Inlet Size (mm) 38.1000
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.27
Fluid Outlet Size (mm) 12.7
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter
Maximum Air Working Pressure 180
Maximum Flow Rate (gpm @ 80 cpm) 1.84
Maximum Working Pressure (MPa) 3.7
Maximum Working Pressure (bar) 37
Maximum Working Pressure (kPa) 3700
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 3:1
Series 225
Type Piston Pump Package
Wetted Material Steel, Buna-N, Polyurethane, Aluminum, Rulon
