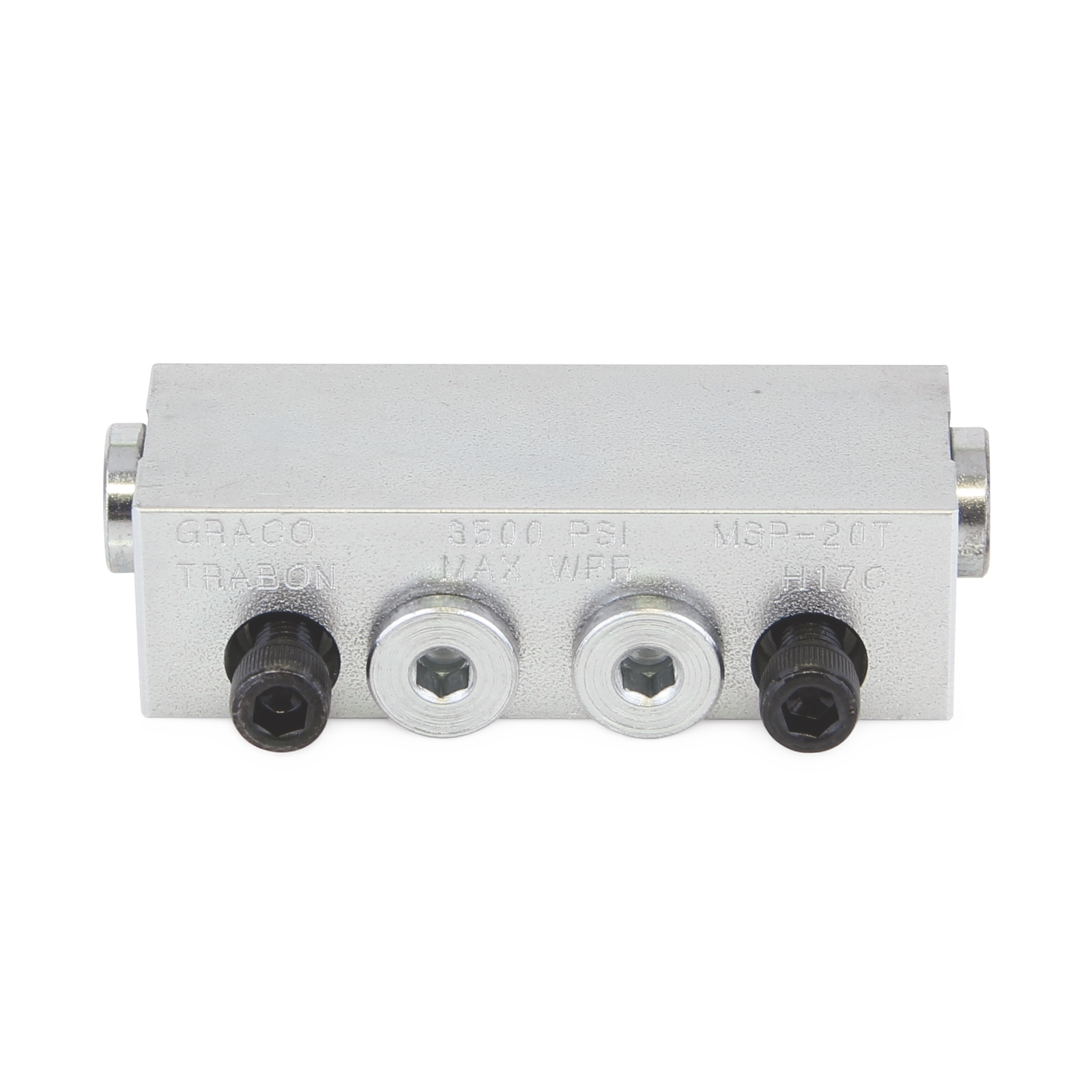

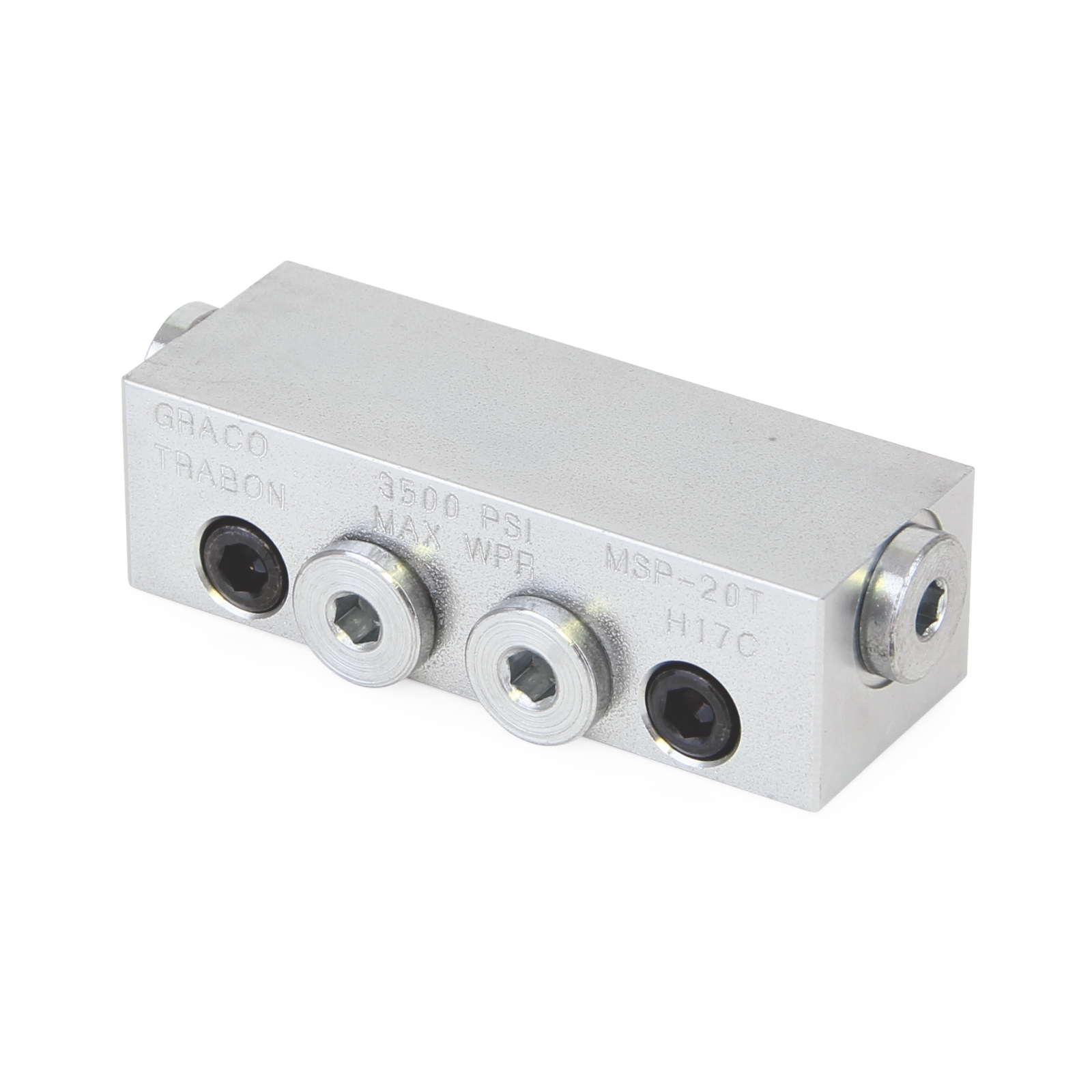

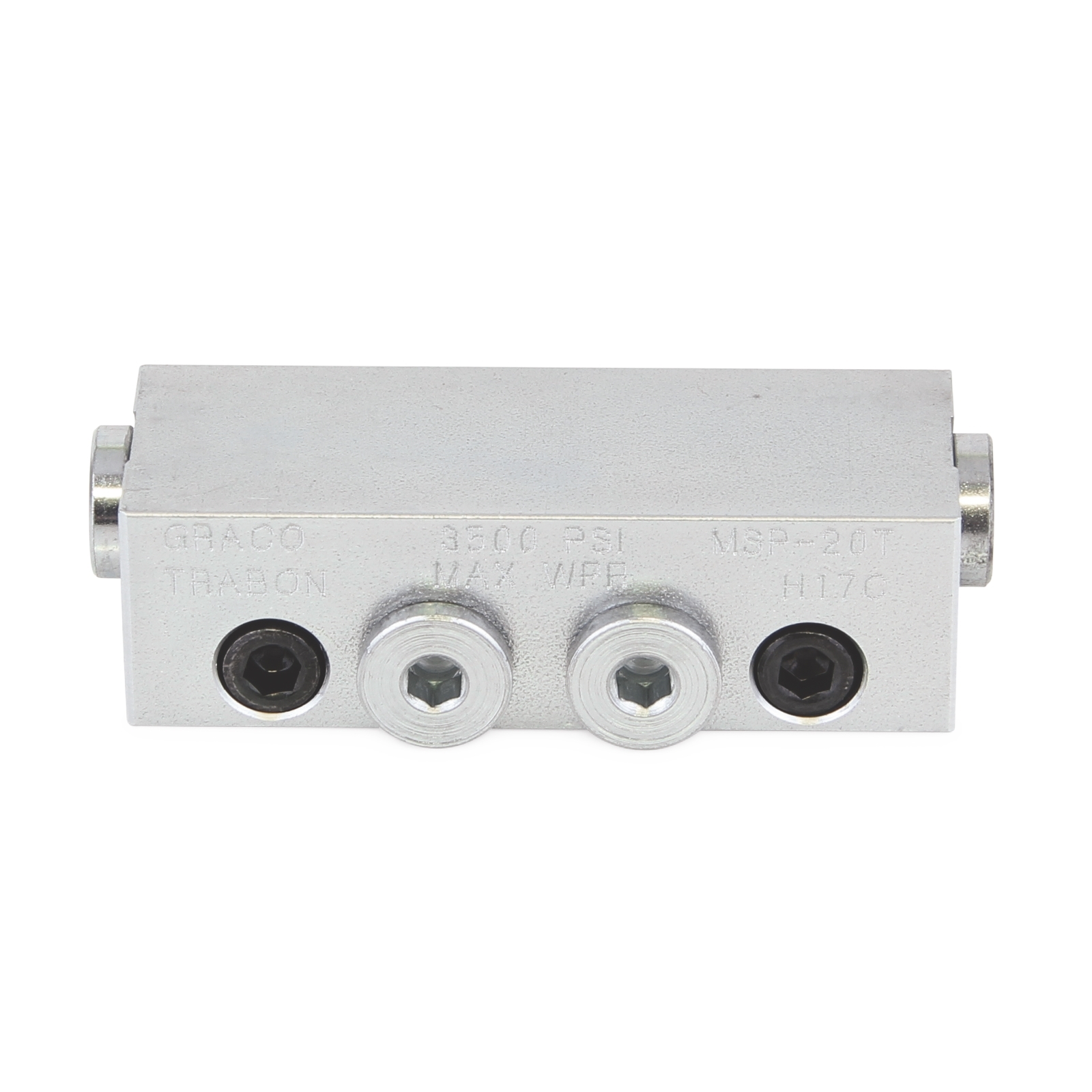

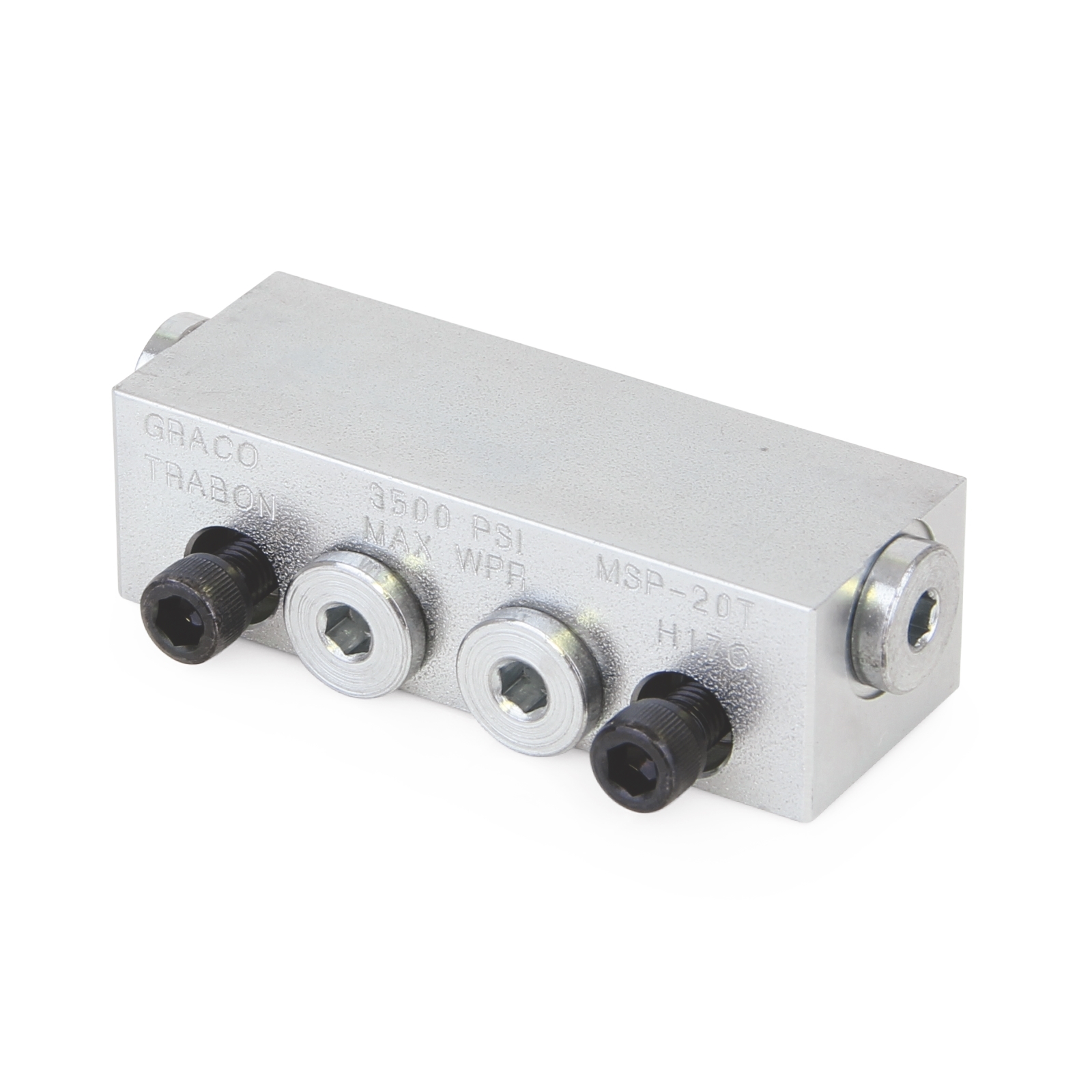

product image product image product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.

Trabon MSP

Trabon® MSP Stainless Steel Modular Divider Valve - MSP-35S-SS - 0.070 in³ (1.15 cm³)

Part Number: 24B478

The Trabon MSP Stainless Steel Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best! You get more durability with the same high-quality performance and precision machining as the... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Trabon MSP Stainless Steel Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best! You get more durability with the same high-quality performance and precision machining as the carbon steel version. The stainless steel MSP valves and accessories overcome harsh conditions, such as salty air or areas needing repetitive cleaning, with durable 303 materials and a design with proven success.
  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
  • Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
  • Built-in outlet check valves ensure accurate lube delivery every time
  • Lubriquip part number 106-108-910

Specifications & Documents

Technical Specifications

Convert to Metric
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) 0.070
Divider Valve Series MSP
Material Stainless Steel
Maximum Cycle Rate (cycles/min) 200
Maximum NLGI Grade #2
Maximum Operating Temperature (°F) 350
Maximum Working Pressure (psi) 3500
Minimum Working Pressure (psi) 200
Model Trabon
Number of Outlets 1
Series MSP
Type Divider Valve
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) 0.070
Divider Valve Series MSP
Material Stainless Steel
Maximum Cycle Rate (cycles/min) 200
Maximum NLGI Grade #2
Maximum Operating Temperature (°C) 176
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Maximum Working Pressure (psi) 3500
Minimum Working Pressure (bar) 14
Minimum Working Pressure (psi) 200
Model Trabon
Number of Outlets 1
Series MSP
Type Divider Valve
