AirPro EFX

AirPro EFX Auto Air Spray Gun with Manifold, HiTEch, 0.028 inch (0.7 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust Knob

Part Number: 24B866

The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciproca... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

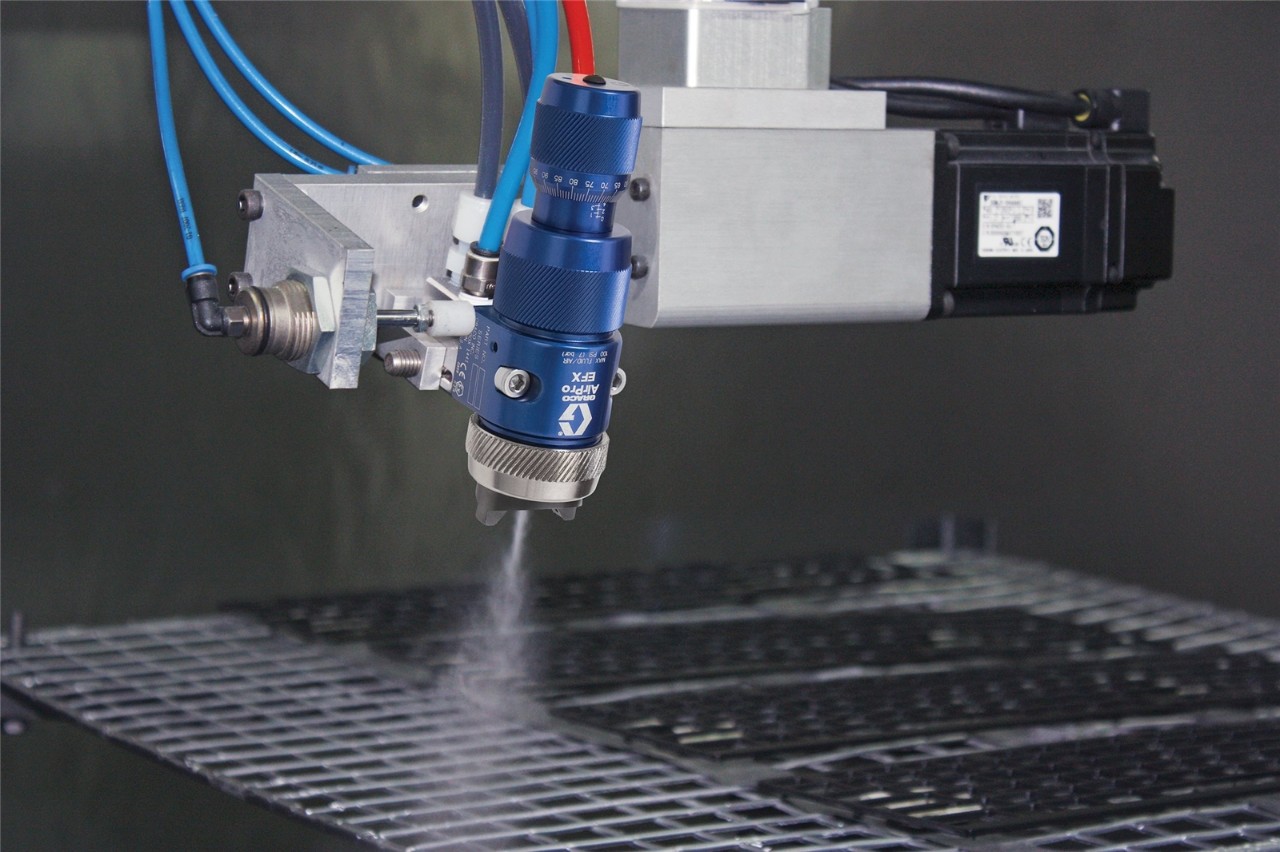

The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
  • Aircaps and nozzles deliver superior, precision spray performance
  • Precision fluid adjustment with a micrometer-telescoping knob
  • High wear components designed for abrasive materials
  • Excellent fluid flow rate stability and repeatability

Specifications & Documents

Technical Specifications

Convert to Metric
Applicator Type Automatic
Bleed Type Bleeder
Body Material Stainless Steel
Compatible Material Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne
Component Type Single Component
Feed Type Pressure Feed
Fluid Adjustment Knob Ultra Precision
Fluid Orifice Size (in) 0.028
Gun Activation Automatic
Gun Type HiTech
Gun Weight (lb) 1.3
Includes Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Flow Rate @ PSI (oz/min) 3.4
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°F) 120
Minimum Flow Rate @ PSI (oz/min) 0.3
Model AirPro
Needle Tip Material Stainless Steel
Overall Height (in) 1
Overall Length (in) 4.9
Overall Width (in) 1
Purge Method Air
Series EFX
Spray Pattern Round
Spray Type Air Spray
Technology Type HiTEch
Type Spray Gun
Applicator Type Automatic
Bleed Type Bleeder
Body Material Stainless Steel
Compatible Material Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne
Component Type Single Component
Feed Type Pressure Feed
Fluid Adjustment Knob Ultra Precision
Fluid Orifice Size (cm) 0.07
Fluid Orifice Size (in) 0.028
Fluid Orifice Size (mm) 0.7
Gun Activation Automatic
Gun Type HiTech
Gun Weight (kg) 0.59
Includes Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (psi) 100
Maximum Flow Rate @ PSI (oz/min) 3.4
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°C) 49
Minimum Flow Rate @ PSI (oz/min) 0.3
Model AirPro
Needle Tip Material Stainless Steel
Overall Height (cm) 2.6
Overall Height (mm) 25
Overall Length (cm) 12
Overall Length (mm) 124
Overall Width (cm) 3.8
Overall Width (mm) 25
Purge Method Air
Series EFX
Spray Pattern Round
Spray Type Air Spray
Technology Type HiTEch
Type Spray Gun

Repair Parts

Part No. Description
24D303 Needle/Nozzle Kit for AirPro EFX HiTEch Guns with 0.028 inch (0.7 mm) Nozzle
24D703 Air Cap (Black), includes pin, for AirPro EFX HiTEch Guns, 0.028-0.039 inch (0.7-1.0 mm) Nozzle

Setup & Service Videos

Learn how to set up your AirPro EFX Automatic Air Spray Gun and keep it working well. Playlist begins with a series of three videos about gun setup. The last two videos show disassembly and assembly for service and maintenance.
