SaniForce

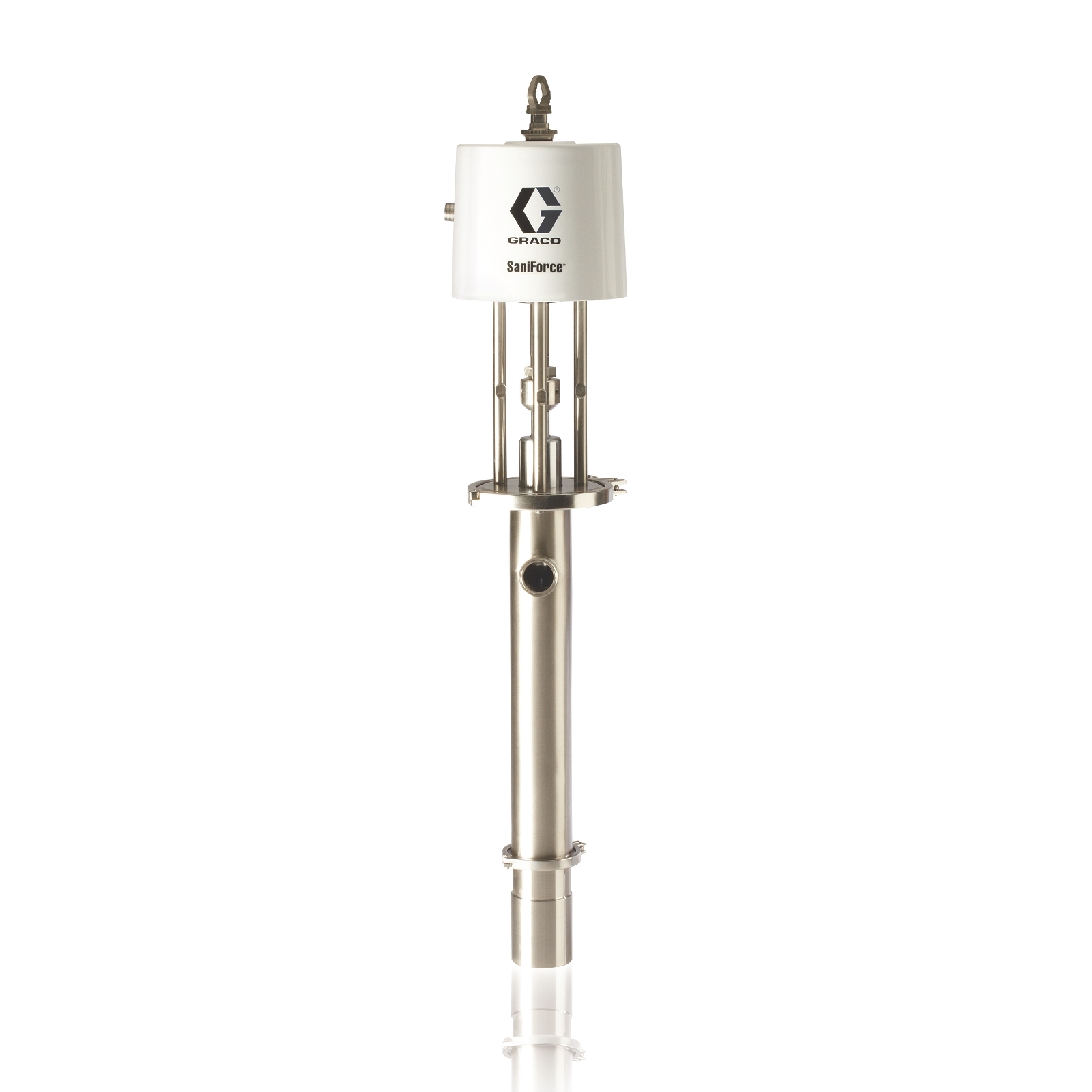

5:1 Ratio SaniForce Priming Piston Pump with 4 in Inlet
Part Number: 24E831
SaniForce
5:1 Ratio SaniForce Priming Piston Pump with 4 in Inlet
Part Number: 24E831
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-relat...
More InfoProduct is Discontinued
Replacement Product Not Available
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureThe SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
- Available in double-ball and priming piston designs
- Fluid transfer and supply of low to medium viscosity fluids
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
- Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
- Most advanced air motor on the market
- Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 0.5004 |
|---|---|
| Application | Sanitary |
| Maximum Working Pressure (MPa) | 2.8 |
| Maximum Working Pressure (psi) | 410 |
| Model | SaniForce |
| Pump Ratio | 5:1 |
| Type | Pneumatic Piston Pump |
| Air Inlet Size (in) | 0.5004 |
| Air Inlet Size (mm) | 12.7 |
| Application | Sanitary |
| Maximum Working Pressure (MPa) | 2.8 |
| Maximum Working Pressure (bar) | 28.3 |
| Maximum Working Pressure (kPa) | 2830 |
| Model | SaniForce |
| Pump Ratio | 5:1 |
| Type | Pneumatic Piston Pump |
Product Manuals
CAD Drawings
Sales Literature
Certifications
