LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT

24G600

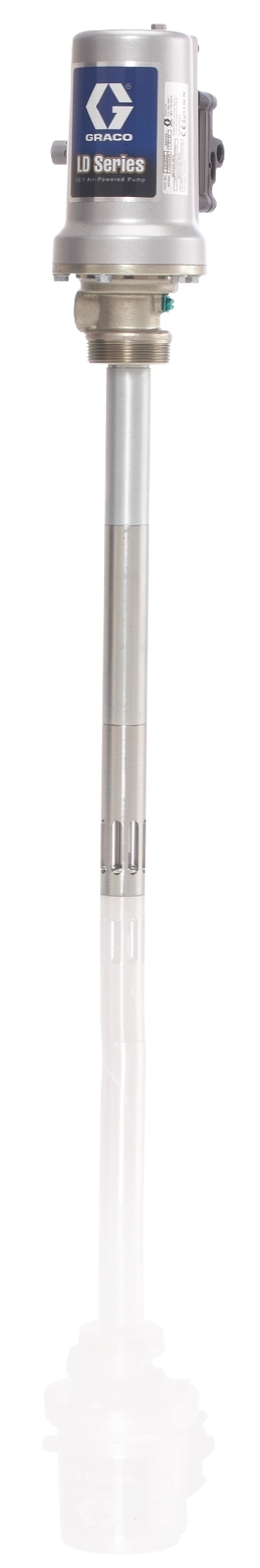

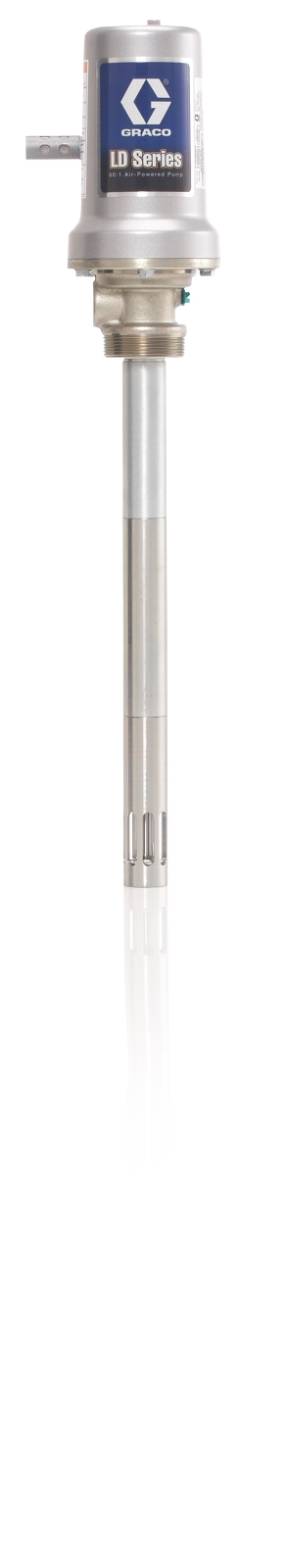

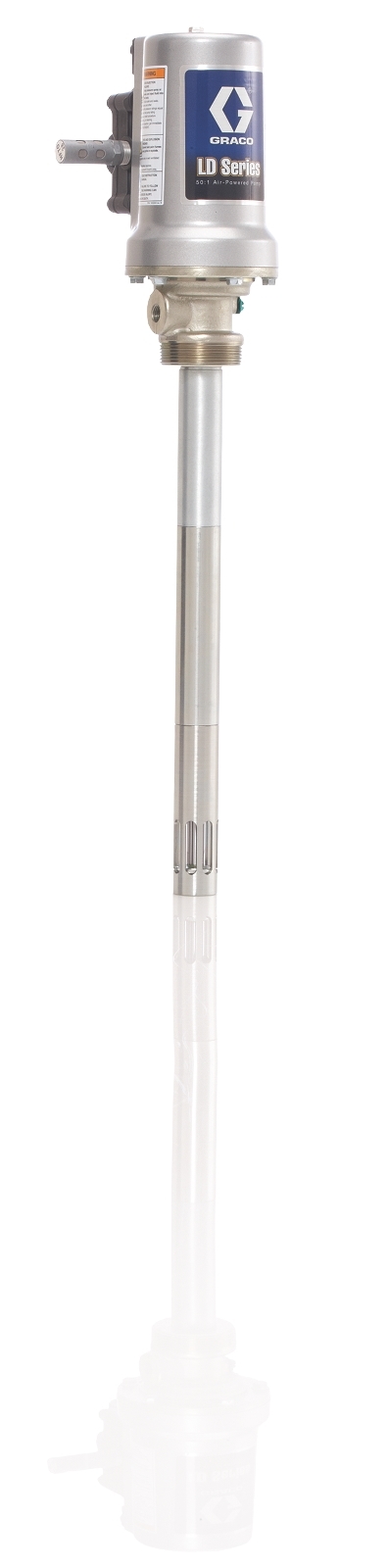

24G600_LD_50_1_Pump_FF 24G600_LD_50_1_Pump_LF 24G600_LD_50_1_Pump_RF

LD

LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT

24G600

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in therma...

More Info
Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

  • Three Inch Air Motor - Provides more power to create better flow.
  • Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
  • Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
  • Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
  • Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
  • 35 lb (16 kg) Grease Pump - 50:1

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Application Grease
Compatible Material Grease
Fluid Outlet Size (in) 1/4
Maximum Air Inlet Pressure (psi) 150
Maximum Working Pressure (MPa) 51.7
Maximum Working Pressure (psi) 7500
Power Type Pneumatic
Pump Ratio 50:1
Type Pneumatic Piston Pump
Weight (lb) 11.2
Wetted Material Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Application Grease
Compatible Material Grease
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Maximum Air Inlet Pressure (bar) 10.34
Maximum Air Inlet Pressure (kPa) 1034
Maximum Working Pressure (MPa) 51.7
Maximum Working Pressure (bar) 517
Maximum Working Pressure (kPa) 51700
Power Type Pneumatic
Pump Ratio 50:1
Type Pneumatic Piston Pump
Weight (kg) 0.5085
Wetted Material Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
