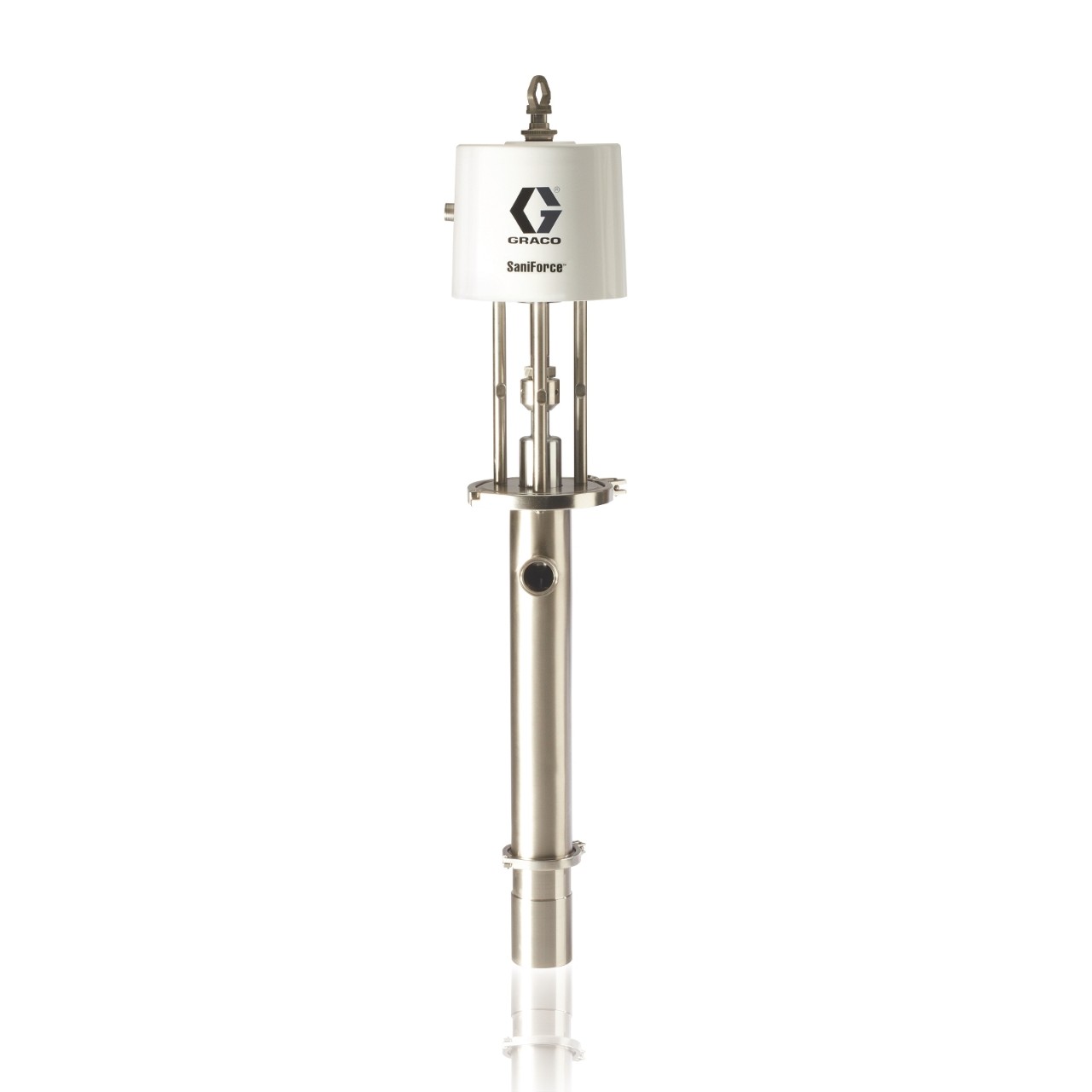

5:1 Ratio SaniForce Priming Piston Pump with 6 in Inlet
Part Number: 24G741
SaniForce
5:1 Ratio SaniForce Priming Piston Pump with 6 in Inlet
Part Number: 24G741
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-relat...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
- Available in double-ball and priming piston designs
- Fluid transfer and supply of low to medium viscosity fluids
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
- Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
- Most advanced air motor on the market
- Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 0.5 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Construction | Stainless Steel, Buna-N, UHMWPE, PTFE, Polychloroprene, Nylon |
| Fluid Outlet Size (in) | 2 |
| For Use With | Food, Personal Care, & Pharmaceutical |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 75 |
| Maximum Air Inlet Pressure (psi) | 80 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 14 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 2.8 |
| Maximum Working Pressure (psi) | 410 |
| Model | SaniForce |
| Portable | Non-Portable |
| Pump Ratio | 5:1 |
| Seal Material | Buna, PTFE, UHMWPE, CR, Nylon, FKM |
| Standards Met | FDA Compliant Materials, CE |
| Type | Pneumatic Piston Pump |
| Air Inlet Size (in) | 0.5 |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Construction | Stainless Steel, Buna-N, UHMWPE, PTFE, Polychloroprene, Nylon |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Size (mm) | 50.8 |
| For Use With | Food, Personal Care, & Pharmaceutical |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (bar) | 5.5 |
| Maximum Air Inlet Pressure (kPa) | 550 |
| Maximum Air Inlet Pressure (psi) | 80 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 53 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 2.8 |
| Maximum Working Pressure (bar) | 28.3 |
| Maximum Working Pressure (kPa) | 2830 |
| Maximum Working Pressure (psi) | 410 |
| Model | SaniForce |
| Portable | Non-Portable |
| Pump Ratio | 5:1 |
| Seal Material | Buna, PTFE, UHMWPE, CR, Nylon, FKM |
| Standards Met | FDA Compliant Materials, CE |
| Type | Pneumatic Piston Pump |
