Manzel GBL 7500

Manzel® GBL 7500 Replacement Pump, Pressure Fed, 1/4 in (6.4 mm)

Part Number: 24J398

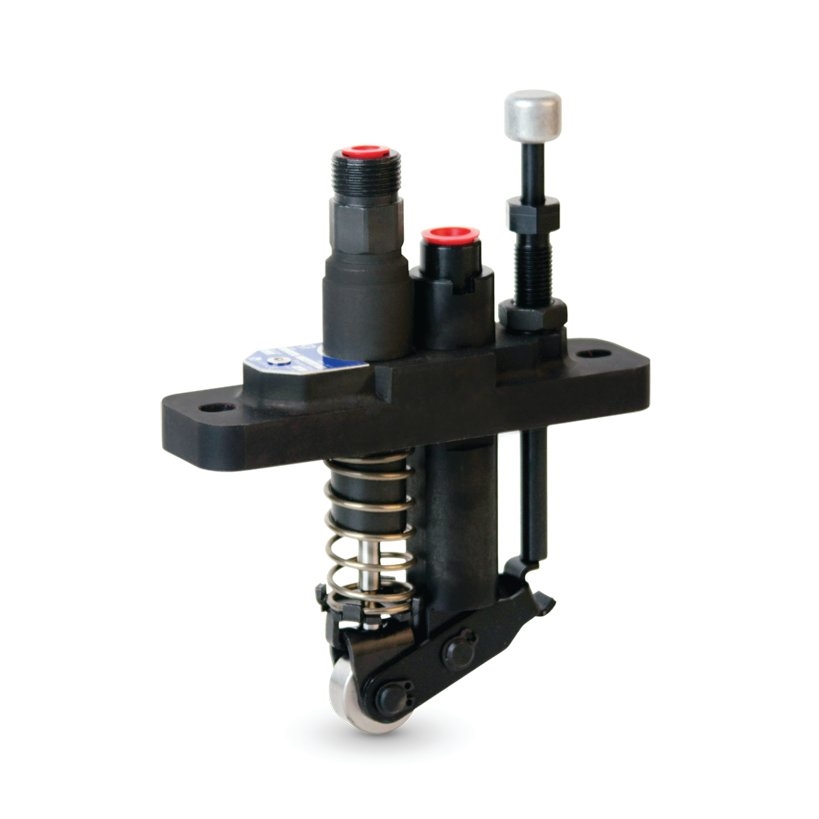

product image
Image is for illustrative purposes only.

Manzel GBL 7500

Manzel® GBL 7500 Replacement Pump, Pressure Fed, 1/4 in (6.4 mm)

Part Number: 24J398

The Graco Manzel GBL 7500 Pressure pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Graco Manzel GBL 7500 Pressure pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.

For force-feed oil lubrication systems

  • Mechanically driven from camshaft in reservoir.
  • Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar).
  • Rugged construction for high quality performance and durability with easy to adjust pump output.
  • 1/4" (6 mm) NPT inlet to improve flow in high viscosity, cold environments.
  • Double Ball Outlet Check reduces ball travel.
  • Improved O-ring seals to eliminate leak paths.
  • Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life.
  • Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.

Specifications & Documents

Technical Specifications

Convert to Metric
Application In-Plant Machinery, Compressor Equipment
Compatible Material Oil
Maximum Cycle Rate (CPM) 50
Maximum Output Volume (in³) 0.024
Maximum Working Pressure (MPa) 41.4
Maximum Working Pressure (psi) 6000
Model Manzel
Series GBL 7500
Type Mechanical Piston Pump
Application In-Plant Machinery, Compressor Equipment
Compatible Material Oil
Maximum Cycle Rate (CPM) 50
Maximum Working Pressure (MPa) 41.4
Maximum Working Pressure (bar) 414
Maximum Working Pressure (kPa) 41400
Maximum Working Pressure (psi) 6000
Model Manzel
Series GBL 7500
Type Mechanical Piston Pump
