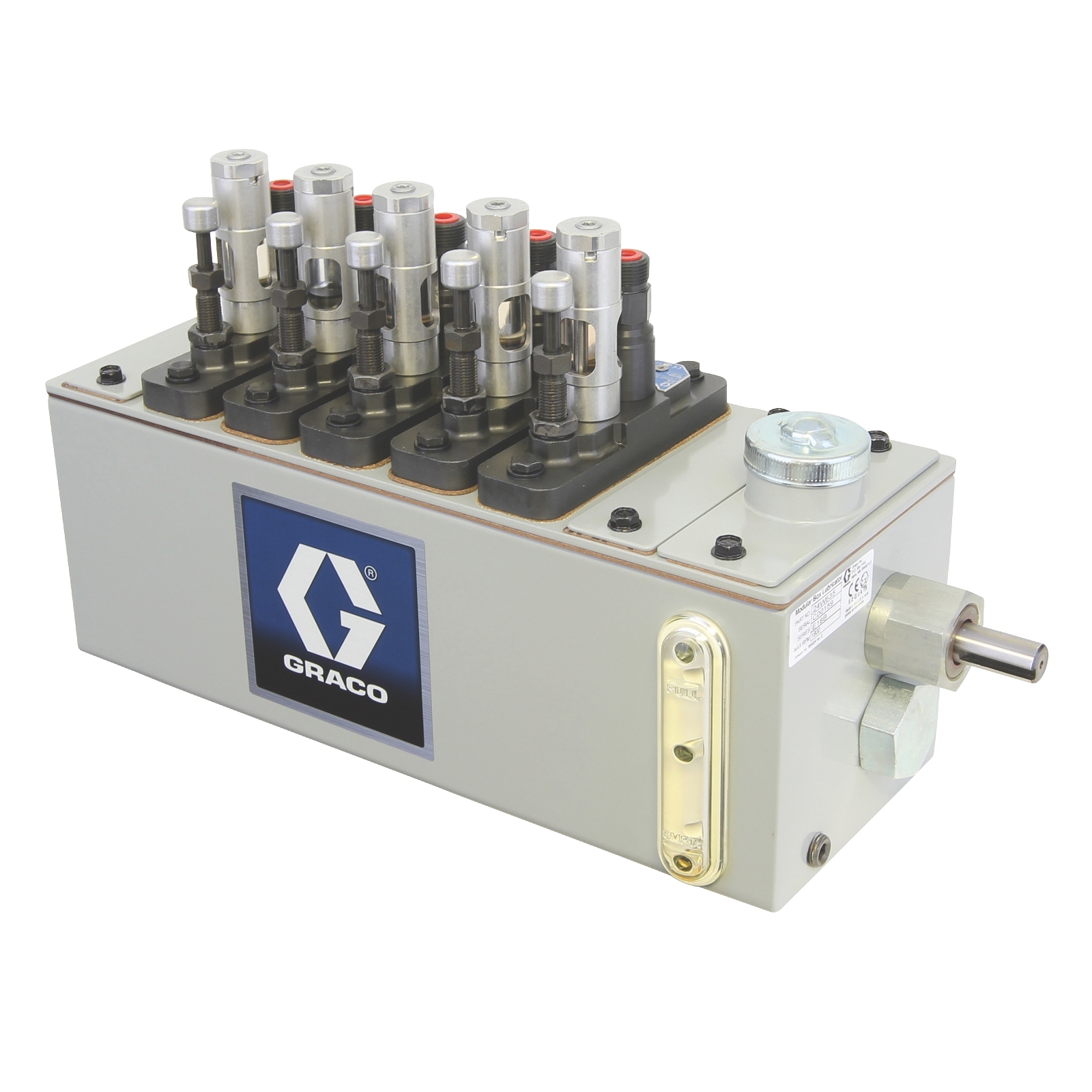

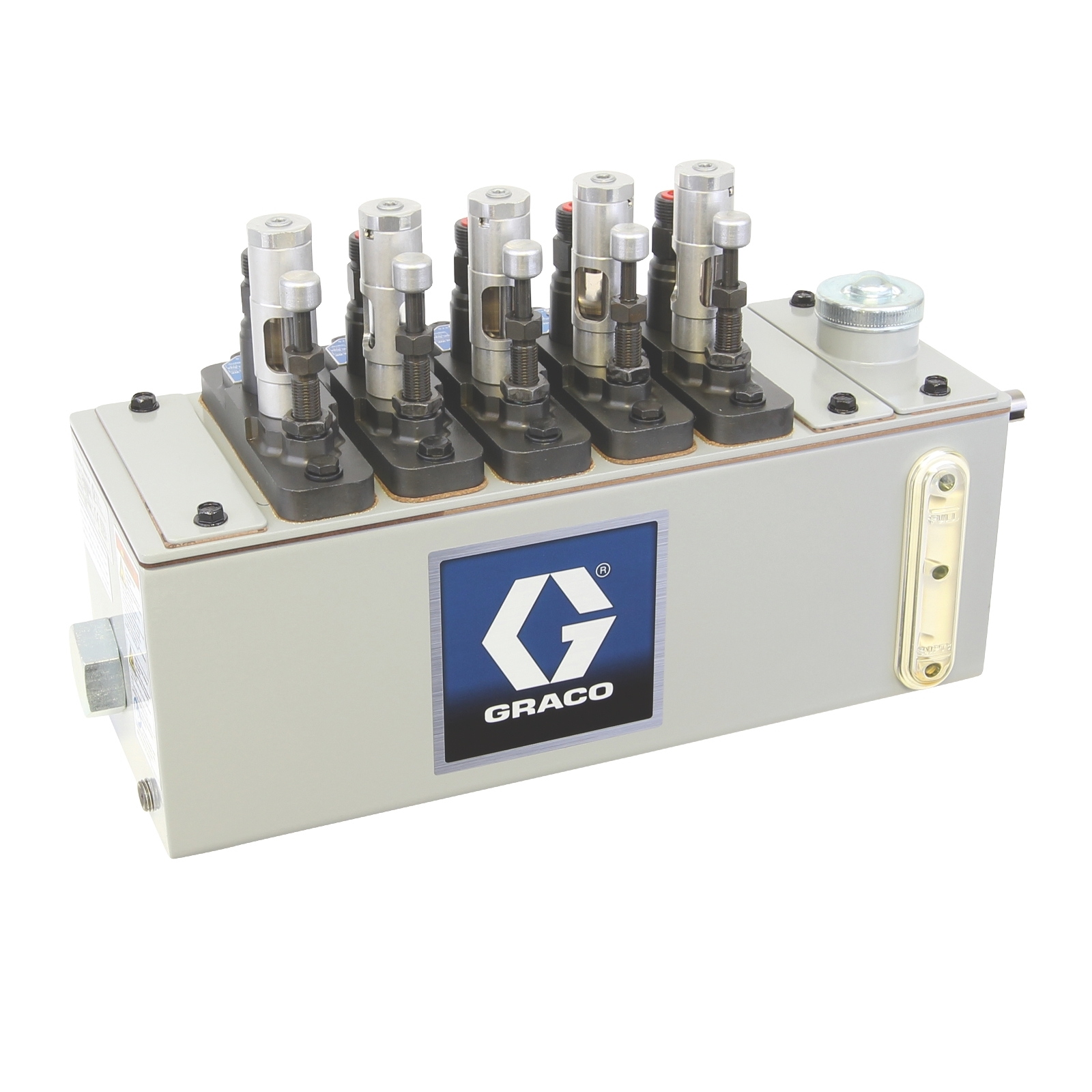

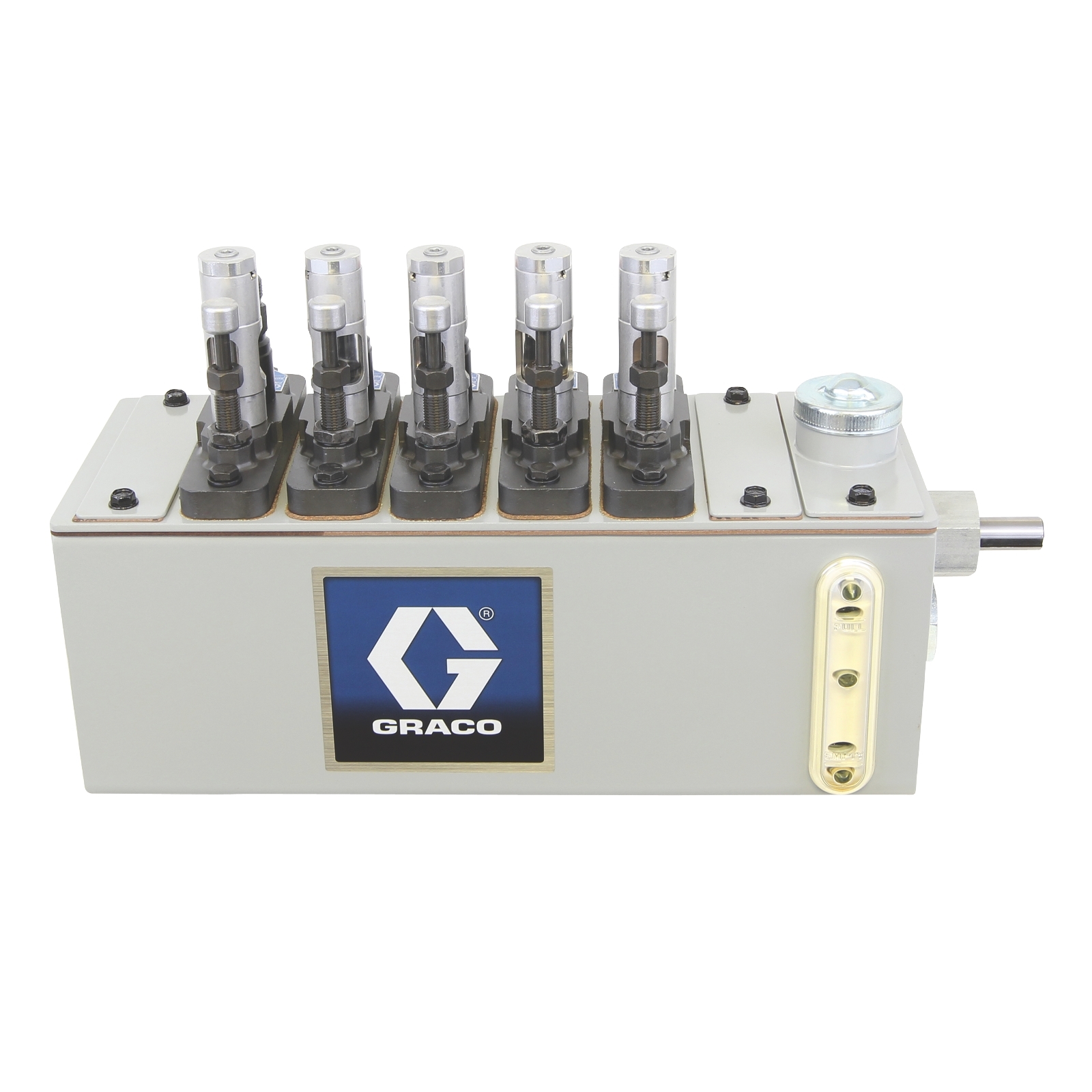

Manzel® MB118 Series Lubricator - 6 Pint (2.8 liter) Reservoir (6 Pump Stations Max), 1/4 in GBL 7500 Pump (qty 5), 118:1 drive on right hand end
Part Number: 24W635
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Manzel MB
Manzel® MB118 Series Lubricator - 6 Pint (2.8 liter) Reservoir (6 Pump Stations Max), 1/4 in GBL 7500 Pump (qty 5), 118:1 drive on right hand end
Part Number: 24W635
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
