Trabon CSP

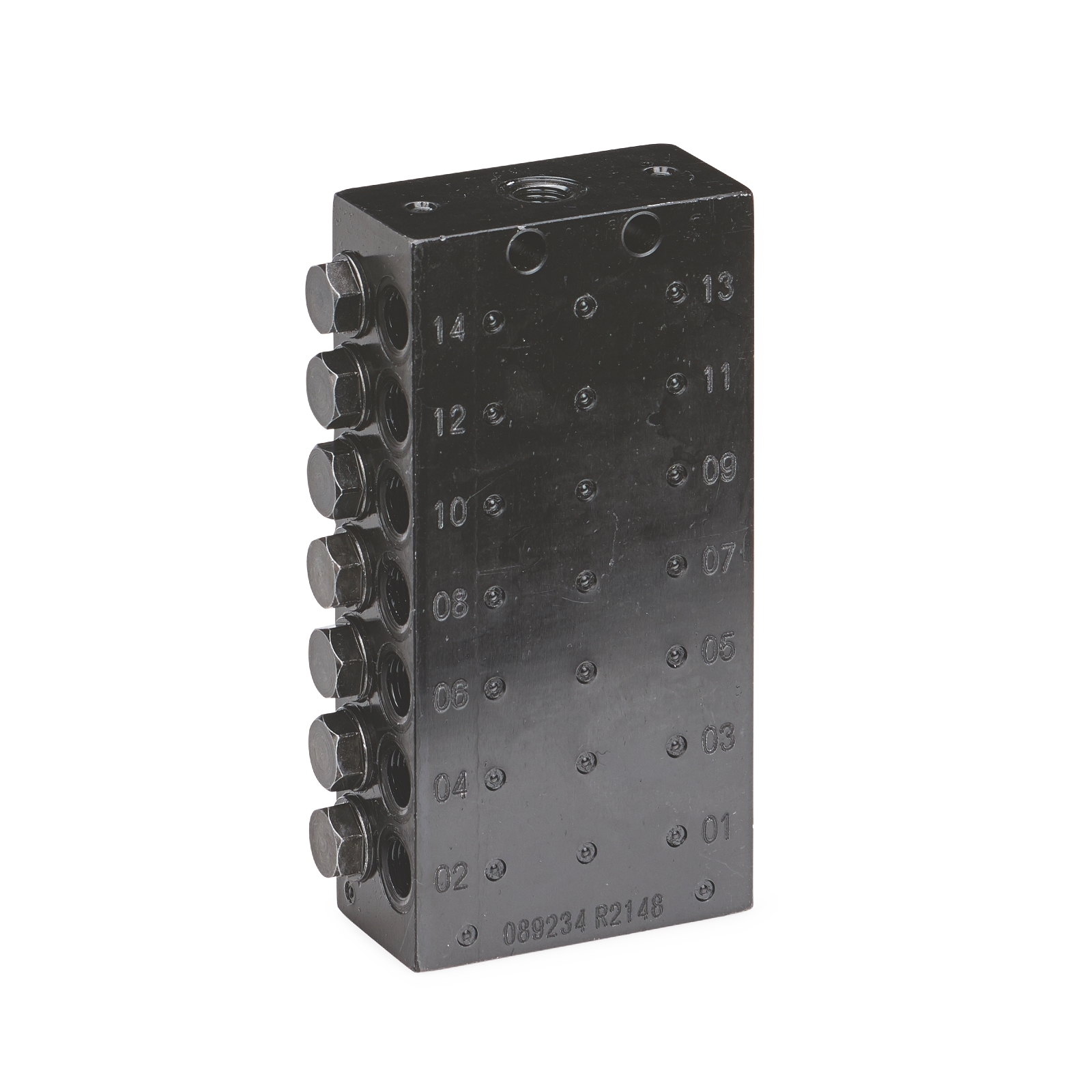

CSP Divider Valve, 1/8 inch BSPP, 14 Outlets

24Z481

Trabon CSP

CSP Divider Valve, 1/8 inch BSPP, 14 Outlets

24Z481

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 inch BSPP inlet
  • Space efficient design with 14 outlets, without indicator
  • Outlets can be combined to meet larger bearing needs
  • Built-in durability with Zinc Iron plating to stand up to harsh environments
  • High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease

Specifications

Technical Specifications

Convert to Metric
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil, Grease
Cycle Indicator None
Divider Valve Series CSP
Inlet Size (in) 1/8
Inlet Thread Type BSPP
Material Carbon Steel
Maximum NLGI Grade #2
Maximum Operating Temperature (°F) 212
Maximum Working Pressure (psi) 5076
Minimum Working Pressure (psi) 217.5
Number of Outlets 14
Outlet Thread Gender Female
Outlet Thread Type BSPP
Type Divider Valve
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil, Grease
Cycle Indicator None
Divider Valve Series CSP
Inlet Size (cm) 0.3175
Inlet Size (mm) 3.175
Inlet Thread Type BSPP
Material Carbon Steel
Maximum NLGI Grade #2
Maximum Operating Temperature (°C) 100
Maximum Working Pressure (bar) 350
Maximum Working Pressure (kPa) 35000
Minimum Output Volume (cm³) 0.2
Minimum Working Pressure (bar) 15
Minimum Working Pressure (kPa) 1500
Number of Outlets 14
Outlet Thread Gender Female
Outlet Thread Type BSPP
Type Divider Valve

CAD Drawings

24Z477-3D-EN.zip (271 KB)
