Trabon CSP

CSP Divider Valve, 1/8 inch BSPP, 20 Outlets

Part Number: 24Z484

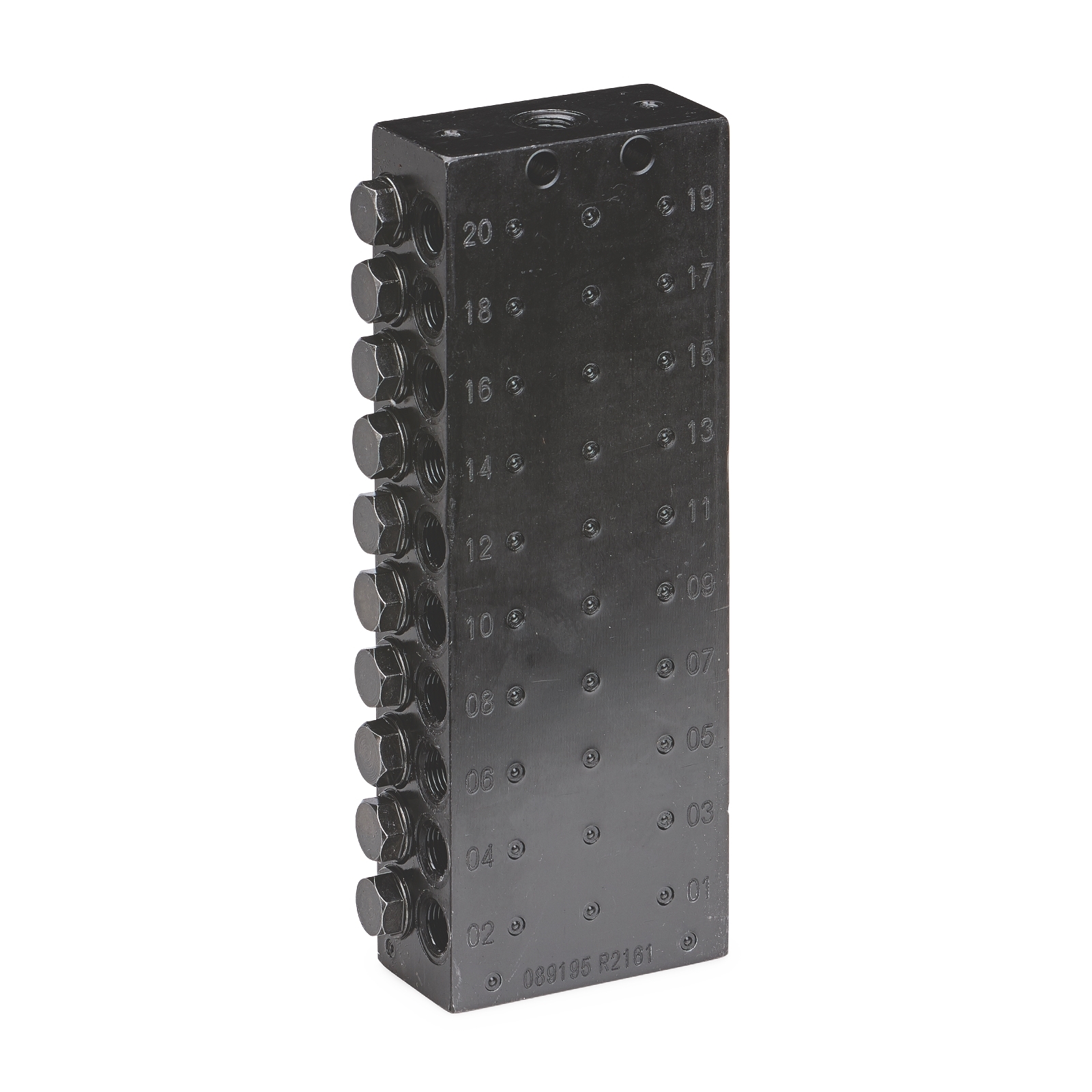

product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.

Trabon CSP

CSP Divider Valve, 1/8 inch BSPP, 20 Outlets

Part Number: 24Z484

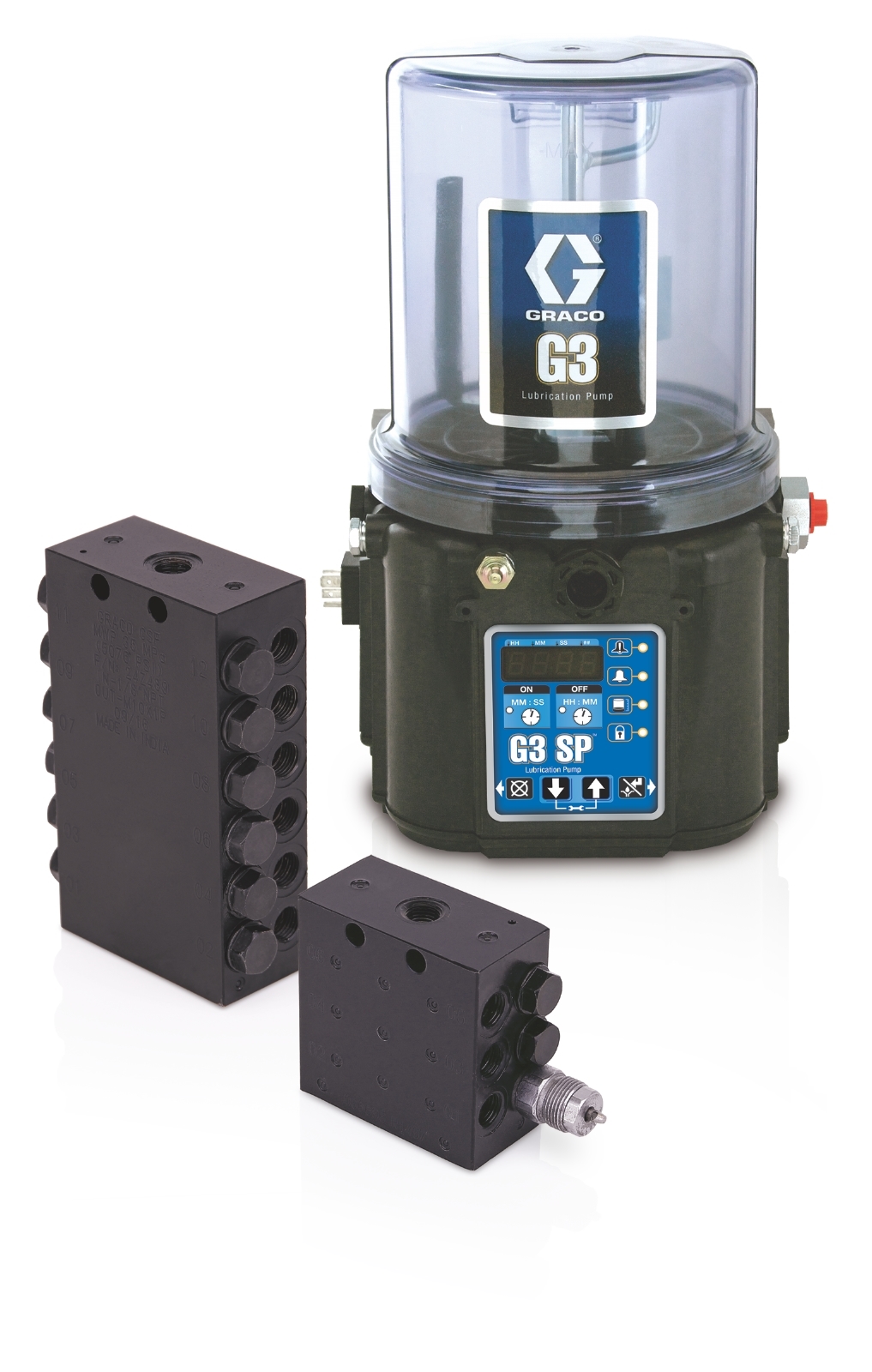

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 inch BSPP inlet
  • Space efficient design with 20 outlets, without indicator
  • Outlets can be combined to meet larger bearing needs
  • Built-in durability with Zinc Iron plating to stand up to harsh environments
  • High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease

Specifications & Documents

Technical Specifications

Convert to Metric
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) N/A
Divider Valve Series CSP
Inlet Size (in) 1/8
Inlet Thread Type BSPP
Material Carbon Steel
Maximum NLGI Grade #2
Maximum Operating Temperature (°F) 212
Maximum Working Pressure (psi) 5076
Minimum Working Pressure (psi) 217.5
Model Trabon
Number of Outlets 20
Outlet Thread Gender Female
Outlet Thread Type BSPP
Series CSP
Type Divider Valve
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) N/A
Divider Valve Series CSP
Inlet Size (cm) 0.3175
Inlet Size (in) 1/8
Inlet Size (mm) 3.175
Inlet Thread Type BSPP
Material Carbon Steel
Maximum NLGI Grade #2
Maximum Operating Temperature (°C) 100
Maximum Working Pressure (bar) 350
Maximum Working Pressure (kPa) 35000
Maximum Working Pressure (psi) 5076
Minimum Output Volume (cm³) 0.2
Minimum Working Pressure (bar) 15
Minimum Working Pressure (kPa) 1500
Minimum Working Pressure (psi) 217.5
Model Trabon
Number of Outlets 20
Outlet Thread Gender Female
Outlet Thread Type BSPP
Series CSP
Type Divider Valve
