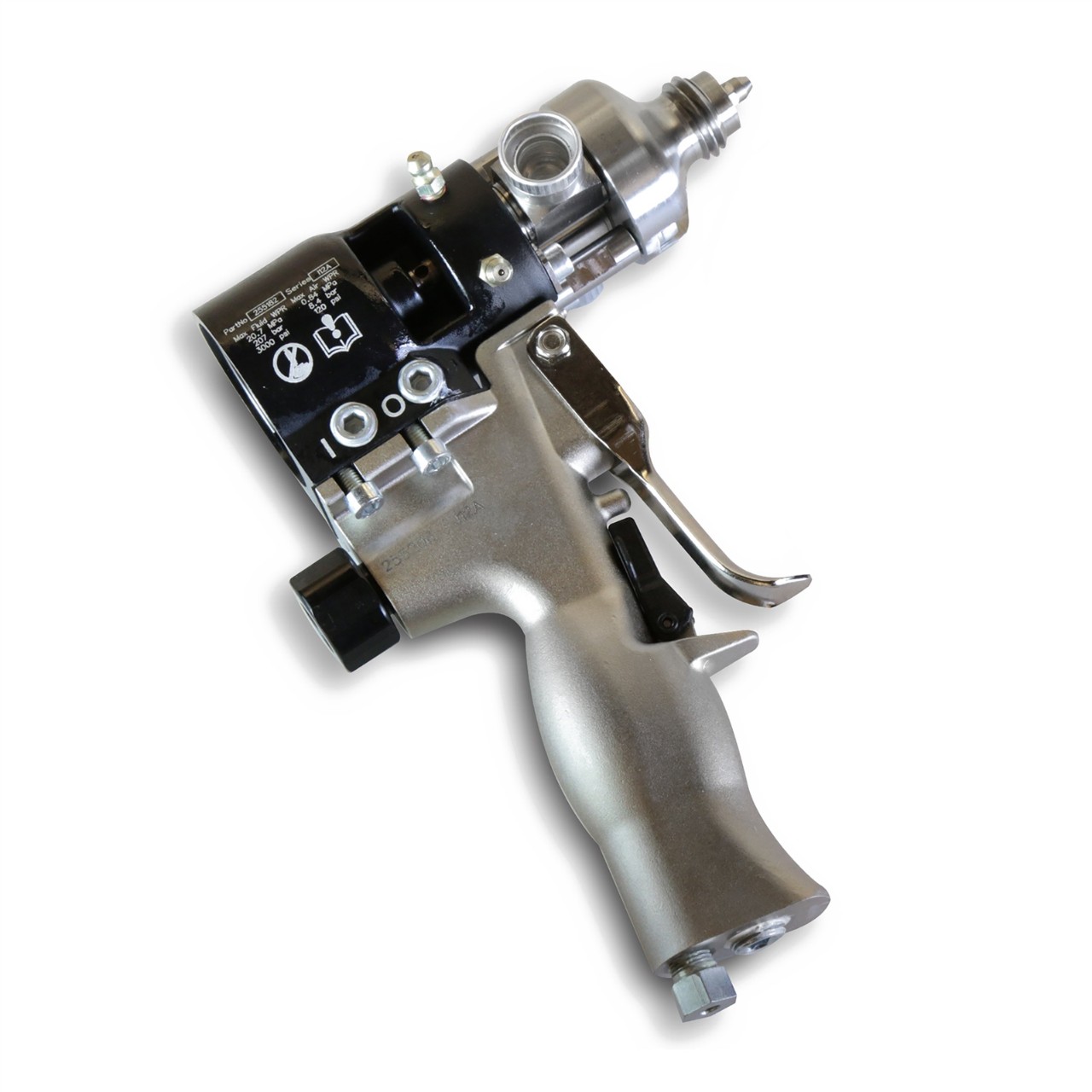

10:1 Wide Ratio, Hard Seat, Air-Actuated Gun, Non-adjustable Snuff-back, Manual Handle
Part Number: 255445
10:1 Wide Ratio, Hard Seat, Air-Actuated Gun, Non-adjustable Snuff-back, Manual Handle
Part Number: 255445
Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production.
Product is Discontinued
Replacement Product Not Available
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production.
Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives.
- Wide ratio valve with center injection tip works well when the low volume material has a much lower viscosity than the high volume material. Frequent cleaning intervals may be required to maintain the tip.
- Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications.
- Hand held valve with internal air trigger controls the air piston that operates the MD2 valve. A pilot port can be used to control a pump motor.
- Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity.
- Snuff-back control prevents dripping as it brings material back into the valve until next dispense.
- Hand held pneumatic handle eases manual dispense.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding |
| Compatible Material | 2K Sealants, Adhesives |
| Component Type | Plural-Component |
| Fluid Inlet Size (in) | 9/16-18 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | UNF |
| Fluid Outlet Size (in) | 7/8-9 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNC |
| Gun Activation | Manual |

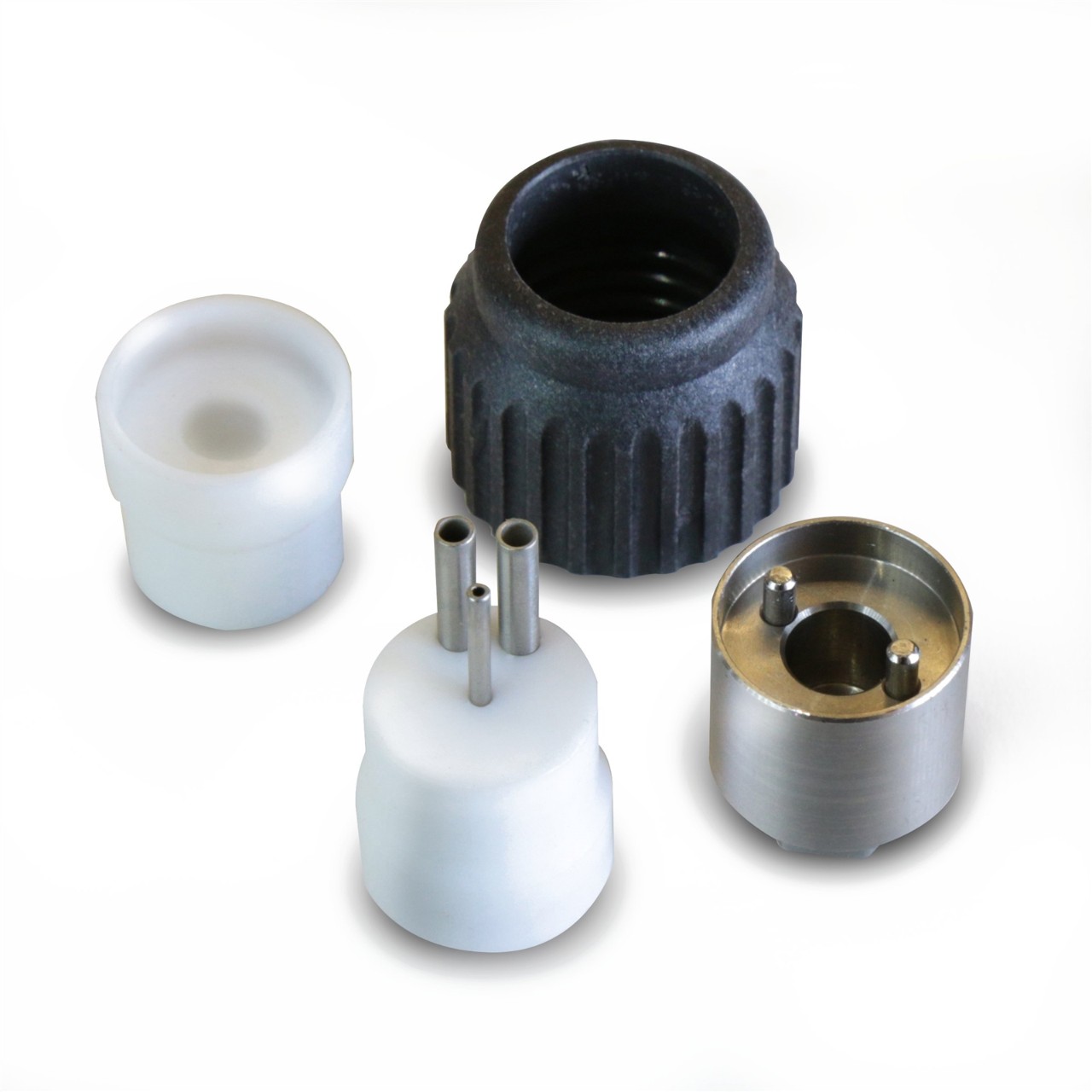

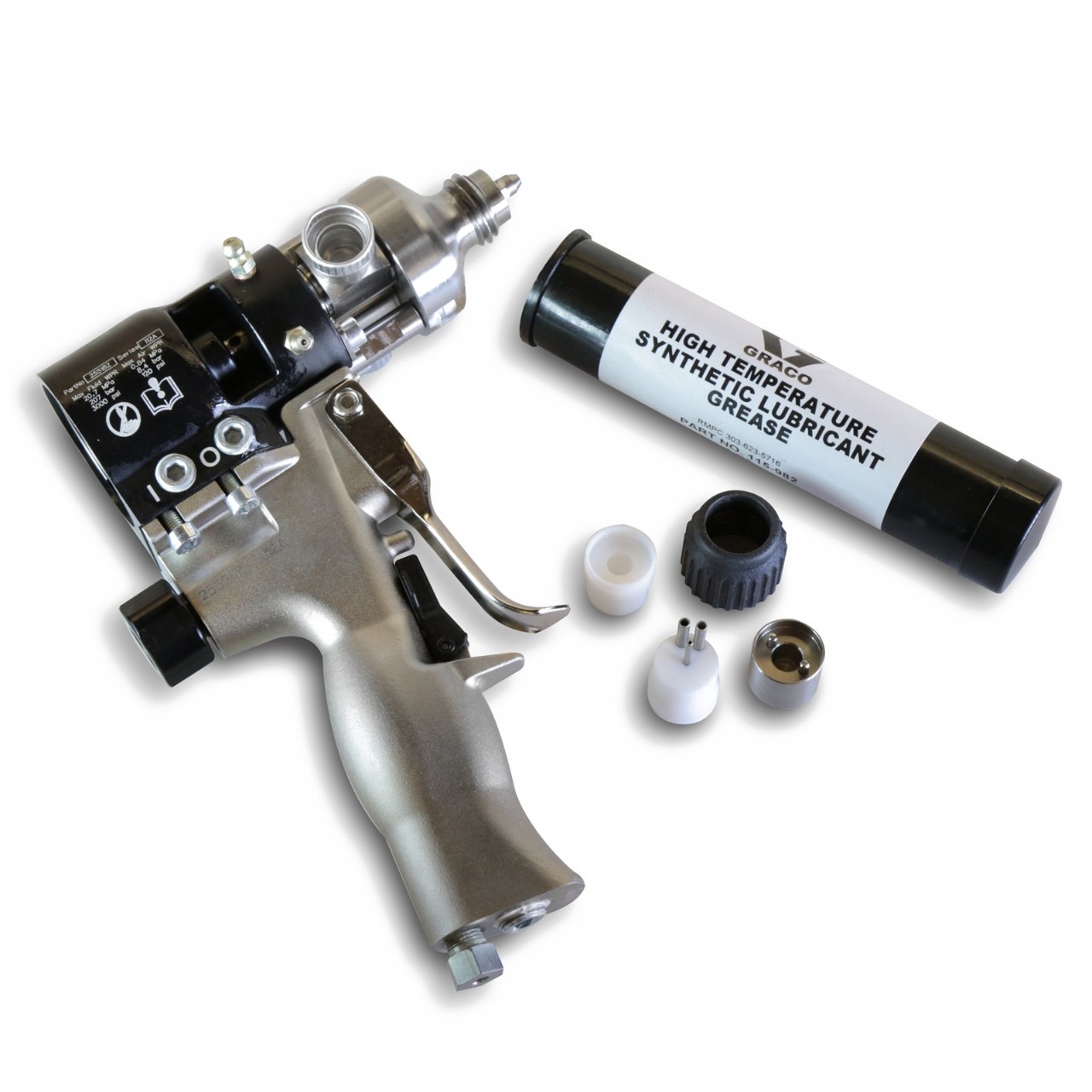

| Includes | 10:1 Hard Seat Dispense Valve, Gasket Handle, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool |
| Inlet Size (in) | 9/16-18 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Viscosity (cP) | 20 |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Metric |
| Type | Metering Valve |
| Air Inlet Size (cm) | 0.3175 |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Size (mm) | 3.175 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding |
| Compatible Material | 2K Sealants, Adhesives |
| Component Type | Plural-Component |
| Fluid Inlet Size (in) | 9/16-18 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | UNF |
| Fluid Outlet Size (in) | 7/8-9 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNC |
| Gun Activation | Manual |
| Includes | 10:1 Hard Seat Dispense Valve, Gasket Handle, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool |
| Inlet Size (cm) | 1.42875 |
| Inlet Size (in) | 9/16-18 |
| Inlet Size (mm) | 14.2875 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Viscosity (cP) | 20 |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Metric |
| Type | Metering Valve |
