3 in Quick Clamp Flange Mount Motor, ATEX

25C464

3 in Quick Clamp Flange Mount Motor, ATEX

25C464

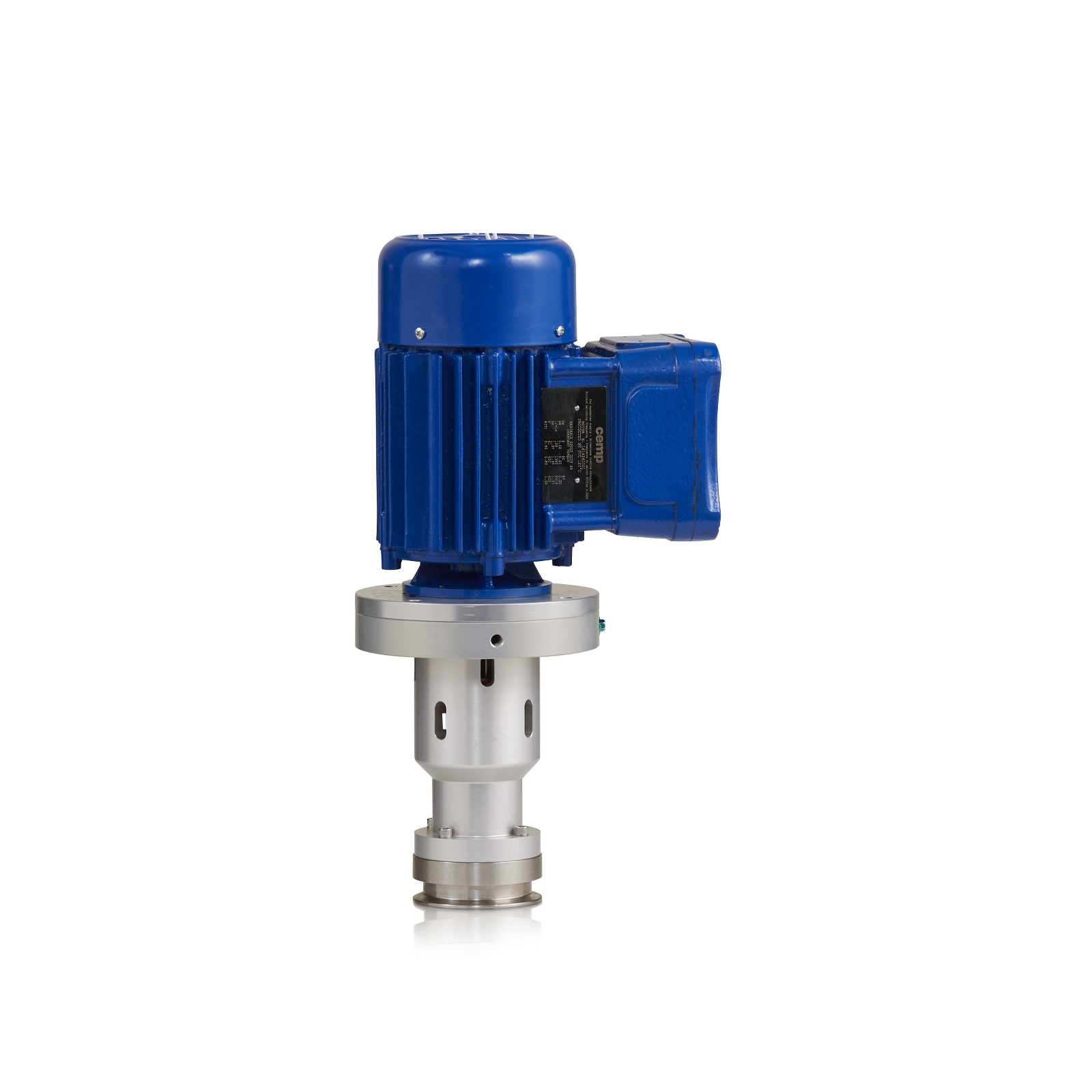

Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks. This 3" Quick-clamp Flange Mount Motor does not come with shaft or impeller.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks. This 3" Quick-clamp Flange Mount Motor does not come with shaft or impeller.

For advanced control and energy savings, switch to electric agitators.

  • Electric agitators are up to 5 times more efficient than pneumatic agitators
  • Speed remains constant, regardless of material level in tank
  • Low shear mixing ensures uniform particle dispersion without material degradation
  • Quiet motor improves work environment with a sound pressure level of less than 75 dBA

Specifications

Technical Specifications

Convert to Metric
For Use With 36 inch diameter or wide container
Includes Motor, Flange
Maximum Operating Temperature (°F) 104
Maximum Speed (RPM) 500
Maximum Viscosity (cP) 300
Minimum Operating Temperature (°F) 32
Motor Type Electric
Power Rating (HP) 0.75
Power Rating (kW) 0.37
Type Agitator
Weight Range (lb) 55-65
Wetted Material Stainless Steel
For Use With 36 inch diameter or wide container
Includes Motor, Flange
Maximum Operating Temperature (°C) 40
Maximum Speed (RPM) 500
Maximum Viscosity (cP) 300
Minimum Operating Temperature (°C) 0
Motor Type Electric
Power Rating (HP) 0.75
Power Rating (kW) 0.37
Type Agitator
Weight Range (kg) 25-30
Wetted Material Stainless Steel
